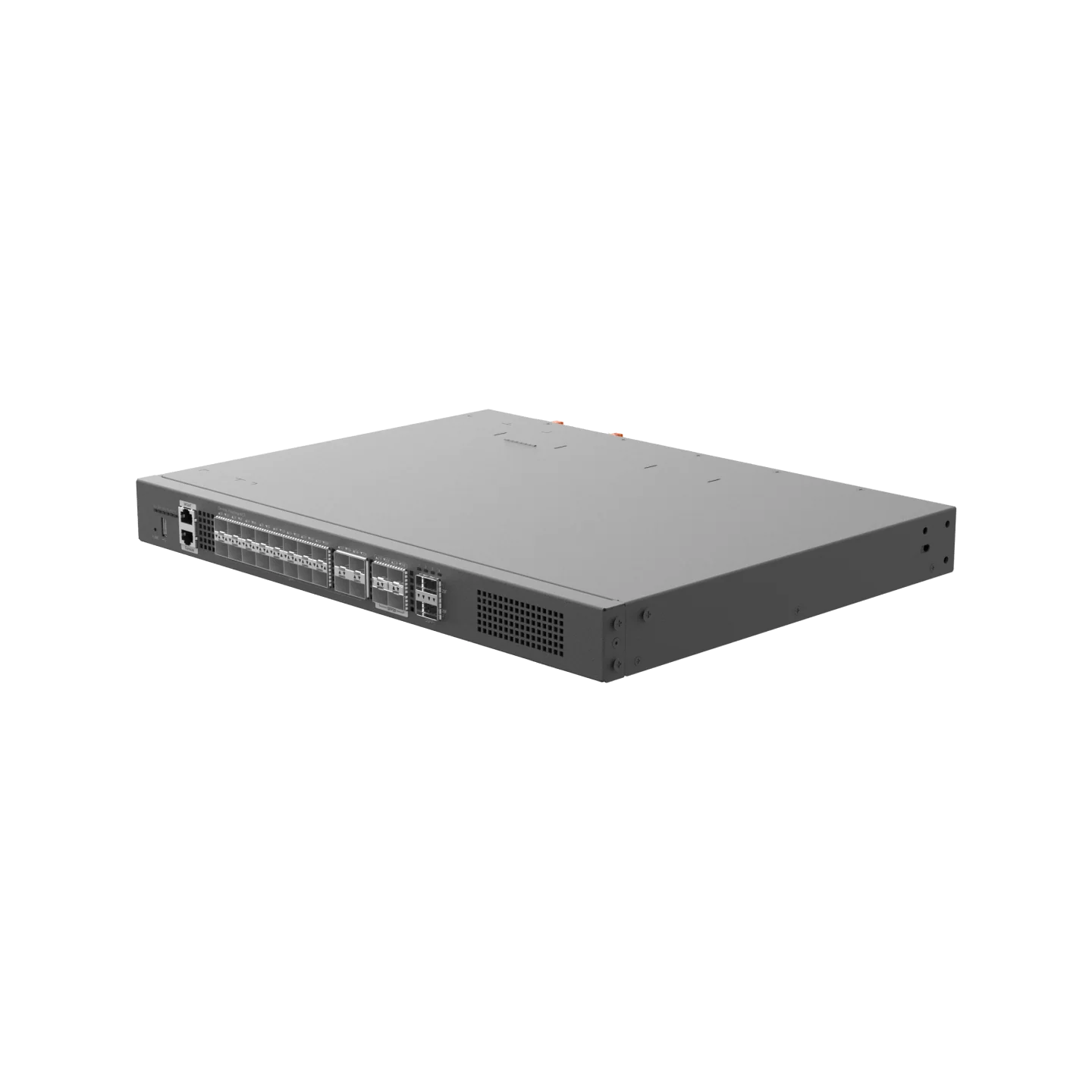

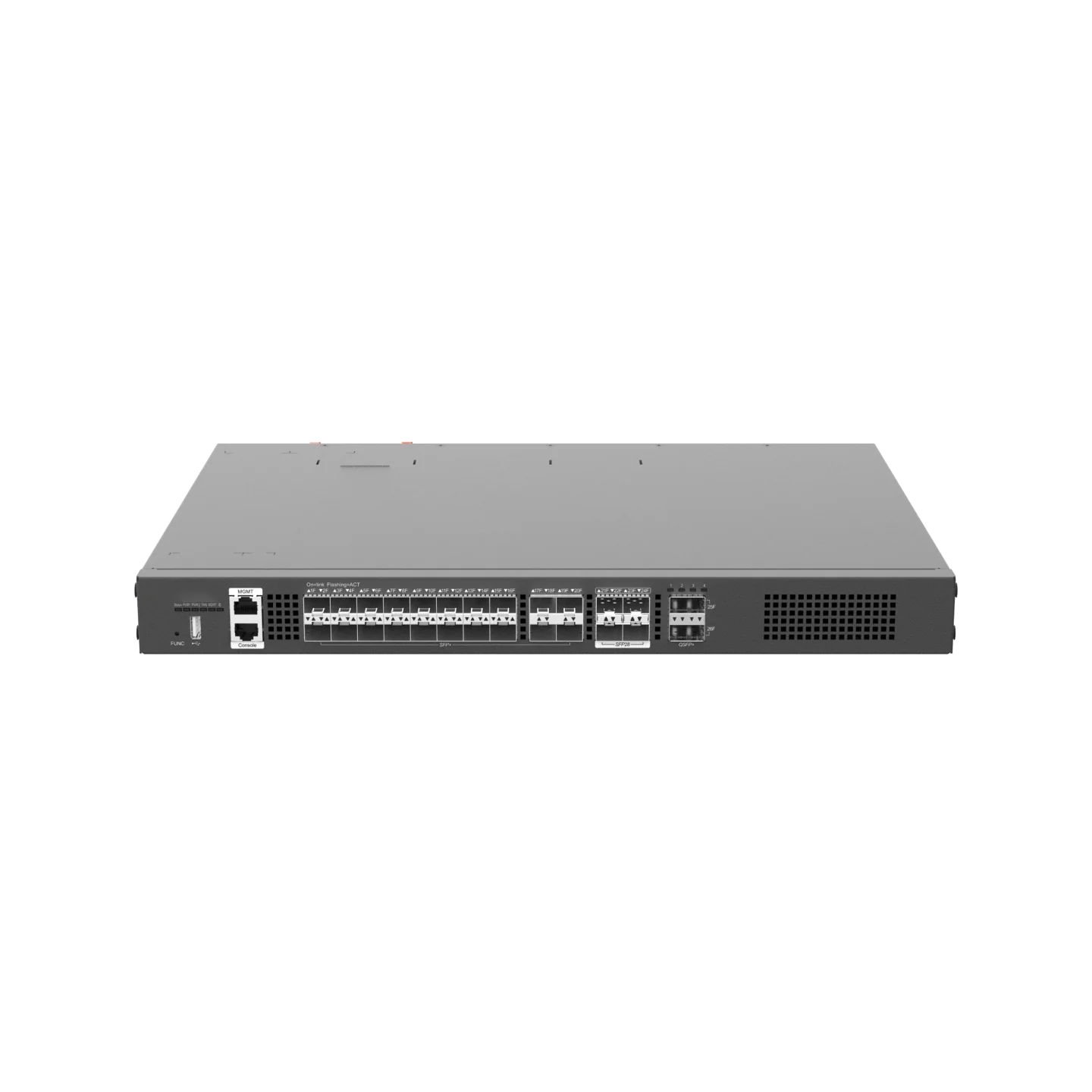

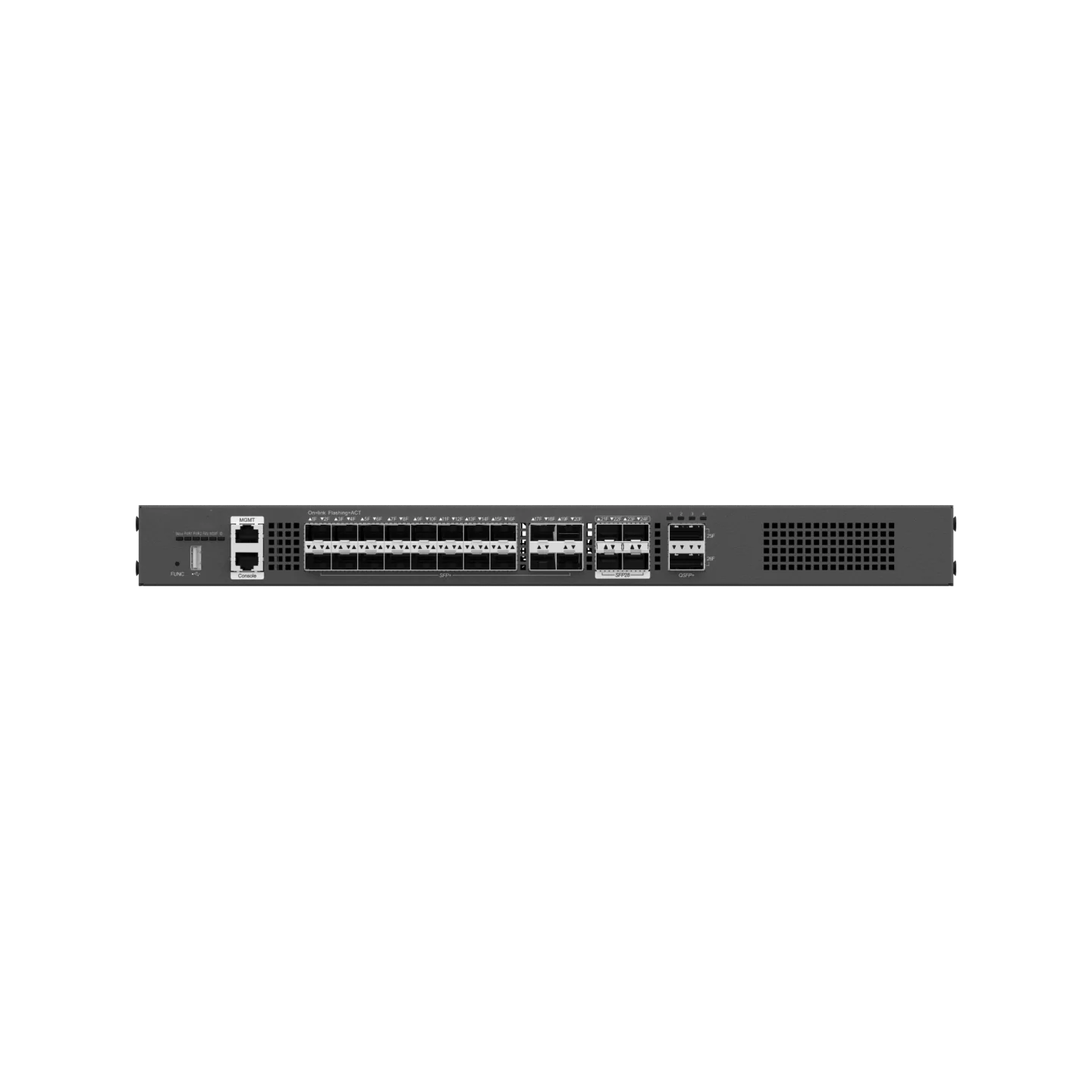

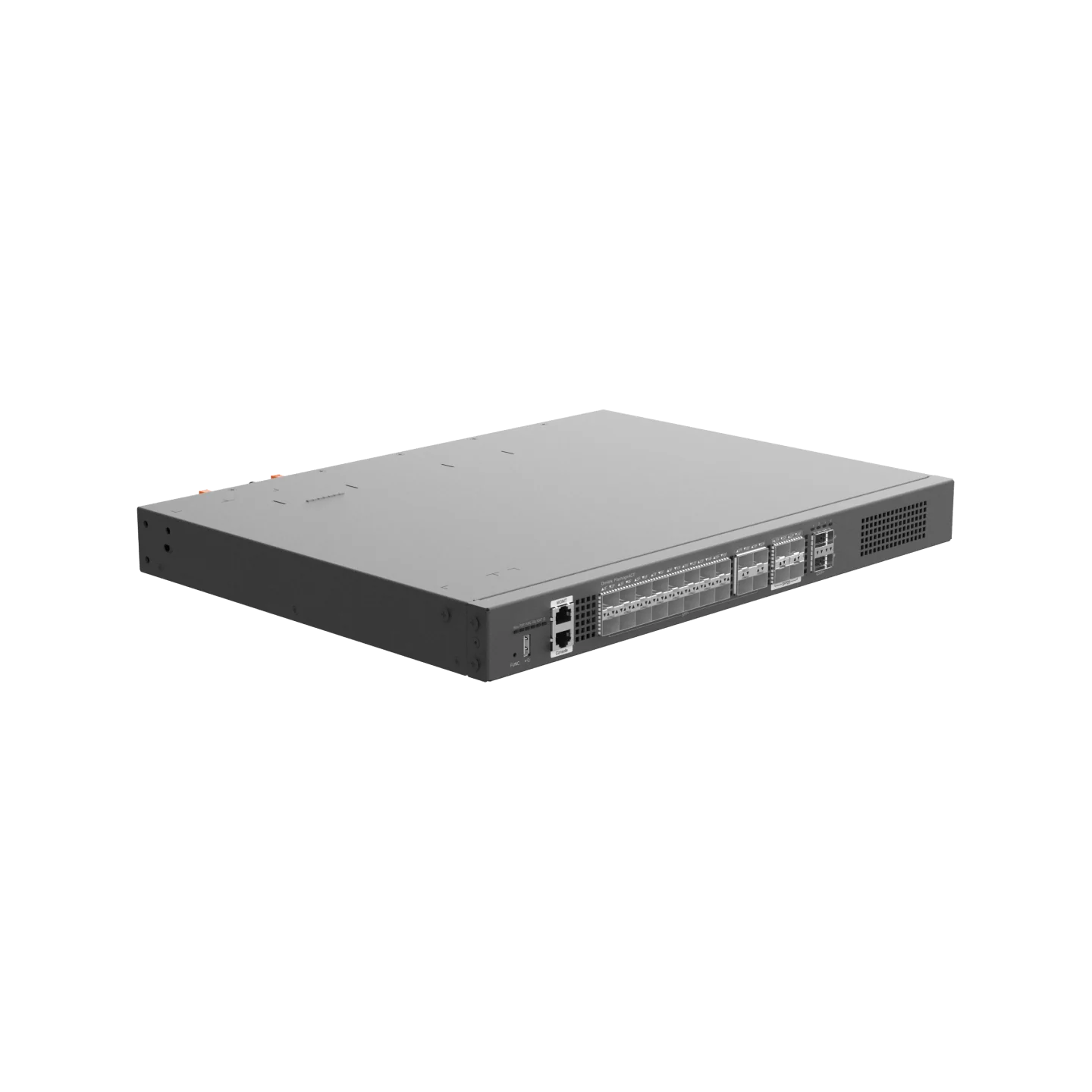

NSComm S6120-20XS4VS2QXS-UP 20x10G/25G & 40G QSFP Core Aggregation Switch
20×1/2.5/10 Gbps SFP+ + 4×10/25 Gbps SFP28 + 2×40 Gbps QSFP+ Core/Aggregation Switch
Overview
The NS-S6120-20XS4VS2QXS is a versatile all-optical L3 core/aggregation switch with 20×1/2.5/10 Gbps SFP+ ports, 4×10/25 Gbps SFP28, 2×40 Gbps QSFP+ uplinks, Virtual Switch Unit support, and up to 912 Gbps switching capacity for mid-sized campus and enterprise networks.
Highlights
-
High-Density Optical Access: 20×1/2.5/10 Gbps SFP+ & 4×10/25 Gbps SFP28 + 2×40 Gbps QSFP+
-
912 Gbps / 678 Mpps forwarding
-
Line-Rate IPv4/IPv6 dual-stack routing, ECMP, multicast (IGMP/PIM)
-

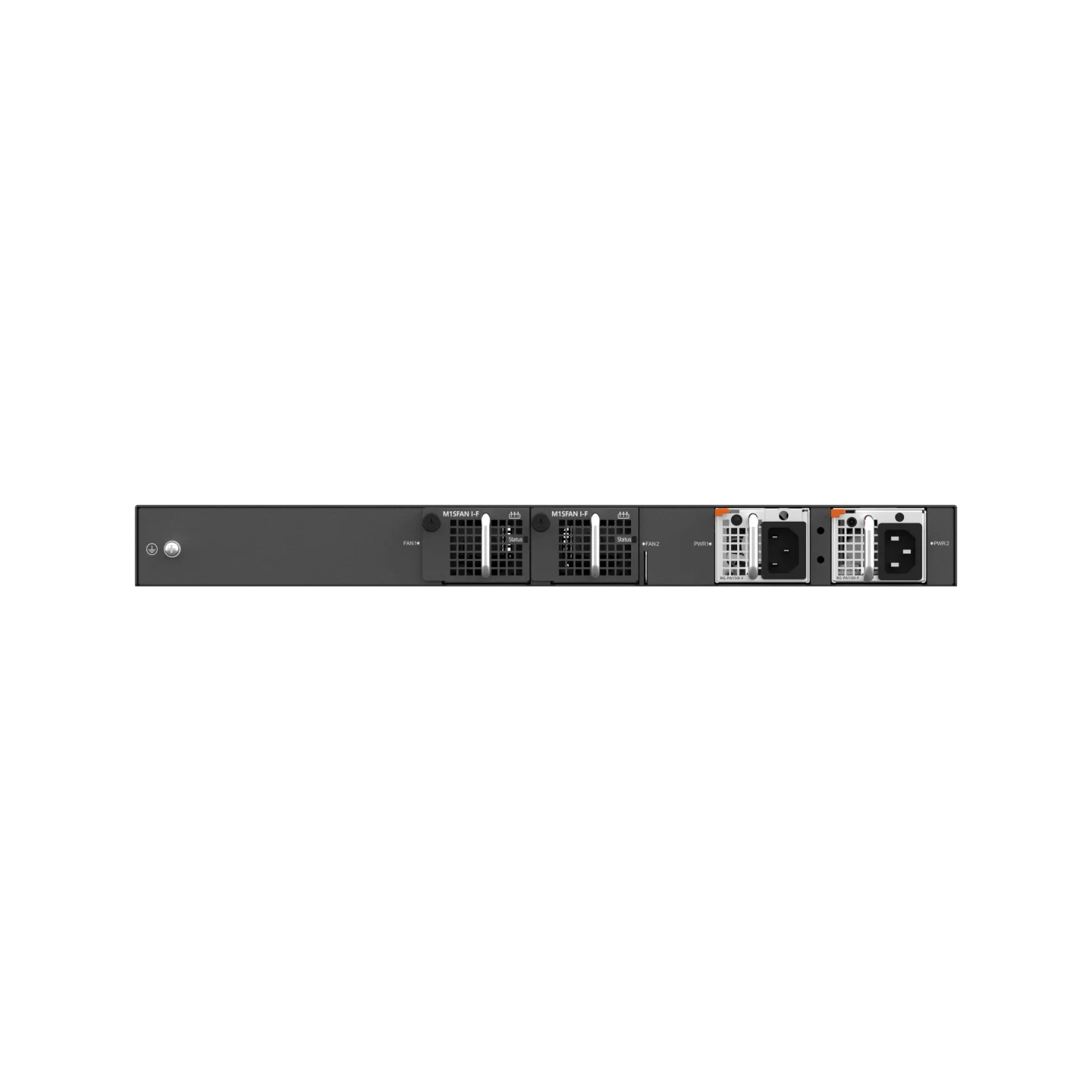

Modular Resilience: 2 PSU slots, 2 fan slots, hot-swap support
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA150IB-P-F | AC Power Module | 150 W hot-swap PSU |
| NS-PA550II-F | AC Power Module | 550 W hot-swap PSU |
| NS-RMK-1U | Rack Mount Kit | 19″ 1U mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG-S6000C-48GT4XS-E | 48×1 GbE RJ45, 4×10 GbE SFP+ | 256 Gbps | 192 Mpps | None | Dual PSU slots, dual-boot flash, 1 fan slot |
| NS-S6000C-48GT4XS-E | Same | Same | Same | None | Same |
| Ruijie RG-S6150-24VS8CQ-X | 24×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 2.8 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-24VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6150-48VS8CQ-X | 48×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 4 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-48VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6110-48MG4VS2QXS-UP | 48×100 Mb–5 GbE PoE/PoE+, 4×25 GbE SFP28, 2×40 GbE QSFP28 | 840 Gbps | 625 Mpps | Up to 1 600 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6110-48MG4VS2QXS-UP | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-24XMG4XS4VS-UP-H | 24×100 Mb–10 GbE PoE/PoE+/PoE++, 4×10 GbE SFP+, 4×25 GbE SFP28 | 760 Gbps | 565 Mpps | Up to 1 650 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6120-24XMG4XS4VS-UP-H | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-20XS4VS2QXS | 20×1/2.5/10 GbE SFP+, 4×10/25 GbE SFP28, 2×40 GbE QSFP+ | 912 Gbps | 678 Mpps | None | Dual PSU slots, 2 fan slots |
| NS-S6120-20XS4VS2QXS | Same | Same | Same | None | Same |
Specification Summary
| Parameter | Details |
|---|---|
| Model | NS-S6120-20XS4VS2QXS |
| Service Ports | 20×1/2.5/10 Gbps SFP+ |
| Uplink Ports | 4×10/25 Gbps SFP28; 2×40 Gbps QSFP+ |
| Switching Capacity | 912 Gbps |
| Forwarding Rate | 678 Mpps |
| MAC Address Table | Up to 32 768 entries |
| ARP Table Size | Up to 16 000 entries |
| IPv4/IPv6 Unicast Routes | 16 000 each |
| IPv4/IPv6 Multicast Routes | IPv4: 4 000; IPv6: 2 000 |
| Power Supply & Consumption | 2×modular PSUs; no PoE (optical only) |
| Dimensions (W×D×H) | 442×220×43.6 mm; 3.65 kg |
| Environment | 0 °C–50 °C; 10–90% RH non-condensing |
| Management | SNMP, CLI, Web UI, USB log backup |
