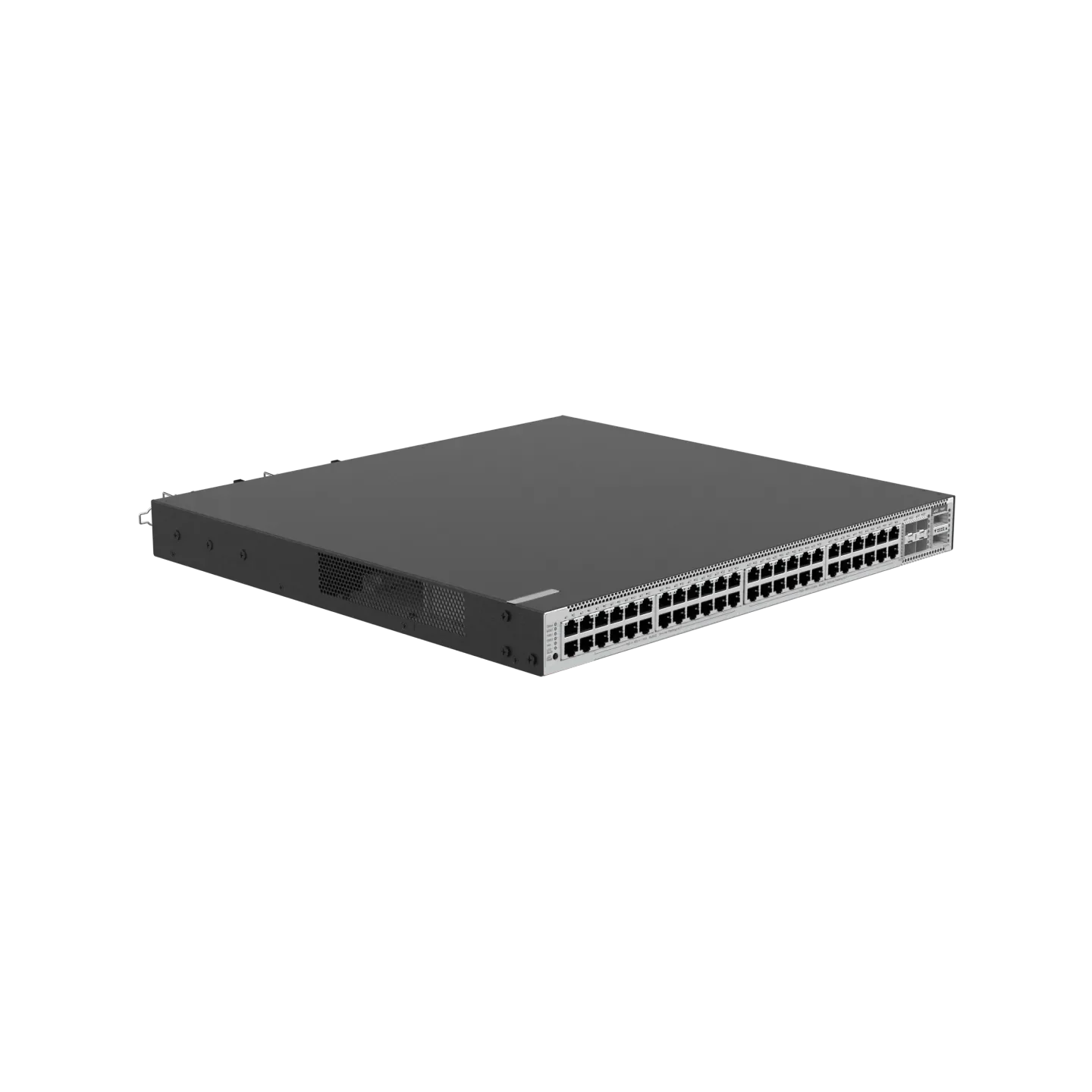

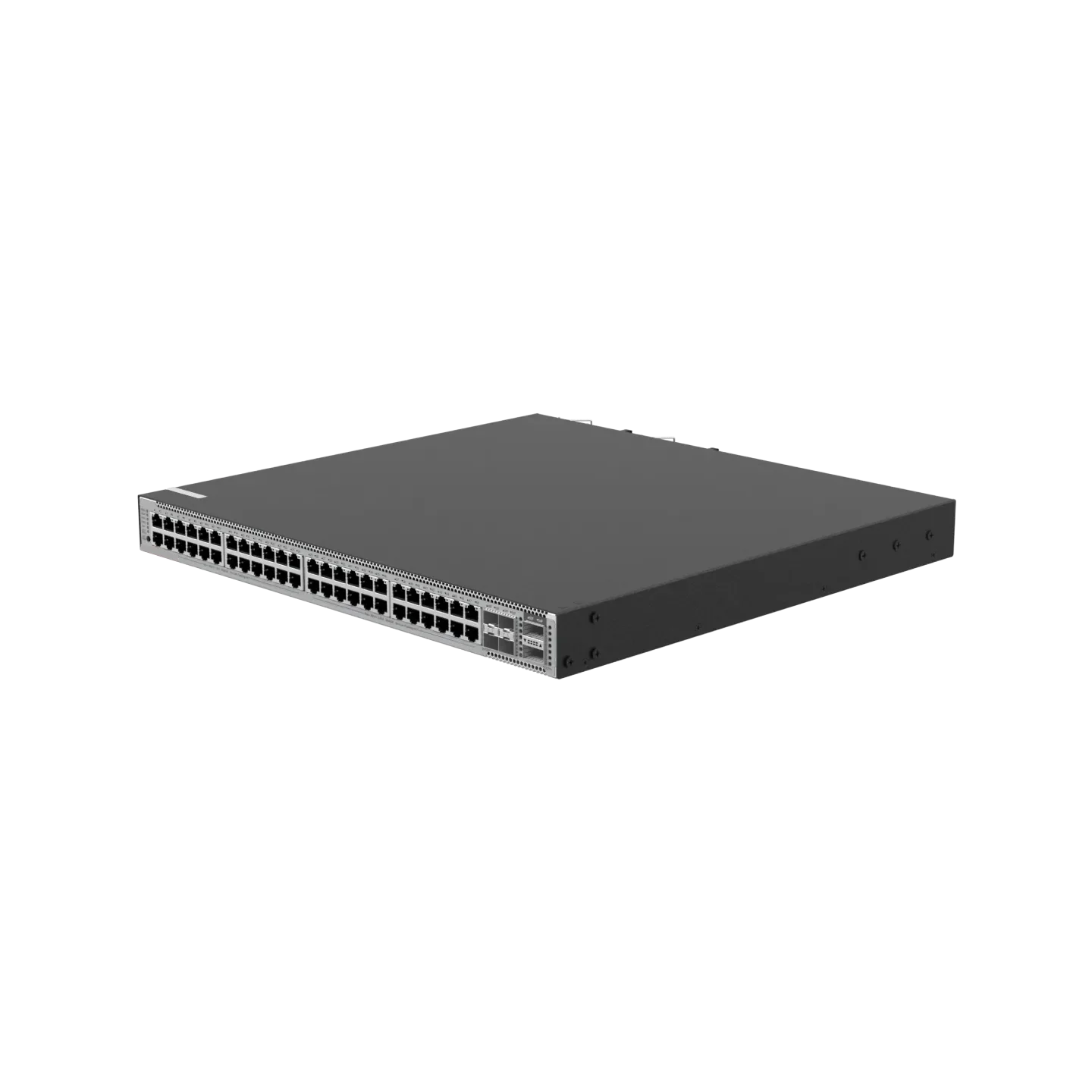

NSComm S6110-48MG4VS2QXS-UP 48xMulti-Gig & 40G/Uplink PoE++ Campus Switch
48×1/2.5/5 Gbps Multi-Gig + 4×25 Gbps SFP28 + 2×40 Gbps QSFP28 PoE++ Campus/Core Switch
Overview
The NS-S6110-48MG4VS2QXS-UP modernizes campus networks with 48 multi-gig (100 Mb–5 GbE) PoE/PoE+ ports, 4×25 Gbps SFP28, 2×40 Gbps QSFP28 uplinks, and up to 1 600 W PoE++ budget. Stackable via VSU, it supports advanced L3 routing and security policies.
Highlights
-

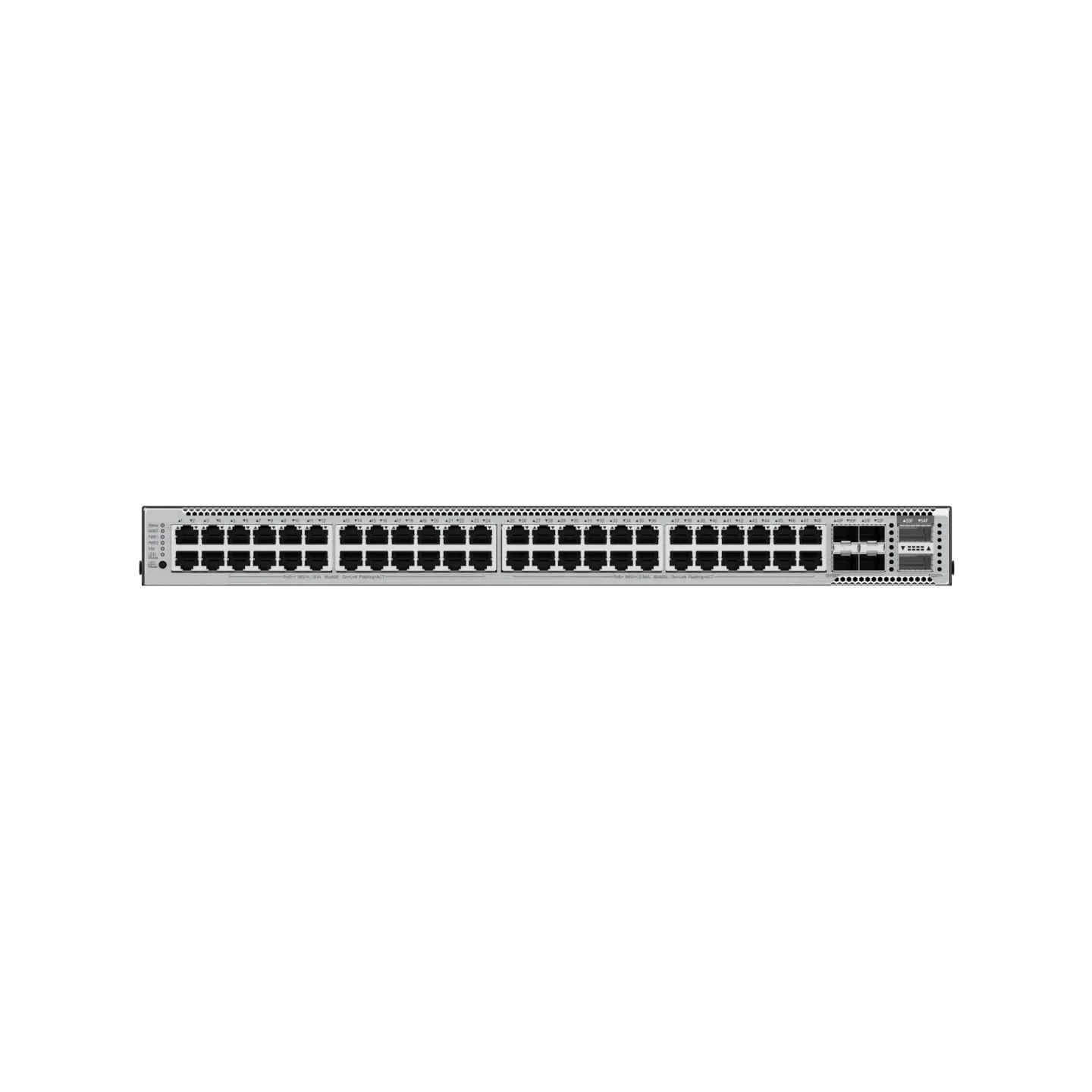

Mixed-Speed Access: 48×100 Mb/1/2.5/5 GbE RJ45 PoE/PoE+ ports (ports 1–24 support HPoE up to 90 W)
-
High-Speed Uplinks: 4×25 Gbps SFP28 + 2×40 Gbps QSFP28
-
440 Gbps Capacity / 625 Mpps forwarding
-
Robust PoE: Up to 1 600 W PoE budget (with 2×RG-PA600I-P-F)
-

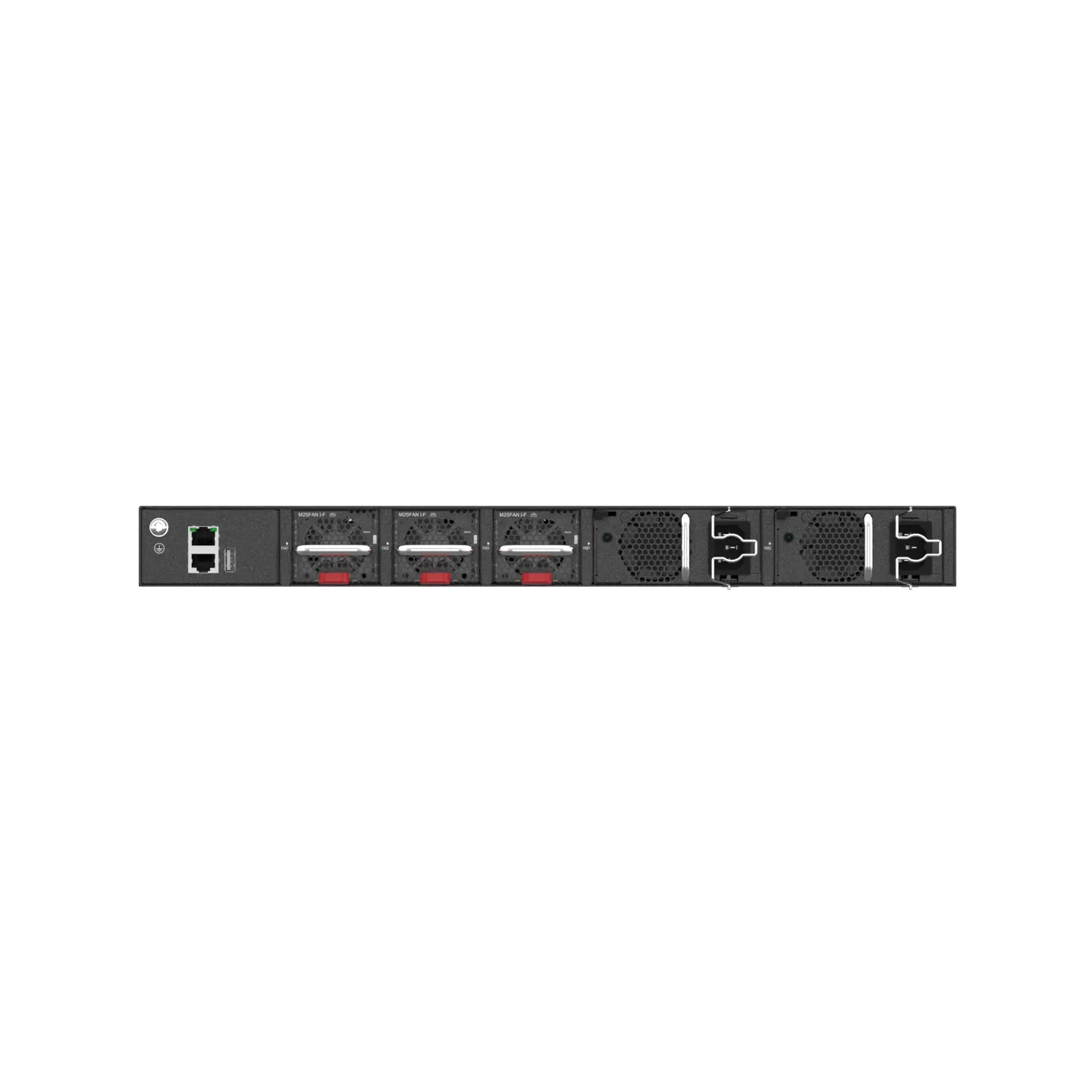

Modular Reliability: 2 PSU slots, 3 fan slots, hot-swap support
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS-PA600I-P-F | AC Power Module | 600 W power module (400 W PoE + 200 W chassis) |
| NS-PA1000I-P-F | AC Power Module | 1 000 W power module (800 W PoE + 200 W chassis) |
| NS-RMK-1U | Rack Mount Kit | 19″ 1U mounting brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Switching Capacity | Forwarding Rate | PoE/PoF Capability | Redundancy Features |
|---|---|---|---|---|---|
| Ruijie RG-S6000C-48GT4XS-E | 48×1 GbE RJ45, 4×10 GbE SFP+ | 256 Gbps | 192 Mpps | None | Dual PSU slots, dual-boot flash, 1 fan slot |
| NS-S6000C-48GT4XS-E | Same | Same | Same | None | Same |
| Ruijie RG-S6150-24VS8CQ-X | 24×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 2.8 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-24VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6150-48VS8CQ-X | 48×1/10/25 GbE SFP28, 8×40/100 GbE QSFP28 | 4 Tbps | — | None | Dual PSU, 4 fan modules, dual-boot flash |
| NS-S6150-48VS8CQ-X | Same | Same | Same | None | Same |
| Ruijie RG-S6110-48MG4VS2QXS-UP | 48×100 Mb–5 GbE PoE/PoE+, 4×25 GbE SFP28, 2×40 GbE QSFP28 | 840 Gbps | 625 Mpps | Up to 1 600 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6110-48MG4VS2QXS-UP | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-24XMG4XS4VS-UP-H | 24×100 Mb–10 GbE PoE/PoE+/PoE++, 4×10 GbE SFP+, 4×25 GbE SFP28 | 760 Gbps | 565 Mpps | Up to 1 650 W PoE++ | Dual PSU slots, 3 fan slots |
| NS-S6120-24XMG4XS4VS-UP-H | Same | Same | Same | Same | Same |
| Ruijie RG-S6120-20XS4VS2QXS | 20×1/2.5/10 GbE SFP+, 4×10/25 GbE SFP28, 2×40 GbE QSFP+ | 912 Gbps | 678 Mpps | None | Dual PSU slots, 2 fan slots |
| NS-S6120-20XS4VS2QXS | Same | Same | Same | None | Same |
Specification Summary
| Parameter | Details |
|---|---|
| Model | NS-S6110-48MG4VS2QXS-UP |
| Access Ports | 48×100 Mb/1/2.5/5 GbE PoE/PoE+ (HPoE on 1–24, max 90 W/port) |
| Uplink Ports | 4×25 Gbps SFP28, 2×40 Gbps QSFP28 |
| Switching Capacity | 840 Gbps |
| Forwarding Rate | 625 Mpps |
| MAC / ARP / IPv4 Routes | 32 K / 16 K / 16 K |
| CPU / Memory / Storage | 1.2 GHz single-core / 2 GB DDR4 / 1 GB flash |
| PoE Budget | 1 600 W max (2×PSUs) |
| Dimensions (W×D×H) | 442×420×43.6 mm; 6.11 kg |
| Environment | 0 °C–45 °C; 10–90% RH |
