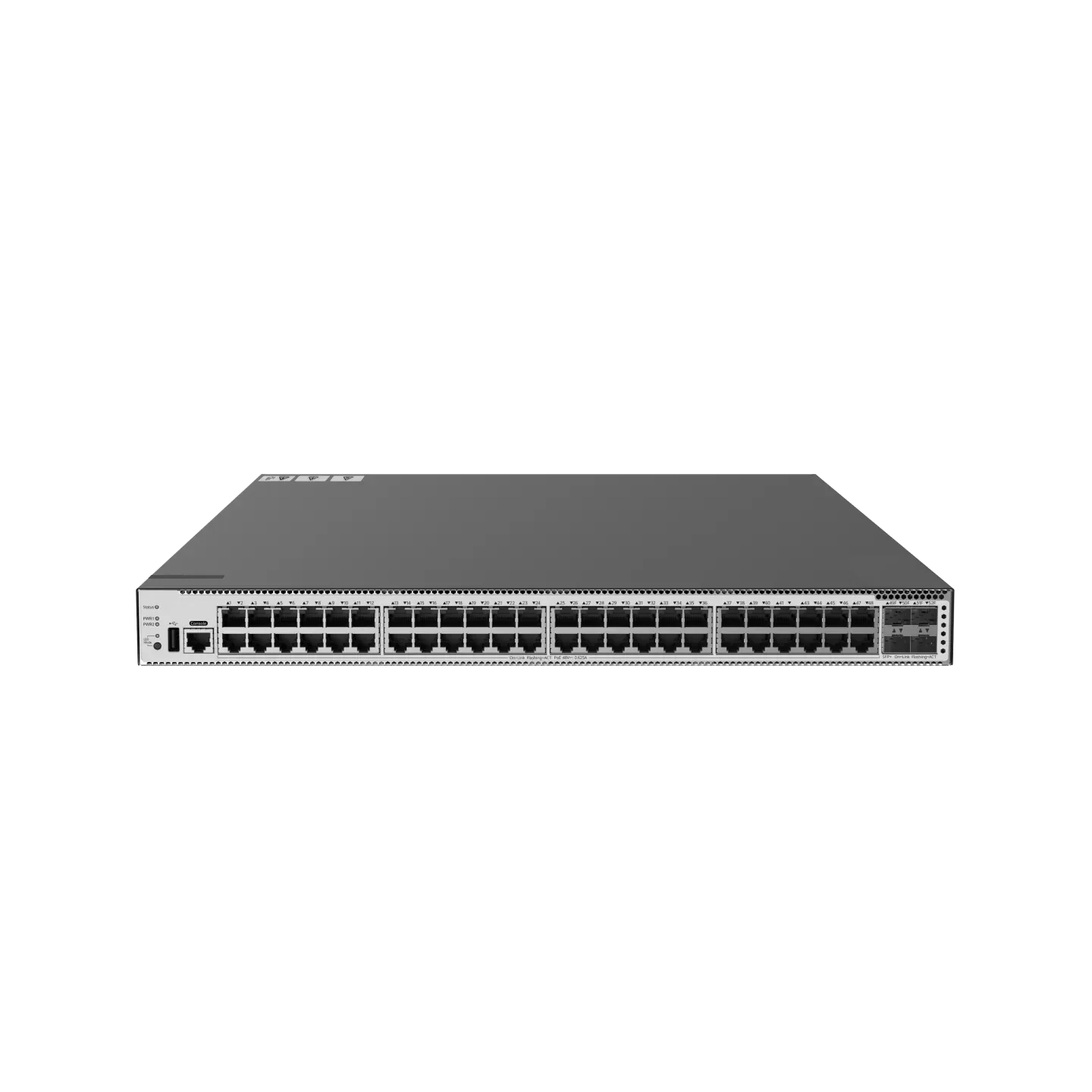

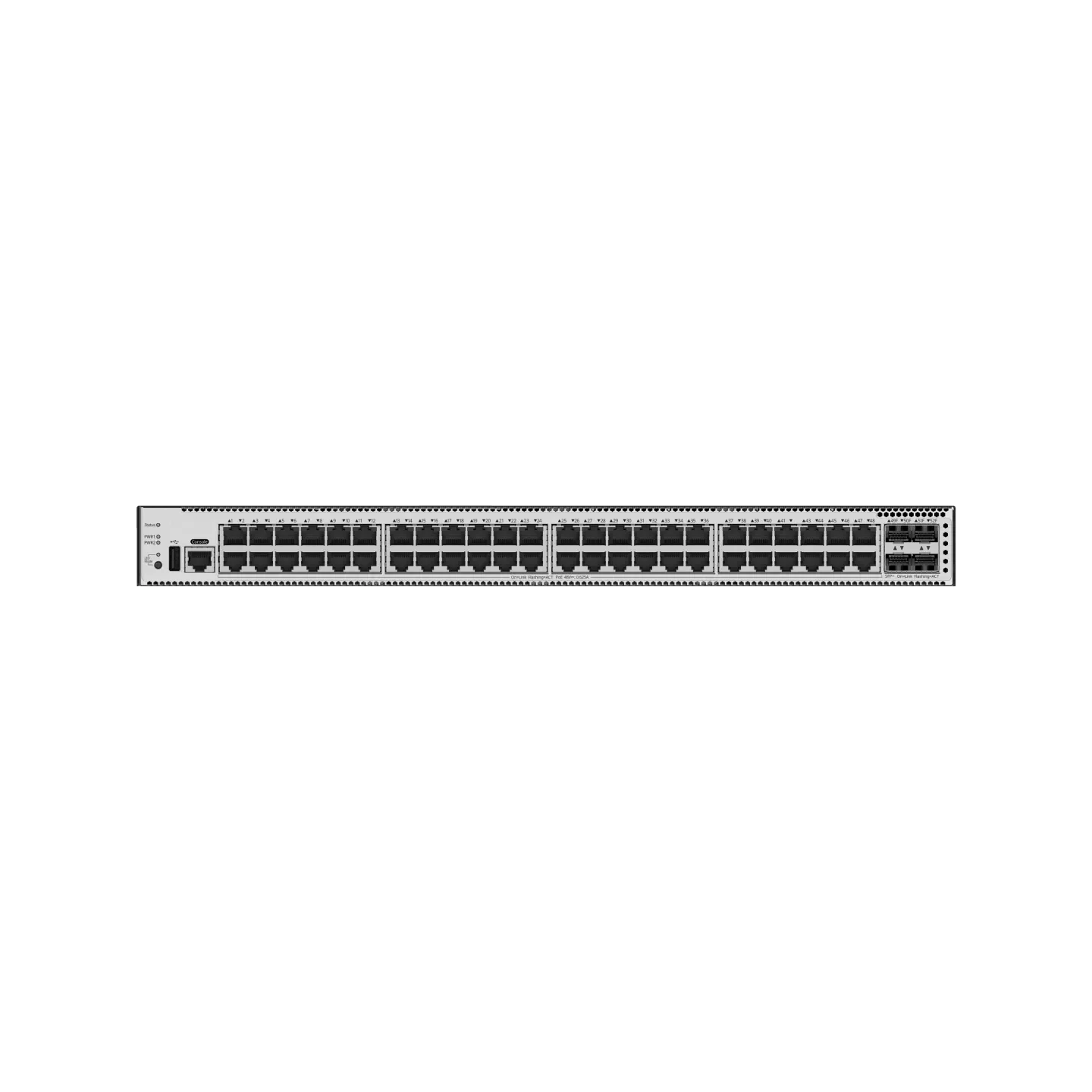

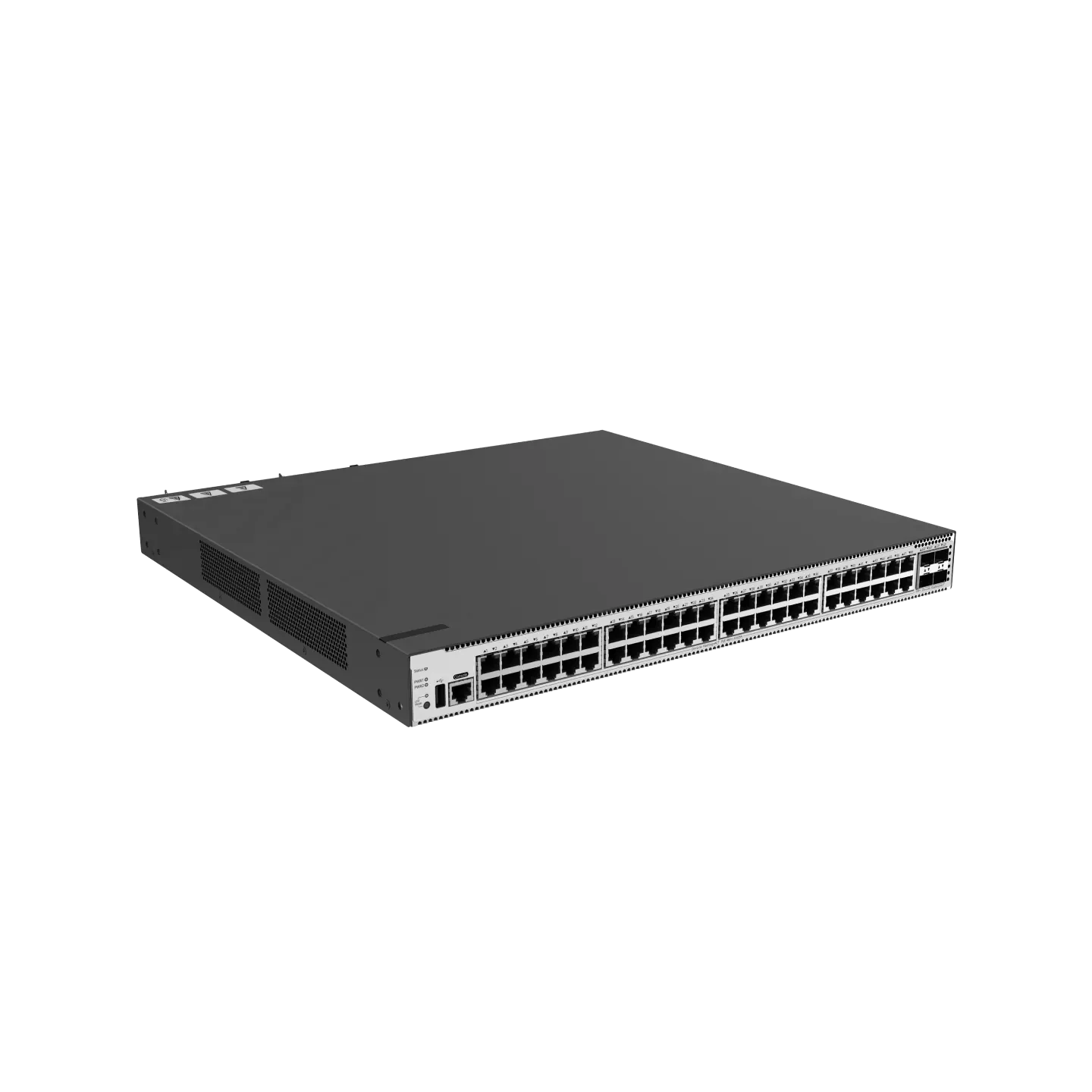

NSComm S5360-48GT4XS-P-E 48x1G (PoE+) & 4x10G SFP+ L3 PoE Switch
NS‑S5360‑48GT4XS‑P‑E, 48 × 1 Gbps PoE+ RJ45 + 4 × 10 Gbps SFP+ Layer 3 PoE Switch
As a trusted OEM partner alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers exactly the same hardware, firmware (RGOS 12.X), and industrial‑grade reliability of Ruijie’s RG‑S5360‑24GT4XS‑E under your brand label.
Our NS‑S5360‑E series delivers enterprise‑grade Layer 3 routing, virtualization (VSU), robust security, and flexibility of uplinks and PoE configurations across 24‑port and 48‑port models.
Overview
Delivers 211 Gbps switching and 158 Mpps forwarding, with full PoE+ support up to 1440 W (depending on PSU modules) and hot‑swap redundancy, reliable for powering large-scale deployments.
Highlights
-
Supports IEEE 802.3af/at on all 48 ports, up to 30 W each
-
Powerful resilience: Temperature tolerance, nano-coating, surge protection
-

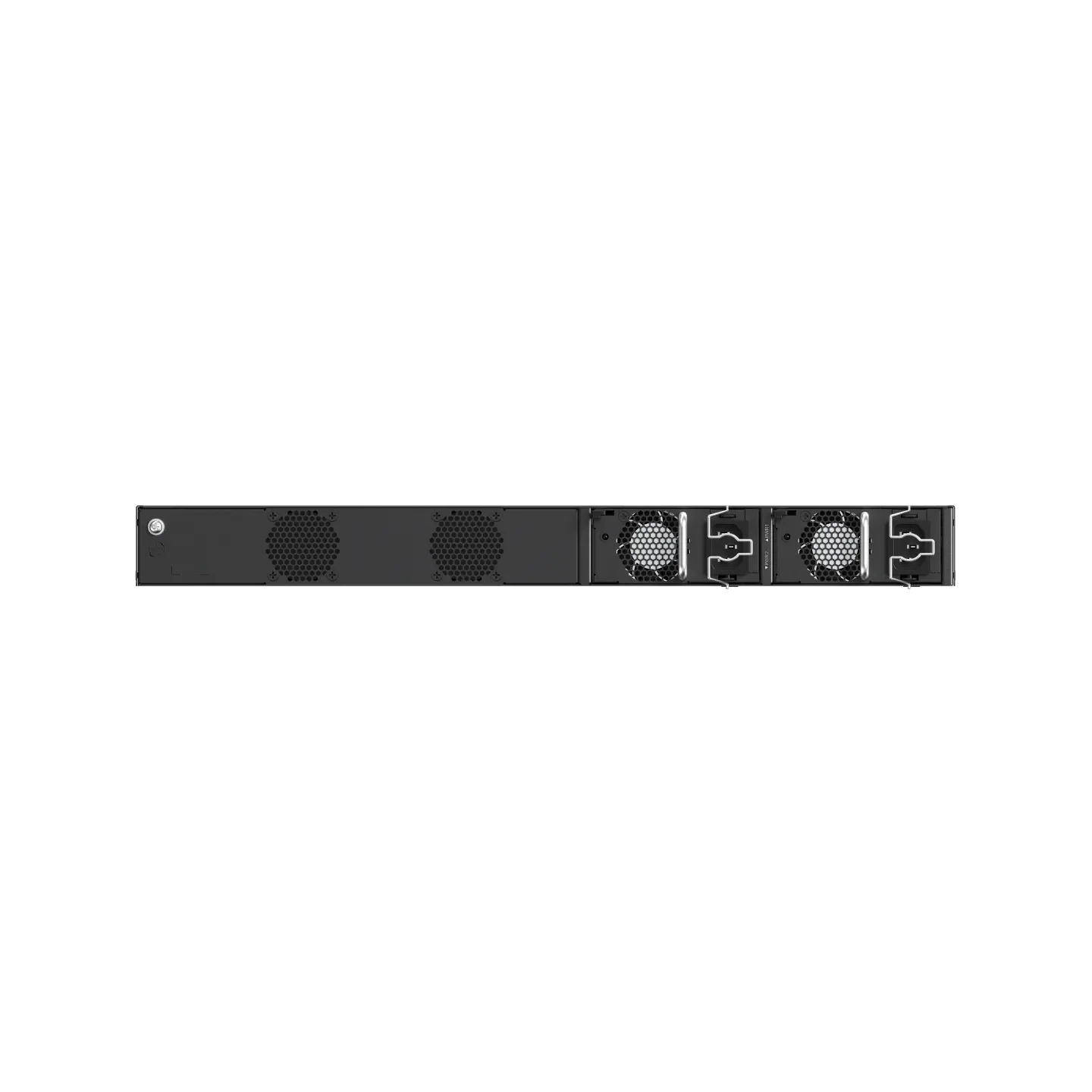

Dual PSU slots for redundant power
-
Full Layer 3 routing, VSU, advanced security and ACL support
-
Easy multi-platform management and Ruijie INC/cloud provisioning
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA600I‑P‑F | AC Power Module | 600 W PSU, supports high PoE loads |
| NS‑PA1000I‑P‑F | AC Power Module | 1 000 W PSU for maximum redundancy |
| NS‑PA70IB | AC Power Module | 70 W minimal module |
| NS‑XG‑SFP‑SR | SFP+ Transceiver | 10 G SR fiber module |
| NS‑RMK‑1U | Rack Mount Kit | 19″ 1 U rack brackets |
Compare with Similar Models
| Model | Ports & Uplinks | Capacity / Forwarding | PoE+ Budget | Power Redundancy |
|---|---|---|---|---|
| Ruijie RG‑S5360‑24GT4XS‑E | 24 × GE + 4 × 10 GE SFP+ | 154 Gbps / 115 Mpps | None | Dual hot-swap PSUs |
| NS‑S5360‑24GT4XS‑E | Same | Same | None | Same |
| Ruijie RG‑S5360‑48GT4XS‑E | 48 × GE + 4 × 10 GE SFP+ | 211 Gbps / 158 Mpps | None | Dual PSUs |
| NS‑S5360‑48GT4XS‑E | Same | Same | None | Same |
| Ruijie RG‑S5360‑24GT4XS‑P‑E | 24 × GE PoE+ + 4 × 10 GE SFP+ | 154 Gbps / 115 Mpps | Up to 740 W | PoE PSU Redundancy |
| NS‑S5360‑24GT4XS‑P‑E | Same | Same | Same | Same |
| Ruijie RG‑S5360‑48GT4XS‑P‑E | 48 × GE PoE+ + 4 × 10 GE SFP+ | 211 Gbps / 158 Mpps | Up to 1440 W | PoE PSU Redundancy |
| NS‑S5360‑48GT4XS‑P‑E | Same | Same | Same | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5360‑48GT4XS‑P‑E |
| Ports | 48×1 GbE PoE+ RJ45, 4×1/2.5/10 GbE SFP+ uplinks |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 158 Mpps |
| PoE+ Budget | Up to 1 440 W (48 ports × 30 W) |
| Power Supply Slots | 2 × pluggable modules, redundancy supported |
| Power Consumption | ≤45 W (no load), ≤1 570 W (full PoE) |
| Operating Temp. | 0 °C to +45 °C standard; –40 °C to +65 °C industrial |
| Dimensions | 442×420×43.6 mm, ~4.9 kg |
| Protection | Nano‑coating, IP40, 10 kV surge resistance |
| Management & OS | SNMP/Web/CLI/Telnet/TR‑069 via Ruijie INC/cloud |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Certified Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your NSComm products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
