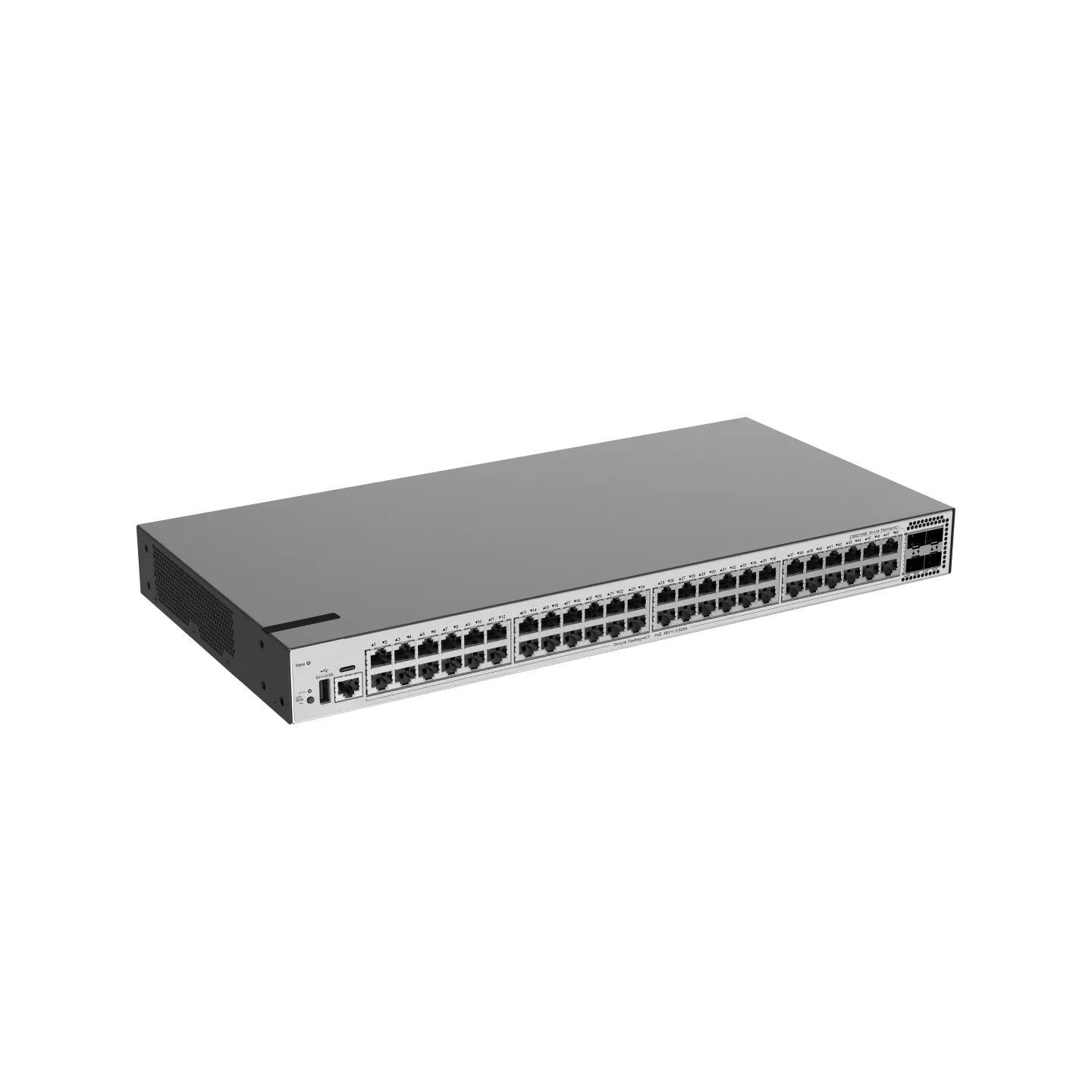

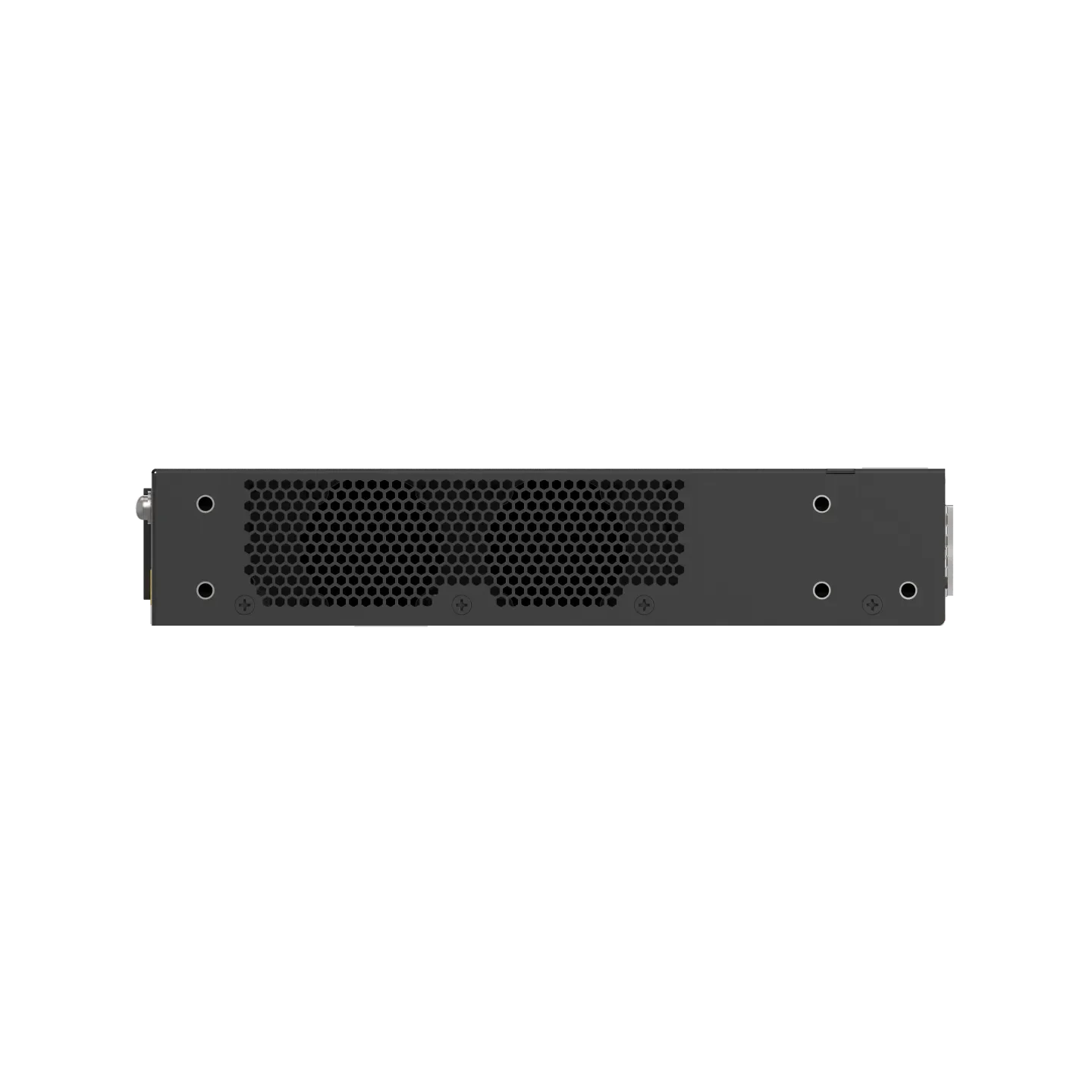

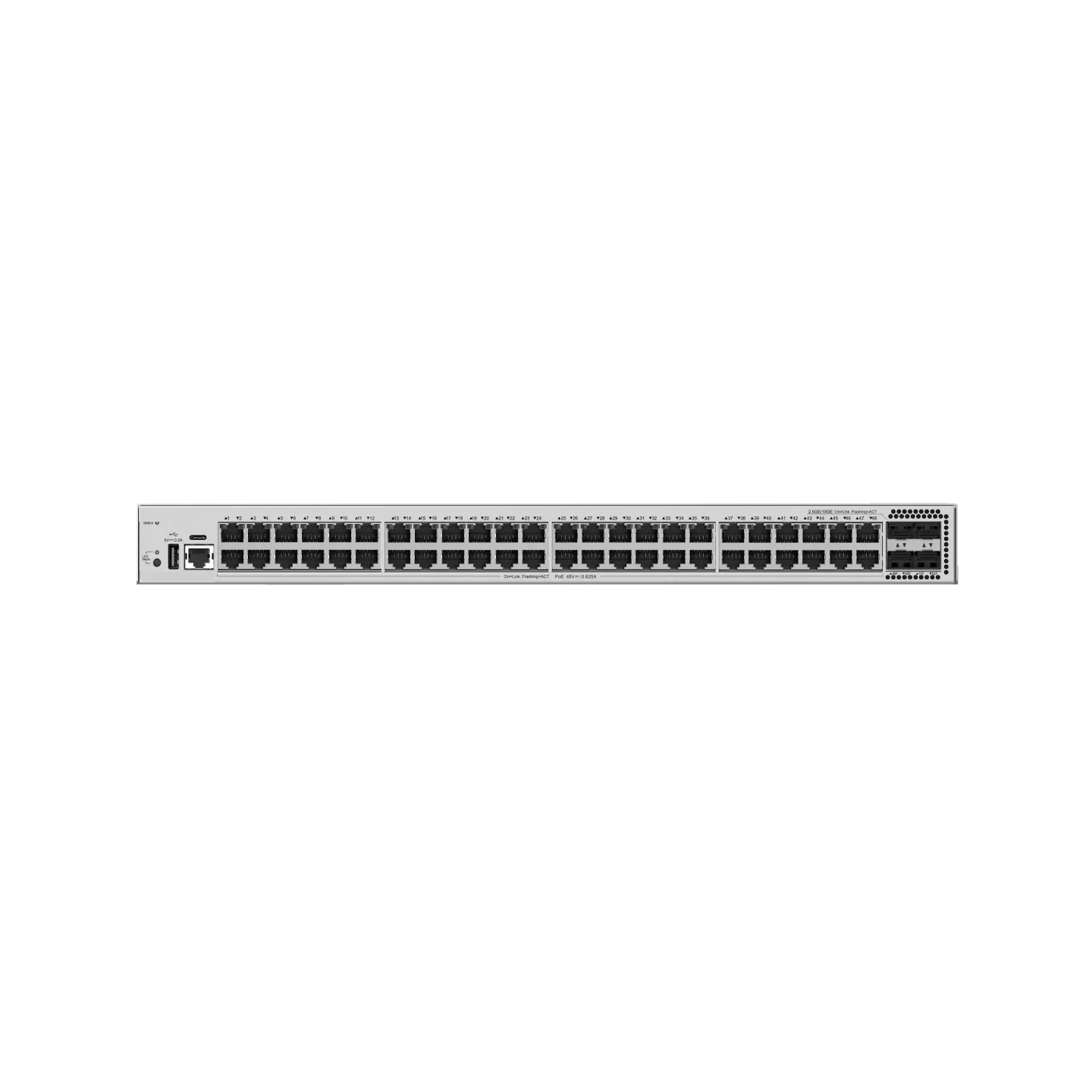

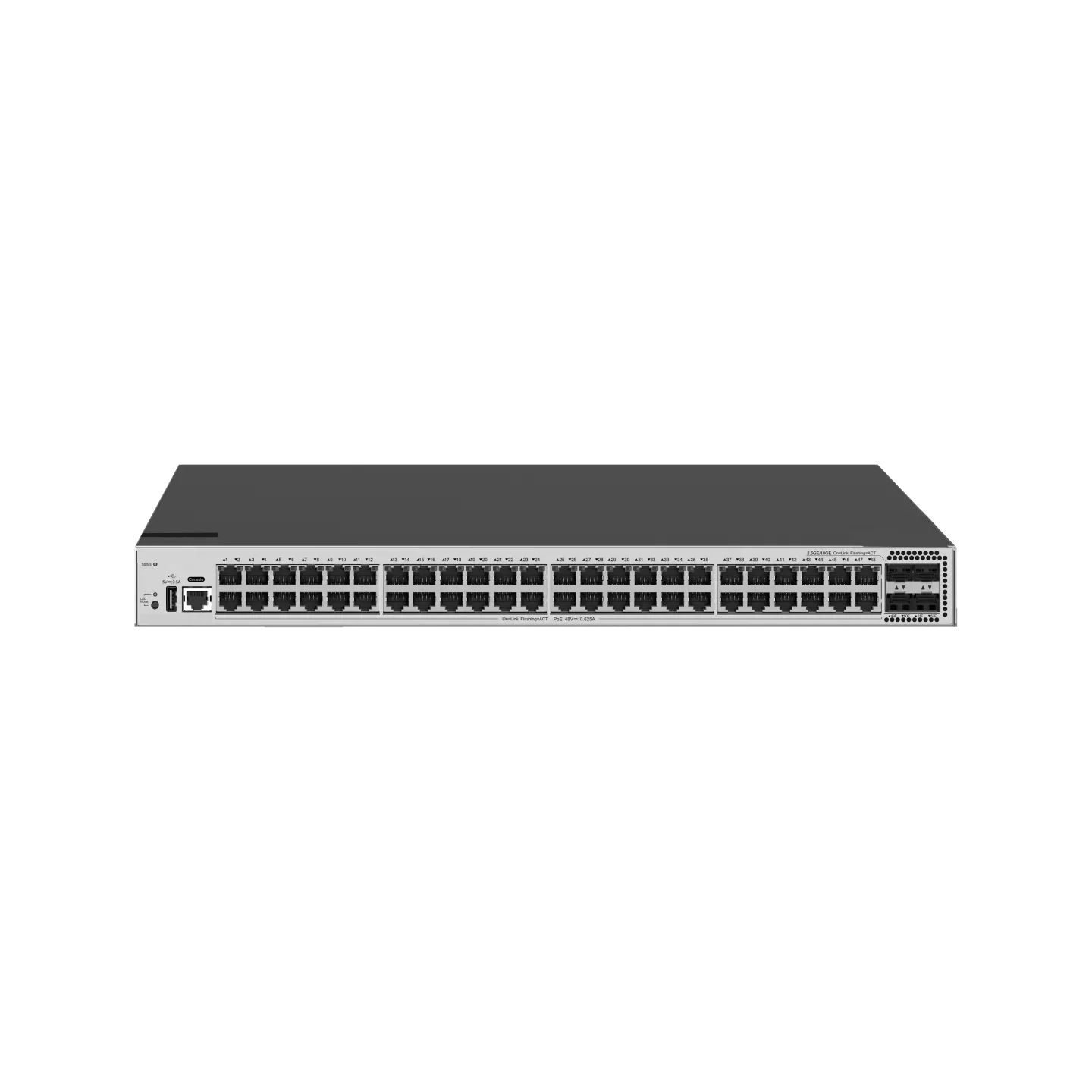

NSComm S5350-48GT4XS-P-E 48x1G (PoE+) & 4x10G SFP+ L3 PoE Switch
NSComm NS‑S5350‑48GT4XS‑P‑E High‑Capacity Gigabit PoE+ Layer 3 Access Switch
As a top OEM partner alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers the exact same hardware, software, and reliability of Ruijie’s RG‑S5350‑E series - with your brand label.
Our NS‑S5350‑E switches deliver enterprise‑grade Layer 3 routing, virtualization (VSU), robust security, high switching capacity, and PoE options across 12‑, 24‑, and 48‑port variants.
Overview
The NS‑S5350‑48GT4XS‑P‑E is a full-featured Layer 3 managed switch providing 48 × 10/100/1000 BASE‑T downlink ports with IEEE 802.3af/at PoE+ on all ports and 4 × 1/10 Gbps SFP+ uplinks.
It delivers enterprise‑class performance with advanced IPv4/IPv6 routing, VXLAN overlay, and VSU stacking for up to 8 switches as one logical device. Dual hot‑swappable power slots ensure continuous operation, while robust security and energy‑efficient design make it ideal for large‑scale campus and enterprise PoE deployments.
Highlights
-
1,440 W Total PoE Budget: Powers up to 48 devices at 30 W each via two NS‑PA1000I‑P‑F modules.
-
211 Gbps Switching Capacity & 158 Mpps Forwarding: Handles high traffic loads with wire‑speed performance.
-
Advanced Layer 3 Routing: Supports static, RIP/RIPng, OSPFv2/v3, IS‑IS, BGP4/+ on dual‑stack IPv4/IPv6.
-
Virtual Switching Unit (VSU): Stack up to 8 units into one logical switch for simplified management.
-
Enterprise‑Grade Security: 802.1X authentication, DHCP snooping, Dynamic ARP Inspection, ACLs, CPU Protection (CPP/NFPP), and 10 kV port surge protection.
-
Energy‑Efficient Design: Variable‑speed fans and Energy‑Efficient Ethernet (EEE) reduce power consumption and noise.
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA1000I‑P‑F | PoE AC Power Module | 740 W AC PSU slot module (up to 48 × 30 W PoE) |
| NS‑PA600I‑P‑F | PoE AC Power Module | 370 W AC PSU slot module (up to 24 × 30 W PoE) |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode fiber (850 nm, up to 550 m) |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode fiber (1310 nm, up to 10 km) |
| NS‑XG‑SFP‑SR‑MM850 | SFP+ Transceiver | 10 Gbps multimode fiber (850 nm, up to 300 m) |
| NS‑RMK‑1U | Rack Mount Kit | 19″ 1U mounting brackets |
| NS‑Console‑Cable | Console Cable | RJ45 to USB/DB9 cable for CLI access |
Compare with Similar Models
| Model | Ports & Uplinks | PoE | Capacity/Forwarding |
|---|---|---|---|
| Ruijie RG‑S5350‑24GT4XS‑E | 24 × 1 GbE + 4 × 10 Gbps SFP+ | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4XS‑E | 48 × 1 GbE + 4 × 10 Gbps SFP+ | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑12GT4XS‑P‑E | 12 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 125 Gbps / 94 Mpps |
| NS‑S5350‑12GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4XS‑P‑E | 24 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4XS‑P‑E | 48 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4SFP‑E | 24 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4SFP‑E | 48 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑24GT4SFP‑P‑E | 24 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4SFP‑P‑E | 48 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5350‑48GT4XS‑P‑E |
| Downlink Ports | 48 × 10/100/1000 BASE‑T (PoE+/PoE on all ports) |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 158 Mpps |
| PoE Standard | IEEE 802.3af / 802.3at |
| PoE Power Budget | Up to 1,440 W total |
| MAC Address Table | 32,000 entries |
| ARP Table Size | 4,000 / 16,000 (authorized) |
| ND Table Size | 2,000 / 8,000 (authorized) |
| IPv4 Unicast Routes | 8,000 / 12,000 (authorized) |
| IPv6 Unicast Routes | 4,000 |
| Access Control Entries | Ingress: 3,500; Egress: 1,500 |
| Power Slots | 2 × hot‑swappable PSU |
| Power Input | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 0 °C – 45 °C |
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm |
| Weight | ~ 4.3 kg |
| Mounting | 19‑inch rack mount |
| Ingress Protection | IP40 (solid object ≥ 1 mm) |
| ESD Protection | Air discharge: 8 kV / Contact discharge: 6 kV |
