NSComm S5350-48GT4XS-E 48x1G & 4x10G SFP+ L3 Managed Switch

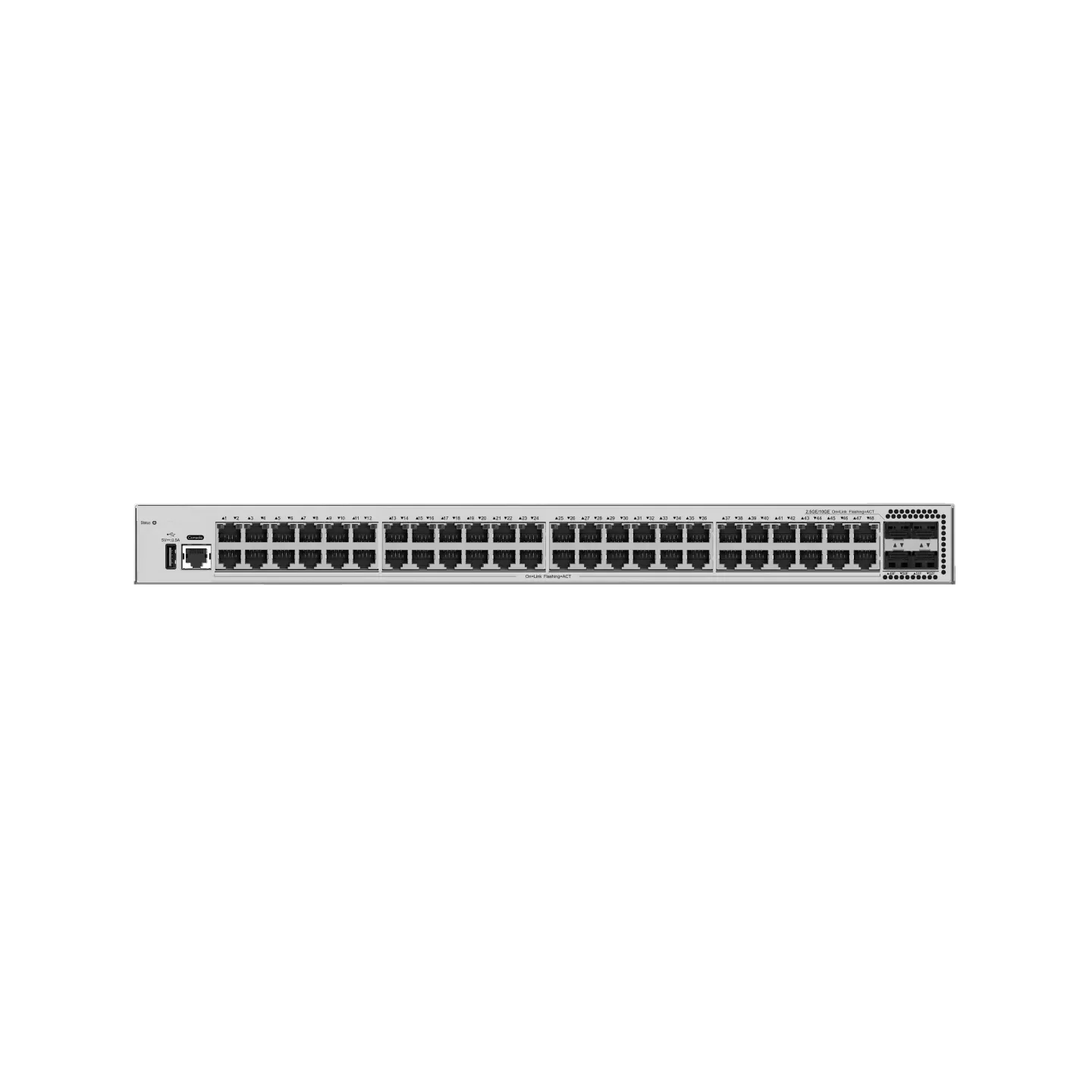

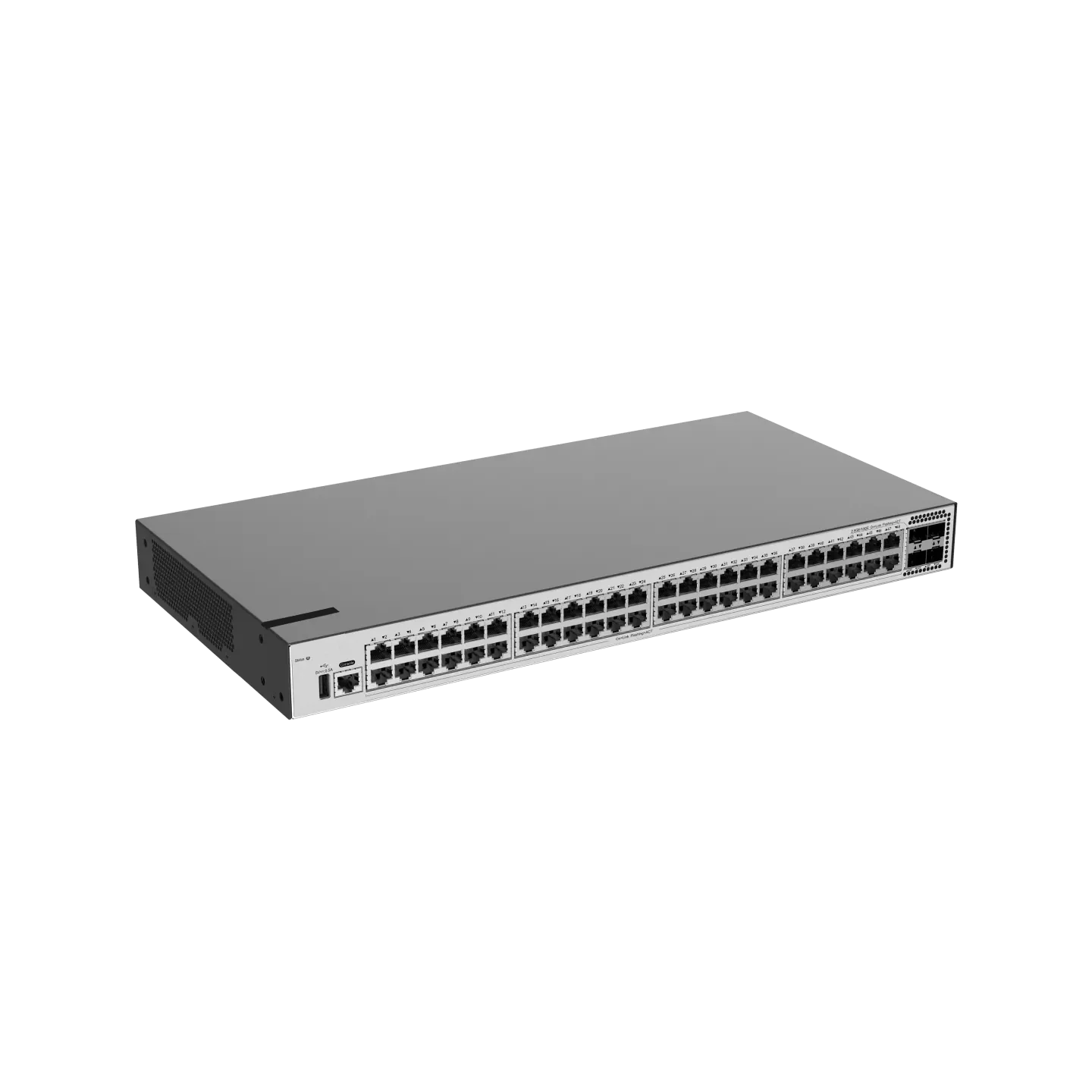

NS‑S5350‑48GT4XS‑E – 48×1 GbE + 4×10 Gbps SFP+ Layer 3 Access Switch
As a top OEM partner alongside Cisco, H3C, Huawei, and Ruijie, NSComm offers the exact same hardware, software, and reliability of Ruijie’s RG‑S5350‑E series - with your brand label.
Our NS‑S5350‑E switches deliver enterprise‑grade Layer 3 routing, virtualization (VSU), robust security, high switching capacity, and PoE options across 12‑, 24‑, and 48‑port variants.
Overview
The NS‑S5350‑48GT4XS‑E delivers 48 auto‑sensing Gigabit ports plus four 10 Gbps SFP+ uplinks, offering 211 Gbps switching capacity and 158 Mpps forwarding rate. It features full L3 routing, VXLAN, VSU stacking, advanced security, and energy‑efficient cooling.
Highlights
-
211 Gbps / 158 Mpps: High‑density performance for campus/backbone access
-
Complete L3 Suite: Static, RIP, OSPF, IS‑IS, BGP4/+ (IPv6 ready)
-
VSU Stacking: Simplifies large deployments with single‑pane management
-
End‑to‑end Security: CPP, NFPP, 802.1X, DHCP snooping, ACLs
-
Smart Cooling: Variable‑speed fans based on load and temperature
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| NS‑PA150IB‑F | AC Power Module | 150 W hot‑swap AC PSU slot |
| NS‑PD150IB‑F | DC Power Module | 150 W hot‑swap DC PSU slot |
| NS‑SFP‑1G‑SX | SFP Transceiver | 1 Gbps multimode (850 nm, 550 m) |
| NS‑SFP‑1G‑LX | SFP Transceiver | 1 Gbps single‑mode (1310 nm, 10 km) |
| NS‑RMK‑1U | Rack Mount Kit | 19″ 1U mounting brackets |
| NS‑Console‑Cable | Console Cable | RJ45 to USB/DB9 for CLI management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE | Capacity/Forwarding |
|---|---|---|---|
| Ruijie RG‑S5350‑24GT4XS‑E | 24 × 1 GbE + 4 × 10 Gbps SFP+ | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4XS‑E | 48 × 1 GbE + 4 × 10 Gbps SFP+ | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑12GT4XS‑P‑E | 12 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 125 Gbps / 94 Mpps |
| NS‑S5350‑12GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4XS‑P‑E | 24 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4XS‑P‑E | 48 × 1 GbE PoE+ + 4 × 10 Gbps SFP+ | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4XS‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑24GT4SFP‑E | 24 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑48GT4SFP‑E | 48 × 1 Gbps SFP + 4 × 1 Gbps SFP | None | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑E (NSComm) | Same | None | Same |
| Ruijie RG‑S5350‑24GT4SFP‑P‑E | 24 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 154 Gbps / 115 Mpps |
| NS‑S5350‑24GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
| Ruijie RG‑S5350‑48GT4SFP‑P‑E | 48 × 1 Gbps SFP PoE+ + 4 × 1 Gbps SFP | PoE+ | 211 Gbps / 158 Mpps |
| NS‑S5350‑48GT4SFP‑P‑E (NSComm) | Same | PoE+ | Same |
Specification Summary
| Parameter | Specification |
|---|---|
| Model | NS‑S5350‑48GT4XS‑E |
| Downlink Ports | 48 × 10/100/1000 BASE‑T |
| Uplink Ports | 4 × 1 Gbps/10 Gbps SFP+ |
| Switching Capacity | 211 Gbps |
| Forwarding Rate | 158 Mpps |
| CPU | Dual‑core 1.0 GHz |
| Memory | DDR4 1 GB |
| Flash | 512 MB |
| BootROM | 16 MB |
| Switch Buffer | 4 MB |
| MAC Address Table | 16,000 entries |
| ARP Table | 4,000 entries |
| IPv4 Routes | 6,000 |
| IPv6 Routes | 2,000 |
| Multicast Routes | IPv4: 1,000 IPv6: 750 |
| ACL Entries | Ingress 1,750 Egress 800 |
| VSU Members | Up to 8 |
| Security Features | CPP, NFPP, DHCP Snooping, ARP Inspection, ACLs |
| Power Input | AC 100–240 V |
| Operating Temp. | 0 °C – 45 °C |
| Dimensions (W×D×H) | 442 × 220 × 43.6 mm |
| Weight | ~3.25 kg |
| Mounting | Rack / Wall / Desktop |
| MTBF | > 200,000 hours |
