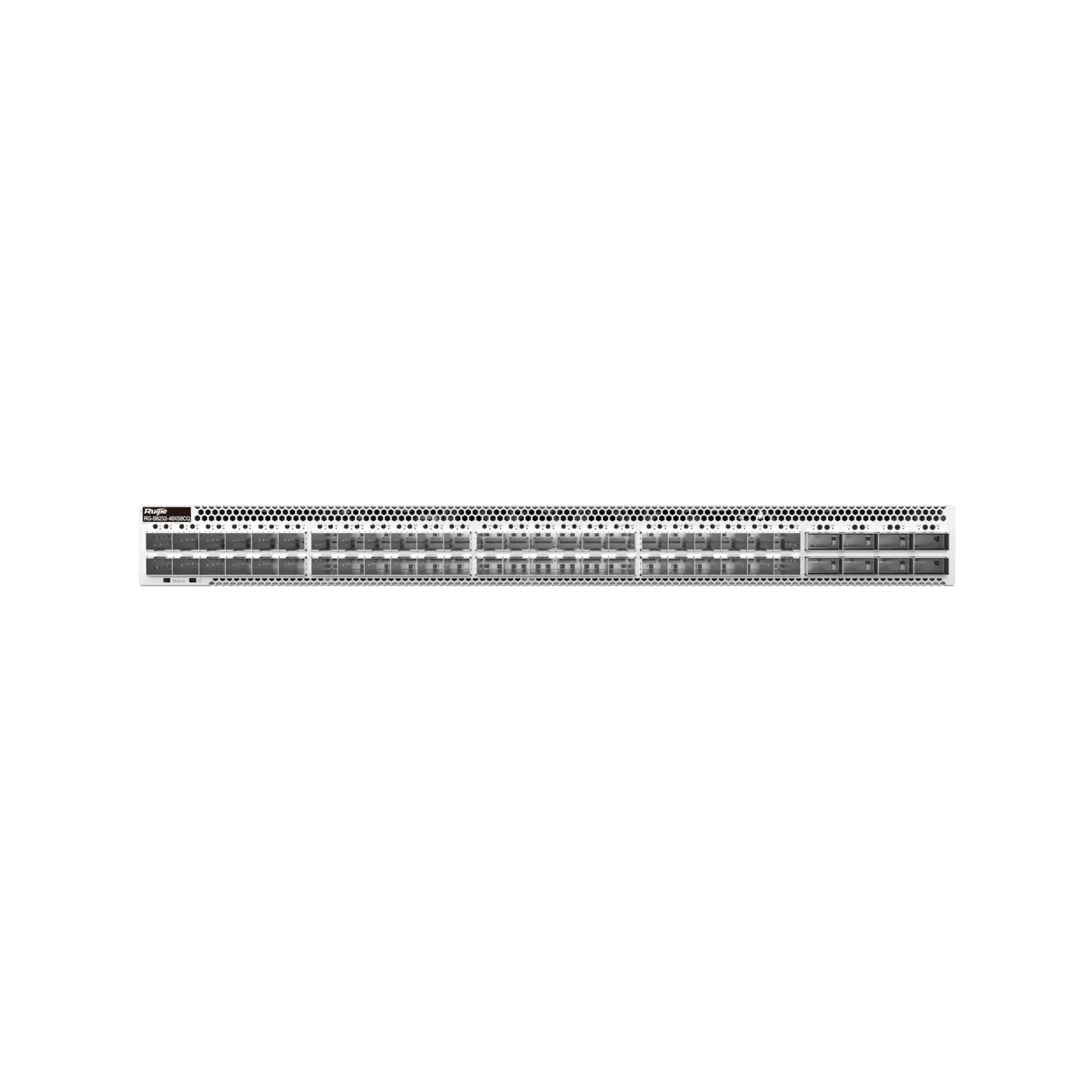

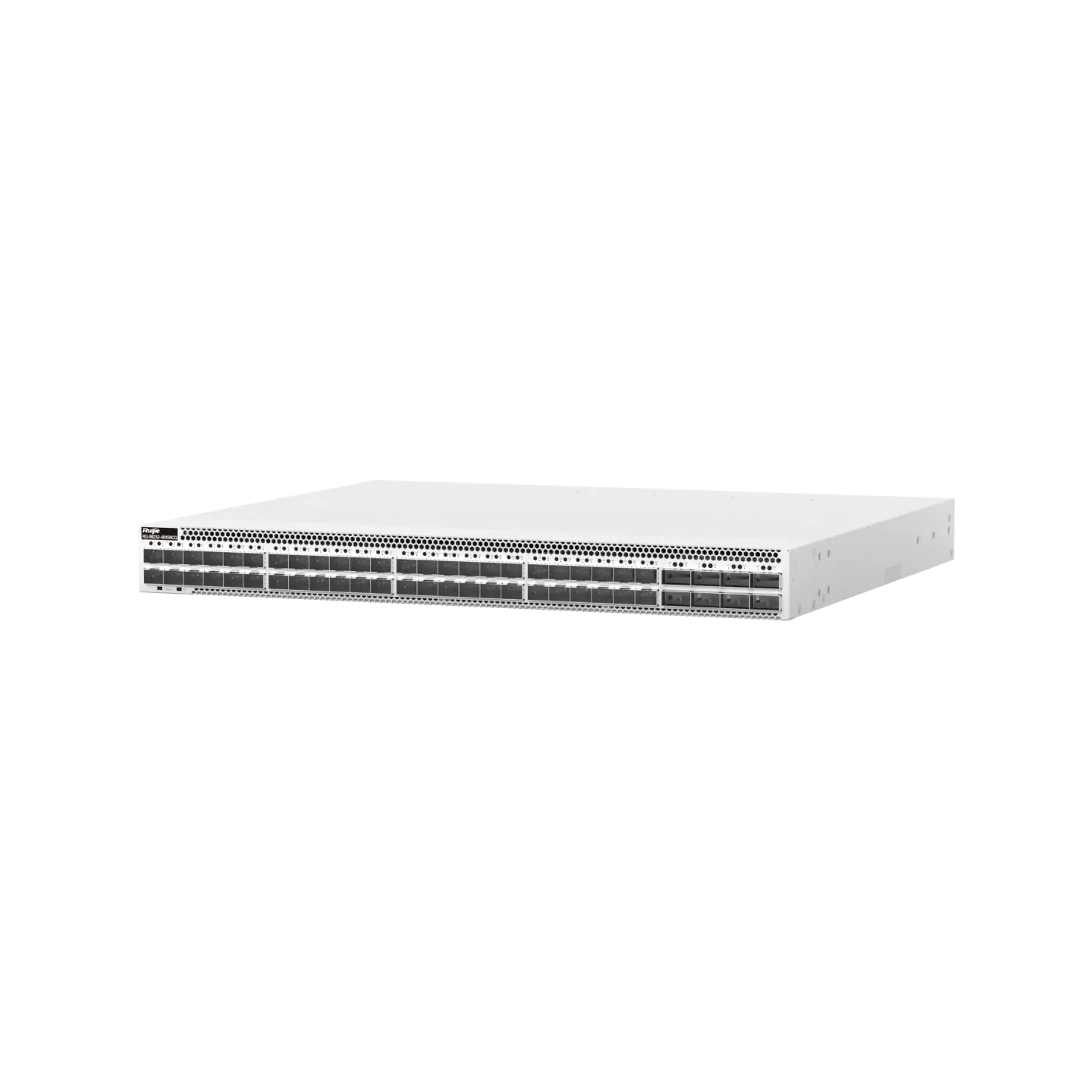

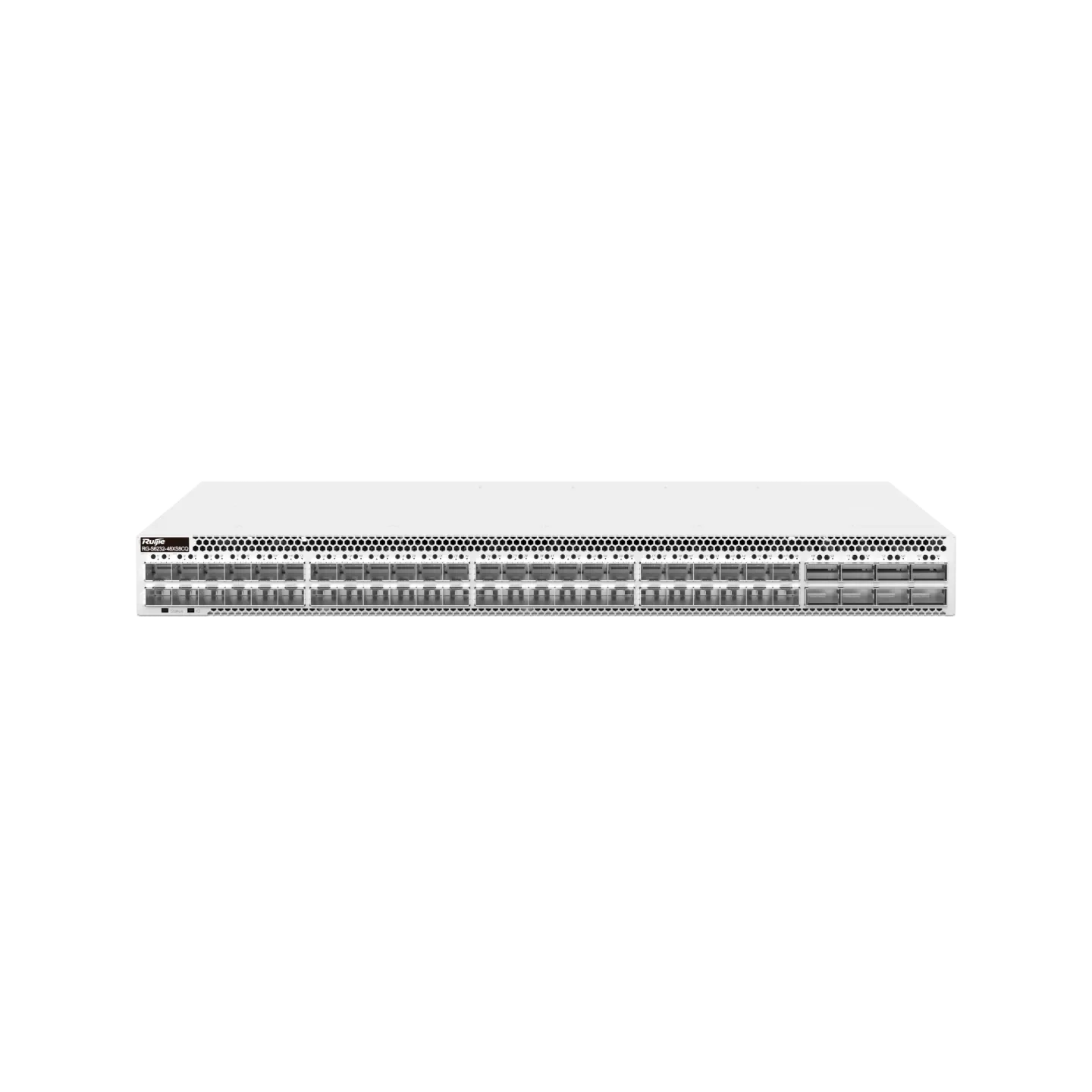

Ruijie RG-S6232-48XS8CQ 48×10G SFP+ 8×100G QSFP28 TOR Access Switch
Ruijie 48×10G SFP+ 8×100G QSFP28 TOR Access Switch
The Ruijie RG-S6232-48XS8CQ is a high-performance Layer 3 Top-of-Rack (ToR) switch, purpose-built for next-generation data center networks and cloud-scale deployments. Featuring 48 × 25GE SFP28 ports and 8 × 100GE QSFP28 uplinks, this switch offers exceptional port density, ultra-low latency, and robust Layer 2/3 routing support. Designed for spine-leaf architectures and high-throughput east-west traffic, the RG-S6232-48XS8CQ ensures seamless scalability, programmability, and reliability in modern virtualization-centric environments.
Overview
Highlights
-
High-Speed Port Configuration: 48 × 25GE SFP28 downlink ports and 8 × 100GE QSFP28 uplinks for optimized spine-leaf fabric deployment.
-
Massive Switching Capacity: Provides 2.56 Tbps of switching bandwidth and a forwarding rate of 1904 Mpps for non-blocking data delivery.
-
Cloud-Ready Virtualization: Supports VXLAN, EVPN, and virtual routing instances (VRFs), enabling flexible multi-tenant network segmentation.
-
Comprehensive Layer 3 Features: Includes BGP, OSPF, IS-IS, MPLS, and Segment Routing for high-resiliency dynamic routing.
-
Reliable Enterprise Security: Features include dynamic ACLs, ARP inspection, CPU protection, and MAC-based filtering.
-

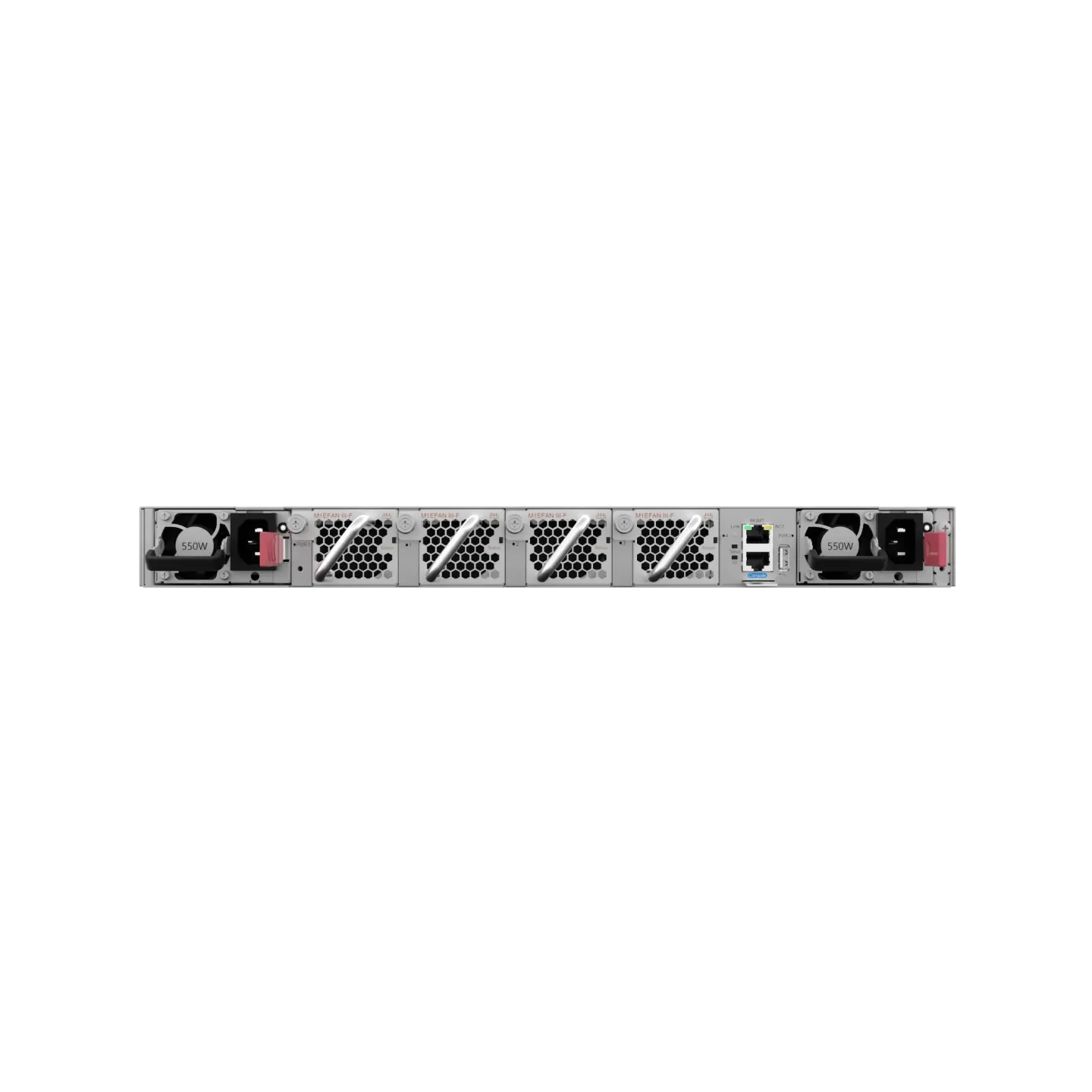

Data Center-Grade Hardware: Equipped with hot-swappable dual power supplies and fans to ensure high availability and service continuity.
-
Automation & Monitoring: Supports NETCONF, RESTful API, gRPC, SNMP, and telemetry for open programmability and real-time network visibility.
-
Energy Efficiency: Designed with low-power components and intelligent cooling to minimize power consumption in high-density racks.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| SFP28-25G-SR | Optical Module | 25GBASE-SR, 850nm, multimode fiber, up to 100m |
| SFP28-25G-LR | Optical Module | 25GBASE-LR, 1310nm, single-mode fiber, 10km |
| QSFP-100G-LR4 | Optical Module | 100GBASE-LR4 QSFP28, 1310nm, single-mode, 10km |
| CAB-SFP28-SFP28 | Direct Attach | 25G SFP28 DAC cable, 1m/3m/5m |
| CAB-QSFP28-QSFP28 | Direct Attach | 100G DAC cable, QSFP28 to QSFP28, 1m/3m/5m |
| RG-PWR750-I | Power Module | 750W hot-swappable AC power supply |
| FAN-6232 | Fan Module | Hot-swappable fan module for RG-S6232 series |
Comparison with Similar Switches
| Feature | RG-S6232-48XS8CQ | RG-S6231-48XT8CQ | RG-S6230-24XS8CQ |
|---|---|---|---|
| Downlink Ports | 48 × 25GE SFP28 | 48 × 10GBASE-T | 24 × 10GE SFP+ |
| Uplink Ports | 8 × 100GE QSFP28 | 8 × 100GE QSFP28 | 8 × 100GE QSFP28 |
| Switching Capacity | 2.56 Tbps | 2.4 Tbps | 1.92 Tbps |
| Forwarding Rate | 1904 Mpps | 1785 Mpps | 1428 Mpps |
| Virtualization Support | VXLAN, EVPN | VXLAN, EVPN | VXLAN |
| Ideal Use Case | 25G ToR / Spine Leaf | 10G ToR / Aggregation | Mid-size Aggregation |
Specifications
| Parameter | Specification |
|---|---|
| Model | RG-S6232-48XS8CQ |
| Downlink Ports | 48 × 25GE SFP28 |
| Uplink Ports | 8 × 100GE QSFP28 |
| Switching Capacity | 2.56 Tbps |
| Forwarding Rate | 1904 Mpps |
| Layer 2/3 Features | VLAN, STP, LACP, BGP, OSPF, IS-IS, MPLS, Segment Routing |
| MAC Address Table | 128K entries |
| Jumbo Frame Support | Up to 9600 bytes |
| QoS | 8 queues/port, SP, WRR, DSCP-based |
| Virtualization | VXLAN, EVPN, VRF, L3 Gateway |
| Security | ACLs, ARP inspection, MAC filtering, port isolation |
| Management | CLI, SNMP, RESTful API, NETCONF, Telemetry, SSHv2 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Power Redundancy | Dual hot-swappable AC/DC power modules |
| Dimensions (W×D×H) | 442 mm × 460 mm × 43.6 mm |
| Weight | ≤ 11 kg |
| Warranty | Limited lifetime warranty |
