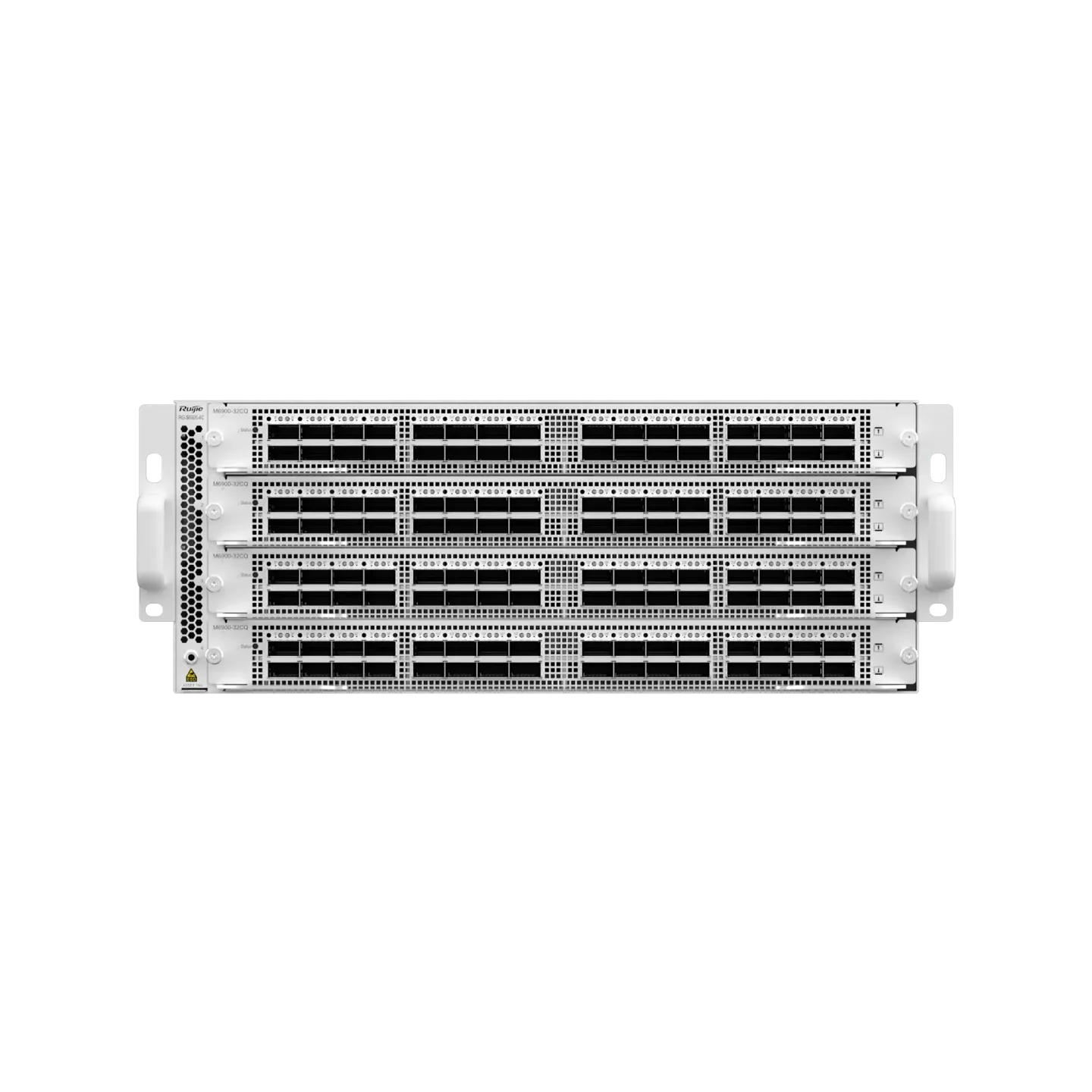

Ruijie M6900-32CQ 32×100G QSFP28 Expansion Module
Ruijie M6900-32CQ Line Card
The Ruijie M6900-32CQ is a high-density line card designed for the S6920-4C modular switch series, purpose-built for large-scale data centers and enterprise core networks that demand massive 100G throughput. This module provides 32 × 100GE QSFP28 ports, enabling exceptional port density and full line-rate switching. Engineered to meet the growing demands of cloud computing, virtualization, and high-performance applications, the M6900-32CQ offers outstanding scalability, reliability, and performance as part of a modular switching platform.
Overview
Highlights
-
Port Configuration: 32 × 100GE QSFP28 ports designed for ultra-high-density 100G connectivity.
-
Maximum Throughput: Full line-rate switching with up to 6.4 Tbps bandwidth per line card for uninterrupted data flow.
-
Modular System Compatibility: Seamlessly integrates with Ruijie’s S6920-4C chassis for scalable, slot-based deployment.
-
Advanced Routing Protocols: Supports full Layer 3 stack, including BGP, OSPF, IS-IS, and MPLS, for enterprise-class routing.
-
Cloud-Optimized: VXLAN and EVPN support for network virtualization in cloud and multi-tenant environments.
-
Network Security: Includes support for dynamic ACLs, ARP inspection, MAC filtering, and traffic storm control.
-
Reliability: Hot-swappable design with redundant architecture to support high availability and minimal downtime.
-
Eco-Friendly Design: Energy-efficient components and support for low-power optical modules.
Recommended Accessories
| Product Model | Category | Description |
|---|---|---|
| QSFP-100G-SR4 | Optical Module | 100GBASE-SR4 QSFP28, 850nm, multimode fiber, up to 100m |
| QSFP-100G-LR4 | Optical Module | 100GBASE-LR4 QSFP28, 1310nm, single-mode fiber, 10km |
| QSFP-100G-ER4 | Optical Module | 100GBASE-ER4 QSFP28, 1550nm, single-mode fiber, 40km |
| CAB-QSFP28-4SFP10G | Breakout Cable | 100G QSFP28 to 4 × 10G SFP+ DAC, 1m/3m |
| CAB-QSFP28-QSFP28 | Direct Attach | 100G QSFP28 to QSFP28 DAC, 1m/3m/5m |
Comparison with Similar Line Cards
| Feature | M6900-32CQ | M6900-16CQ4QC | M6900-4C |
|---|---|---|---|
| 100GE Ports | 32 × QSFP28 | 16 × QSFP28 | Up to 128 (via modules) |
| 400GE Ports | None | 4 × QSFP-DD | Up to 16 (via modules) |
| Switching Capacity | 6.4 Tbps | 4.8 Tbps | Varies by line card |
| Modular Compatibility | S6920-4C Only | S6920-4C Only | Base chassis |
| Target Use Case | High-density 100G | Mixed 100G/400G Aggregation | Modular Core Switching |
Specifications
| Parameter | Specification |
|---|---|
| Model | M6900-32CQ |
| Compatible Chassis | Ruijie S6920-4C Modular Switch |
| Downlink Ports | 32 × 100GE QSFP28 |
| Uplink Ports | — (All ports 100GE; breakout supported) |
| Switching Capacity | Up to 6.4 Tbps per module |
| Forwarding Rate | Up to 4761 Mpps |
| Layer 2/3 Features | VLAN, STP, LACP, BGP, OSPF, IS-IS, MPLS, VXLAN, EVPN |
| MAC Address Table | 288K entries |
| MTU | Up to 9600 bytes |
| Power Consumption | Max 260W |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions (W×D×H) | 398 mm × 480 mm × 43.6 mm |
| Weight | ≤ 8.8 kg |
| Hot-Swappable | Yes |
| Warranty | Limited lifetime warranty |
