Huawei CloudEngine S8700-10-B02 5U 4-Slot 68.2Tbps Core Switch

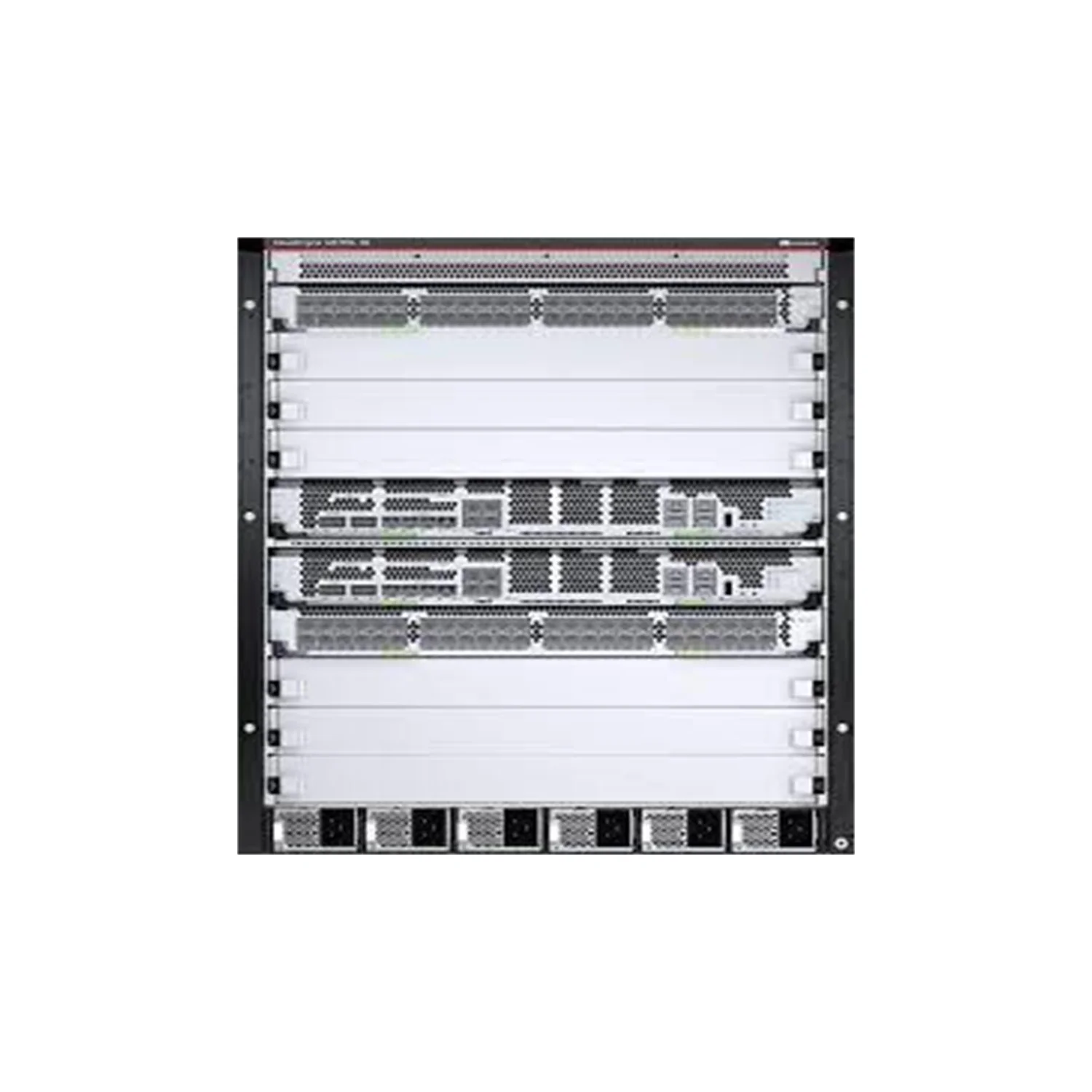

Huawei CloudEngine S8700-10 Core Switch Overview
The Huawei CloudEngine S8700-10 is a high-density, modular chassis switch designed for large-scale campus aggregation and core network applications. It features a 13U chassis with 2 × SRUFX1C0 main control boards, offering high availability with 1:1 hot-standby support. The switch includes 8 service slots for flexible service card installation, 2 fan slots for efficient cooling, and 6 power supply slots to ensure redundancy with N+1 power configuration. With a robust 170.6 Tbps switching capacity and a 128 Mpps forwarding rate, the S8700-10 is designed to deliver exceptional performance, reliability, and scalability for enterprise-level networks, supporting advanced protocols like VXLAN, BGP-EVPN, MACsec, QoS, and IPv6.
Highlights
-
High-density modular design: 13U chassis with 2 main control board slots and 8 service card slots
-
Redundant control boards: 2 × SRUFX1C0 main control boards for high availability
-
Flexible power configuration: Supports up to 6 power supply modules with N+1 redundancy
-
High-performance switching: 170.6 Tbps switching capacity and 128 Mpps forwarding rate
-
Comprehensive network feature support: VXLAN, BGP-EVPN, MACsec, QoS, IPv6, and more
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| SRUFX1C0 Main Control Board | Main Control | 1:1 hot-standby for high availability |
| AC Power Module | Power Supply | Hot-swappable, supports 100–240V AC input |
| Fan Module | Cooling | Hot-swappable, provides effective cooling |
| Service Modules | Service Cards | Various service modules for different network needs |
Comparison with Similar Models
| Feature / Model | S8700-10 | S8700-06 | S8700-04 |
|---|---|---|---|
| Chassis Size (U) | 13U | 8U | 5U |
| Main Control Boards | 2 × SRUFX1C0 | 2 × SRUEX1C0 | 2 × SRUDX100 |
| Service Slots | 8 | 4 | 2 |
| Fan Slots | 2 | 2 | 1 |
| Power Supply Slots | 6 | 6 | 6 |
| Switching Capacity | 170.6 Tbps | 102.4 Tbps | 68.2 Tbps |
| Forwarding Rate | 128 Mpps | 76.8 Mpps | 51.2 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S8700-10 |
| Chassis Size | 13U (575 × 442 × 482.8 mm) |
| Main Control Boards | 2 × SRUFX1C0 (1:1 hot-standby) |
| Service Slots | 8 (including main control boards) |
| Fan Slots | 2 (hot-swappable) |
| Power Supply Slots | 6 (supports N+1 redundancy) |
| Switching Capacity | 170.6 Tbps |
| Forwarding Rate | 128 Mpps |
| System Memory | 16 GB DRAM |
| Storage | 2 GB NAND Flash |
| System Buffer | 8 MB |
| Main Control Board Type | SRUFX1C0 (1:1 hot-standby) |
| Power Module Type | AC Power Module (supports 100–240V AC input) |
| Fan Module Type | Hot-swappable fan module for effective cooling |
| Supported Protocols & Features | VXLAN, BGP-EVPN, MACsec, QoS, IPv6, NAC and more |
| Operating Temperature | 0°C to 45°C (up to 1800 meters above sea level) |
