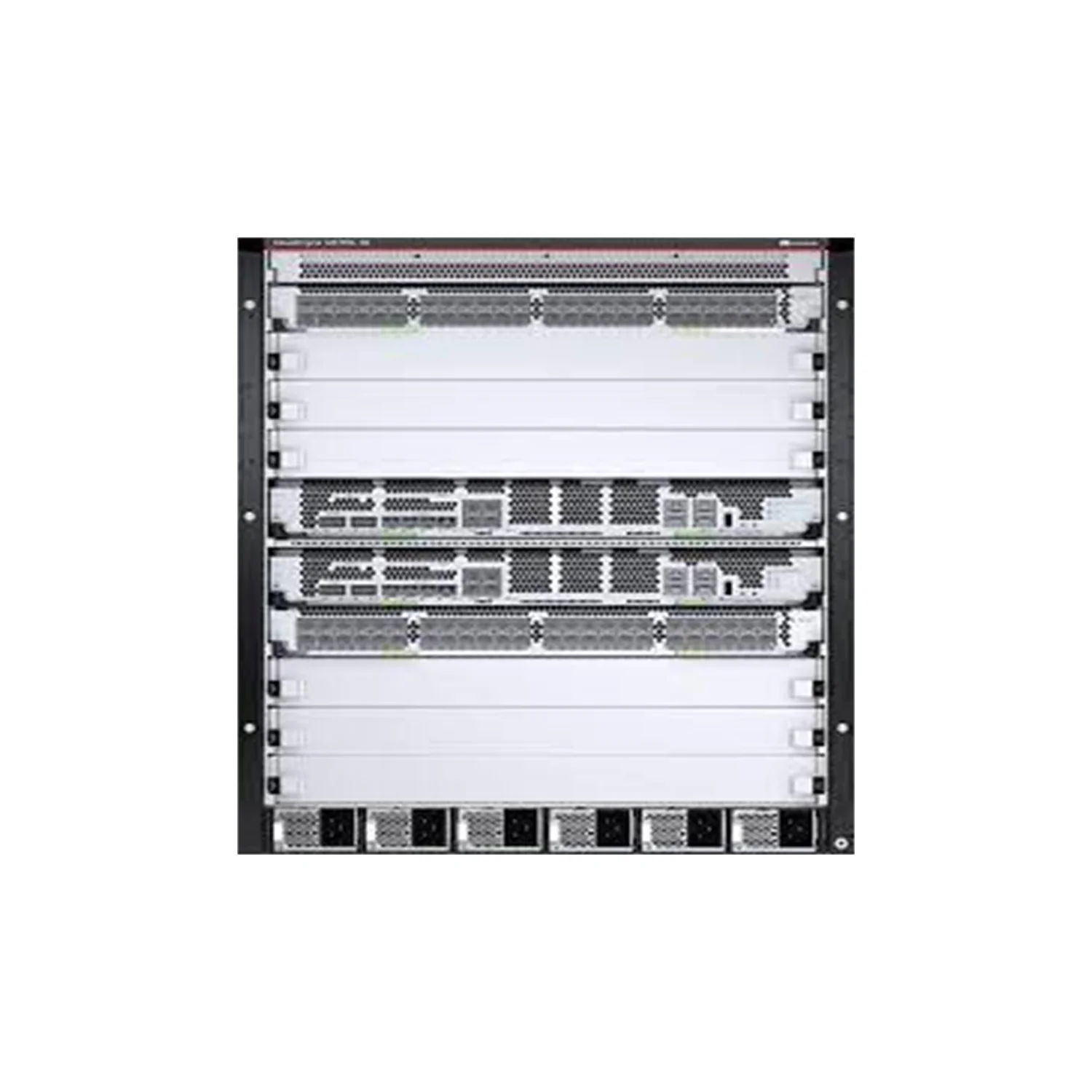

Huawei CloudEngine S8700-06-B01 8U 4-Slot 7.2Tbps Core Switch
Huawei CloudEngine S8700-06 Core Switch
The Huawei CloudEngine S8700-06 is a high-density, modular chassis switch designed for large-scale campus aggregation and core network applications.
It comes with an integrated chassis, featuring 2 × SRUEX1C0 main control boards for redundancy, ensuring high availability. The system includes 4 service slots for various service modules, 1 fan slot, and 6 power supply slots that support N+1 redundancy.
This switch offers a 7.2 Tbps switching capacity and 76.8 Mpps forwarding rate, providing robust performance to handle large volumes of data traffic while supporting advanced network features such as VXLAN, BGP-EVPN, MACsec, and IPv6.
Overview
Highlights
-
High-density modular design: 8U chassis with 2 main control board slots and 4 service card slots
-
Redundant control boards: 2 × SRUEX1C0 main control boards for high availability
-
Flexible power configuration: Supports up to 6 power supply modules with N+1 redundancy
-
High-performance switching: 7.2 Tbps switching capacity and 76.8 Mpps forwarding rate
-
Comprehensive network feature support: VXLAN, BGP-EVPN, MACsec, QoS, IPv6, and more
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| SRUEX1C0 Main Control Board | Main Control | 1:1 hot-standby for high availability |
| AC Power Module | Power Supply | Hot-swappable, supports 100–240V AC input |
| Fan Module | Cooling | Hot-swappable, provides effective cooling |
| Service Modules | Service Cards | Various service modules for different network needs |
Comparison with Similar Models
| Feature / Model | S8700-06 | S8700-04 | S8700-10 |
|---|---|---|---|
| Chassis Size (U) | 8U | 5U | 13U |
| Main Control Boards | 2 × SRUEX1C0 | 2 × SRUDX100 | 2 × SRUF |
| Service Slots | 4 | 2 | 8 |
| Fan Slots | 2 | 1 | 2 |
| Power Supply Slots | 6 | 6 | 6 |
| Switching Capacity | 7.2 Tbps | 2 Tbps | 13.6 Tbps |
| Forwarding Rate | 76.8 Mpps | 51.2 Mpps | 128 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S8700-06 |
| Chassis Size | 8U (442 × 504.5 × 515.5 mm) |
| Main Control Boards | 2 × SRUEX1C0 (1:1 hot-standby) |
| Service Slots | 4 (including main control boards) |
| Fan Slots | 2 (hot-swappable) |
| Power Supply Slots | 6 (supports N+1 redundancy) |
| Switching Capacity | 7.2 Tbps |
| Forwarding Rate | 76.8 Mpps |
| System Memory | 16 GB DRAM |
| Storage | 2 GB NAND Flash |
| System Buffer | 8 MB |
| Main Control Board Type | SRUEX1C0 (1:1 hot-standby) |
| Power Module Type | AC Power Module (supports 100–240V AC input) |
| Fan Module Type | Hot-swappable fan module for effective cooling |
| Supported Protocols & Features | VXLAN, BGP-EVPN, MACsec, QoS, IPv6, NAC and more |
| Operating Temperature | 0°C to 45°C (up to 1800 meters above sea level) |
