Huawei CloudEngine S8700-04-B01 13U 8-Slot 170.6Tbps Core Switch

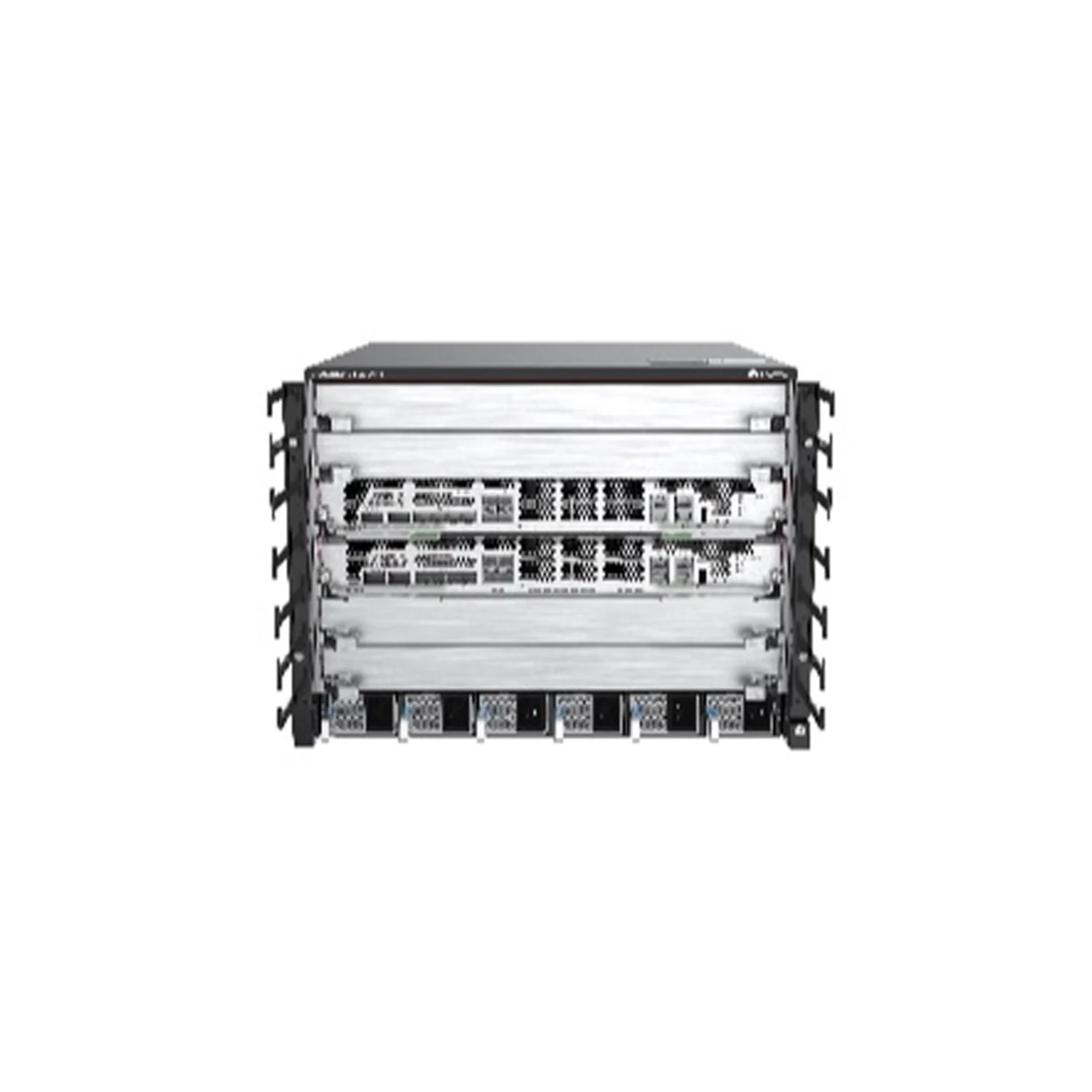

Huawei CloudEngine S8700-04 Core Switch
The Huawei CloudEngine S8700-04 is a high-density modular chassis switch designed for large-scale campus aggregation and core network applications. It features a 5U chassis with 2 × SRUDX100 main control boards, supporting 4 service slots and 1 fan slot. The system is equipped with 6 power supply slots and supports dual AC power modules. The switch offers a 68.2 Tbps switching capacity and 51.2 Mpps forwarding rate, ensuring high performance and reliability for enterprise networks.
Overview
Highlights
-
High-density modular design: 5U chassis with 4 service slots and 1 fan slot
-
Dual main control boards: 2 × SRUDX100 for redundancy and high availability
-
Flexible power options: Supports dual AC power modules with N+1 redundancy
-
Scalable service capacity: Up to 68.2 Tbps switching capacity
-
High forwarding rate: 51.2 Mpps to handle large-scale data traffic
-
Comprehensive feature support: VXLAN, BGP-EVPN, MACsec, QoS, IPv6, and more
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| SRUDX100 Main Control Board | Main Control | Dual main control boards for redundancy and high availability |
| AC Power Module | Power Supply | Hot-swappable AC power modules with N+1 redundancy |
| Fan Module | Cooling | Hot-swappable fan modules for efficient cooling |
| Service Modules | Service Cards | Various service modules for different network requirements |
Comparison with Similar Models
| Feature / Model | S8700-04 | S8700-06 | S8700-10 |
|---|---|---|---|
| Chassis Size | 5U | 8U | 13U |
| Main Control Boards | 2 × SRUDX100 | 2 × SRUE | 2 × SRUF |
| Service Slots | 4 | 6 | 10 |
| Fan Slots | 1 | 2 | 2 |
| Power Supply Slots | 6 | 6 | 6 |
| Switching Capacity | 68.2 Tbps | 102.4 Tbps | 170.6 Tbps |
| Forwarding Rate | 51.2 Mpps | 76.8 Mpps | 128 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S8700-04 |
| Chassis Size | 5U (442 × 504.5 × 219.5 mm) |
| Main Control Boards | 2 × SRUDX100 (1:1 hot-standby) |
| Service Slots | 4 (including main control boards) |
| Fan Slots | 1 (hot-swappable) |
| Power Supply Slots | 6 (supports N+1 redundancy) |
| Switching Capacity | 68.2 Tbps |
| Forwarding Rate | 51.2 Mpps |
| System Memory | 16 GB DRAM |
| Storage | 2 GB NAND Flash |
| System Buffer | 8 MB |
| Main Control Board Type | SRUDX100 (1:1 hot-standby) |
| Power Module Type | AC Power Module (supports 100–240V AC input) |
| Fan Module Type | Hot-swappable fan module for effective cooling |
| Supported Protocols & Features | VXLAN, BGP-EVPN, MACsec, QoS, IPv6, NAC and more |
| Operating Temperature | 0°C to 45°C (up to 1800 meters above sea level) |
