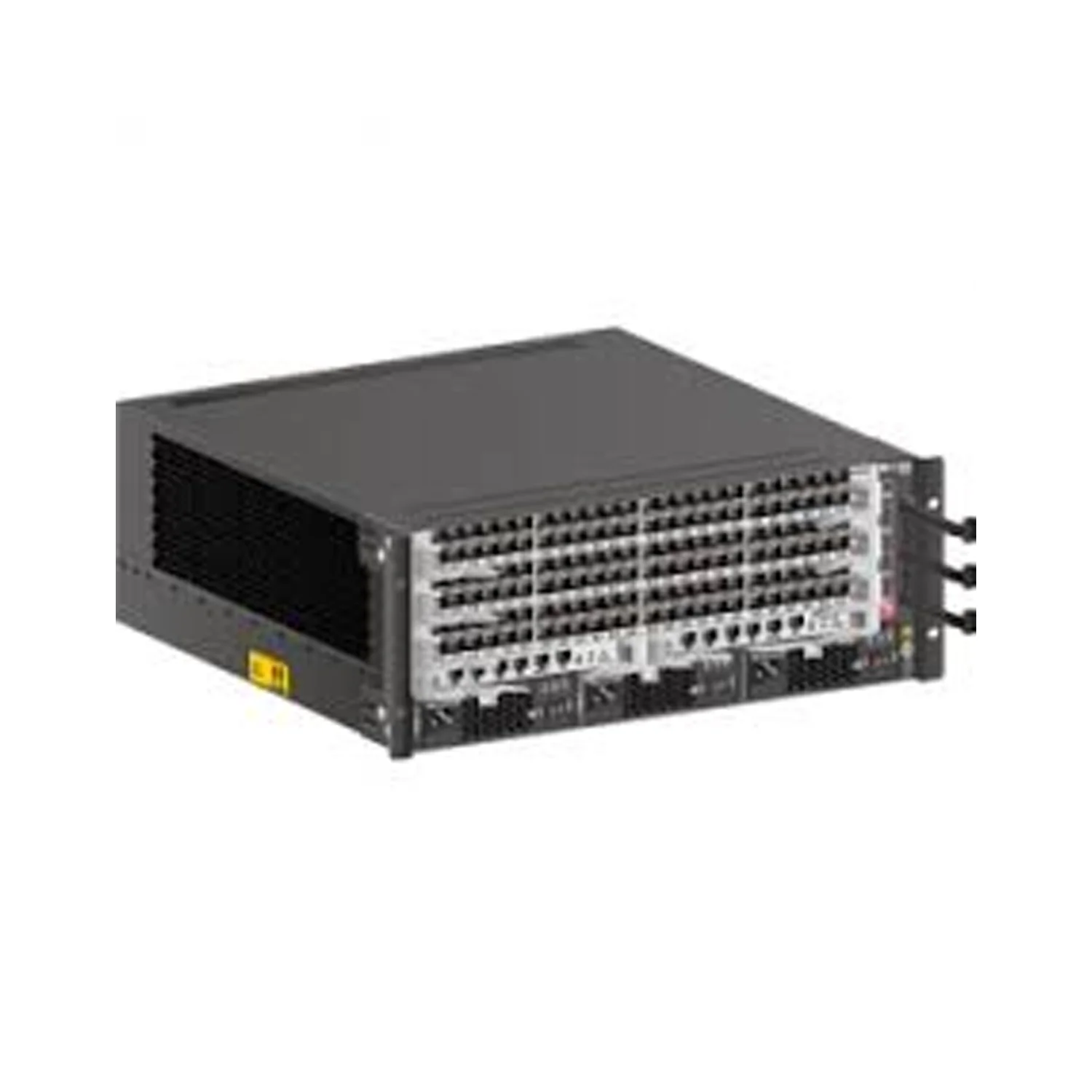

Huawei CloudEngine S7703-ES0B00770300 4U Chassis Switch
Huawei CloudEngine S7703 Core Switch
The Huawei CloudEngine S7703 is a high-density modular chassis switch designed for enterprise-scale networks.
The price only includes the 1 × integrated chassis, and all additional components, such as main control boards, service modules, power supplies, and fan modules, must be purchased separately.
The S7703 chassis offers a flexible and scalable solution, with support for high-performance switching and forwarding, making it ideal for campus aggregation and core network applications when fully equipped.
Overview
Highlights
-
High-density modular design: 4U chassis with 2 main control unit slots and 3 service module slots
-
Flexible power configuration: Supports up to 2 system power supply modules and 1 PoE power supply module
-
High-performance switching: 1.92 Tbps switching capacity and 1440 Mpps forwarding rate
-
Comprehensive network feature support: VXLAN, BGP-EVPN, MACsec, QoS, IPv6, and more
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| Main Control Units | Control Units | 2 units required for operation |
| Service Modules | Service Cards | 3 modules required for operation |
| Power Supply Modules | Power Supplies | 2 system modules and 1 PoE module required |
| Fan Module | Cooling | 1 module required for operation |
Comparison with Similar Models
| Feature / Model | S7703 | S7706 | S7712 |
|---|---|---|---|
| Chassis Size (U) | 4U | 6U | 12U |
| Main Control Units | 2 | 2 | 2 |
| Service Slots | 3 | 6 | 12 |
| Fan Slots | 1 | 2 | 4 |
| Power Supply Slots | 3 | 4 | 8 |
| Switching Capacity | 1.92 Tbps | 3.84 Tbps | 4.64 Tbps |
| Forwarding Rate | 1440 Mpps | 2880 Mpps | 3480 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine S7703 |
| Chassis Size | 4U (175 mm × 442 mm × 517 mm) |
| Main Control Units | 2 units required (ES0D00MCUA00) |
| Service Slots | 3 (supports various service modules) |
| Fan Slots | 1 (hot-swappable) |
| Power Supply Slots | 3 (2 system and 1 PoE) |
| Switching Capacity | 1.92 Tbps |
| Forwarding Rate | 1440 Mpps |
| System Memory | 16 GB DRAM |
| Storage | 2 GB NAND Flash |
| System Buffer | 8 MB |
| Supported Protocols & Features | VXLAN, BGP-EVPN, MACsec, QoS, IPv6, NAC and more |
| Operating Temperature | 0°C to 45°C (up to 1800 meters above sea level) |
