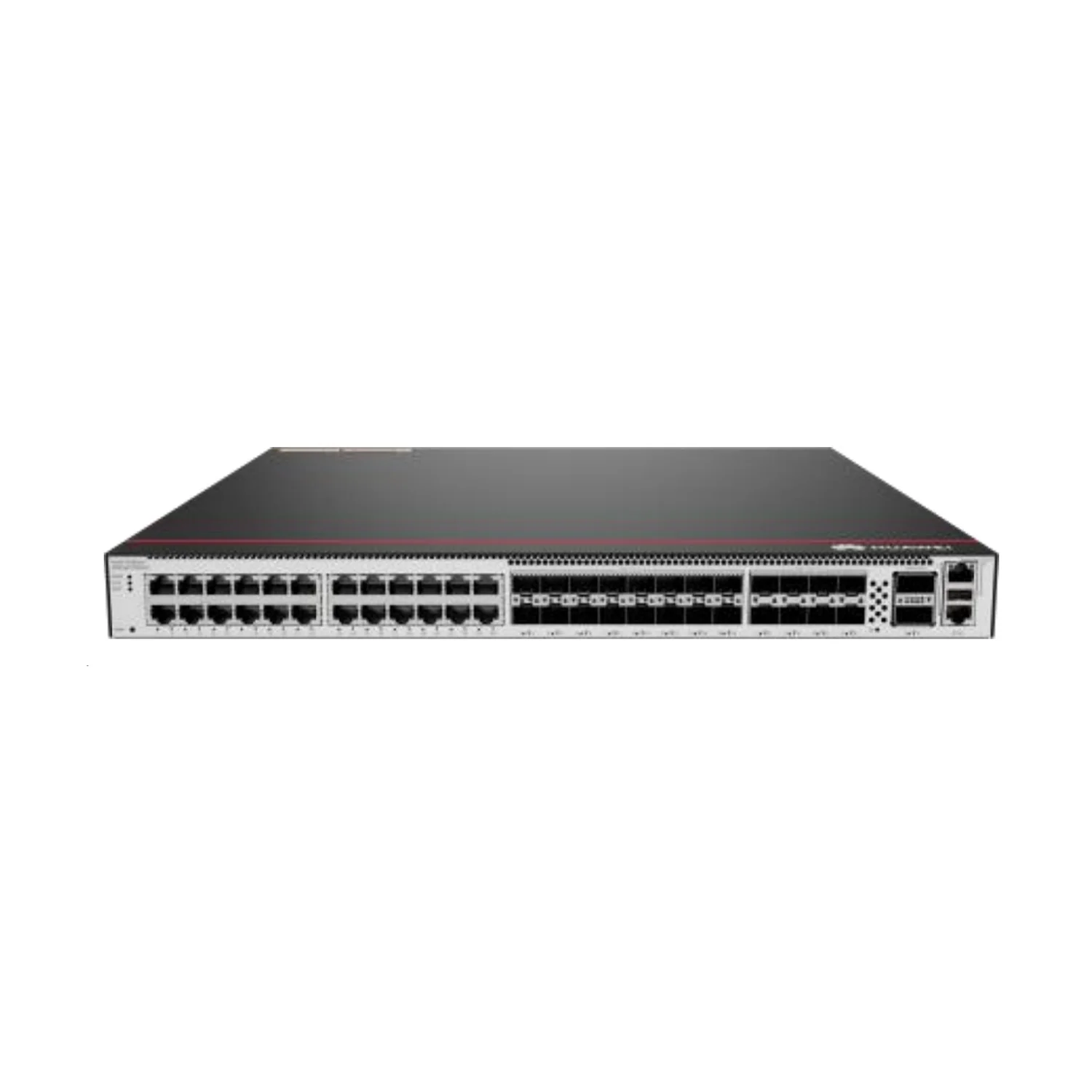

Huawei CloudEngine S6750-S24T16X8Y2CZ 24x1G+16x10G+8x25G+2x100G Switch
Huawei CloudEngine S6750-S24T16X8Y2CZ Aggregation Switch
The Huawei CloudEngine S6750‑S24T16X8Y2CZ is a versatile 1U fixed-port switch designed for campus and enterprise aggregation cores. It integrates 24 copper downlinks (10/100/1000 Mbps), 16×10 GE SFP+, 8×25 GE SFP28, plus 2×40/100 GE QSFP28 uplinks with an expansion slot. Featuring VXLAN, BGP‑EVPN, MACsec, intelligent telemetry (IFIT), and 1+1 redundant modular power, it strengthens network virtualization and security. Note: Power supply modules are not included and must be purchased separately.
Overview
Highlights
-
Comprehensive Multi-Speed Connectivity
Combines 24×1 GE copper, 16×10 GE SFP+, 8×25 GE SFP28, and 2×40/100 GE QSFP28 uplink ports. -
Strong Switching Performance
Delivers 968 Gbps device switching capacity (2.32 Tbps system-wide) and 450 Mpps forwarding. -
Advanced Virtualization & Security
Supports distributed/central VXLAN gateways, BGP‑EVPN, and full-port MACsec encryption for secure campus virtualization. -
Reliable and Intelligent Design
Includes 1+1 redundant modular power slots, dual fans with intelligent airflow, and IFIT telemetry for proactive network health monitoring.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| Power Supply Modules | Power | Hot-swappable AC/DC modules (180 W/600 W AC or 240 W/400 W DC); sold separately. |
| Fan Modules | Cooling | Includes 2 hot-swappable fans (FAN‑031A‑B); intelligent front-to-rear airflow. |
Comparison with Similar Models
| Feature | S6750‑S24T16X8Y2CZ | S6750‑S16X10Y2CZ | S6750‑S16X8YZ |
|---|---|---|---|
| Copper Downlinks | 24×1 GE | — | — |
| 10 GE Ports | 16×10 GE SFP+ | 16×10 GE SFP+ | 16×10 GE SFP+ |
| 25 GE Ports | 8×25 GE SFP28 | 10×25 GE SFP28 | 8×25 GE SFP28 |
| 40/100 GE Uplinks | 2×40/100 GE QSFP28 | 2×40/100 GE QSFP28 | — |
| Switching Capacity | 968 Gbps (2.32 Tbps system) | 1.42 Tbps device | 920 Gbps device |
| Forwarding Performance | 450 Mpps | 450 Mpps | 450 Mpps |
Specifications
| Parameter | Specification |
|---|---|
| Model | CloudEngine S6750‑S24T16X8Y2CZ |
| Downlink Ports | 24× 1/10/100 Mbps RJ45 |
| Optical Ports | 16×10 GE SFP+, 8×25 GE SFP28 |
| Uplink Ports | 2×40/100 GE QSFP28 |
| Expansion Slot | 1 slot |
| Device Switching Capacity | 968 Gbps |
| System Switching Capacity | 2.32 Tbps |
| Forwarding Rate | 450 Mpps |
| System Memory | 4 GB DRAM |
| Flash Storage | 2 GB Flash |
| Power Supply Slots | 2 hot-swappable, 1+1 redundancy (modules sold separately) |
| Fan Modules | 2 × FAN‑031A‑B, intelligent airflow |
| Power Consumption | 122 W (AC) / 118 W (DC) at 30% load; 127 W/123 W at full load |
| Dimensions (H×W×D) | 43.6 × 442 × 420 mm |
| Weight | 5.52 kg (device); 7.96 kg (packaged) |
| Operating Temp/Humidity | –5 °C to +45 °C, 5–95% RH non-condensing |
| Altitude | 0–5000 m |
| Virtualization Features | Distributed/central VXLAN, BGP‑EVPN |
| Security | MACsec on all ports |
| Telemetry & O&M | IFIT real-time telemetry |
| Power Input | AC: 90–290 V; DC: –38 to –72 V / 190–290 V |
| Compliance | CE, RoHS, FCC, CCC, IEEE, RFC standards |
