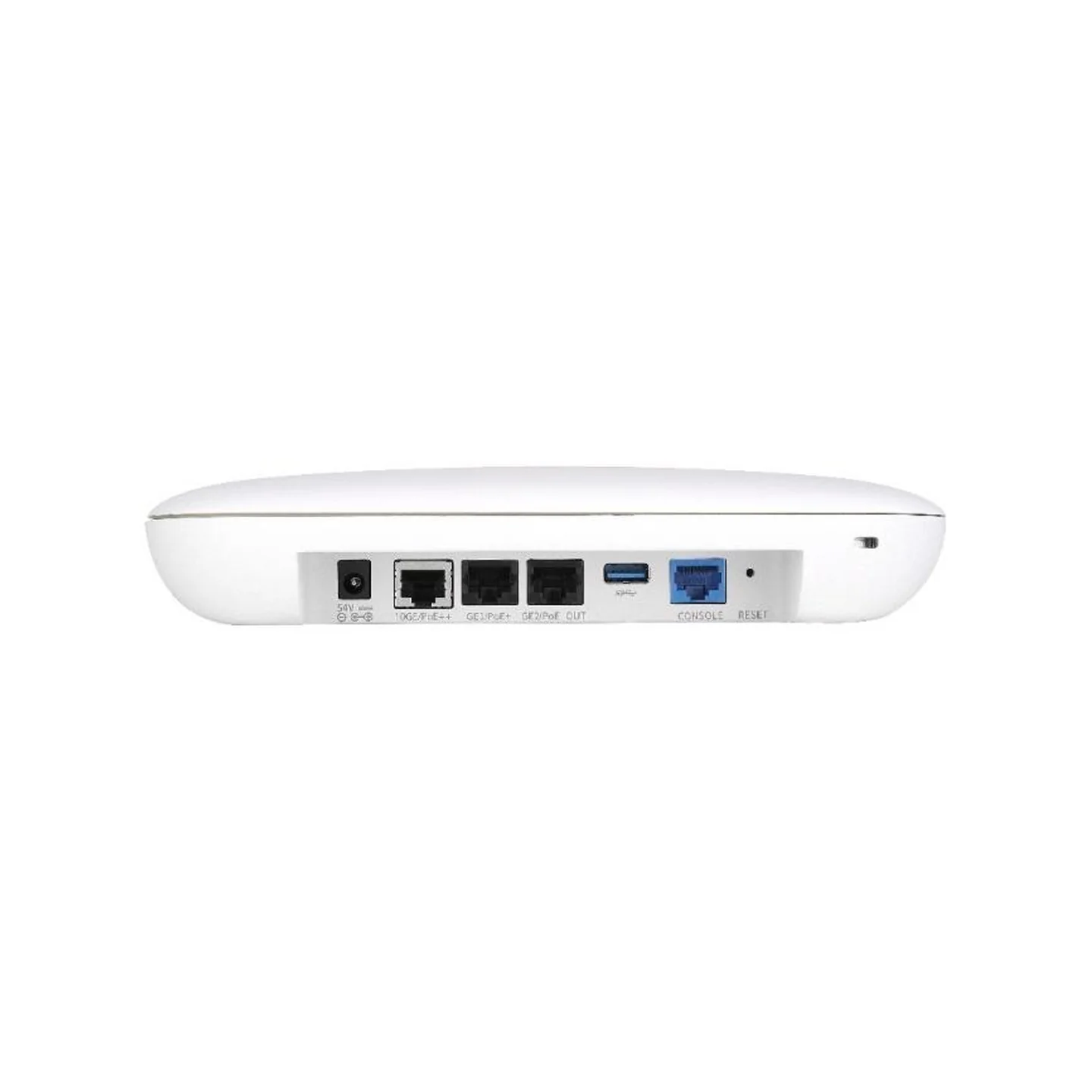

H3C WA6636 Wi-Fi 6 AP, Dual-Band, OFDMA, MU-MIMO, High-Density Indoor Access
H3C WA6636 Indoor Wi-Fi 6 Tri-Radio AP, up to 7.15 Gbps, 10GE Uplink
Overview
The H3C WA6636 is a high-performance indoor Wi-Fi 6 (802.11ax) access point, engineered for high-density environments such as corporate offices, schools, hotels, and large public buildings. Its tri-radio, 10-stream architecture delivers up to 7.15 Gbps total throughput, while dual 5 GHz and 2.4 GHz radios provide robust coverage and capacity.
Flexible deployment (ceiling or wall mount), multi-mode support (Fit AP / CloudAP / Anchor), and intelligent RF / client management make it ideal for enterprise-class wireless LANs.
Highlights
-
Triple-Radio Wi-Fi 6, 10 spatial streams, 5 GHz (4×4 + 2×2) + 2.4 GHz (4×4), up to 7.15 Gbps total.
-
Supports 10 GE multi-rate uplink + PoE-out for IoT extension - 10G electrical uplink port plus 1G PoE-out port for external IoT devices.
-
High-density user support - up to 1,536 concurrent clients (512 per radio) with support for MU-MIMO, OFDMA, BSS Coloring, TWT.
-
Flexible deployment & installation - supports ceiling or wall mounting; built-in smart antennas and enterprise aesthetic.
-
Multi-mode operation (Fit / Cloud / Anchor) - compatible with controller-based, cloud-managed or standalone deployments for deployment flexibility.
Recommended Accessories
| Accessory | Category | Description |
|---|---|---|
| PoE Switch (802.3at/802.3bt) | Power Supply | Provides PoE-In when 10GE uplink is used as electrical port |
| DC Power Adapter (54 V) | Power Supply | Alternative local power input (if 10GE port not used) |
| Mounting Kit | Installation | Ceiling or wall mount kit supplied or optional for flexible installation |
| External IoT Device | Expansion | Use PoE-out port to power small IoT sensor or device (optional) |
Comparison with Similar Models
| Feature | WA6636 (Tri-Radio) | Typical Dual-Radio AP (e.g. WA6628) |
|---|---|---|
| Radios | 3 (5 GHz x2 + 2.4 GHz) | 2 (5 GHz + 2.4 GHz) |
| Spatial Streams | 10 streams (4+2 / 4) | Up to 8 streams (4 / 4) |
| Peak Throughput | 7.15 Gbps | ~5–6 Gbps |
| Uplink | 1 × 10GE multi-rate + PoE-in | 1 × 1G/2.5G/5G uplink |
| Target Use | High-density enterprise, campus, hotel lobbies | SMB, small offices |
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible a/b/g/n/ac |
| Radios / Bands | Triple-radio: 5 GHz (4×4) + 5 GHz (2×2) + 2.4 GHz (4×4) |
| Max Throughput | Up to 7.15 Gbps total (4.8 + 1.2 + 1.15 Gbps) |
| Antenna | Built-in smart antenna array |
| Ports | 1 × 10GE multi-rate electrical uplink, 2 × 1G Ethernet, 1 × 1G PoE-out, 1 × console, 1 × USB |
| PoE-In / PoE-Out | 802.3at/af or 54 V DC for uplink; PoE-out for IoT devices |
| Client Capacity | Up to 1,536 clients (512 per radio) |
| Mounting | Ceiling or wall mount supported |
| Security & Access Control | WPA3, 802.1X, WIPS/WIDS, captive portal, ACL, RADIUS, local forwarding, VLAN per SSID, MIB/SNMP support |
| Multi-user / Multi-channel | MU-MIMO, OFDMA, BSS Coloring, TWT, airtime fairness, load balancing, band steering |
| Management Modes | Fit AP, CloudAP, Anchor, standalone, controller-based |
| Dimensions | 225 × 225 × 46 mm (excl. mounting parts) |
| Operating Temp / Humidity | –10 °C – 55 °C / 5–95% non-condensing |
