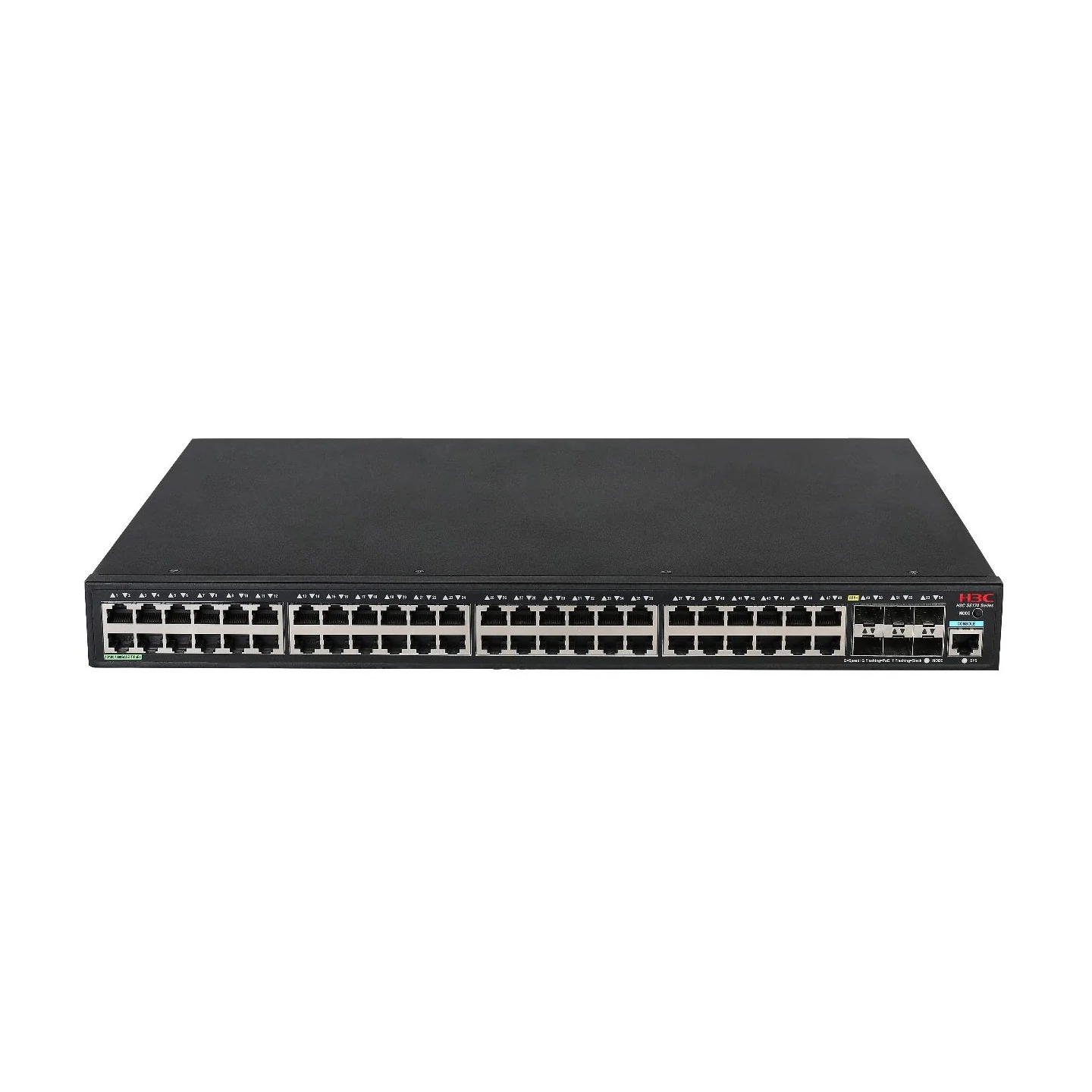

H3C S5170-54S-PWR-EI 48xSFP + 6x10G High-Density PoE Fiber Switch
H3C S5170-54S-PWR-EI 48×1G + 6×10G PoE+ Smart Gigabit Access Switch
Overview
The H3C S5170-54S-PWR-EI is a high-density, PoE-enabled Gigabit access switch designed for enterprise-grade deployments. It offers 48 × 10/100/1000BASE-T RJ45 PoE+ downlink ports and 6 × 1/10G SFP+ uplink ports, providing full support for Power over Ethernet (PoE+) to power Wi-Fi access points, IP cameras, and other connected devices without additional power cables.
The switch features L2/L2+ switching and L3-Lite routing, making it an ideal solution for mid-to-large enterprise environments where device connectivity and power are crucial.
With advanced traffic management features, enhanced security capabilities, and energy-efficient operation, the S5170-54S-PWR-EI ensures reliable network performance in high-density environments.
Highlights
-
48 × Gigabit RJ45 PoE+ Ports
Powers up to 48 devices with 30W per port (PoE+), ideal for Wi-Fi access points, security cameras, VoIP phones, and more. -
6 × 10G SFP+ Uplinks
High-speed uplink connections ensure efficient data transfer to core networks or aggregation layers, handling heavy traffic with ease. -
Complete L2 / L2+ Features
Offers VLAN, QinQ, ACL, QoS, Spanning Tree (STP/RSTP/MSTP), and more for effective traffic management and security. -
PoE+ and Full L3-Lite Routing
Supports static routing for IPv4/IPv6, ideal for small-to-medium sized enterprise routing requirements and network segmentation. -
Energy-Efficient and Secure
With built-in green energy modes and security features like Port Security, DHCP Snooping, and ARP Protection, it ensures optimal energy use and network security.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G SFP+ Optical Module | SFP-10G-LR | Optics | 10G Long-Range optical module for uplink fiber connections. |
| Fiber Patch Cables | LC-LC SMF | Connectivity | Single-mode fiber patch cables for SFP+ connections. |
| Copper Patch Cables | Cat5e/Cat6 | Connectivity | Copper cables for Gigabit Ethernet connections. |
| PoE Power Injector | H3C-PWR-1000W | Power | Optional PoE injector for additional powered devices. |
| Rack Mount Kit | RACK-MOUNT | Mounting | 19" rack mount kit for easy installation. |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5170-54S-PWR-EI |
| Downlink Ports | 48 × 10/100/1000BASE-T (PoE+ RJ45) |
| Uplink Ports | 6 × 1/10G SFP+ |
| PoE Output | Up to 30W per port (PoE+ compliant) |
| Switching Capacity | 672 Gbps |
| Forwarding Rate | 171 Mpps |
| MAC Address Table | 64K |
| VLAN | 4K |
| Spanning Tree | STP/RSTP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, PIM Snooping |
| Routing | Static Routing, IPv4/IPv6 Dual-Stack |
| Security | ACL, Port Security, DHCP Snooping |
| QoS | 8 priority queues, traffic shaping |
| PoE | Yes, IEEE 802.3at/af PoE+ |
| Management | CLI, Web UI, SNMP, iMC, Telemetry, Energy-Efficient Ethernet |
| Cooling | Hot-swappable fan trays |
| Power Supply | Built-in AC PSU |
| Operating Temperature | -5°C to 50°C |
| Dimensions (H × W × D) | 440 × 160 × 43.6 mm |
| Weight | ≤ 2.5 kg |
| Typical Deployment | Large enterprise, high-density campus access, PoE-powered devices |
