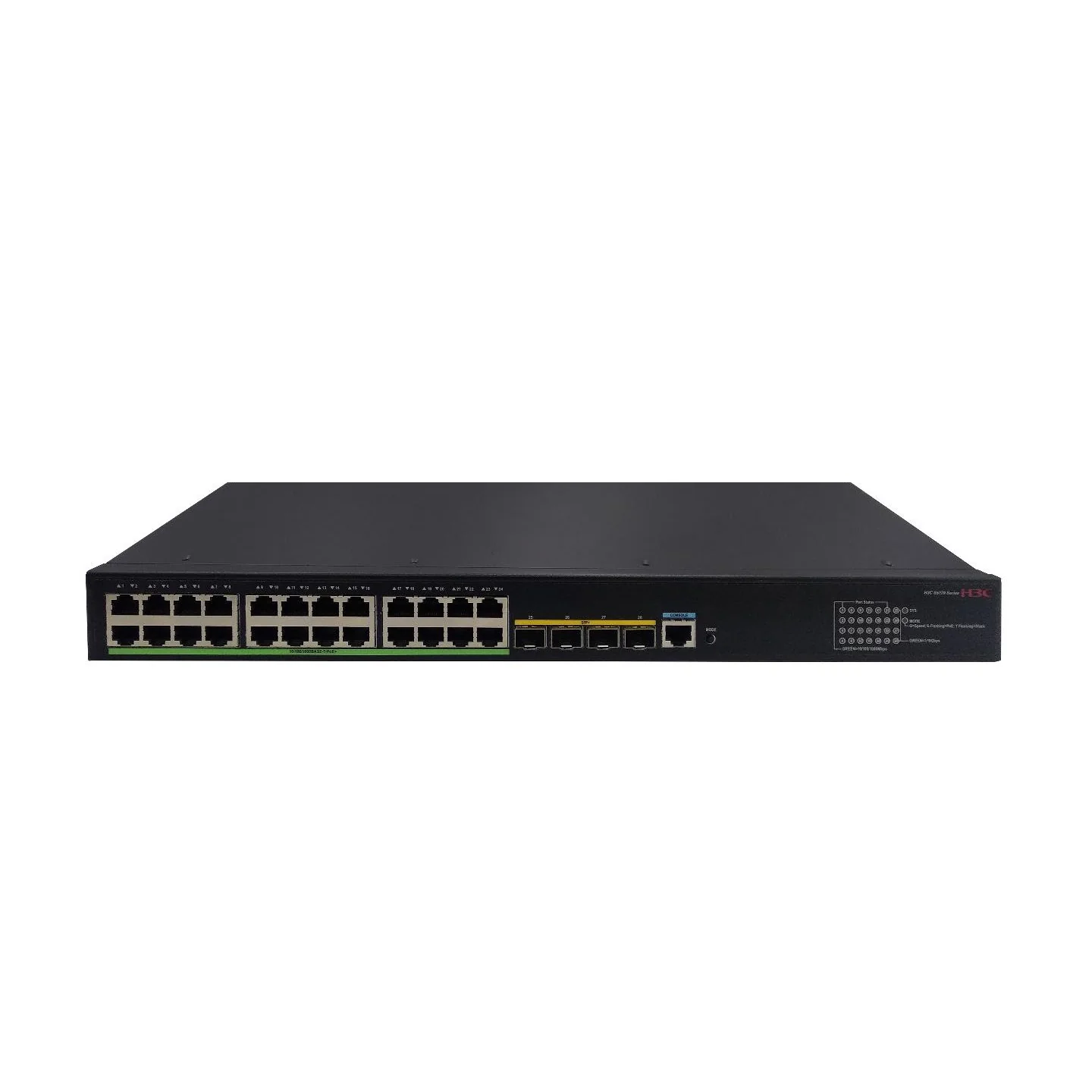

H3C S5170-28S-HPWR-EI 24xSFP + 4x10G PoE Fiber Access Switch
H3C S5170-28S-HPWR-EI 24×1G + 4×10G PoE+ Smart Access Switch
Overview
The H3C S5170-28S-HPWR-EI is a smart-managed Gigabit access switch designed for high-density deployments that require PoE+ (Power over Ethernet) functionality. It offers 24 × 10/100/1000BASE-T RJ45 PoE+ downlink ports and 4 × 1/10G SFP+ uplink ports.
This model is optimized for environments where PoE-powered devices (such as Wi-Fi APs, IP cameras, IP phones, and other devices) need both network connectivity and power delivered through the Ethernet cable.
The S5170-28S-HPWR-EI is a versatile access switch, ideal for campus networks, multi-device environments, and networks requiring flexible deployment options for powered endpoints. It delivers full L2/L2+ switching and L3-Lite routing, making it suitable for a wide range of applications from small to medium enterprise networks.
Highlights
-
24 × Gigabit RJ45 PoE+ Ports
Supports PoE+ to deliver 30W per port, ideal for powering devices such as Wi-Fi APs, IP phones, and IP cameras without requiring additional power lines. -
4 × 10G SFP+ Uplinks
Provides high-speed 10G uplinks for backbone or aggregation connections, ensuring high bandwidth for growing enterprise networks. -
Comprehensive L2/L2+ Features
Full support for VLANs, QinQ, ACLs, DHCP Snooping, Multicast (IGMP/MLD), QoS, and more for secure and efficient traffic handling. -
L3-Lite Routing Support
Includes static routing, IPv4/IPv6 dual-stack, and basic routing protocols like RIP/OSPF, ideal for small-to-medium enterprise routing needs. -
Optimized for PoE-Powered Devices
Powers devices such as IP cameras, VoIP phones, and access points, eliminating the need for separate power sources in remote areas.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G SFP+ Optical Module | SFP-10G-SR | Optics | 10G optical module for fiber uplink connections. |
| PoE Power Injector | H3C-PWR-1000W | Power | Optional PoE injector for additional powered devices. |
| Fiber Patch Cables | LC-LC SMF | Connectivity | Single-mode fiber patch cables for 10G SFP+ connections. |
| Copper Patch Cables | Cat5e/Cat6 | Connectivity | Copper cables for Gigabit Ethernet connections. |
| Rack Mount Kit | RACK-MOUNT | Mounting | Standard 19" rack mount kit for installation. |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5170-28S-HPWR-EI |
| Downlink Ports | 24 × 10/100/1000BASE-T (PoE+ RJ45) |
| Uplink Ports | 4 × 1/10G SFP+ |
| PoE Output | Up to 30W per port (PoE+ compliant) |
| Switching Capacity | 672 Gbps |
| Forwarding Rate | 171 Mpps |
| MAC Address Table | 64K |
| VLAN | 4K |
| Spanning Tree | STP/RSTP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, PIM Snooping |
| Routing | Static Routing, IPv4/IPv6 Dual-Stack |
| Security | ACL, Port Security, DHCP Snooping |
| QoS | 8 priority queues, traffic shaping |
| PoE | Yes, IEEE 802.3at/af PoE+ |
| Management | CLI, Web UI, SNMP, iMC, Telemetry, Energy-Efficient Ethernet |
| Cooling | Hot-swappable fan trays |
| Power Supply | Built-in AC PSU |
| Operating Temperature | -5°C to 50°C |
| Dimensions (H × W × D) | 440 × 160 × 43.6 mm |
| Weight | ≤ 2.2 kg |
| Typical Deployment | PoE-powered devices, campus access, small-to-medium networks |
