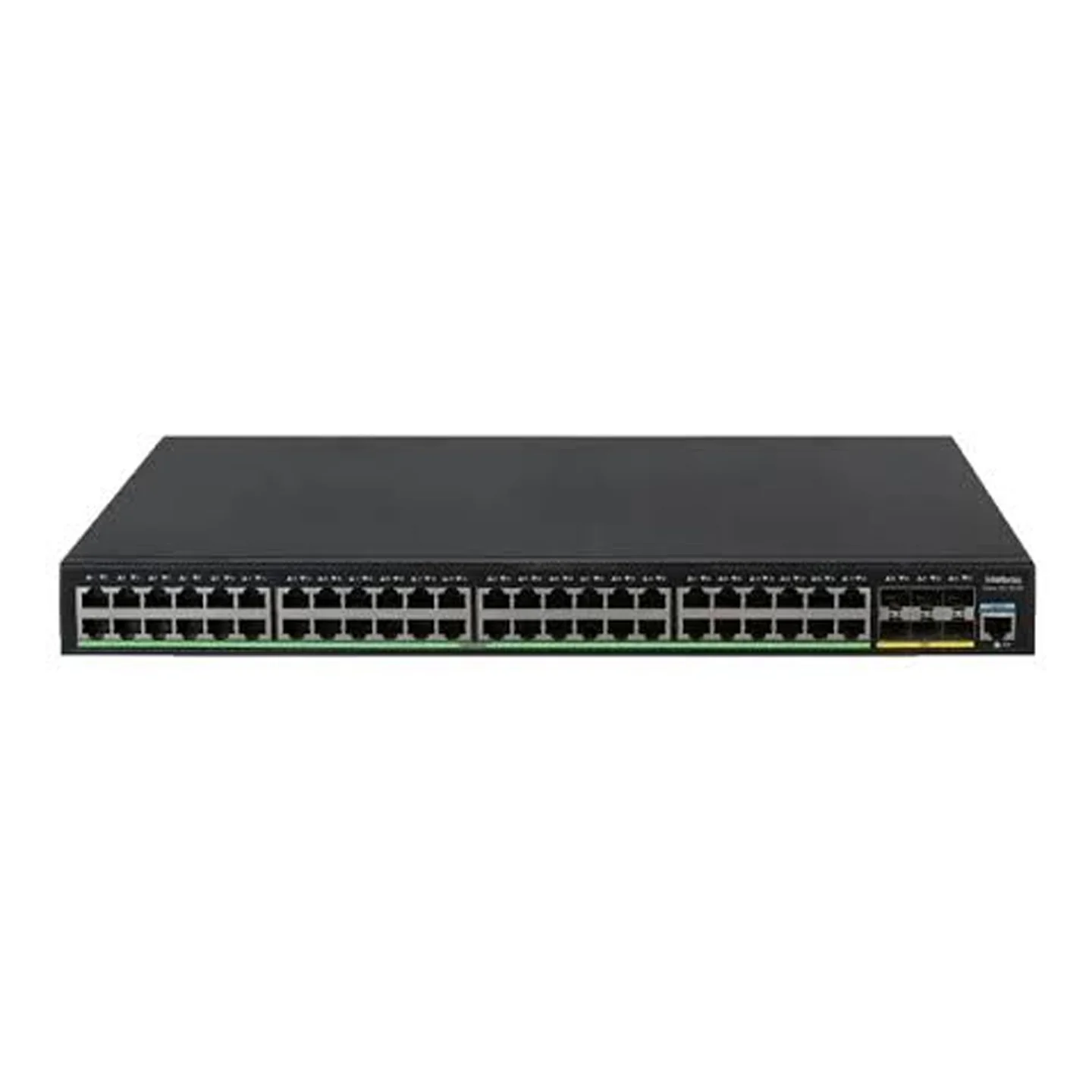

H3C S5136S-48T4X-EI-Q 48xGE + 4x10G Campus Switch
48×1G RJ45 + 4×10G SFP+ Quiet High-Performance Gigabit Access Switch
Overview
The H3C S5136S-48T4X-EI-Q is a high-performance, quiet-design Gigabit access switch with 48 × 10/100/1000BASE-T RJ45 ports and 4 × 10G SFP+ uplinks, engineered for enterprise networks requiring both high access density and high uplink bandwidth.
As part of the EI-Q (Quiet Enhanced) series, this model features optimized thermal architecture, low-noise operation, extended lifespan components, and reduced power consumption, making it ideal for offices, classrooms, hospitals, libraries, and any noise-sensitive deployment.
With robust L2/L2+ switching, IPv4/IPv6 static routing, extensive security, and QoS, it is suitable as a high-bandwidth access switch in medium-to-large enterprise campuses.
Highlights
1. 48 × Full Gigabit Access Ports
Supports high-density enterprise users with stable Gigabit throughput.
2. 4 × 10G SFP+ Uplinks
Ideal for:
✔ High-speed backhaul
✔ Aggregation uplinks
✔ Wi-Fi 6/6E AP networks
✔ Video surveillance
3. EI-Q Low-Noise & Energy-Optimized Design
-
Quieter fan speed control
-
Lower heat output
-
Extended component lifespan
-
Reduced energy consumption
4. Advanced L2/L2+ + L3-Lite Routing
Includes VLAN, QinQ, MSTP, LACP, ACL, IGMP/MLD Snooping, and static IPv4/IPv6 routing.
5. Enterprise-Grade Security
Features 802.1X, MAC authentication, DHCP Snooping, ARP attack defense, and IP/MAC binding.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G SFP+ Transceivers | SFP-10G-SR / LR / ER | Optics | For long/short-haul fiber uplinks |
| DAC/ACC Cables | 10G SFP+ DAC | Cabling | Low-cost uplinks within racks |
| Fiber Patch Cable | LC-LC SMF/MMF | Connectivity | For uplink installation |
| Copper Patch Cable | Cat6/Cat6A | Cabling | For 48 × user access ports |
| Rack Mount Kit | RM-1U | Mounting | For 19" rack installation |
Comparison with Similar Models
| Feature | S5136S-48T4X-EI-Q | S5136S-48T4S-EI-Q | S5136S-48P4X-EI |
|---|---|---|---|
| Downlink Ports | 48 × 1G RJ45 | 48 × 1G RJ45 | 48 × 1G PoE+ |
| Uplinks | 4 × 10G SFP+ | 4 × 1G SFP | 4 × 10G SFP+ |
| PoE | No | No | Yes (PoE+) |
| Use Case | High-bandwidth access | Standard access | High-density PoE with 10G uplinks |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5136S-48T4X-EI-Q |
| Downlink Ports | 48 × 1G RJ45 |
| Uplink Ports | 4 × 10G SFP+ |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| MAC Address Table | 64K |
| VLAN Support | 4K |
| Multicast | IGMP Snooping, MLD Snooping |
| L2 Features | MSTP, QinQ, LACP, BPDU guard, loop guard |
| Security | ACL, 802.1X, DHCP Snooping, ARP protection |
| QoS | 8 queues, SP/WRR, traffic shaping |
| Routing | IPv4/IPv6 Static Routing |
| Management | CLI, Web GUI, SNMP, iMC |
| Power Supply | Built-in AC |
| Cooling | Low-noise enhanced fan system |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 4.2 kg |
| Best Deployment | Large enterprise access, Wi-Fi 6 AP layers, high-density office networks |
