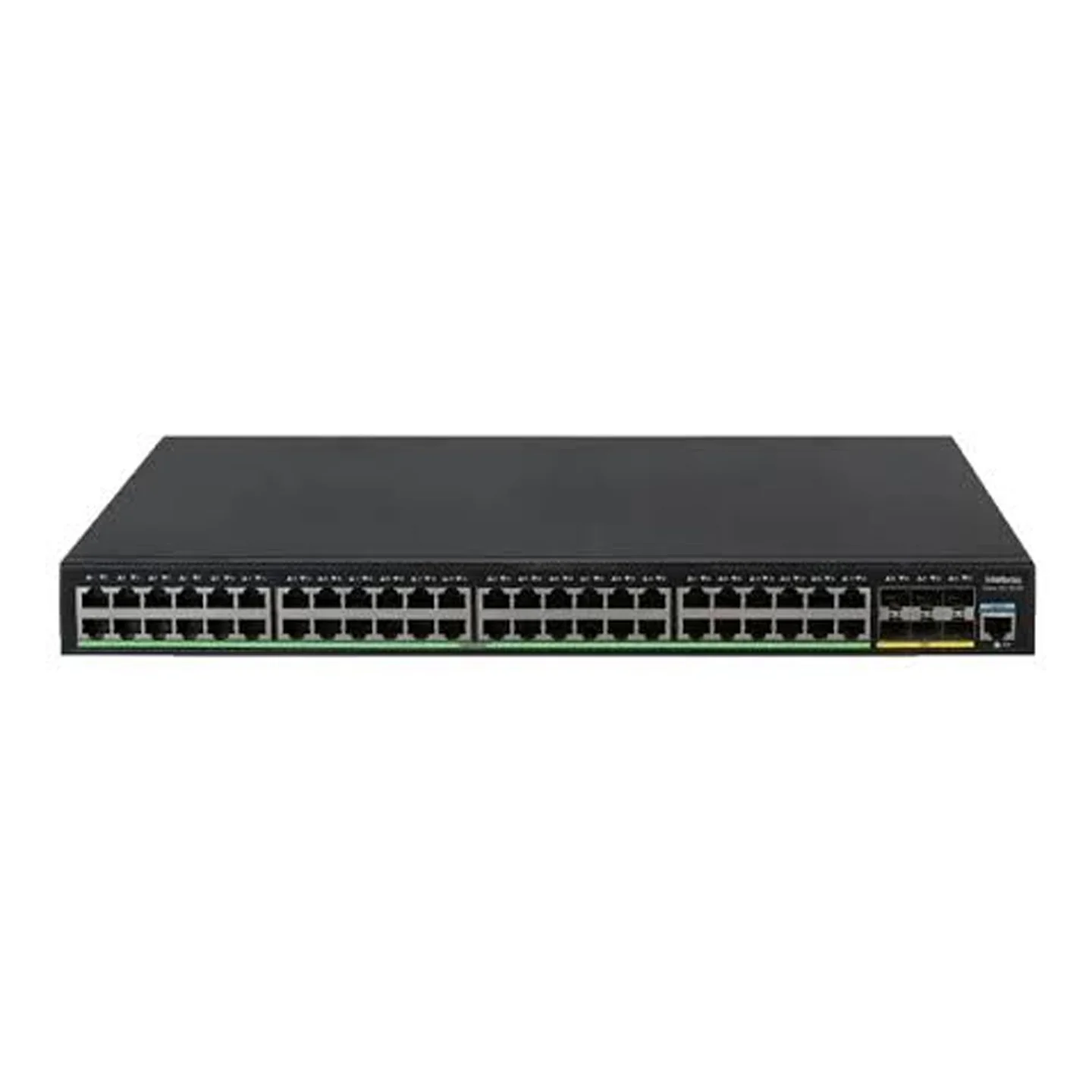

H3C S5136S-48T4S-EI-Q 48xGE + 4xSFP High-Density Campus Switch
48×1G RJ45 + 4×1G SFP Quiet-Design Gigabit Access Switch
Overview
The H3C S5136S-48T4S-EI-Q is a quiet-design, energy-efficient Gigabit access switch featuring 48 × 1G RJ45 downlinks and 4 × 1G SFP uplinks. As part of the EI-Q series, it adopts enhanced thermal architecture and low-noise operation ideal for offices, classrooms, hospitals, and noise-sensitive environments.
Designed for large user access scenarios, it supports full EI software capabilities including L2/L2+ switching, IPv4/IPv6 static routing, ACL, QoS, and enterprise-grade security.
Highlights
1. 48 × High-Density Gigabit Access Ports
Ideal for enterprise floors, lecture halls, dormitories, labs, and dense office environments.
2. 4 × 1G SFP Uplinks
Provide stable fiber connectivity toward aggregation layers.
3. EI-Q Quiet Hardware Enhancements
✔ Reduced acoustic noise
✔ Optimized energy consumption
✔ Longer component lifespan
✔ Better heat dissipation
4. L2/L2+ Switching + L3-Lite Routing
Supports VLAN, MSTP, QinQ, LACP, IGMP Snooping, ACL, and static IPv4/IPv6 routing.
5. Strong Security Protection
802.1X, DHCP Snooping, ARP protection, port isolation, IP/MAC binding.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 1G SFP Transceiver | SFP-GE-SX / LX | Optics | For SFP uplink fiber connections |
| Fiber Patch Cord | LC-LC | Cabling | For MMF/SMF uplinks |
| Copper Patch Cord | Cat5e / Cat6 | Cabling | For 48 × 1G endpoints |
| Rack Mount Kit | RM-1U | Mounting | Standard 1U rack installation |
| Cable Organizer | - | Install | Keeps fiber/copper cabling tidy |
Comparison with Similar Models
| Feature | S5136S-48T4S-EI-Q | S5136S-48T4X-EI-Q | S5136S-48P4S-EI |
|---|---|---|---|
| Downlink Ports | 48 × 1G RJ45 | 48 × 1G RJ45 | 48 × 1G PoE+ |
| Uplinks | 4 × 1G SFP | 4 × 10G SFP+ | 4 × 1G SFP |
| PoE | No | No | Yes |
| Use Case | Standard access | High-bandwidth uplink | PoE enterprise access |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5136S-48T4S-EI-Q |
| Downlink Ports | 48 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 4 × 1G SFP |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| MAC Table | 64K |
| VLAN Support | 4K |
| Multicast | IGMP/MLD Snooping |
| L2 Features | MSTP, QinQ, LACP, loop guard |
| Security | ACL, DHCP Snooping, ARP attack protection, 802.1X |
| Routing | IPv4/IPv6 static routing |
| QoS | 8 queues, WRR/SP |
| Power Supply | Built-in AC |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 4.2 kg |
| Ideal Deployment | High-density user access floors, quiet environments, enterprise networks |
