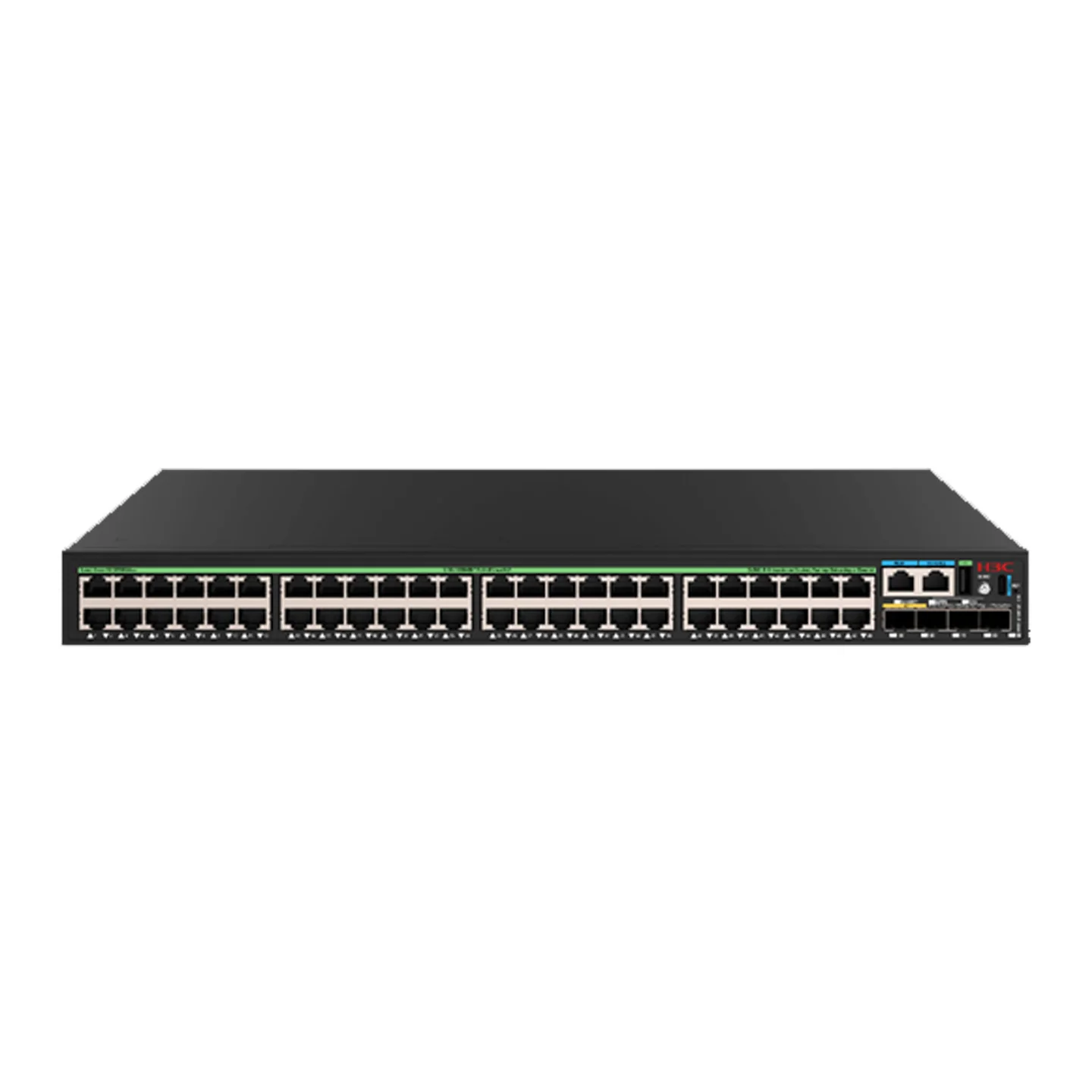

H3C S5136S-48P4X-EI 48xGE PoE+ + 4x10G Campus Switch
48×1G PoE+ + 4×10G SFP+ Enterprise High-Power PoE Access Switch
Overview
The H3C S5136S-48P4X-EI is a high-density PoE+ Gigabit access switch equipped with 48 × 10/100/1000BASE-T PoE+ ports and 4 × 10G SFP+ uplinks, designed for networks requiring massive PoE power and high-speed uplinks.
This model is ideal for powering Wi-Fi 6/6E access points, PTZ surveillance cameras, IP phones, and IoT devices in large-scale enterprise environments. The 10G uplinks ensure fast aggregation bandwidth, making the switch suitable for high-performance access layers in campus, hospital, hotel, and commercial building deployments.
As part of the EI series, it supports advanced L2/L2+ switching, static L3 IPv4/IPv6 routing, enterprise-grade security, and intelligent QoS, delivering both stability and high efficiency.
Highlights
1. 48 × PoE+ Ports for Large-Scale Powered Networks
Supports IEEE 802.3af/at with up to 30W per port, ideal for powering large deployments of APs and cameras.
2. 4 × 10G SFP+ High-Speed Uplinks
Ensures smooth and reliable backhaul to core switches, supporting high-bandwidth service access.
3. High PoE Power Budget
Designed for multi-floor wireless deployments, CCTV backbones, and smart building access layers.
4. Full L2/L2+ and L3-Lite Routing
Supports VLAN, QinQ, MSTP, LACP, ACL, IGMP/MLD Snooping, DHCP guard, and static IP routing.
5. Enterprise Security Features
Enhanced protection including ARP attack defense, DHCP Snooping, MAC binding, 802.1X authentication, and traffic isolation.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G Transceivers | SFP-10G-SR / LR / ER | Optics | For high-speed fiber uplinks |
| Redundant Power Supply | H3C RPS1600-A | Power | Provides backup PoE power |
| Fiber Patch Cables | LC-LC SMF/MMF | Connectivity | For uplink fiber modules |
| Copper Patch Cables | Cat6A | Connectivity | For PoE access connections |
| Rack Mount Kit | RM-1U | Mounting | Standard 19-inch rack installation |
Comparison with Similar Models
| Feature | S5136S-48P4X-EI | S5136S-48P4S-EI | S5136S-48T4X-EI-Q |
|---|---|---|---|
| Downlink Ports | 48 × PoE+ | 48 × PoE+ | 48 × 1G (non-PoE) |
| Uplinks | 4 × 10G SFP+ | 4 × 1G SFP | 4 × 10G SFP+ |
| PoE | Yes | Yes | No |
| Use Case | High-speed PoE access | Standard PoE access | Non-PoE + high-bandwidth access |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5136S-48P4X-EI |
| Downlink Ports | 48 × 10/100/1000BASE-T PoE+ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standards | IEEE 802.3af/at |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| MAC Address Table | 64K |
| VLAN | 4K VLANs |
| Multicast | IGMP/MLD Snooping |
| Security | ACL, ARP protection, DHCP Snooping, 802.1X authentication |
| QoS | 8 queues, WRR/SP, shaping |
| Routing | IPv4/IPv6 static routing |
| Power Supply | Built-in AC |
| Operating Temperature | -5°C ~ 50°C |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 4.5 kg |
| Ideal Deployment | High-density AP layers, CCTV networks, enterprise access layers |
