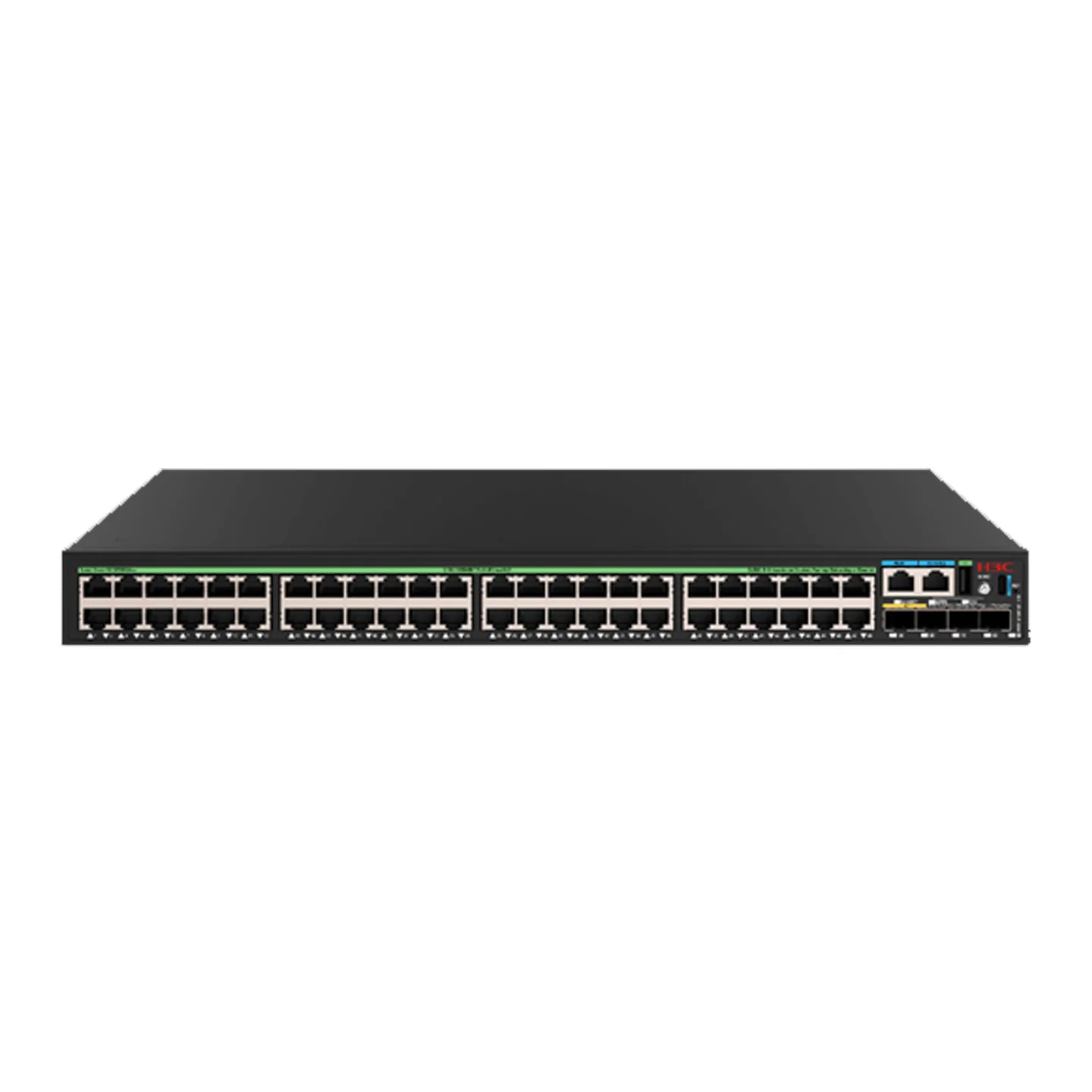

H3C S5136S-48P4S-EI 48xGE PoE+ + 4xSFP Campus Switch
48×1G PoE+ + 4×1G SFP Enterprise PoE Access Switch
Overview
The H3C S5136S-48P4S-EI is a 48-port PoE+ Gigabit access switch featuring 48 × 10/100/1000BASE-T PoE+ downlinks and 4 × 1G SFP uplink ports, designed for large-scale powered-device networks.
Its high PoE budget supports Wi-Fi 6/6E AP clusters, video surveillance systems, IP phones, IoT devices, and smart building solutions. With full EI-series software capabilities, it provides advanced security, QoS, L2/L2+ features, IPv4/IPv6 static routing, and reliable performance.
Highlights
1. 48 × PoE+ Gigabit Ports
Supports IEEE 802.3af/at PoE+ with up to 30W per port, enabling dense deployments of APs and cameras.
2. 4 × 1G SFP Fiber Uplinks
Stable long-distance fiber connectivity toward aggregation layers.
3. Strong PoE Power Budget
Designed for full-floor AP networks, multi-camera systems, and large VoIP deployments.
4. L2/L2+ + Basic Layer-3 Routing
Includes VLAN, QinQ, MSTP, LACP, ACL, IGMP/MLD Snooping, static IPv4/IPv6 routing.
5. Enterprise Security
Features DHCP Snooping, ARP defense, 802.1X authentication, and IP/MAC binding.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| SFP Transceivers | SFP-GE-LX / SX | Optics | For 1G SFP uplink modules |
| Redundant PoE Supply | H3C RPS1600-A | Power | Enhances PoE stability during high load |
| Fiber Patch Cable | LC-LC SMF/MMF | Cabling | For uplink connectivity |
| Copper Patch Cable | Cat5e/Cat6 | Cabling | For PoE+ powered endpoints |
| Rack Mount Kit | RM-1U | Mounting | Standard 19" installation |
Comparison with Similar Models
| Feature | S5136S-48P4S-EI | S5136S-48P4X-EI | S5136S-48T4X-EI-Q |
|---|---|---|---|
| Downlink Ports | 48 × 1G PoE+ | 48 × 1G PoE+ | 48 × 1G |
| Uplinks | 4 × 1G SFP | 4 × 10G SFP+ | 4 × 10G SFP+ |
| PoE | Yes | Yes | No |
| Use Case | PoE access with basic uplinks | PoE access with high-speed uplinks | High-bandwidth non-PoE access |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5136S-48P4S-EI |
| Downlink Ports | 48 × 1G PoE+ RJ45 |
| Uplink Ports | 4 × 1G SFP |
| PoE Standard | 802.3af/802.3at |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| MAC Table | 64K |
| VLAN Support | 4K VLAN |
| Multicast | IGMP Snooping, MLD Snooping |
| Security | DHCP Snooping, ACL, 802.1X, ARP protection |
| QoS | 8 queues, WRR/SP, shaping |
| Routing | IPv4/IPv6 static routing |
| Power Supply | Built-in AC |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 4.3 kg |
| Ideal Deployment | AP floors, surveillance, smart buildings, VoIP networks |
