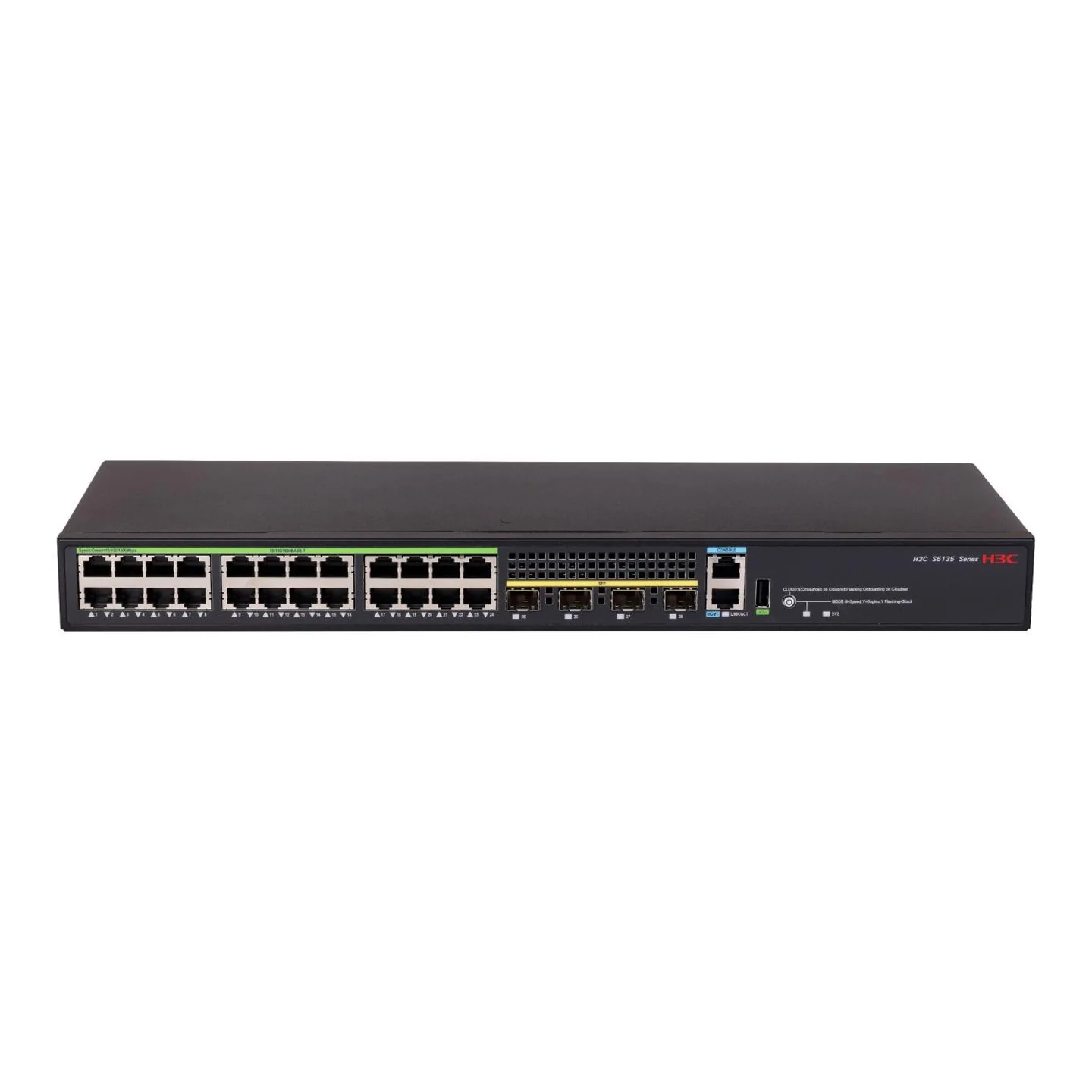

H3C S5136S-24T4S-EI-Q 24xGE + 4xSFP Enterprise Campus Switch
24×1G RJ45 + 4×1G SFP Enterprise Quiet-Design Access Switch (EI-Q Series)
Overview
The H3C S5136S-24T4S-EI-Q is a next-generation low-noise, energy-efficient Gigabit access switch designed for modern enterprise and campus networks. As part of the EI-Q (Quiet Enhanced) series, it features optimized hardware design for quieter operation, lower heat output, and enhanced long-life components.
This model provides 24 × 10/100/1000BASE-T RJ45 ports and 4 × 1G SFP uplink ports, making it ideal for standard Gigabit LAN deployments such as office user access, classrooms, dormitories, security networks, and SMB environments. The EI-Q series maintains the robust software capabilities of the EI platform, including L2/L2+ switching, static IPv4/IPv6 routing, and advanced security features.
Highlights
1. 24 × Full Gigabit Access Ports
Reliable 1G RJ45 downlinks suitable for laptops, printers, IP phones, cameras, and typical enterprise endpoints.
2. 4 × 1G SFP Fiber Uplinks
Stable, long-distance uplinks ideal for connecting to aggregation layers in campus and enterprise networks.
3. EI-Q Quiet & Energy-Saving Hardware
✔ Lower noise level
✔ Reduced power consumption
✔ Extended MTBF
✔ Improved temperature and airflow performance
4. Full L2/L2+ Switching + L3-Lite Static Routing
Supports VLAN, MSTP, QinQ, ACLs, IGMP/MLD Snooping, DHCP security, and static IPv4/IPv6 routing.
5. Enterprise-Class Security
Including ARP attack protection, DHCP guarding, user authentication, and per-port isolation.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 1G SFP Transceivers | SFP-GE-LX / SX | Optics | Fiber uplinks for 1G SFP ports |
| Fiber Patch Cord | LC-LC MMF/SMF | Cabling | For uplink connections |
| Copper Patch Cable | Cat5e / Cat6 | Cabling | For user access connections |
| Rack Mount Kit | RM-1U | Mounting | Standard 19" rack installation |
| Cable Management Bar | - | Install | For neat cabling in racks |
Comparison with Similar Models
| Feature | S5136S-24T4S-EI-Q | S5136S-24T4X-EI-Q | S5136S-24P4X-EI |
|---|---|---|---|
| Downlink Ports | 24 × 1G RJ45 | 24 × 1G RJ45 | 24 × 1G PoE+ |
| Uplinks | 4 × 1G SFP | 4 × 10G SFP+ | 4 × 10G SFP+ |
| PoE | No | No | Yes (PoE+) |
| Use Case | Standard access | High-speed uplink campus access | Powered device access |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5136S-24T4S-EI-Q |
| Downlink Ports | 24 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 4 × 1G SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 32K |
| VLAN Support | 4K VLANs |
| Multicast | IGMP Snooping / MLD Snooping |
| L2/L2+ Features | STP/RSTP/MSTP, QinQ, LACP, port isolation |
| Security | ACL, DHCP Snooping, ARP protection, 802.1X |
| Routing | IPv4/IPv6 Static Routing (L3-Lite) |
| QoS | 8 queues, WRR/SP, traffic shaping |
| Management | CLI, Web UI, SNMP, iMC |
| Power Supply | Built-in AC |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 160 × 43.6 mm |
| Weight | ≤ 3 kg |
| Recommended Deployment | Standard enterprise user access, campus offices, dormitories |
