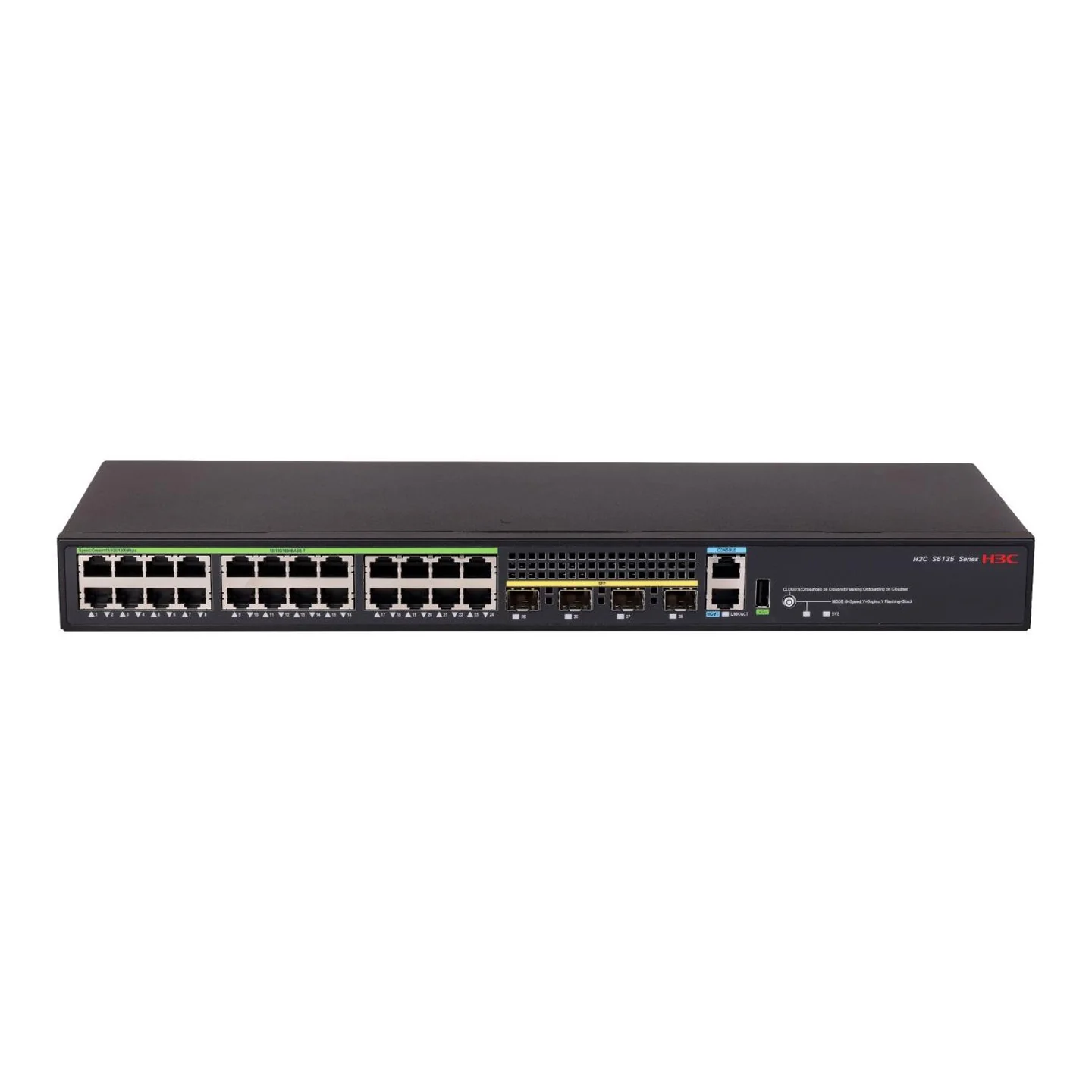

H3C S5136S-24P4X-EI 24xGE PoE+ + 4x10G Campus Switch
24×1G PoE+ + 4×10G SFP+ Enterprise PoE Access Switch
Overview
The H3C S5136S-24P4X-EI is an enterprise-grade PoE+ Gigabit access switch featuring 24 × 10/100/1000BASE-T PoE+ ports and 4 × 10G SFP+ uplinks, ideal for modern networks requiring power delivery to large numbers of devices.
Designed for Wi-Fi 6/6E AP deployments, IP camera surveillance, IP phones, and IoT terminals, this PoE model offers a robust PoE power budget, high uplink bandwidth, and reliable switching performance. It also supports full L2/L2+ switching, L3-Lite static routing, rich QoS, and enterprise-level security.
Highlights
1. 24 × Gigabit PoE+ Ports
Supports IEEE 802.3af/at PoE+ with up to 30W per port, perfect for powering APs, cameras, and phones.
2. 4 × 10G SFP+ Uplinks
High-bandwidth fiber uplinks that ensure stable backhaul capability for PoE-intensive deployments.
3. Strong PoE Budget
Ideal for multi-AP floors, security camera networks, smart buildings, and large VoIP deployments.
4. Complete L2/L2+ & L3-Lite Routing
Supports VLAN, MSTP, LACP, ACL, IGMP/MLD Snooping, and IPv4/IPv6 static routing.
5. Enterprise-Level Security
ARP protection, DHCP Snooping, 802.1X authentication, IP/MAC binding, and threat defense mechanisms.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G Transceivers | SFP-10G-SR / LR / ER | Optics | 10G uplinks for aggregation/core switches |
| Redundant PoE Supply | H3C RPS1600-A | Power | Ensures PoE stability in heavy-load deployments |
| Fiber Patch Cable | LC-LC SMF / MMF | Connectivity | For uplink fiber connections |
| Copper Patch Cable | Cat5e / Cat6 | Connectivity | For PoE terminals |
| Rack Mount Kit | RM-1U | Mounting | Standard 1U rack installation |
Comparison with Similar Models
| Feature | S5136S-24P4X-EI | S5136S-24T4X-EI-Q | S5136S-24T4S-EI-Q |
|---|---|---|---|
| Downlink Ports | 24 × 1G PoE+ | 24 × 1G | 24 × 1G |
| Uplinks | 4 × 10G SFP+ | 4 × 10G SFP+ | 4 × 1G SFP |
| PoE | Yes (PoE+) | No | No |
| Use Case | PoE APs / cameras | High-bandwidth access | Basic fiber uplink access |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5136S-24P4X-EI |
| Downlink Ports | 24 × 1G PoE+ RJ45 |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Standard | IEEE 802.3af/at PoE+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| MAC Address Table | 64K |
| VLAN | 4K |
| Multicast | IGMP Snooping, MLD Snooping |
| L2 | STP/RSTP/MSTP, QinQ, LACP |
| Security | ACL, DHCP Snooping, ARP Protection, 802.1X |
| QoS | WRR/SP, shaping, policing |
| Routing | IPv4/IPv6 static routing |
| Power Supply | Built-in AC |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 4.0 kg |
| Best Deployment | High-density AP floors, CCTV systems, VoIP networks |
