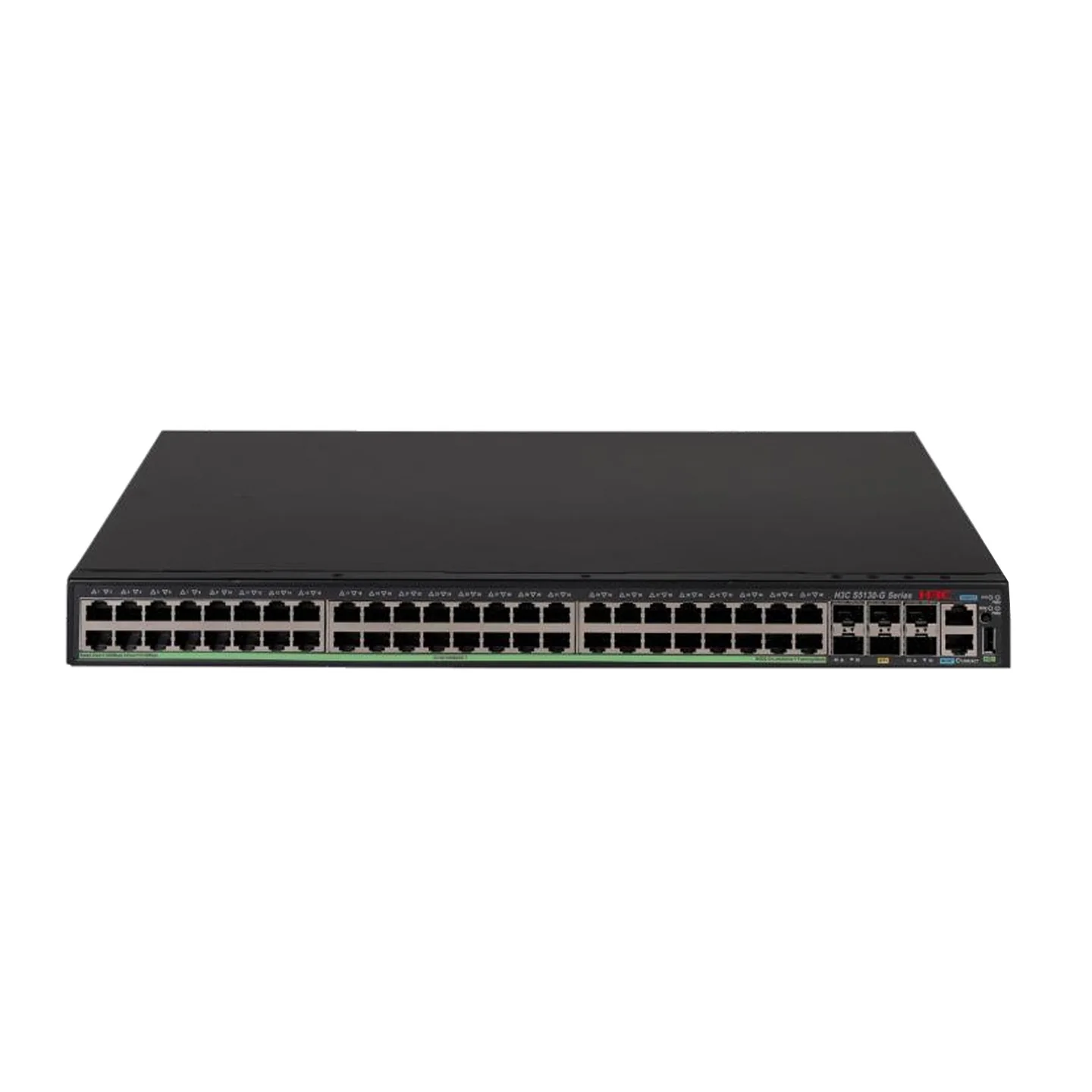

H3C S5130S-54S-EI-G 48xSFP Fiber Campus Switch
48×1G RJ45 + 4×10G SFP+ Gigabit Access Switch (Green-Energy EI-G Series)
Overview
The H3C S5130S-54S-EI-G is an enhanced "EI-G" (Energy-efficient) series Gigabit access switch, designed with improved hardware longevity, optimized thermal efficiency, and extended environmental adaptability. It offers 48 × 10/100/1000BASE-T RJ45 downlink ports and 4 × 1/10G SFP+ uplinks, making it ideal for large enterprise access networks, campus deployments, and dense client environments.
Compared to the standard EI version, the EI-G variant features greater energy efficiency, lower heat output, and improved fanless / low-noise designs in some deployment modes. It supports the full L2/L2+ switching, L3-Lite IPv4/IPv6, ACL, QoS, and dynamic security capabilities needed for modern enterprise networks.
Highlights
1. 48 × Gigabit RJ45 Ports
High-density access for enterprise floors, classrooms, office buildings, dormitories, and large user environments.
2. 4 × 10G SFP+ Uplinks
Provides fast and reliable uplinks to aggregation or core layers.
3. EI-G "Green-Energy" Enhancements
✔ Lower power consumption
✔ Improved thermal efficiency
✔ Longer component life
✔ Quieter operation
4. Full L2/L2+ Features + L3-Lite Routing
Supports VLANs, QinQ, MSTP, IGMP/MLD Snooping, ACL, and static IPv4/IPv6 routing.
5. Enterprise-Grade Security
Features DHCP Snooping, ARP protection, 802.1X authentication, IP/MAC binding, and user access control.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G SFP+ Transceiver | SFP-10G-SR / LR | Optics | For uplink fiber connections |
| Fiber Patch Cable | LC-LC SMF/MMF | Connectivity | For SFP+ modules |
| Copper Patch Cable | Cat5e / Cat6 | Connectivity | For 48 × 1G connections |
| Rack Mount Kit | RM-1U | Mounting | Standard 19" installation |
| Cable Organizers | Fiber/Copper management trays | Install | For structured wiring |
Comparison with Similar Models
| Feature | S5130S-54S-EI-G | S5130S-52S-EI | S5130S-52ST-EI |
|---|---|---|---|
| Downlink Ports | 48 × 1G RJ45 | 48 × 1G RJ45 | 48 × 1G + 2 × Multi-Rate |
| Uplinks | 4 × 10G SFP+ | 4 × 10G SFP+ | 2 × 10G SFP+ |
| Energy Efficiency | Enhanced (EI-G) | Standard EI | Standard EI |
| PoE | No | No | Optional PWR versions |
| Ideal Use Case | Large enterprise access (Green design) | Standard enterprise access | Mixed-speed environments |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S-54S-EI-G |
| Downlink Ports | 48 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 4 × 1/10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| MAC Table | 64K |
| VLAN | 4K |
| Multicast | IGMP Snooping, MLD Snooping |
| L2 Features | MSTP, LACP, QinQ, port isolation, loop protection |
| L3-Lite Routing | IPv4/IPv6 static routing |
| Security | ACL, ARP protection, DHCP Snooping, MAC authentication |
| QoS | 8 queues, SP/WRR, shaping |
| Power Supply | Built-in AC |
| Cooling | Low-noise / efficient cooling |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 4.2 kg |
| Best Deployment | Green enterprise access, large user density areas, sustainable IT environments |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by H3CIE Certified Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your H3C products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
