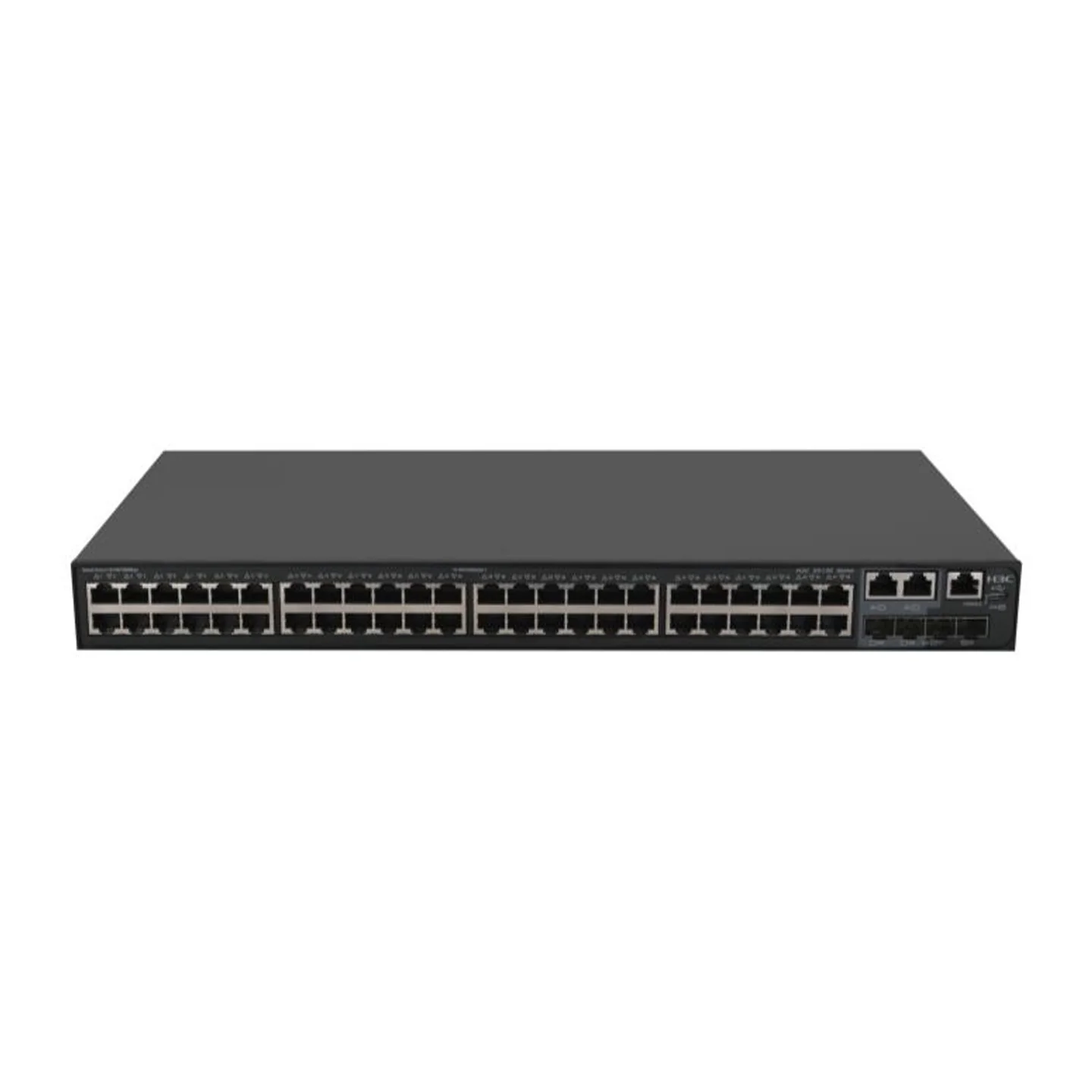

H3C S5130S-52TP-EI 48x1G + combo + 2xSFP Gigabit Access Switch
H3C S5130S-52TP-EI Enhanced Gigabit TP Access Switch
Overview
The H3C S5130S-52TP-EI is a high-density 48 × 1G RJ45 access switch with 4 × combo RJ45/SFP ports and 4 × 10GE uplinks. Designed for large enterprise campuses, IP telephony floors, and dense corporate networks requiring stable Gigabit access with 10GE uplink resiliency.
Note: Built-in AC PSU and integrated cooling system.
Highlights
1. 48-Port RJ45 High-Density Access
Perfect for large office floors or distribution layers requiring many copper access ports.
2. 4 x 10GE SFP+ Uplinks
Offers strong uplink performance for high-bandwidth aggregation.
3. Enterprise Routing + IRF
Supports OSPF, VRRP, IPv6, ACL, DHCP Snooping, and IRF cluster virtualization.
4. Stable & Easy Deployment
Integrated AC power, fixed fans, Telemetry, sFlow, iMC readiness.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| Power | Built-in AC PSU | Power | Standard in TP models. |
| Cooling | Internal fixed fan | Cooling | Built-in cooling system. |
| Cabling | - | Copper | Cat6/Cat6A recommended for high-performance access. |
| Combo SFP | SFP-1G-SX / LX | Optics | For optional combo SFP slots. |
| Uplink SFP+ | SFP-10G-SR / LR | Optics | For all uplink connections. |
Comparison with Similar Models
| Feature | S5130S-52TP-EI | S5130S-28TP-EI | S5130S-52P-EI |
|---|---|---|---|
| Downlinks | 48×RJ45 | 24×RJ45 | 48×RJ45 |
| Combo Ports | 4 | 4 | 0 |
| Uplinks | 4×10G | 4×10G | 4×10G |
| PoE | No | No | No |
| Best Use | Large corporate floors | Medium floors | Fiber-rich alternatives |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5130S-52TP-EI |
| Downlink Ports | 48 × 1G RJ45 |
| Combo Ports | 4 × 1G RJ45/SFP |
| Uplink Ports | 4 × 10GE SFP+ |
| Switching | Full wire-speed |
| Routing | RIP, OSPF, VRRP, static |
| Security | DHCP Snooping, ARP/ND guard, ACL |
| VLAN | 4K |
| QoS | Queuing, WRR/WFQ |
| IPv6 | Yes |
| Virtualization | IRF |
| Power | Built-in AC |
| Cooling | Internal fixed fan |
| Operating Temp | 0°C to +50°C |
| Best Deployment | Large enterprise access, high-density LANs |
