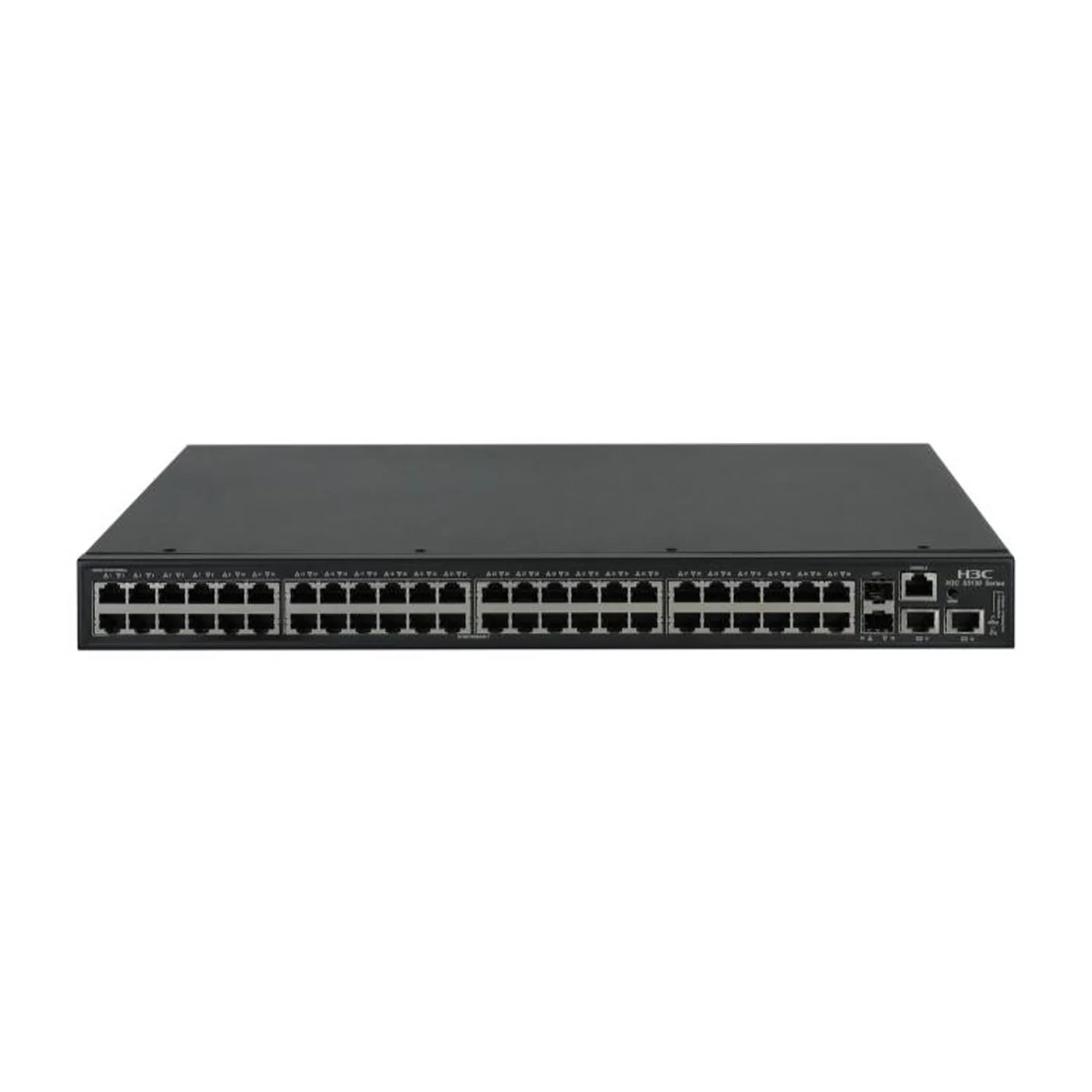

H3C S5130S-52ST-PWR-EI 48xGE PoE+ Campus Switch
48×1G PoE+ + 2× Multi-Rate + 2×10G SFP+ Access Switch
Overview
The S5130S-52ST-PWR-EI is a high-density PoE+ Gigabit access switch with 48 × 10/100/1000BASE-T PoE+ ports, 2 × multi-rate 1G/2.5G/5G/10G BASE-T, and 2 × 1/10G SFP+ uplink ports. It is designed for enterprise and campus networks with high PoE demand and large numbers of powered endpoints such as Wi-Fi 6 APs, IP cameras, IP phones, and IoT terminals.
Offering advanced L2/L2+ switching, L3-Lite static routing, strong QoS, and robust security, this switch is ideal for large-scale deployments requiring both high port density and flexible multi-speed connectivity.
Highlights
1. 48 × PoE+ Gigabit Ports
Supports full 48-port PoE+, suitable for AP-dense enterprise floors, camera networks, or IP phone deployments.
2. Multi-Rate High-Speed Ports
2 × 1G/2.5G/5G/10G ports ideal for:
✔ Wi-Fi 6/6E/7 AP uplinks
✔ Edge servers
✔ High-bandwidth terminals
3. Dual 10G SFP+ Uplinks
Ensures high-bandwidth aggregation to core switches.
4. Enterprise-Grade L2/L3-Lite Features
Includes VLAN, QinQ, ACL, DHCP protection, STP/RSTP/MSTP, IGMP/MLD snooping, static IPv4/IPv6 routing.
5. Built for High-Density PoE Networks
Delivers stable PoE power for large device populations, simplifying deployment and reducing wiring.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G SFP+ Transceiver | SFP-10G-SR / LR | Optics | High-speed fiber uplink modules |
| Multi-Gigabit Cables | Cat6A / Cat7 | Connectivity | Required for 2.5G/5G/10G multi-rate ports |
| Copper Patch Cables | Cat5e/Cat6 | Connectivity | For 48 × 1G PoE+ ports |
| Rack Mount Kit | RM-1U-STD | Mounting | Standard 19" rack mount kit |
| Optional Redundant Power | H3C RPS1600-A | Power | Backup power for PoE load stability |
Comparison with Similar Models
| Feature | S5130S-52ST-PWR-EI | S5130S-52ST-EI | S5130S-52S-EI |
|---|---|---|---|
| Downlink Ports | 48 × 1G PoE+ + 2 × Multi-Rate | 48 × 1G + 2 × Multi-Rate | 48 × 1G |
| Uplinks | 2 × 10G SFP+ | 2 × 10G SFP+ | 4 × 10G SFP+ |
| PoE | Yes (PoE+) | No | No |
| Ideal Scenario | High-density AP / camera floors | Mixed-speed device access | Large non-PoE access |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S-52ST-PWR-EI |
| Downlink Ports | 48 × 10/100/1000BASE-T PoE+ |
| Multi-Rate Ports | 2 × 1G/2.5G/5G/10G BASE-T |
| Uplink Ports | 2 × 1/10G SFP+ |
| PoE | IEEE 802.3af/at PoE+, up to 30W/port |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| MAC Table | 64K |
| VLAN Capacity | 4K VLANs |
| Multicast Features | IGMP/MLD Snooping |
| Security | ACL, DHCP Snooping, ARP Protection, Port Security |
| QoS | 8 queues, WRR, shaping |
| Routing | IPv4/IPv6 Static Routing (L3-Lite) |
| Operating Temp | -5°C ~ 50°C |
| Power Supply | Built-in AC PSU |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 4.2 kg |
| Best Deployment | High-density PoE access layers in enterprise and campus networks |
