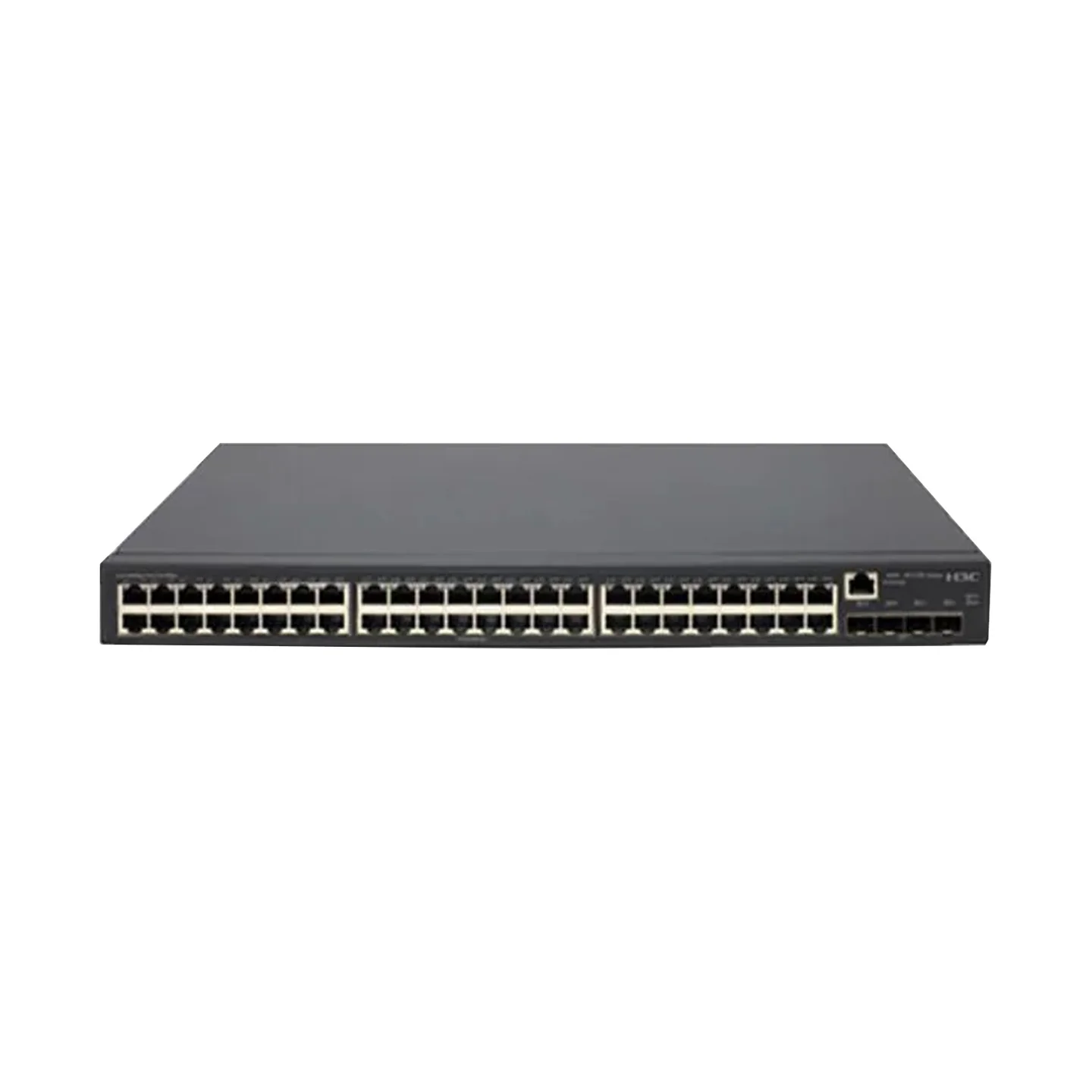

H3C S5130S-52S-EI 48xSFP + 4x10G Fiber Campus Switch
H3C S5130S-52S-EI 48×1G + 4×10G Access Switch
Overview
The H3C S5130S‑52S‑EI is a high‑density access switch designed for large enterprise campus networks. Featuring 48 × 10/100/1000BASE‑T RJ45 ports and 4 × 1/10G SFP+ uplinks, it offers a powerful solution for high‑capacity deployments in large office buildings, campuses, and data centers.
This model supports full L2 and L3-Lite static routing, IPv4/IPv6 dual‑stack, and is ideal for environments requiring both data and basic routing capabilities. The S5130S‑52S‑EI is perfect for providing high-speed connectivity, network security, and energy efficiency in large‑scale deployments.
Highlights
-
48 × Gigabit RJ45 Ports
Connect up to 48 devices with Gigabit Ethernet for reliable data transfer and connectivity to access points, IP phones, and cameras. -
4 × 1/10G SFP+ Uplinks
Provides high‑performance uplinks with 10G SFP+ for fast and scalable aggregation or core network connections. -
Comprehensive L2/L2+ and L3-Lite Features
Includes VLAN, QinQ, ACL, QoS, Multicast, Static Routing, and more, providing full flexibility and scalability. -
IPv4/IPv6 Dual-Stack
Supports both IPv4 and IPv6 traffic, allowing seamless integration into mixed network environments. -
Energy-Efficient Operation
Optimized for low power consumption, supporting EEE (Energy Efficient Ethernet) standards and energy‑saving modes.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| SFP+ Optical Module | SFP-10G-LR | Optics | 10G SFP+ optical module for fiber uplink connections. |
| PoE Power Injector | H3C-PWR-1000W | Power | Optional PoE injector for additional powered devices. |
| Fiber Patch Cables | LC-LC SMF | Connectivity | Single-mode fiber patch cables for SFP+ connections. |
| Copper Patch Cables | Cat5e/Cat6 | Connectivity | Copper cables for Gigabit Ethernet connections. |
| Rack Mount Kit | RACK-MOUNT | Mounting | 19" rack mount kit for easy installation in standard server racks. |
Comparison with Similar Models
| Feature / Model | S5130S‑52S‑EI | S5130S‑28S‑EI | S5130S‑28S‑HPWR‑EI |
|---|---|---|---|
| Downlink Ports | 48 × 1G RJ45 | 24 × 1G RJ45 | 24 × 1G RJ45 (PoE) |
| Uplink Ports | 4 × 1/10G SFP+ | 4 × 1G SFP | 4 × 1G SFP |
| PoE Capability | No | No | Yes (PoE/PoE+) |
| Switching Capacity | 104 Gbps | 56 Gbps | Same |
| Forwarding Rate | 77.38 Mpps | 41.67 Mpps | Same |
| Ideal Use Case | Large campus access | Small-to-medium access | PoE-powered devices |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S‑52S‑EI |
| Downlink Ports | 48 × 10/100/1000BASE‑T (RJ45) |
| Uplink Ports | 4 × 1/10G SFP+ |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| MAC Address Table | 64K |
| VLAN Support | 4K VLAN |
| Multicast Support | IGMP Snooping v1/v2/v3, MLD Snooping |
| Spanning Tree | STP/RSTP/MSTP |
| Routing | Static Routing, IPv4/IPv6 Dual-Stack |
| Security | ACL, Port Security, DHCP Snooping |
| QoS | 8 queues, traffic shaping |
| PoE | No |
| Management | CLI, Web UI, SNMP, iMC, Telemetry |
| Cooling | Hot-swappable fan trays |
| Power Supply | Built-in AC PSU |
| Operating Temperature | -5°C to 50°C |
| Dimensions (H × W × D) | 440 × 160 × 43.6 mm |
| Weight | ≤ 2.5 kg |
| Ideal Deployment | Enterprise floor access, multi-device environments, PoE deployments |
