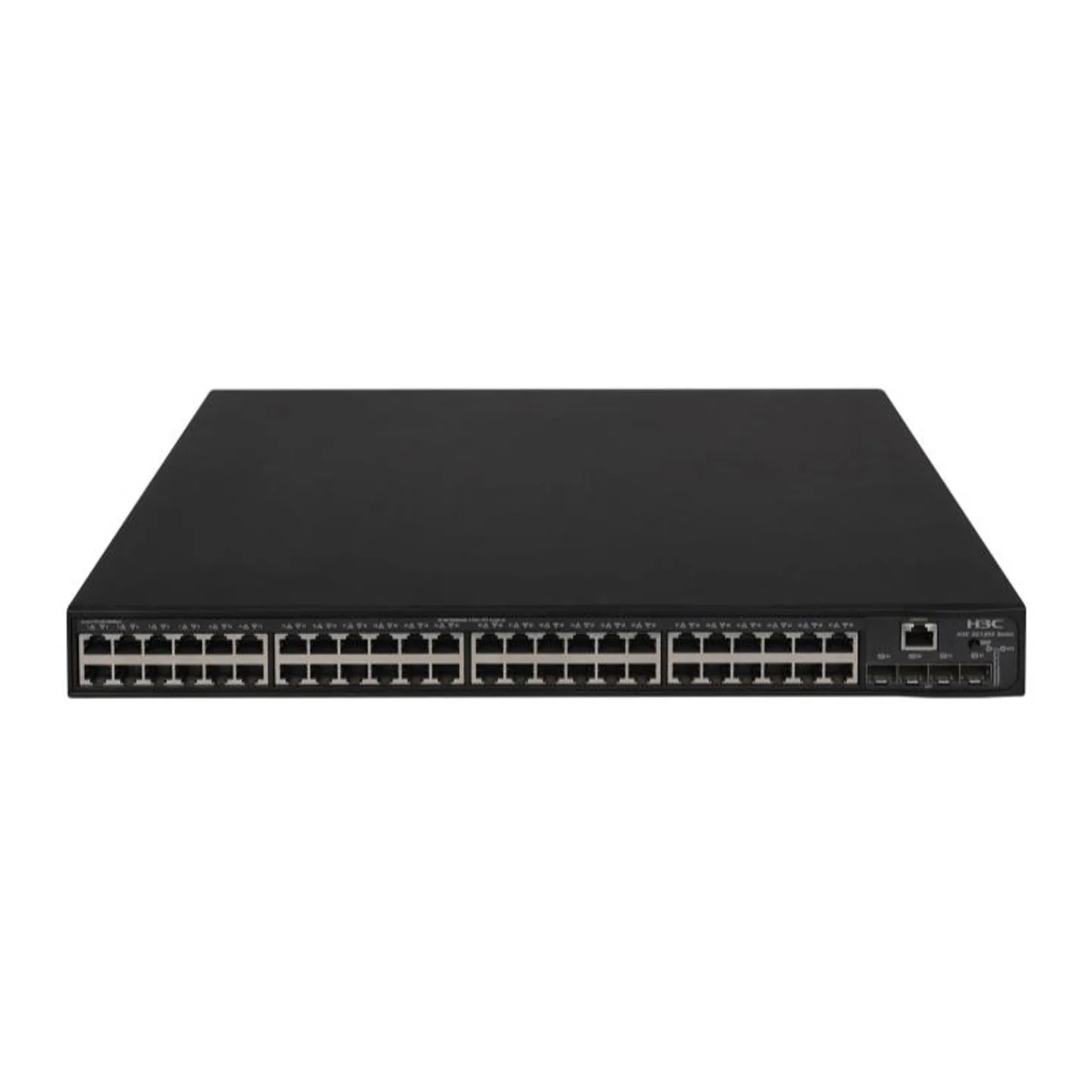

H3C S5130S-52P-PWR-EI-AC 48-Port PoE+ Gigabit Access Switch with AC Power
H3C S5130S-52P-PWR-EI-AC PoE Access Switch
Overview
The H3C S5130S-52P-PWR-EI-AC is a high-density 48-port Gigabit PoE+ access switch with 4 × 10GE SFP+ uplinks, designed for large enterprise PoE access networks, campus AP deployments, and IP surveillance infrastructures.
Note: Integrated AC PoE power.
Highlights
1. 48 × 1G PoE+ Ports
Ideal for large wireless/IoT floors, high-density office deployments, or CCTV environments.
2. 4 × 10GE Uplinks
Supports fast uplink aggregation with redundancy.
3. Enterprise L2/L3 Features
Includes OSPF, VRRP, DHCP security, ACL, L3 forwarding, and IPv6.
4. Reliable PoE Hardware Platform
Features integrated AC PSU, strong PoE budget, and stable cooling.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| Power | Built-in AC PoE PSU | Power | No modular PSU required. |
| Cooling | Internal fixed fan | Cooling | Non-removable cooling. |
| Uplink Optics | SFP-10G-SR / LR | Optics | Recommended for uplink access. |
| PoE Cabling | — | Cabling | Cat6/Cat6A recommended. |
Comparison with Similar Models
| Feature | S5130S-52P-PWR-EI-AC | S5130S-28P-HPWR-EI-AC | S5130S-20P-PWR-EI |
|---|---|---|---|
| Downlinks | 48×1G PoE+ | 24×1G PoE UPoE | 16×1G PoE+ |
| Uplinks | 4×10G | 4×10G | 4×10G |
| PoE | PoE+ | UPoE | PoE+ |
| Use Case | Large PoE installations | High-power deployments | SMB PoE floors |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5130S-52P-PWR-EI-AC |
| Downlink Ports | 48 × 1G RJ45 PoE+ |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | 802.3af/at |
| Switching | Full wire-speed |
| VLAN | 4K |
| Routing | Static, RIP, OSPF, VRRP |
| Security | DHCP Snooping, ACL, ARP protection, ND guard |
| QoS | WRR, WFQ, 8 queues, traffic shaping |
| IPv6 | Supported |
| Virtualization | IRF |
| Power | Built-in AC PoE PSU |
| Cooling | Fixed internal fan |
| Operating Temperature | 0°C to +50°C |
| Deployment | Large PoE access layers, campus wireless, CCTV systems |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by H3CIE Certified Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your H3C products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
