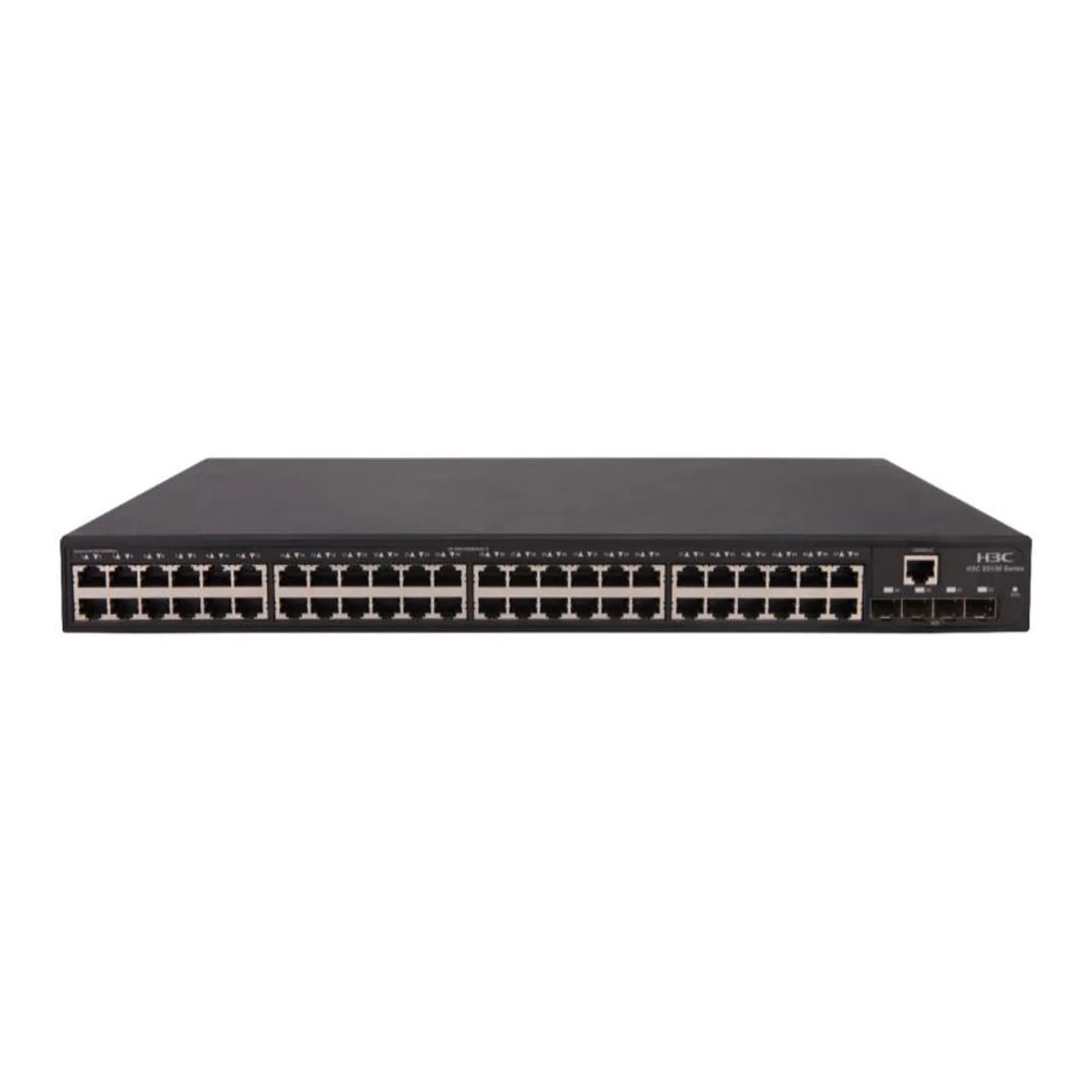

H3C S5130S-52P-EI 48x1G + 4xSFP Gigabit Access Switch
H3C S5130S-52P-EI Gigabit Access Switch
Overview
The H3C S5130S-52P-EI is a high-density Gigabit Layer 3 access switch featuring 48 × 1G RJ45 downlink ports and 4 × 10GE SFP+ uplinks. It provides full enterprise L2/L3 features including OSPF, VRRP, ACL, DHCP security, and IRF virtualization. Ideal for medium-to-large enterprise access layers, classroom networks, and high-user-density LAN environments.
Note: Built-in AC power supply and integrated fan system.
Highlights
1. 48-Port Gigabit Access
Suitable for large enterprise floors and user-dense access networks.
2. 4 × 10GE Uplinks
High-performance 10G uplinks ensure fast aggregation connectivity.
3. Comprehensive Enterprise L3 Features
OSPF, VRRP, DHCP Snooping, ACL, IPv6, QoS, and multi-service support.
4. IRF Virtualization & Easy Management
Supports device clustering, SNMP, Telemetry, and sFlow for efficient O&M.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| Power | Built-in AC PSU | Power | Integrated AC power, no external PSU required. |
| Fan | Fixed internal fan | Cooling | Non-modular cooling system. |
| 10G Uplink Optics | SFP-10G-SR / SFP-10G-LR | Optics | Recommended fiber uplinks. |
| Cabling | — | Ethernet | Cat5e/Cat6/Cat6A for RJ45 access ports. |
Comparison with Similar Models
| Feature | S5130S-52P-EI | S5130S-28P-EI | S5130S-52TP-EI |
|---|---|---|---|
| Downlinks | 48×1G | 24×1G | 48×1G + 4×1G combo |
| Uplinks | 4×10G | 4×10G | 4×10G |
| Best Use | Large enterprise | Medium floors | TP-mixed access |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5130S-52P-EI |
| Downlink Ports | 48 × 1G RJ45 |
| Uplink Ports | 4 × 10GE SFP+ |
| Switching | Full line-speed |
| Routing | Static, RIP, OSPF, VRRP |
| Security | ACL, ARP/ND protection, DHCP Snooping |
| VLAN Capacity | Up to 4K VLANs |
| QoS | 8 queues, WRR/WFQ, rate-limit, shaping |
| IPv6 Support | Yes |
| Virtualization | IRF |
| O&M | SNMP, sFlow, Telemetry, iMC |
| Power | Built-in AC |
| Cooling | Internal fixed fan |
| Operating Temperature | 0°C to +50°C |
| Best Use Case | Large campus floors, enterprise access |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by H3CIE Certified Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your H3C products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
