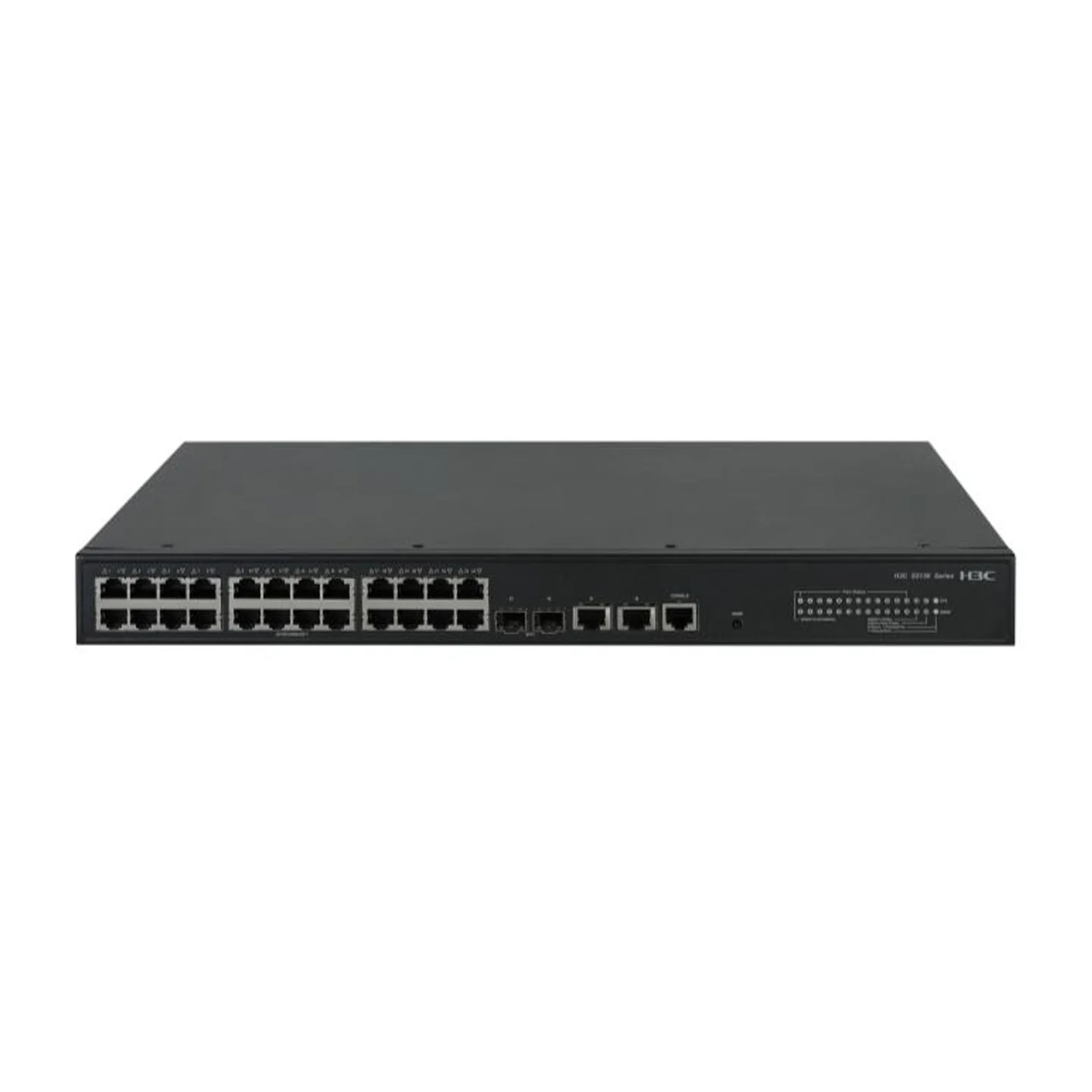

H3C S5130S-28ST-PWR-EI 24xGE PoE+ Access Switch
24×1G PoE+ + 2× Multi-Rate + 2×10G SFP+ Access Switch
Overview
The H3C S5130S-28ST-PWR-EI is a high-performance Gigabit PoE+ access switch featuring a flexible combination of ports: 24 × 10/100/1000BASE-T PoE+ RJ45 ports, 2 × multi-rate 1G/2.5G/5G/10G BASE-T ports, and 2 × 1/10G SFP+ uplinks. Designed for modern enterprise networks deploying large numbers of Wi-Fi 6 access points, IP cameras, IP phones, and IoT devices, this model delivers robust PoE capability along with high-speed multi-rate support for advanced terminals.
Part of the S5130S-EI family, it supports L2/L2+ switching, IPv4/IPv6 dual-stack, L3-Lite static routing, advanced QoS, and rich security features, making it ideal for enterprise access layers and wiring closet deployments requiring both power delivery and traffic performance.
Highlights
1. 24 × PoE+ Gigabit Ports
Supports IEEE 802.3at PoE+, up to 30W per port, ideal for powering Wi-Fi APs, cameras, VoIP phones, and IoT devices.
2. 2 × Multi-Rate BASE-T Adaptive Ports
Provide 1G/2.5G/5G/10G speeds, ideal for
✔ Wi-Fi 6/6E backhaul
✔ Small servers/workstations
✔ High-speed uplink aggregation
3. 2 × 10G SFP+ Uplinks
Enable high-bandwidth connectivity toward core or aggregation switches.
4. Full L2/L2+ and Layer-3 Lite Routing
Includes VLAN, QinQ, STP/RSTP/MSTP, ACL, multicast snooping, DHCP security, and static IPv4/IPv6 routing.
5. PoE Power Budget for High-Density Deployments
Delivers sufficient PoE power for multi-AP deployments on each floor of a large campus or office building.
Recommended Accessories
| Accessory | Model / Type | Category | Description |
|---|---|---|---|
| 10G SFP+ Modules | SFP-10G-SR / SFP-10G-LR | Optics | Fiber uplink modules for 10G connections |
| Multi-Gigabit Cables | Cat6A / Cat7 | Cabling | Required for 2.5G / 5G / 10G BASE-T |
| PoE Injector / RPS | H3C RPS1600-A | Power | Optional redundant power supply |
| Fiber Patch Cables | LC-LC MMF/SMF | Cabling | For SFP+ uplinks |
| Rack Mount Kit | 19" Rack Ears | Mounting | For standard 1U installation |
Comparison with Similar Models
| Feature | S5130S-28ST-PWR-EI | S5130S-28ST-EI | S5130S-28P-PWR-EI |
|---|---|---|---|
| Downlink Ports | 24 × 1G PoE+ + 2 × Multi-Rate | 24 × 1G + 2 × Multi-Rate | 24 × 1G PoE+ |
| Uplinks | 2 × 10G SFP+ | 2 × 10G SFP+ | 4 × 1G SFP |
| PoE | Yes (PoE+) | No | Yes |
| Best Use Case | Wi-Fi 6 access + mixed-speed devices | Standard mixed-speed access | Basic PoE access with no 10G uplinks |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S-28ST-PWR-EI |
| Downlink Ports | 24 × 10/100/1000BASE-T PoE+ |
| Multi-Rate Ports | 2 × 1G/2.5G/5G/10G BASE-T |
| Uplink Ports | 2 × 1/10G SFP+ |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Per-Port Output | Up to 30W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Table | 32K |
| VLAN Support | 4K VLAN |
| Multicast | IGMP Snooping, MLD Snooping |
| Security | ACL, Port Security, DHCP Snooping, ARP Protection |
| QoS | 8 queues, WRR, shaping, flow control |
| Routing | L3-Lite static IPv4/IPv6 |
| Management | CLI, Web UI, SNMP, iMC |
| Power Supply | Built-in AC PSU |
| Cooling | Intelligent fans |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 440 × 160 × 43.6 mm |
| Weight | ≤ 3 kg |
| Ideal Deployment | Wi-Fi AP layers, surveillance networks, PoE-heavy access networks |
