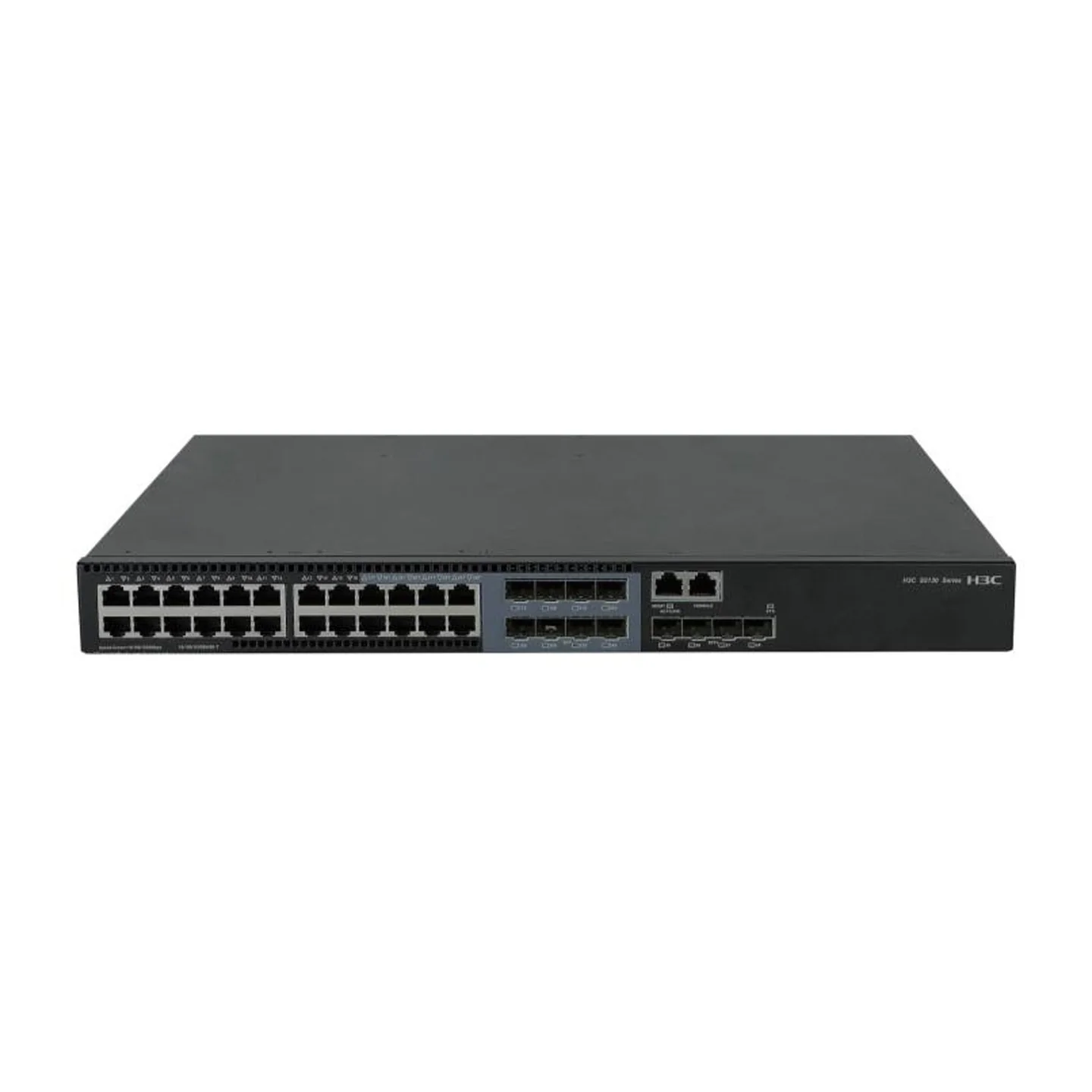

H3C S5130S-28PS-EI 24xGE PoE+ Access Switch
24×1G PoE+ + 4×1G SFP Access Switch (High PoE Budget Version)
Overview
The H3C S5130S-28PS-EI is an enhanced PoE+ access switch designed for power-intensive enterprise networks. Featuring 24 × 10/100/1000BASE-T PoE+ RJ45 ports and 4 × 1G SFP uplinks, this model offers a higher PoE budget than standard PWR models, making it suitable for floors with Wi-Fi 6/6E APs, PTZ cameras, VoIP phones, and IoT devices that require more power or longer runtimes.
As part of the S5130S-EI family, it delivers stable L2/L2+ switching, IPv4/IPv6 static routing, advanced QoS, and enterprise-grade security, making it an ideal choice for large offices, campus networks, and smart building deployments.
Highlights
1. High-Power PoE+
All 24 ports support PoE+ (30W), with an increased PoE power budget suitable for multi-AP and camera deployments.
2. Reliable Gigabit Access + 4 SFP Uplinks
Allows flexible fiber uplink to aggregation switches, enabling stable bandwidth and long-distance connectivity.
3. L2/L2+ Switching + IPv4/IPv6 Static Routing
Provides essential enterprise features including VLAN, ACL, multicast, flow control, and basic L3 routing.
4. Enterprise-Grade Security
Supports 802.1X, MAC authentication, DHCP protection, and ARP security.
5. Ideal for High-Density Powered Device Floors
Best for AP-heavy deployment zones, security surveillance networks, and multi-service access environments.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| SFP Transceivers | SFP-GE-LX / SX | Optics | 1G uplink modules |
| PoE Injector / RPS | H3C RPS1600-A | Power | Redundant power supply for PoE stability |
| Patch Cables | Cat5e / Cat6 | Cabling | For PoE devices |
| Fiber Patch Cables | LC-LC | Cabling | For SFP uplinks |
| Rack Kit | RM-1U | Mounting | Standard 1U installation |
Comparison with Similar Models
| Feature | S5130S-28PS-EI | S5130S-28P-PWR-EI | S5130S-28ST-PWR-EI |
|---|---|---|---|
| Downlink Ports | 24 × 1G PoE+ | 24 × 1G PoE+ | 24 × 1G PoE+ + 2 × Multi-Rate |
| Uplinks | 4 × 1G SFP | 4 × 1G SFP | 2 × 10G SFP+ |
| PoE Budget | Higher | Standard | Standard |
| Best Use Case | High-density PoE floors | General PoE deployments | Mixed PoE + multi-rate access |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S-28PS-EI |
| Downlink Ports | 24 × 1G PoE+ RJ45 |
| Uplink Ports | 4 × 1G SFP |
| PoE Standard | 802.3af/at PoE+ |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Table | 32K |
| VLAN Support | 4K VLAN |
| Security | ACL, ARP protection, DHCP Snooping, port security |
| Multicast | IGMP/MLD Snooping |
| QoS | 8 priority queues, policing, shaping |
| Routing | IPv4/IPv6 static routing |
| Operating Temp | -5°C to 50°C |
| Dimensions | 440 × 160 × 43.6 mm |
| Weight | ≤ 3 kg |
| Typical Deployment | High-PoE AP floors, camera networks, enterprise access layers |
