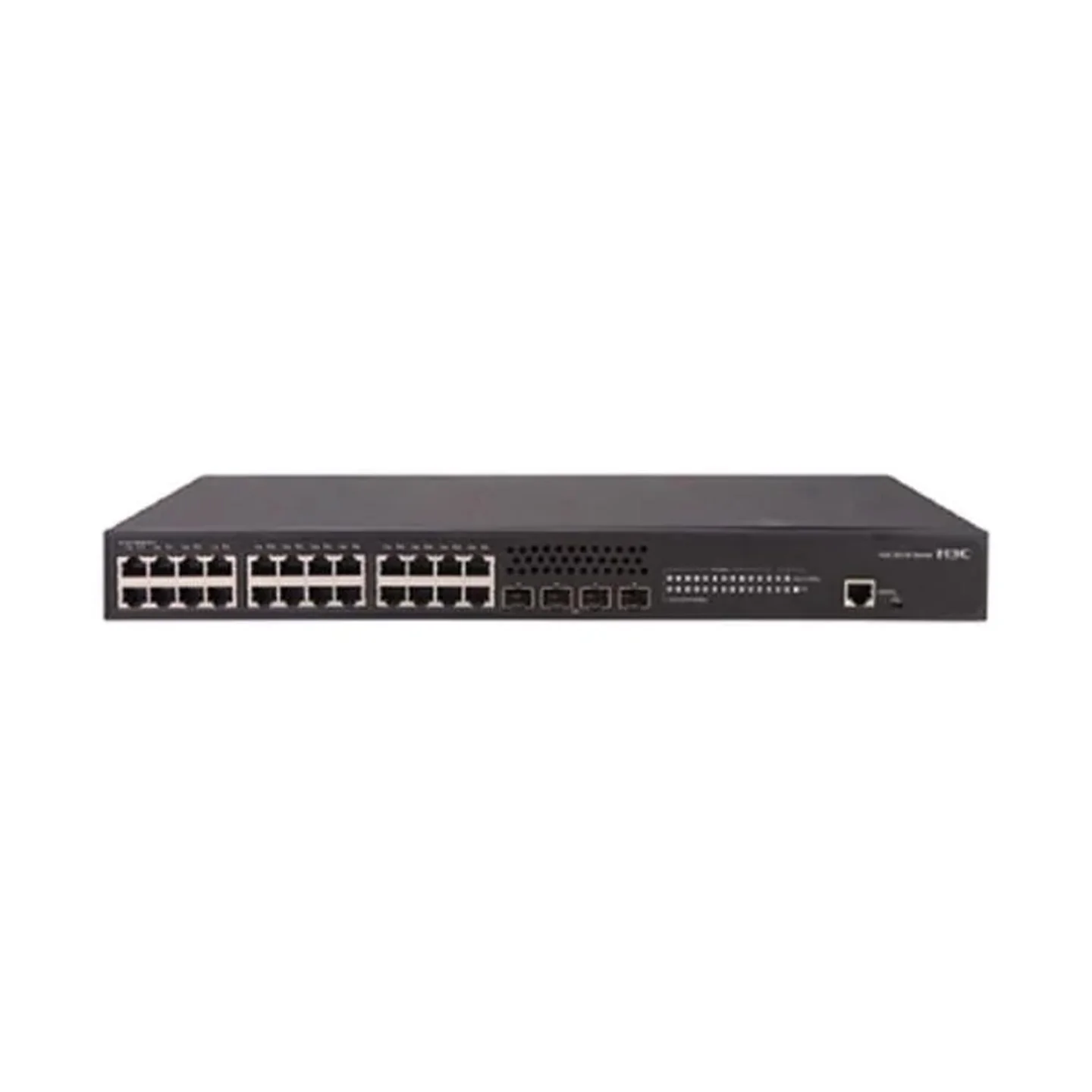

H3C S5130S-28P-PWR-EI 24xGE PoE+ + 4xSFP Campus Switch
H3C S5130S-28P-PWR-EI 24Ă—1G PoE+ Access Switch
Overview
The H3C S5130S‑28P‑PWR‑EI is a cost‑effective, managed Gigabit access switch offering 24 × 10/100/1000BASE‑T RJ45 (PoE+) downlink ports plus 4 × 1G SFP uplink ports. As part of the S5130S‑EI family, it's designed for small‑to‑medium enterprise networks, campus floors, offices or scenarios requiring both power and data delivery (e.g. Wi‑Fi APs, IP cameras, VoIP phones).
It supports Layer 2+ switching, static routing (L3‑Lite), IPv4/IPv6 dual‑stack and provides a rich set of security, QoS and management features - an ideal choice where simplicity, PoE capability and stable performance are priorities.
Highlights
-
24 × PoE+ Gigabit RJ45 Ports: Supplies up to 30 W per port, powering APs, cameras, VoIP phones without extra power cables.
-
4 × 1G SFP Uplinks: Flexible fiber uplink for backbone or upper‑layer aggregation connectivity.
-
Full L2+ Feature Set: VLAN / QinQ, ACL, DHCP Snooping, Multicast (IGMP/MLD), Port Security, Spanning Tree, Port/LAG Aggregation.
-
Static Routing & IPv4/IPv6 Dual‑Stack: Basic routing capabilities enable simple inter‑VLAN or network segmentation without needing a full router.
-
PoE+ for Powered Devices: Ideal for networks with many PoE‑powered endpoints - simplifies deployment and reduces wiring complexity.
Recommended Accessories
| Accessory | Model / Type | Category | Description |
|---|---|---|---|
| 1G Fiber Module | SFP‑1G‑SX / SFP‑1G‑LX | Optics | For fiber uplink: multimode or single‑mode, depending on distance. |
| PoE Power Injector (Optional) | H3C‑PWR‑1000W | Power | Extra PoE power source if many PDs exceed switch budget. |
| Copper Patch Cables | Cat5e / Cat6 / Cat6A | Connectivity | For Gigabit RJ45 downlink connections. |
| Rack Mount Kit | 19" rack ears | Mounting | For standard 1U rack installation. |
| Fiber Patch Cables | LC‑LC MMF / SMF | Connectivity | For connecting SFP uplink modules to fiber backbone. |
Comparison with Similar Models
| Feature / Model | S5130S‑28P‑PWR‑EI | S5130S‑28P‑EI (non‑PoE) | S5130S‑52S‑EI / S5130S‑52S‑PWR‑EI |
|---|---|---|---|
| Downlink Ports | 24 Ă— 1G PoE+ RJ45 | 24 Ă— 1G RJ45 | 48 Ă— 1G RJ45 |
| Uplink Ports | 4 Ă— 1G SFP | 4 Ă— 1G SFP | 4 Ă— 10G SFP+ or 1G SFP (depending on variant) |
| PoE Capability | PoE+ | None | Depends on variant (PWR version supports PoE) |
| Ideal Use Case | PoE‑powered APs / Cameras / Phones (mid-size networks) | Pure data endpoints, no PoE requirement | Larger networks / higher port density needs |
| Typical Deployment | Offices, campus floors, small enterprise sites | Offices without PoE devices | Larger campuses, backbone aggregation, dense deployments |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S‑28P‑PWR‑EI |
| Downlink Ports | 24 × 10/100/1000BASE‑T RJ45 (PoE / PoE+) |
| Uplink Ports | 4 Ă— 1G SFP |
| PoE Standard | IEEE 802.3at/af PoE+ |
| MAC Address Table | 32 K entries |
| VLAN | Up to 4 K VLANs, supports QinQ / Guest VLANs / VLAN isolation |
| Spanning Tree | STP, RSTP, MSTP supported |
| Multicast | IGMP Snooping v1/v2/v3, MLD Snooping, Multicast filtering / IGMP / MLD proxy functions |
| Security & Access Control | ACL, Port Security, DHCP Snooping, ARP Protection, Storm Control, 802.1X / MAC‑based authentication, Web / Portal Guest authentication. |
| QoS / Traffic Control | 8‑queue scheduling, SP / WRR / SP+WRR, traffic shaping, rate‑limit, flow control, port mirroring. |
| Routing | Static Routing, IPv4/IPv6 dual‑stack, Basic inter‑VLAN routing (L3‑Lite) |
| Management | CLI, Web UI, SNMP v1/v2/v3, iMC support, Telnet / SSH, RMON, Syslog, Telemetry, Energy‑saving Ethernet modes |
| Redundancy / Resiliency | Supports link redundancy (LACP), loop prevention (STP/RSTP/MSTP), optional RPS (redundant power supply) input for supported variants. |
| Hardware Design | Fixed PSU design, compact 1U rackmount chassis, standard 19″ rack compatible |
| Typical Use Cases | Enterprise access layer for PoE‑powered devices (APs, Cameras, Phones), SMB / campus floor access, network edge aggregation |
