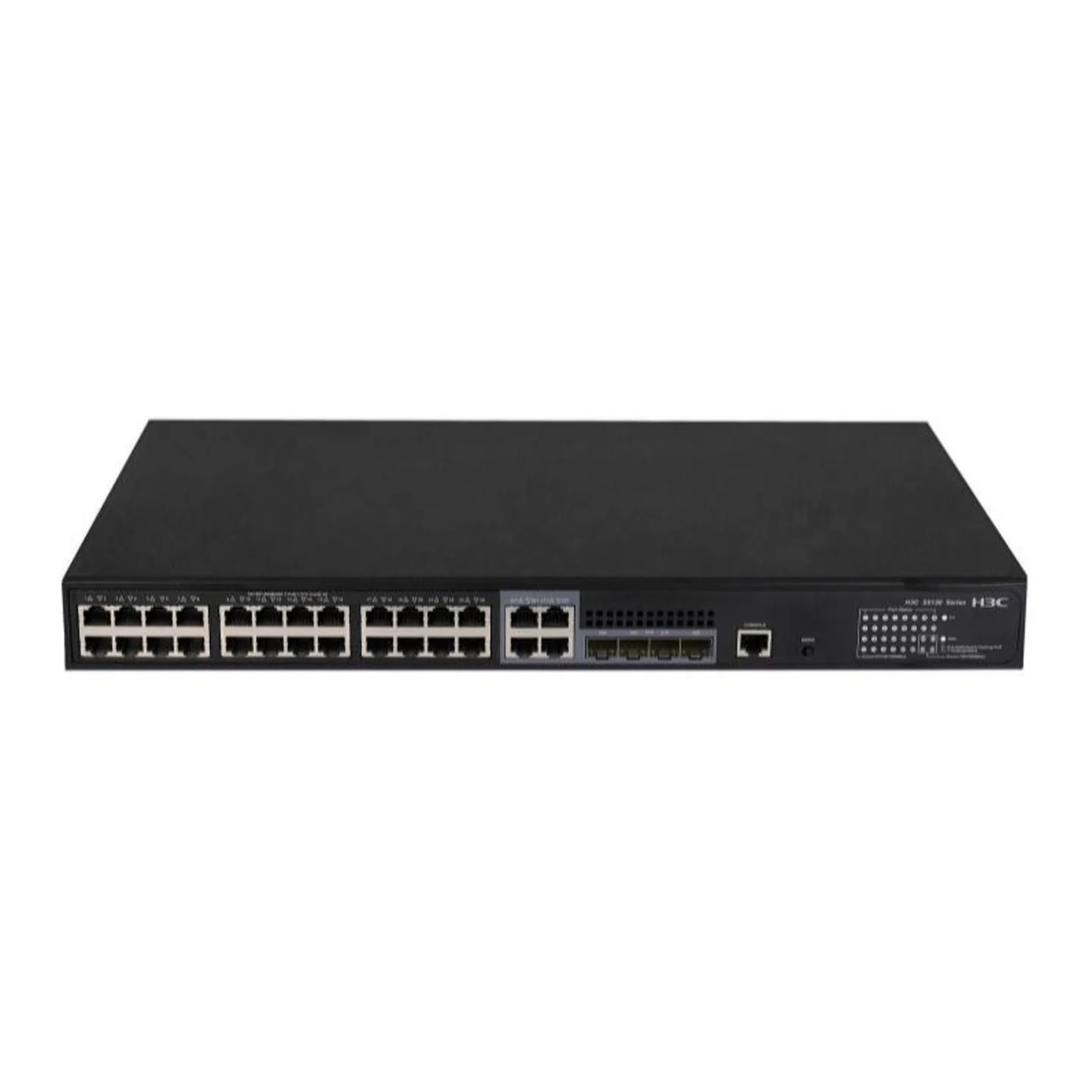

H3C S5130S-28P-HPWR-EI-AC 24-Port PoE+ Gigabit Access Switch with AC Power
H3C S5130S-28P-HPWR-EI-AC High-Power PoE Access Switch
Overview
The H3C S5130S-28P-HPWR-EI-AC is a high-power PoE+/UPoE Gigabit access switch with 24 × 1G PoE ports and 4 × 10GE SFP+ uplinks. Featuring enhanced PoE power budget, it is designed for high-density Wi-Fi 6/6E AP deployments, advanced IP surveillance, and heavy-load IoT applications.
Note: Comes with integrated high-power AC PSU.
Highlights
1. 24-Port High-Power PoE (UPoE Supported)
Delivers 802.3af/at PoE+ and UPoE for demanding devices such as Wi-Fi 6 APs, PTZ cameras, and IoT terminals.
2. 4 × 10GE SFP+ Uplinks
Ensures strong uplink bandwidth for campus aggregation.
3. Full L2/L3 Enterprise Capabilities
Supports VLAN, ACL, DHCP Snooping, IPv6, OSPF, VRRP, and sFlow.
4. Reliable High-Power Architecture
Integrated AC high-power PSU designed for large PoE load requirements.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| Power | Built-in High-Power AC PSU | Power | Already integrated; no external PSU needed. |
| Cooling | Internal fixed fan | Cooling | Non-removable cooling design. |
| Uplink Optics | SFP-10G-SR / SFP-10G-LR | Optics | Standard 10G uplink transceivers. |
| PoE Cabling | - | Cabling | Cat6 or Cat6A recommended for high-power APs/UPoE. |
Comparison with Similar Models
| Feature | S5130S-28P-HPWR-EI-AC | S5130S-20P-PWR-EI | S5130S-52P-PWR-EI-AC |
|---|---|---|---|
| Downlinks | 24×1G PoE (UPoE) | 16×1G PoE+ | 48×1G PoE+ |
| Uplinks | 4×10G | 4×10G | 4×10G |
| PoE Type | High-power UPoE | PoE+ | PoE+ |
| Best Use | Large wireless floors | SMB wireless | Large enterprise wireless |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5130S-28P-HPWR-EI-AC |
| Downlink Ports | 24 × 1G RJ45 PoE (PoE+ / UPoE) |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standards | IEEE 802.3af/at, UPoE |
| PoE Budget | High-power AC PSU (region-dependent) |
| Switching | Full wire-speed |
| Routing | RIP, OSPF, static, VRRP |
| VLAN | 4K VLANs |
| Security | ACL, DHCP Snooping, ARP/ND protection |
| QoS | 8 queues, WRR, policing, shaping |
| Virtualization | IRF |
| IPv6 | Yes |
| O&M | SNMP, sFlow, Telemetry, iMC |
| Power | Integrated AC HPWR PSU |
| Cooling | Internal built-in fan |
| Temperature | 0°C to +50°C |
| Deployment Scenarios | High-density PoE access, Wi-Fi 6/IoT, enterprise floors |
