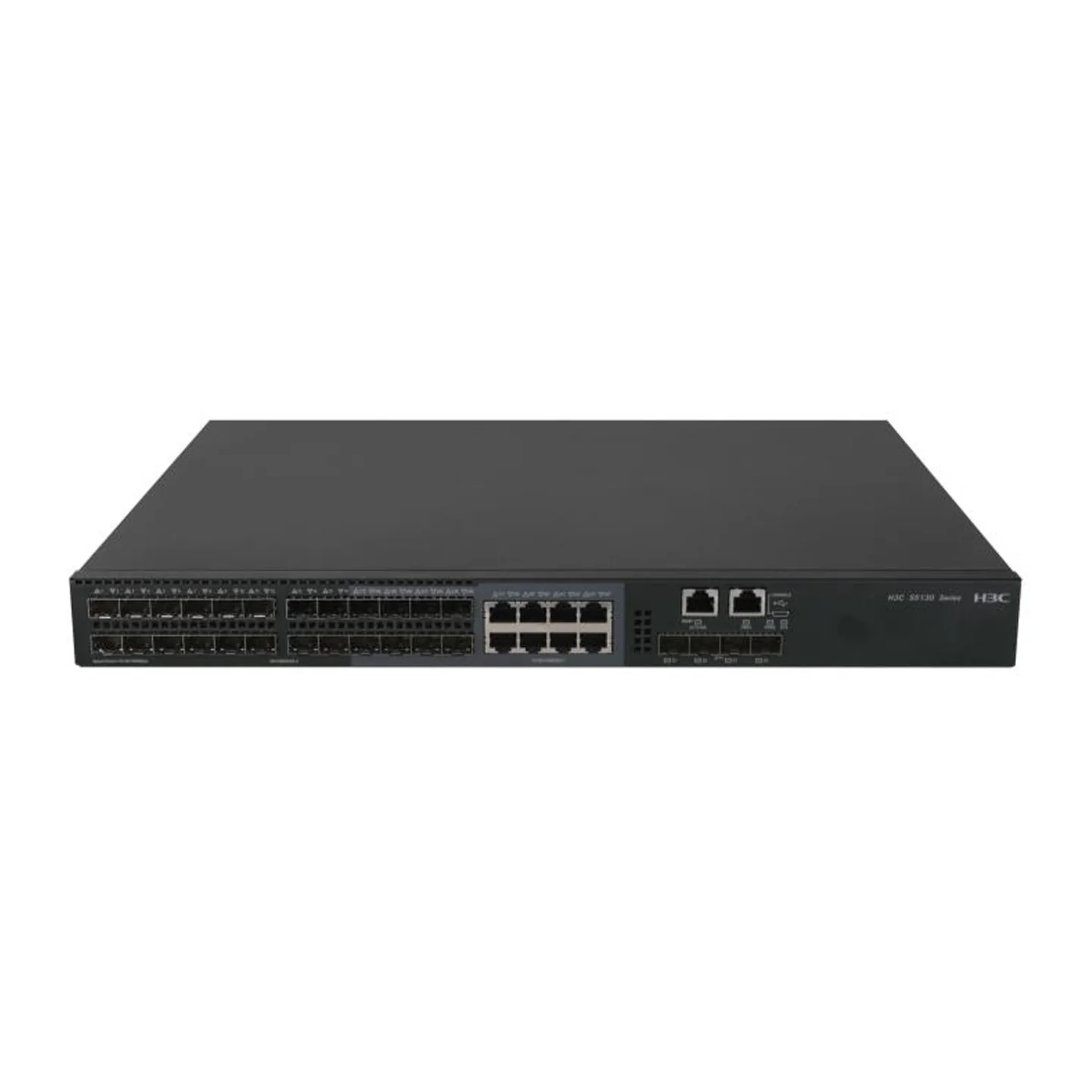

H3C S5130S-28F-EI 24xSFP + 4x10G Fiber Access Switch
24×SFP Fiber + 4×10G SFP+ Enterprise Aggregation / Access Switch
Overview
The H3C S5130S-28F-EI is a full-fiber Gigabit access/aggregation switch, offering 24 × 1G SFP fiber ports and 4 × 1/10G SFP+ uplinks, designed for environments requiring high-reliability fiber connectivity.
Ideal for FTTx, enterprise fiber LAN, industrial parks, security monitoring backbones, and electromagnetically noisy environments, this model provides high-performance switching, advanced L2+ functionality, and L3-Lite IPv4/IPv6 static routing.
It is well-suited for aggregation layers in fiber-rich networks or for long-distance campus access requiring stability and EMI resistance that copper cabling cannot guarantee.
Highlights
1. Full-Fiber Design (24 × 1G SFP)
Provides high noise-resistance and extended transmission distance, perfect for campus backbones and industrial networks.
2. 4 × 10G SFP+ High-Speed Uplinks
Supports long-distance uplinks to distribution/core switches with 10G bandwidth assurance.
3. Rich L2/L2+ Switching Features
Includes VLAN, QinQ, MSTP, LACP, ACL, IGMP/MLD Snooping, traffic shaping, and more.
4. L3-Lite IPv4/IPv6 Static Routing
Allows inter-VLAN routing and small-scale network segmentation without a full Layer-3 switch.
5. Enhanced Security & Reliability
Supports ARP protection, DHCP Snooping, port isolation, DoS protection, storm suppression, and user access authentication.
Recommended Accessories
| Accessory | Model / Type | Category | Description |
|---|---|---|---|
| 1G SFP Optical Modules | SFP-LX-SM-1310 / SFP-SX-MM-850 | Optics | For 1G fiber downlink connections |
| 10G SFP+ Modules | SFP-10G-SR / LR / ER | Optics | For uplinks to core switches |
| Fiber Patch Cables | LC-LC SMF / MMF | Cabling | For use with SFP/SFP+ fiber modules |
| Rack Mount Kit | 19" Rack Ears | Mounting | Standard 1U rack installation |
| Cable Management | Fiber trays / organizing panels | Install | For structured fiber deployment |
Comparison with Similar Models
| Feature | S5130S-28F-EI | S5130S-28S-EI | S5130S-28ST-EI |
|---|---|---|---|
| Downlink Ports | 24 × 1G SFP (fiber) | 24 × 1G RJ45 | 24 × 1G RJ45 + 2 × Multi-Rate |
| Uplinks | 4 × 10G SFP+ | 4 × 1G SFP | 2 × 10G SFP+ |
| Best Use Case | Fiber networks / long distance | Standard copper access | Mixed-speed access (1G + 2.5/5/10G) |
| PoE | No | No | Optional (PWR versions) |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S-28F-EI |
| Downlink Ports | 24 × 1G SFP |
| Uplink Ports | 4 × 10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| MAC Table | 64K |
| VLAN | 4K VLAN |
| Multicast | IGMP Snooping (v1/v2/v3), MLD Snooping |
| L2 Features | STP/RSTP/MSTP, QinQ, LACP, Port Isolation |
| Security | ACL, ARP attack defense, DHCP Snooping, storm suppression |
| QoS | 8 queues, WRR, SP, rate limit, traffic shaping |
| Routing | IPv4/IPv6 Static Routing (L3-Lite) |
| Management | CLI, Web UI, SNMP, iMC, SSH, RMON |
| Power Supply | Built-in AC |
| Operating Temp | -5°C to 50°C |
| Dimensions | 440 × 280 × 43.6 mm |
| Weight | ≤ 3.3 kg |
| Ideal Deployment | Fiber enterprises, metro access, FTTH/FTTB, industrial parks |
