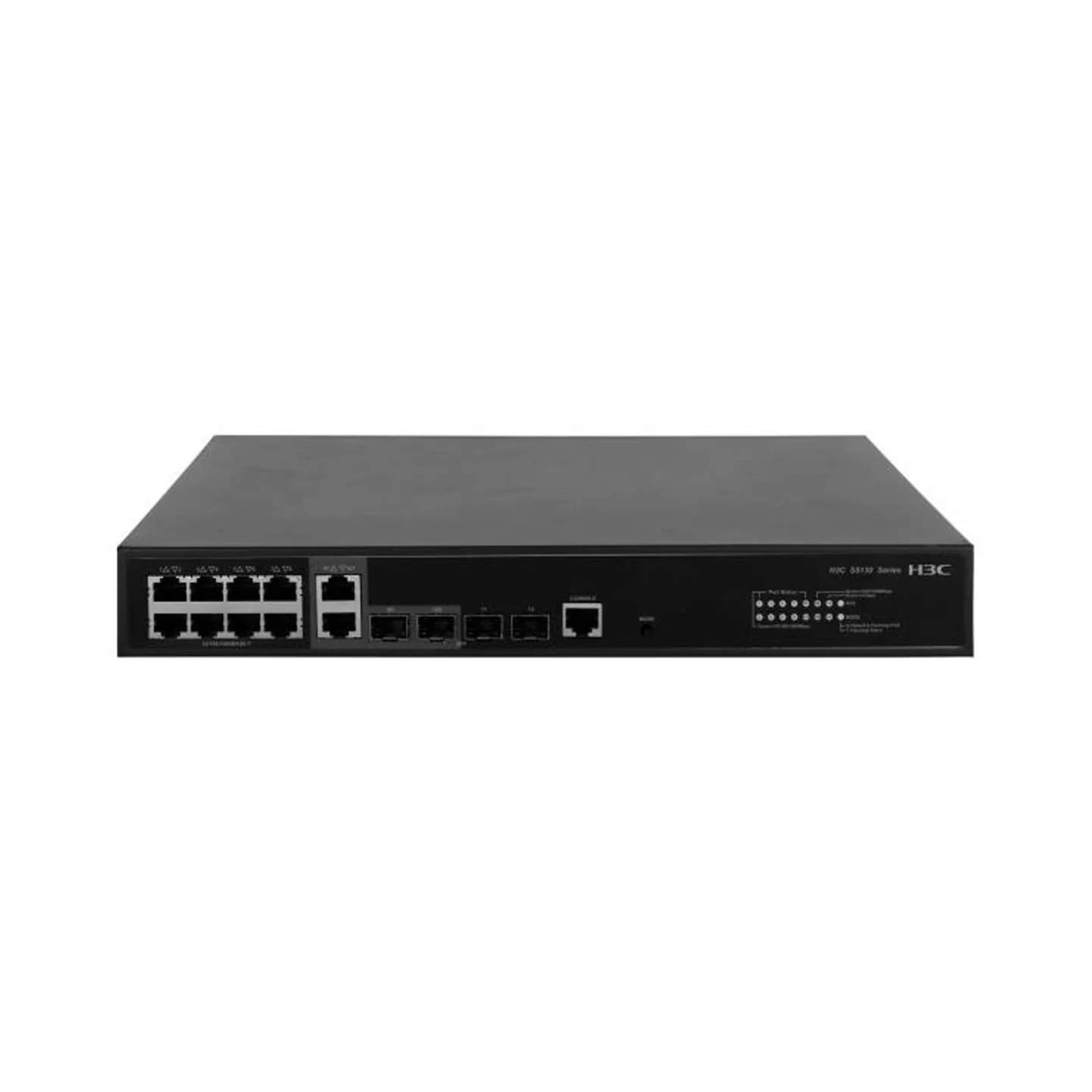

H3C S5130S-12TP-HPWR-EI 8xGE PoE+ Compact Switch
8×1G PoE+ + 4×1G RJ45 + 2×10G SFP+ High-Power PoE Access Switch
Overview
The H3C S5130S-12TP-HPWR-EI is a compact, high-performance high-power PoE+ access switch, offering 8 × 10/100/1000BASE-T PoE+ ports, 4 × 1G RJ45 non-PoE ports, and 2 × 1/10G SFP+ uplinks.
Designed for environments with high PoE density requirements-such as Wi-Fi 6/6E access points, PTZ security cameras, VoIP phones, and IoT devices-this HPWR (High-Power) model provides an enhanced PoE budget over standard PWR variants.
While compact in size, it supports the full H3C S5130S-EI software capabilities including L2/L2+ switching, IPv4/IPv6 static routing, advanced ACL & security, and enterprise-grade QoS. It is ideal for high-density PoE floors, branch offices, wireless deployments, and security monitoring networks.
Highlights
1. 8 × PoE+ Ports with High-Power Budget
Supports IEEE 802.3af/at PoE+, delivering up to 30W per port, with a larger total PoE budget (HPWR-grade), ideal for power-intensive devices.
2. 2 × 10G SFP+ Uplinks
Dual 10G uplinks provide reliable high-bandwidth backhaul for AP-dense and surveillance-dense networks.
3. Compact but Powerful
12-port format saves space while delivering enterprise-class performance-ideal for wiring closets, branch offices, small IDFs.
4. Full L2/L2+ and L3-Lite Features
Including VLAN, QinQ, MSTP, LACP, ACL, DHCP Snooping, IGMP/MLD Snooping, and IPv4/IPv6 static routing.
5. Enterprise Security
Features include port isolation, ARP protection, IP/MAC binding, storm suppression, and 802.1X authentication.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 10G Transceiver | SFP-10G-SR / LR | Optics | For SFP+ uplink modules |
| PoE Redundant Supply | H3C RPS1600-A | Power | Increases PoE reliability for HPWR deployments |
| Fiber Patch Cables | LC-LC SMF/MMF | Connectivity | For long-/short-distance uplinks |
| Copper Patch Cables | Cat5e/Cat6 | Connectivity | For PoE endpoints |
| Rack Mount Kit | RM-1U | Mounting | For 19" rack installation |
Comparison with Similar Models
| Feature | S5130S-12TP-HPWR-EI | S5130S-16S-PWR-EI | S5130S-28P-PWR-EI |
|---|---|---|---|
| PoE Ports | 8 × PoE+ | 12 × PoE+ | 24 × PoE+ |
| Non-PoE Ports | 4 × 1G RJ45 | 0 | 0 |
| Uplinks | 2 × 10G SFP+ | 4 × 10G SFP+ | 4 × 1G SFP |
| PoE Budget | High-power (HPWR) | Standard PWR | Standard PWR |
| Best Scenario | Wireless + security appliances in compact deployments | Small PoE networks | Full-floor PoE deployments |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5130S-12TP-HPWR-EI |
| Downlink Ports | 8 × 1G PoE+ RJ45 + 4 × 1G RJ45 |
| Uplink Ports | 2 × 1/10G SFP+ |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Budget | High-power (HPWR class) |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Table | 32K |
| VLAN Support | 4K VLAN |
| Multicast | IGMP Snooping, MLD Snooping |
| L2 Features | STP, RSTP, MSTP, QinQ, LACP |
| Security | ACL, DHCP Snooping, ARP Protection, 802.1X |
| QoS | 8 queues, WRR/SP, shaping |
| Routing | IPv4/IPv6 Static Routing |
| Management | CLI, Web GUI, SNMP, iMC |
| Power Supply | Built-in AC |
| Operating Temperature | -5°C to 50°C |
| Dimensions | 300 × 220 × 43.6 mm |
| Weight | ≤ 2.5 kg |
| Ideal Deployment | Wi-Fi 6 AP floors, CCTV networks, branches requiring 10G uplinks |
