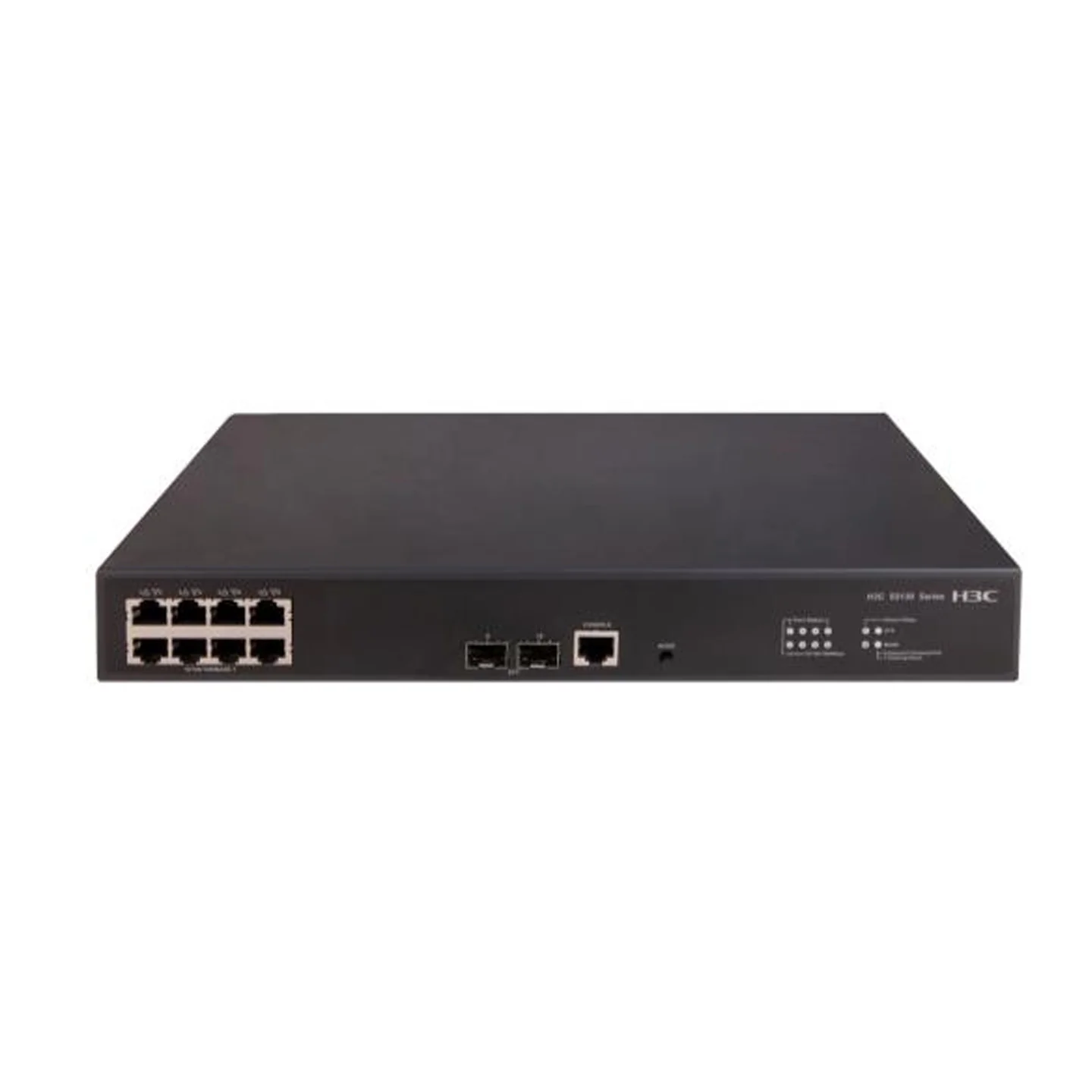

H3C S5130S-10P-HPWR-EI 8-Port PoE+ Gigabit Access Switch
H3C S5130S-10P-HPWR-EI High-Power PoE Access Switch
Overview
The H3C S5130S-10P-HPWR-EI is a compact high-power PoE+/UPoE Gigabit switch providing 8 × 1G PoE ports and 2 × 10GE SFP+ uplinks. Designed for Wi-Fi 6 APs, IP surveillance, high-power IoT terminals, and small enterprise PoE access requirements.
Note: Includes built-in AC power for PoE.
Highlights
1. High-Power PoE for Compact Deployments
Supports 802.3af/at/UPoE, suitable for high-power wireless APs, PTZ cameras, IoT nodes.
2. 2 x 10GE Uplinks
Provides sufficient uplink bandwidth to aggregation switches.
3. Optimized for Edge & SMB
Compact, easy-to-deploy switch with enterprise security + IPv6 + IRF virtualization.
4. Reliable Power Design
Built-in AC power optimized for PoE loads.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| Power | Built-in AC PSU (high-power) | Power | Integrated HPWR AC power supply supporting PoE load. |
| Fan | Fixed internal fan | Cooling | Non-removable cooling design. |
| 10G Optics | SFP-10G-SR / LR | Optics | Optional uplink modules. |
| PoE Cabling | - | Cabling | Cat6/Cat6A recommended for PoE/UPoE. |
Comparison with Similar Models
| Feature | S5130S-10P-HPWR-EI | S5130S-20P-PWR-EI | S5130S-28P-HPWR-EI-AC |
|---|---|---|---|
| Downlink Ports | 8×1G PoE | 16×1G PoE | 24×1G PoE |
| PoE Type | High-power UPoE | Standard PoE+ | High-power UPoE |
| Uplinks | 2×10G | 4×10G | 4×10G |
| Best Use | Small PoE deployments | SMB PoE | Enterprise PoE floors |
Specifications
| Parameter | Specification |
|---|---|
| Model | S5130S-10P-HPWR-EI |
| Downlink Ports | 8 × 1G RJ45 PoE+ / UPoE |
| Uplink Ports | 2 × 10GE SFP+ |
| PoE Standards | 802.3af/at + UPoE |
| PoE Budget | High-power integrated PSU (varies by region) |
| Switching | Full line-rate |
| Routing | OSPF/RIP/Static, VRRP |
| Security | ACL, DHCP Snooping, ARP/ND protection |
| VLAN | Up to 4K VLANs |
| QoS | Traffic shaping, WRR/WFQ |
| IPv6 | Supported |
| Virtualization | IRF |
| Power | Built-in AC HPWR PSU |
| Cooling | Internal fan |
| Operating Temp | 0°C to +50°C |
| Deployment | Wi-Fi 6 APs, IP cameras, edge PoE |
