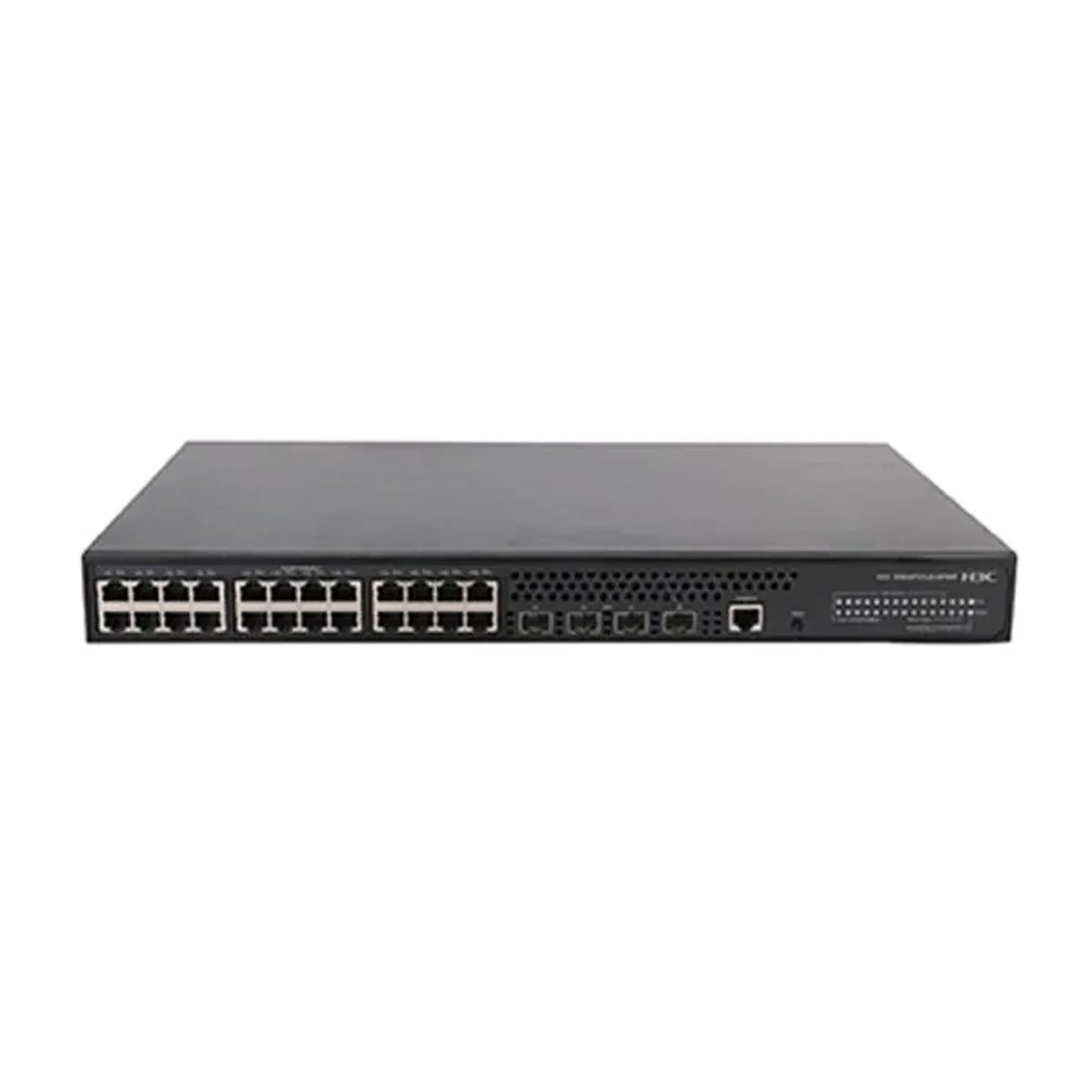

H3C S5024PV5-EI-S 24xGE + 2xSFP SMB Managed Switch
24×1G PoE + 4×1G SFP SMB L2/L2+ Access Switch (V5 Series)
Overview
The H3C S5024PV5-EI-S is an SMB-grade, cost-effective PoE access switch from the S5000V5 Series, specially designed for small and medium business networks, retail environments, branch offices, and surveillance deployments.
It provides 24 × 1G PoE ports and 4 × 1G SFP uplinks, supporting L2/L2+ switching, basic ACL, QoS, and web/CLI-based management. Its PoE power output is sufficient for powering Wi-Fi APs, IP cameras, and VoIP phones, making it an ideal entry-level PoE solution.
Highlights
1. 24 × PoE Ports for SMB Access
Suitable for powering APs, cameras, and phones across small-to-medium size networks.
2. 4 × 1G SFP Uplinks
Provide reliable uplink bandwidth toward aggregation switches.
3. Optimized for SMB Deployments
-
Easy Web GUI management
-
L2/L2+ features
-
Low power consumption
-
Quiet operation
4. L2/L2+ Switching
Supports VLAN, STP/RSTP/MSTP, static routing (depending on subseries), and QinQ-lite.
5. Strong Security for SMB Environments
Includes IP/MAC binding, broadcast suppression, DHCP protection, and storm control.
Recommended Accessories
| Accessory | Model | Category | Description |
|---|---|---|---|
| 1G SFP Transceivers | SFP-GE-LX / SX | Optics | For uplink fiber connectivity |
| Copper Patch Cables | Cat5e/Cat6 | Connectivity | For PoE endpoints |
| Optional Rack Kit | RM-1U-SMB | Mounting | For SMB rack installation |
| PoE Camera / AP Bundle | - | Application | Compatible with SMB security & wireless APs |
Comparison with Similar Models
| Feature | S5024PV5-EI-S | S5016PV5-EI-PWR-S | S5136S-24P4X-EI |
|---|---|---|---|
| Downlink Ports | 24 × 1G PoE | 16 × 1G PoE | 24 × 1G PoE+ |
| Uplinks | 4 × 1G SFP | 4 × 1G SFP | 4 × 10G SFP+ |
| PoE Standard | PoE (af) | PoE (af) | PoE+ (at) |
| Positioning | SMB | SMB (smaller) | Enterprise |
Specifications
| Parameter | Specification |
|---|---|
| Model | H3C S5024PV5-EI-S |
| Downlink Ports | 24 × 1G PoE |
| Uplink Ports | 4 × 1G SFP |
| PoE | IEEE 802.3af |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.67 Mpps |
| MAC Table | 16K |
| VLAN Support | 4K VLAN |
| Security | DHCP protection, MAC binding, DoS defense |
| QoS | Port priority, WRR |
| Management | Web/CLI/SNMP |
| Power Supply | Internal |
| Operating Temperature | 0°C ~ 45°C |
| Dimensions | Compact SMB 1U |
| Ideal Deployment | SMB PoE access, camera networks, Wi-Fi AP floors |
More Details
Quality Certifications
Warranty
100% Low Price Guarantee
Network-switch.com provides high-quality products at low wholesale prices
100% Quality Assurance
All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by H3CIE Certified Engineers.
Free Technical Support
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Warranty Policy
Original New Sealed Enterprise Hardware: 3 Years
Original New Sealed Consumer Devices: 1 Year
The Support Contacts
If your H3C products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
