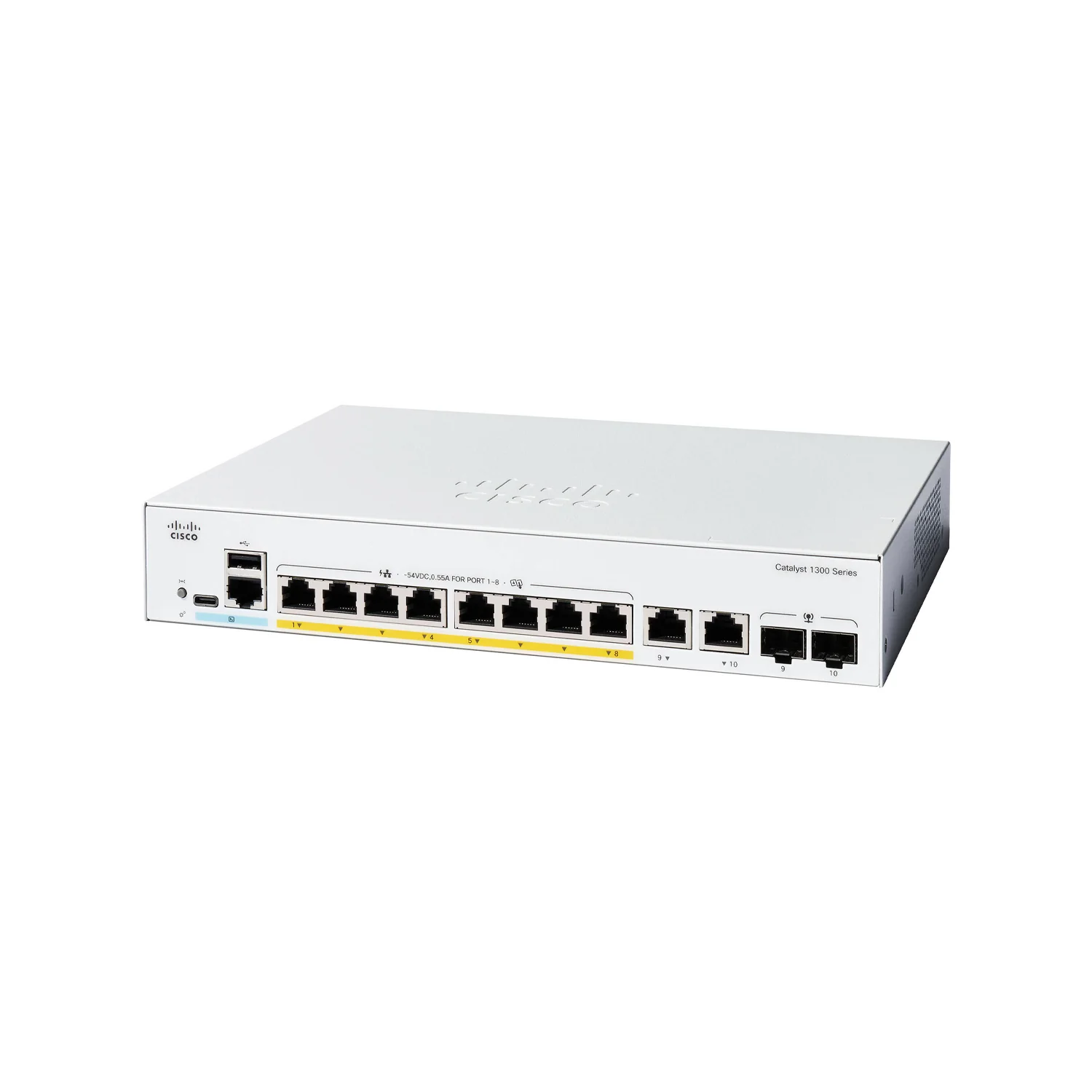

Cisco Catalyst C1300-8FP-2G Full PoE Switch
Overview
The Cisco Catalyst C1300-8FP-2G is a high-power PoE+ Layer 3 Gigabit managed switch within Cisco’s next-generation Catalyst 1300 Series, built for SMBs, branches, and edge networks that demand compact size, quiet operation, and enhanced power delivery.
It integrates 8 PoE+ Gigabit downlinks and 2 combo Gigabit uplinks, offering advanced Layer 3 intelligence, improved CPU performance, and enterprise-grade reliability under a fanless design - ideal for powering wireless APs, IP phones, and security cameras with simplified centralized management via Cisco Business Dashboard, mobile app, or on-device Web UI.
The C1300-8FP-2G features 8 × 1 GbE PoE+ downlinks and 2 × 1 GbE RJ-45/SFP combo uplinks, delivering 20 Gbps switching capacity and 14.88 Mpps forwarding rate. Compliant with IEEE 802.3af/at PoE+, it provides up to 30 W per port with a total 120 W PoE budget, supplying both data and power through Ethernet for multi-device deployments.
Supporting Layer 2/3 features - VLAN, QoS, ACL, IPv6, and Static Routing, it ensures high-speed network segmentation, security, and service quality for modern connected environments.
Compact and powerful, the C1300-8FP-2G delivers enterprise-level PoE+ performance and intelligent Layer 3 management in a silent 1U desktop/rack-mountable form factor. With its external power supply, energy-efficient architecture, and fanless thermal design, it is ideal for office desktops, retail stores, classrooms, and branch locations where noise control and stability are critical.
Highlights
-
8 × 1 GbE PoE+ ports (120 W total budget) + 2 × 1 GbE RJ-45/SFP combo uplinks
-
20 Gbps switching capacity / 14.88 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent operation for noise-sensitive environments
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U mounting brackets for Catalyst 1300 and 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for setup and management |
| GLC-SX-MM / GLC-LH-SM | SFP Modules | 1 GbE optical transceivers for combo uplink ports |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-8T-E-2G | 8 × 1 GbE + 2 × 1 GbE combo | — | Fanless | External | Non-PoE data-only model |
| C1300-8P-E-2G | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 67 W | Fanless | External | Compact PoE+ switch for light loads |
| C1300-8FP-2G (this model) | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 120 W | Fanless | External | Higher PoE budget for dense multi-device deployments |
| C1300-16P-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | Larger PoE+ model for expanded networks |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-8FP-2G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 2 × 1 GbE RJ-45/SFP combo uplinks |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 120 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | External AC adapter (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 13 W (no PoE load), ≈ 135 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90 % RH (non-condensing) |
| MTBF | ≈ 2,100,000 hours |
| Form Factor | Desktop / 1U Rack-mount (optional kit) |
| Dimensions (W × D × H) | 268 × 185 × 43 mm (10.6 × 7.3 × 1.7 in) |
| Weight | 1.49 kg (3.28 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
