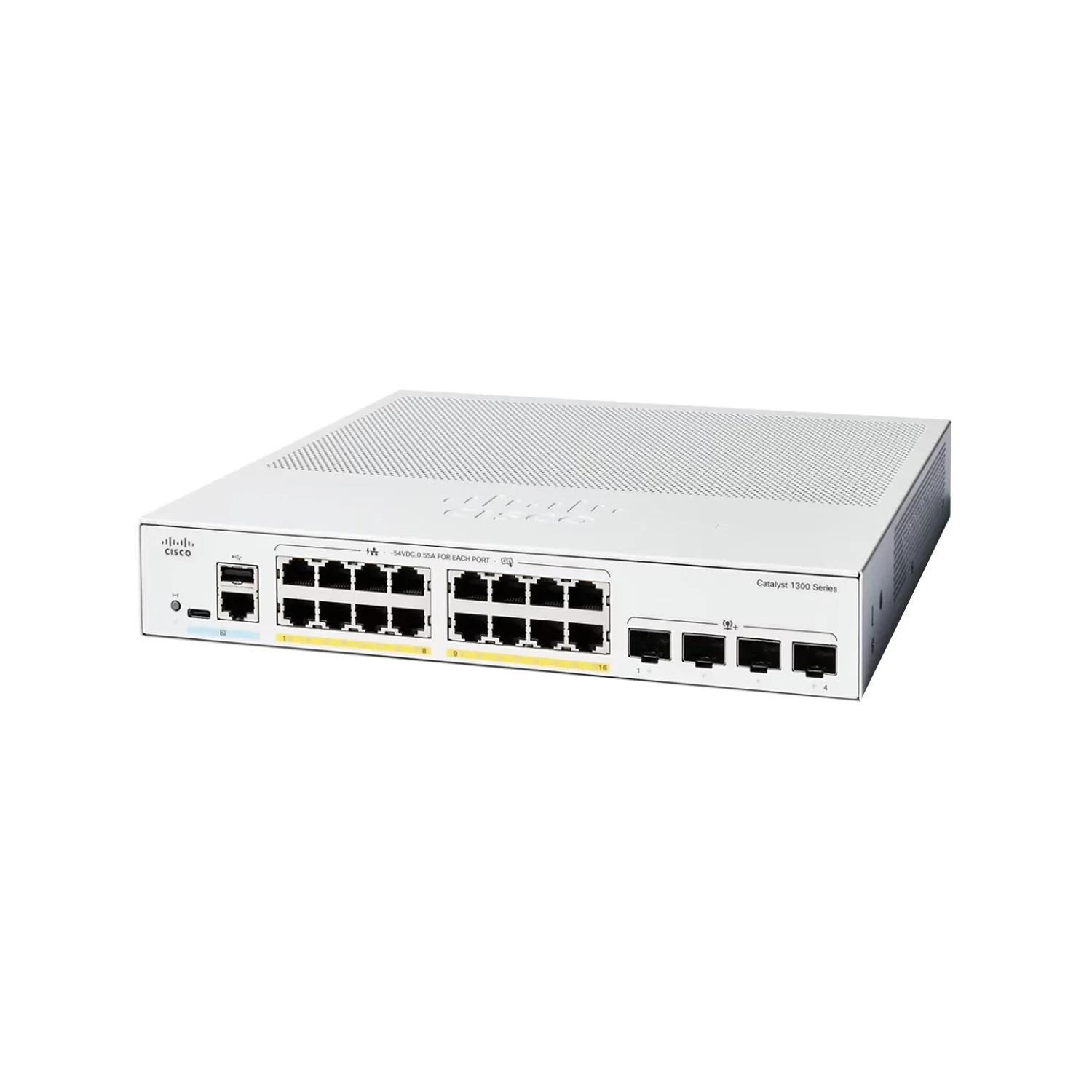

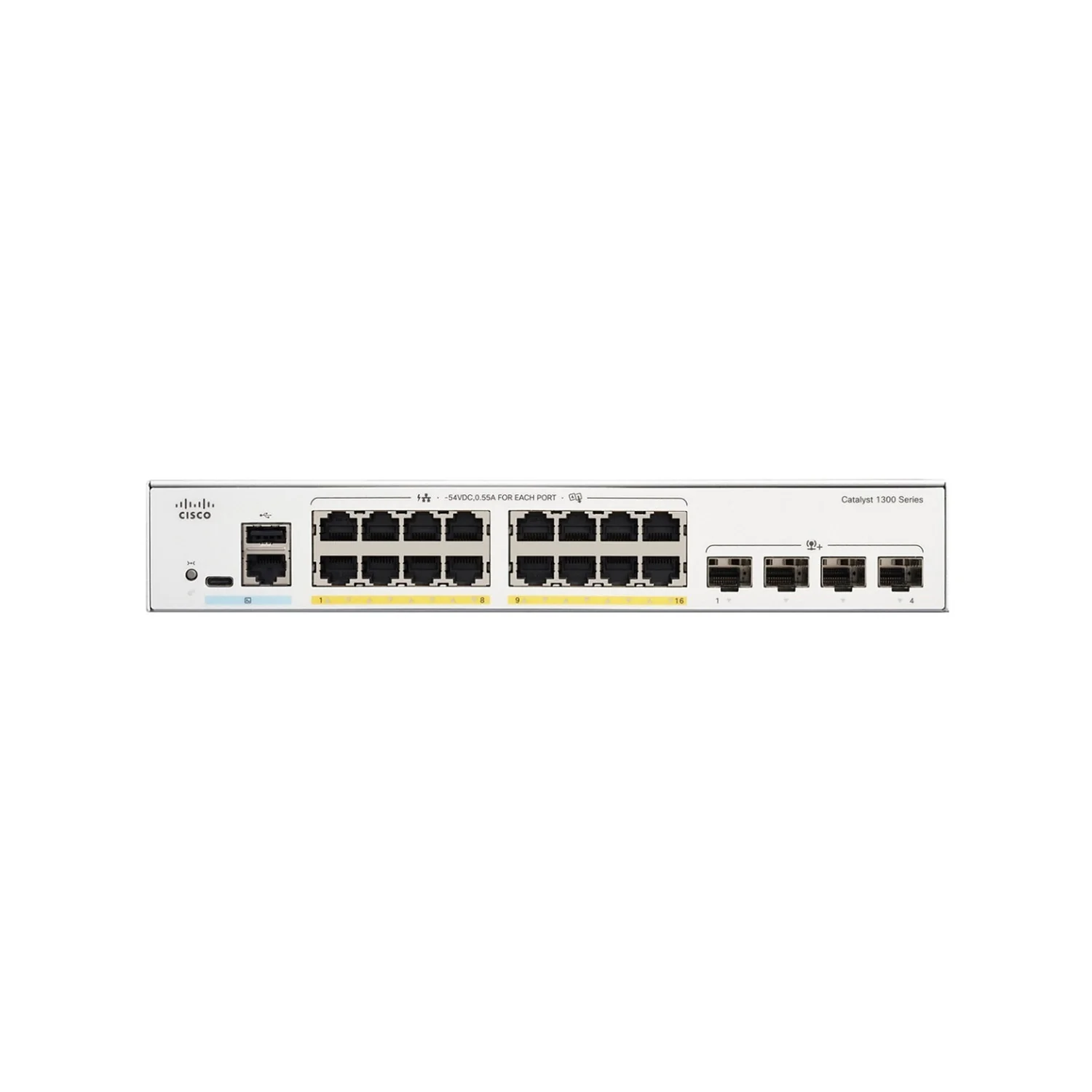

Cisco Catalyst C1300-16P-4X PoE 10G Switch
Overview
The Cisco Catalyst C1300-16P-4X is a Layer 3 managed Gigabit PoE+ switch in the Cisco Catalyst 1300 Series, designed for SMBs, education, and branch environments that demand 10G uplinks, intelligent power management, and enterprise-level reliability.
It delivers 16 PoE+ Gigabit downlinks and 4×10G SFP+ uplinks, providing high performance, enhanced security, and silent operation with an internal power supply. Ideal for small to medium networks, it enables seamless integration of high-speed access with centralized PoE power for wireless APs, IP cameras, and VoIP devices.
The C1300-16P-4X combines 16 × 1 GbE PoE+ ports and 4 × 10 GbE SFP+ uplinks, supporting 96 Gbps switching capacity and 71.42 Mpps forwarding rate. Compliant with IEEE 802.3af/at PoE+, it provides up to 30 W per port and a total 120 W PoE budget, simplifying infrastructure by integrating data and power into one platform.
It supports Layer 2/3 features such as VLAN, QoS, ACL, and Static Routing (IPv4/IPv6), ensuring flexibility and performance for modern SMB access or edge aggregation deployments.
Compact yet powerful, the C1300-16P-4X offers high-speed 10G connectivity and PoE+ capability in a fanless, energy-efficient 1U chassis. With its internal power supply and advanced management interfaces, it provides quiet, reliable operation ideal for office and classroom environments.
The switch ensures consistent performance, enterprise-grade security, and simplified management through the Cisco Business Dashboard, Mobile App, and on-device Web UI.
Highlights
-
16 × 1 GbE PoE+ ports (120 W total budget) + 4 × 10 GbE SFP+ uplinks
-
96 Gbps switching capacity / 71.42 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent design for office and classroom environments
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with Catalyst 1300/1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and management |
| SFP-10G-SR / SFP-10G-LR / GLC-T | SFP/SFP+ Modules | 1G/10G copper and optical transceivers for uplink connectivity |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-16T-2G | 16 × 1 GbE + 2 × 1 GbE SFP | — | Fanless | Internal | Standard data-only model |
| C1300-16P-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | PoE+ model for smaller networks |
| C1300-16FP-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 240 W | Fanless | Internal | High-power PoE+ switch for dense deployments |
| C1300-16P-4X (this model) | 16 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 120 W | Fanless | Internal | PoE+ switch with 10G uplinks for performance-focused SMBs |
| C1300-24P-4X | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 195 W | Fanless | Internal | Larger port density and higher uplink capacity |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-16P-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch with 10G uplinks |
| Downlink Ports | 16 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 96 Gbps |
| Forwarding Rate | 71.42 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 120 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 16 W (no PoE load), ≈ 145 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,900,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 1.95 kg (4.30 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
