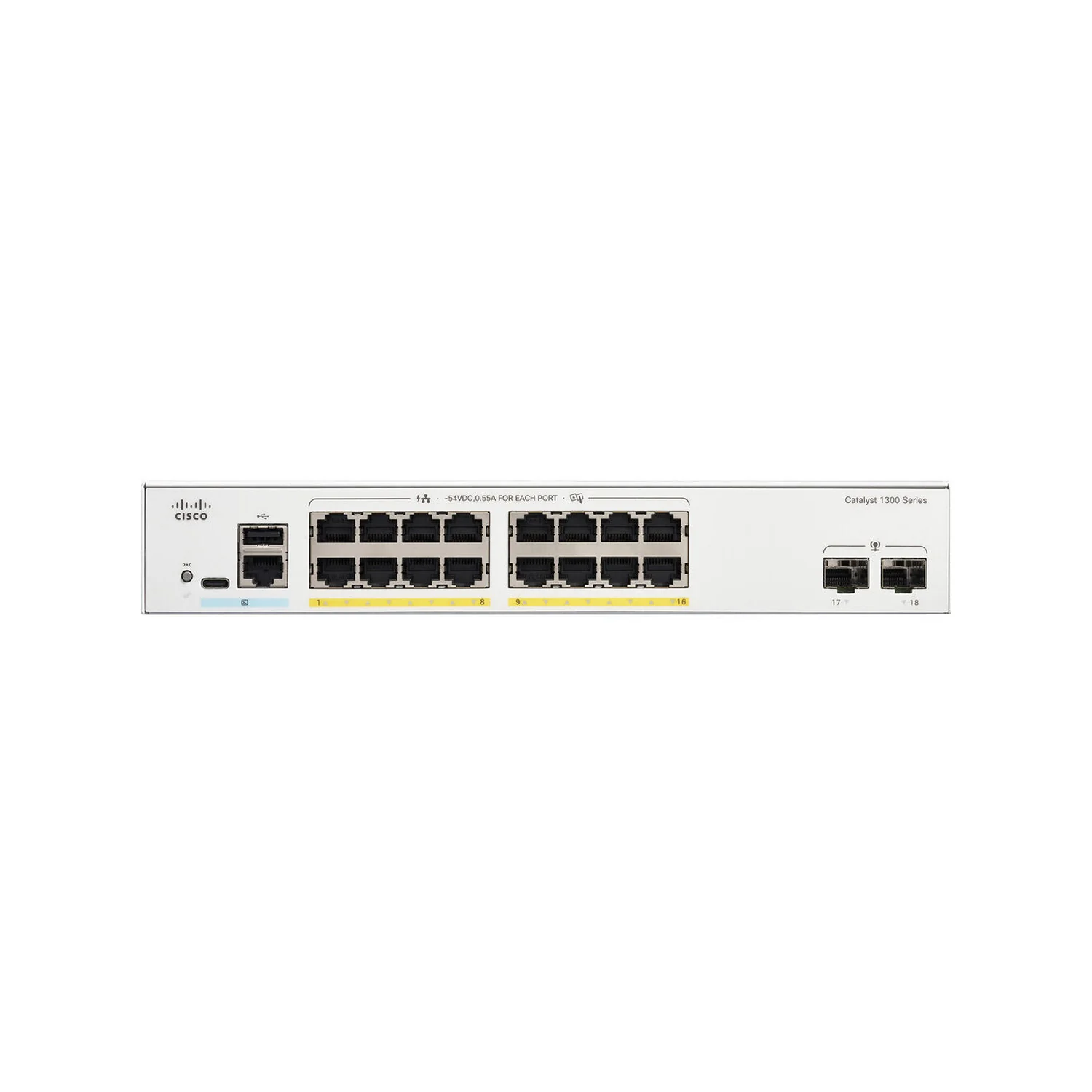

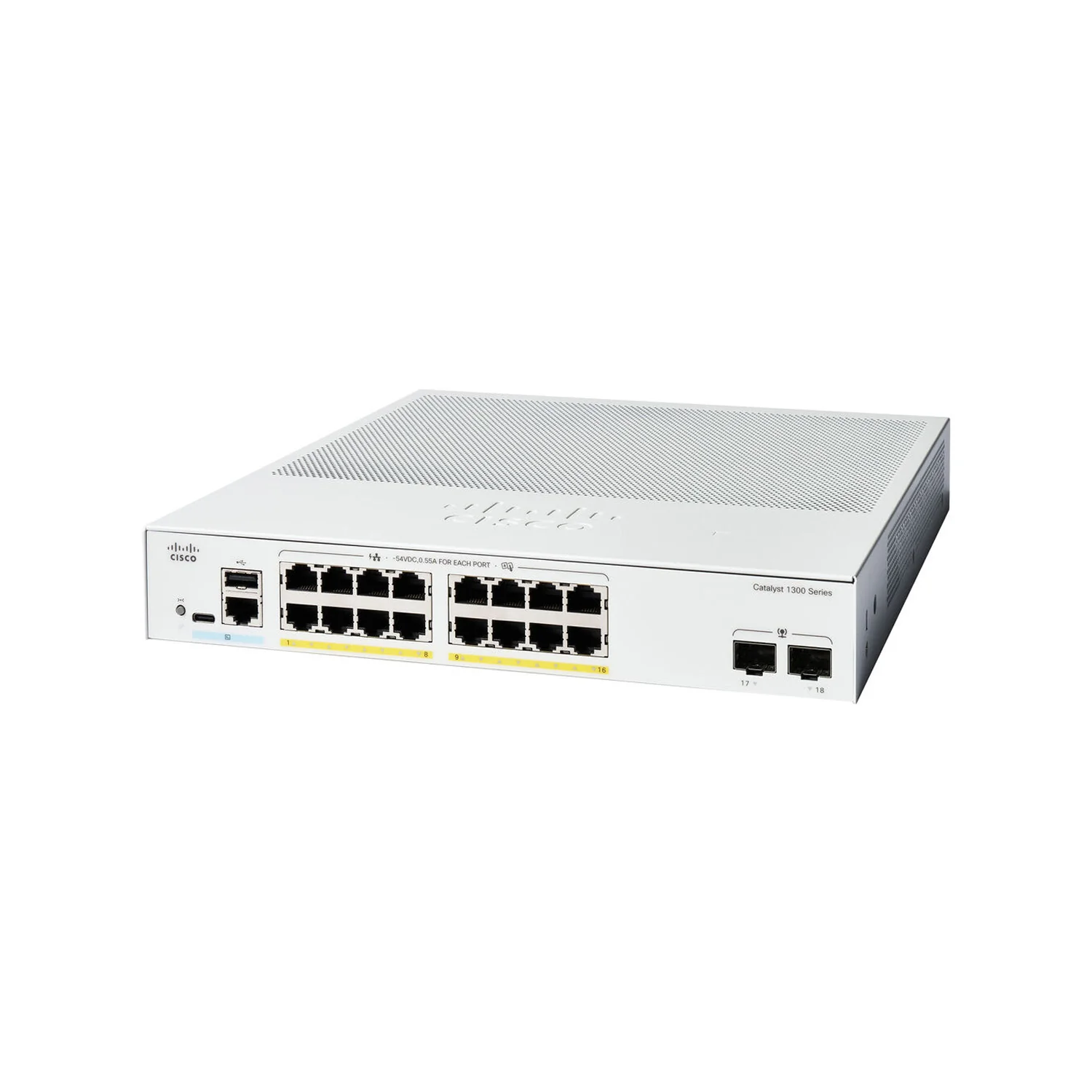

Cisco Catalyst C1300-16P-2G PoE Switch
Overview
The Cisco Catalyst C1300-16P-2G is a Layer 3 Gigabit PoE+ managed switch in the Cisco Catalyst 1300 Series, built to deliver enterprise-grade performance and intelligent power management for SMB and branch networks. It provides 16 Gigabit PoE+ ports and 2 SFP uplinks, combining data and power delivery in a compact, silent, and energy-efficient design.
Ideal for wireless APs, IP cameras, and VoIP phones, it offers advanced security, simplified management, and scalable Layer 3 features through Cisco Business Dashboard, mobile app, or on-device Web UI.
The C1300-16P-2G integrates 16 × 1 GbE PoE+ downlinks and 2 × 1 GbE SFP uplinks, supporting a 36 Gbps switching capacity and 26.78 Mpps forwarding rate. Compliant with IEEE 802.3af/at PoE+, it provides 30 W per port and a 120 W total PoE budget, enabling centralized power delivery for multiple devices.
With full Layer 2/3 support, including VLAN, ACL, QoS, IPv4/IPv6 static routing, and DHCP relay, it ensures optimized performance and advanced traffic management for modern small-to-medium business environments.
Designed for high-performance access and intelligent power control, the C1300-16P-2G delivers silent, fanless PoE+ operation in a compact 1U rackmount chassis. Its internal power supply and energy-efficient design make it perfect for offices, classrooms, retail environments, and branches requiring reliable, low-noise network operation.
The switch provides stable throughput, integrated PoE, and easy management, all within Cisco’s robust Catalyst framework.
Highlights
-
16 × 1 GbE PoE+ ports (120 W total budget) + 2 × 1 GbE SFP uplinks
-
36 Gbps switching capacity / 26.78 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent thermal design for office environments
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1300 and 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for setup and management |
| GLC-SX-MM / GLC-LH-SM | SFP Modules | 1 GbE optical transceivers for uplink connectivity |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-16T-2G | 16 × 1 GbE + 2 × 1 GbE SFP | — | Fanless | Internal | Non-PoE data-only version |
| C1300-16P-2G (this model) | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | PoE+ model for APs, IP phones, and surveillance cameras |
| C1300-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | 24-port PoE+ model for larger networks |
| C1300-24P-4X | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 195 W | Fanless | Internal | PoE+ switch with 10G uplinks for higher bandwidth aggregation |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-16P-2G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 16 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 2 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 120 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 15 W (no PoE load), ≈ 140 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,950,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 1.85 kg (4.08 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
