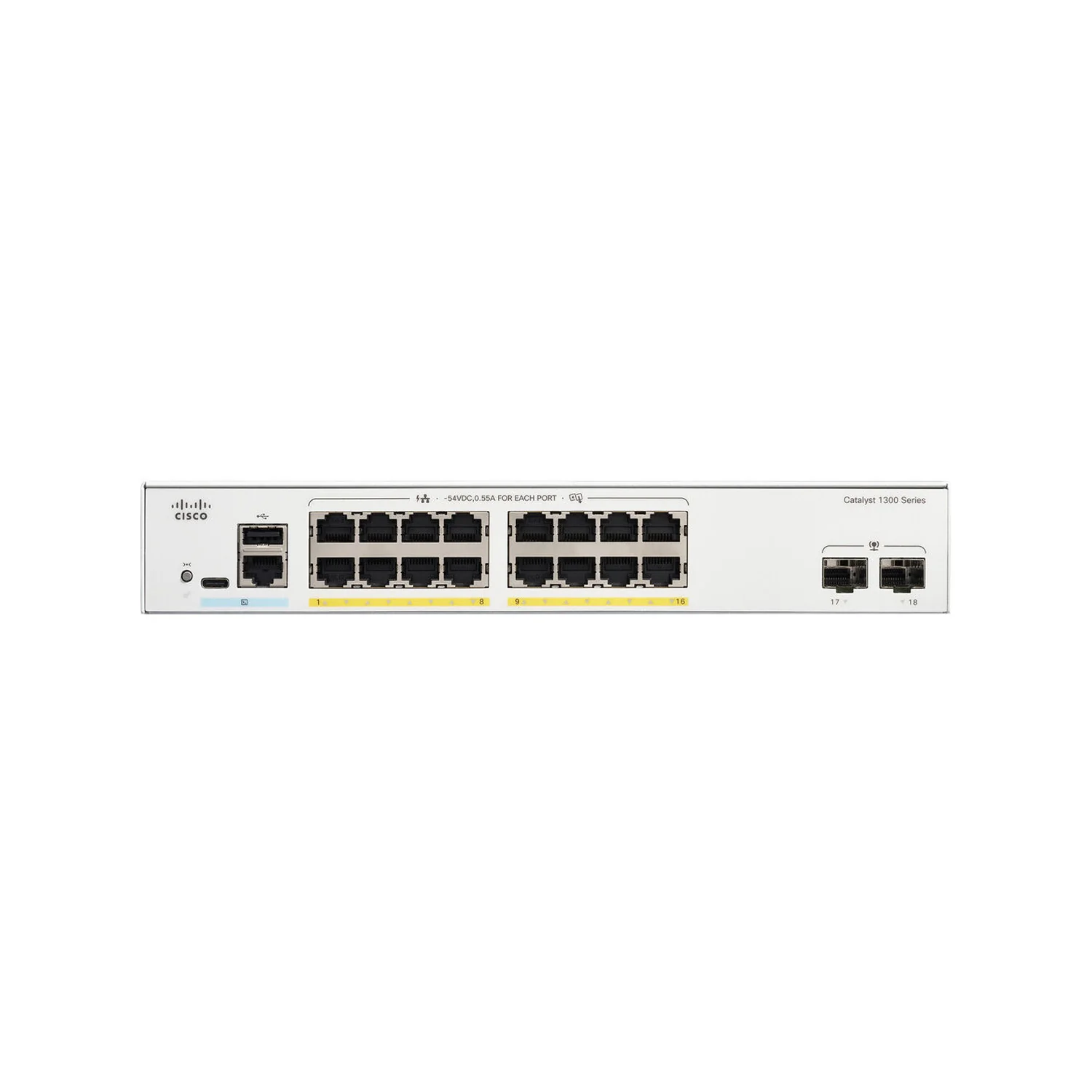

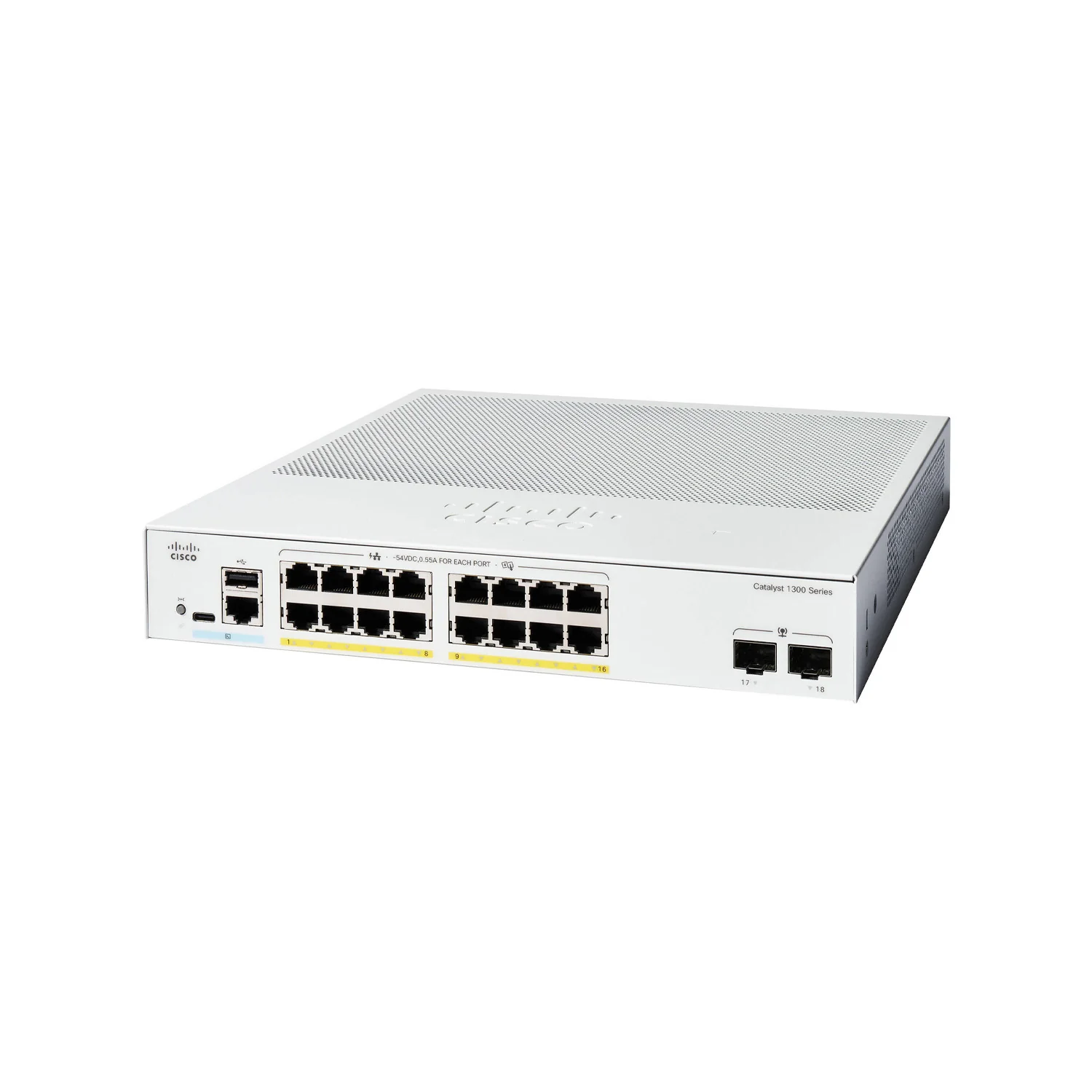

Cisco Catalyst C1300-16FP-2G Full PoE Switch
Overview
The Cisco Catalyst C1300-16FP-2G is a high-power Layer 3 Gigabit Ethernet PoE+ managed switch designed for SMBs, education, and branch networks requiring enhanced power capacity and scalable performance. Part of Cisco’s next-generation Catalyst 1300 Series, it combines 16 PoE+ downlinks with 2 Gigabit SFP uplinks, delivering advanced Layer 3 functionality, quiet fanless operation, and robust security features.
With a total PoE budget of 240 W, this model powers multiple wireless access points, IP phones, and cameras efficiently — all managed easily through Cisco Business Dashboard, Mobile App, or on-device Web UI.
Equipped with 16 × 1 GbE PoE+ ports and 2 × 1 GbE SFP uplinks, the C1300-16FP-2G provides a 36 Gbps switching capacity and 26.78 Mpps forwarding rate. It supports IEEE 802.3af/at PoE+, providing up to 30 W per port and a total of 240 W power budget.
With Layer 2/3 features such as VLAN, QoS, ACL, IPv6, and Static Routing, it ensures secure, high-performance switching for networks demanding more PoE power and advanced control.
The C1300-16FP-2G offers a balance of high PoE power and quiet operation in a compact, fanless 1U chassis with an internal power supply. Ideal for powering dense IoT deployments or multi-device environments, it provides non-blocking Gigabit switching, energy efficiency, and Cisco’s trusted reliability for continuous 24/7 operation.
It’s an excellent choice for small and medium enterprises that require high-power PoE+ switching with easy management and silent performance.
Highlights
-
16 × 1 GbE PoE+ ports (240 W total budget) + 2 × 1 GbE SFP uplinks
-
36 Gbps switching capacity / 26.78 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent thermal design for office and classroom use
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U mounting brackets for Catalyst 1300/1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for initial configuration and management |
| GLC-SX-MM / GLC-LH-SM | SFP Modules | 1 GbE optical transceivers for uplink connections |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1300-16T-2G | 16 × 1 GbE + 2 × 1 GbE SFP | — | Fanless | Internal | Data-only version |
| C1300-16P-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | Standard PoE+ switch for SMB networks |
| C1300-16FP-2G (this model) | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 240 W | Fanless | Internal | High-power PoE+ model for multiple powered devices |
| C1300-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | 24-port PoE+ model for larger deployments |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1300-16FP-2G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 16 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 2 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 36 Gbps |
| Forwarding Rate | 26.78 Mpps |
| Packet Buffer | 2 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 240 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 18 W (no PoE load), ≈ 260 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,900,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 1.90 kg (4.19 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
