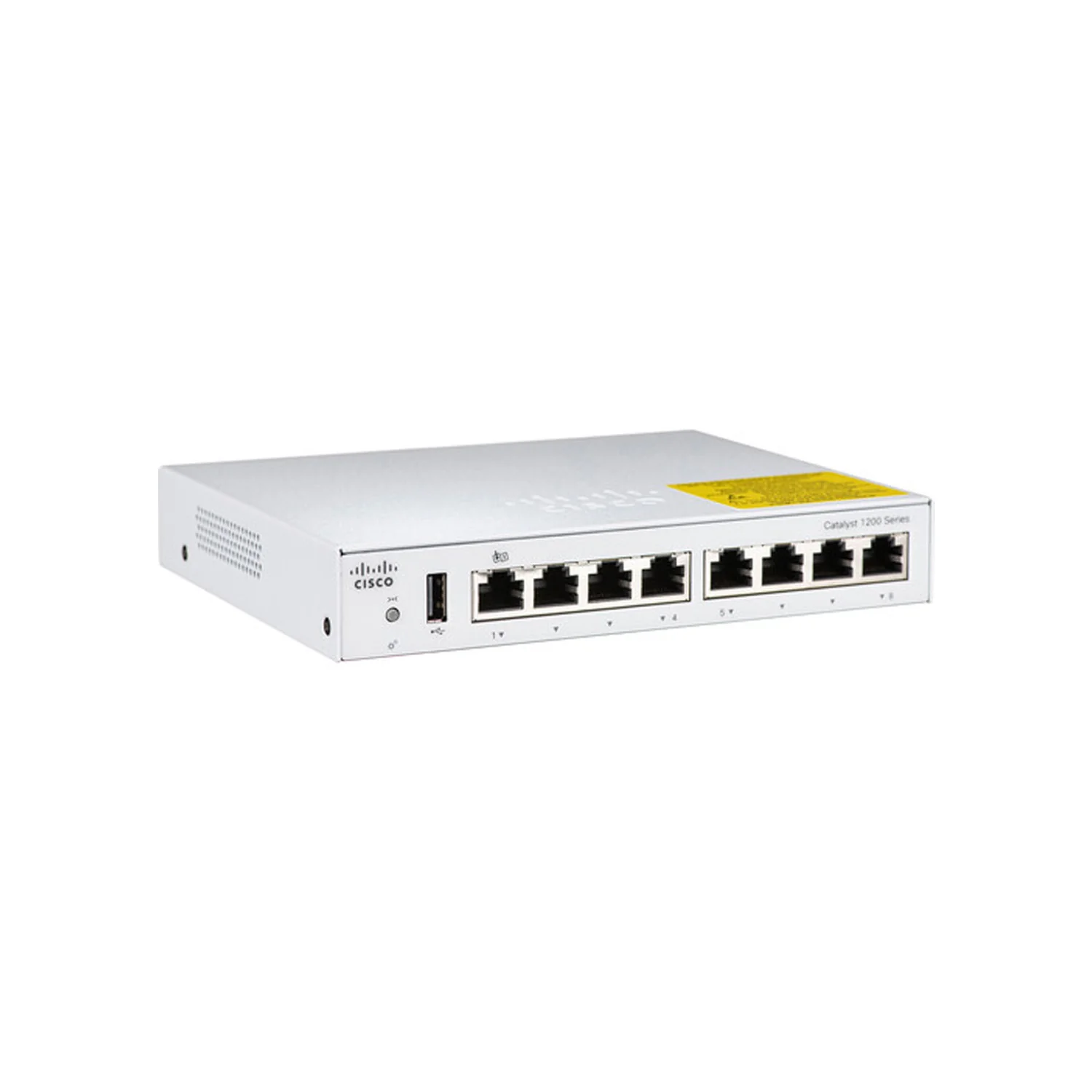

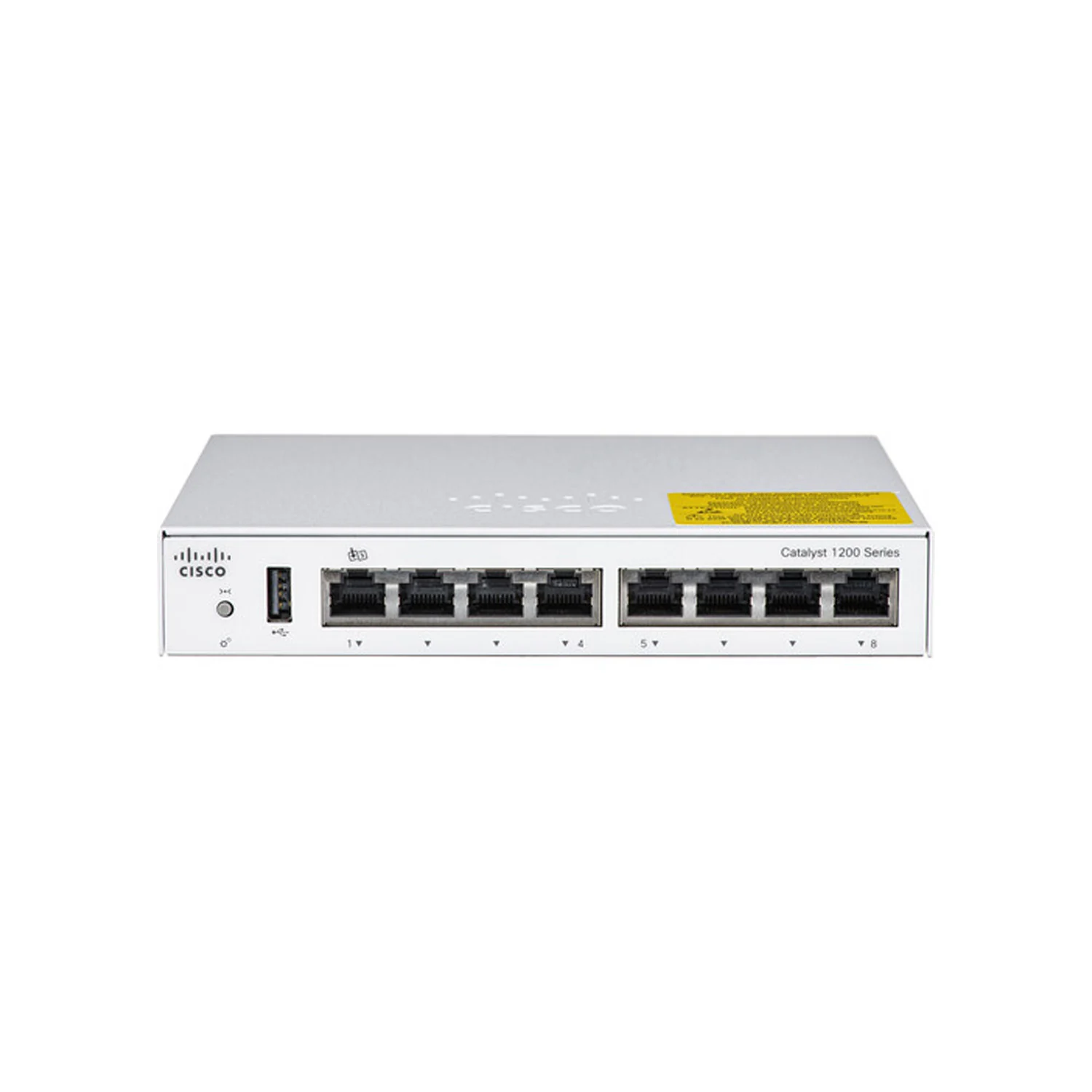

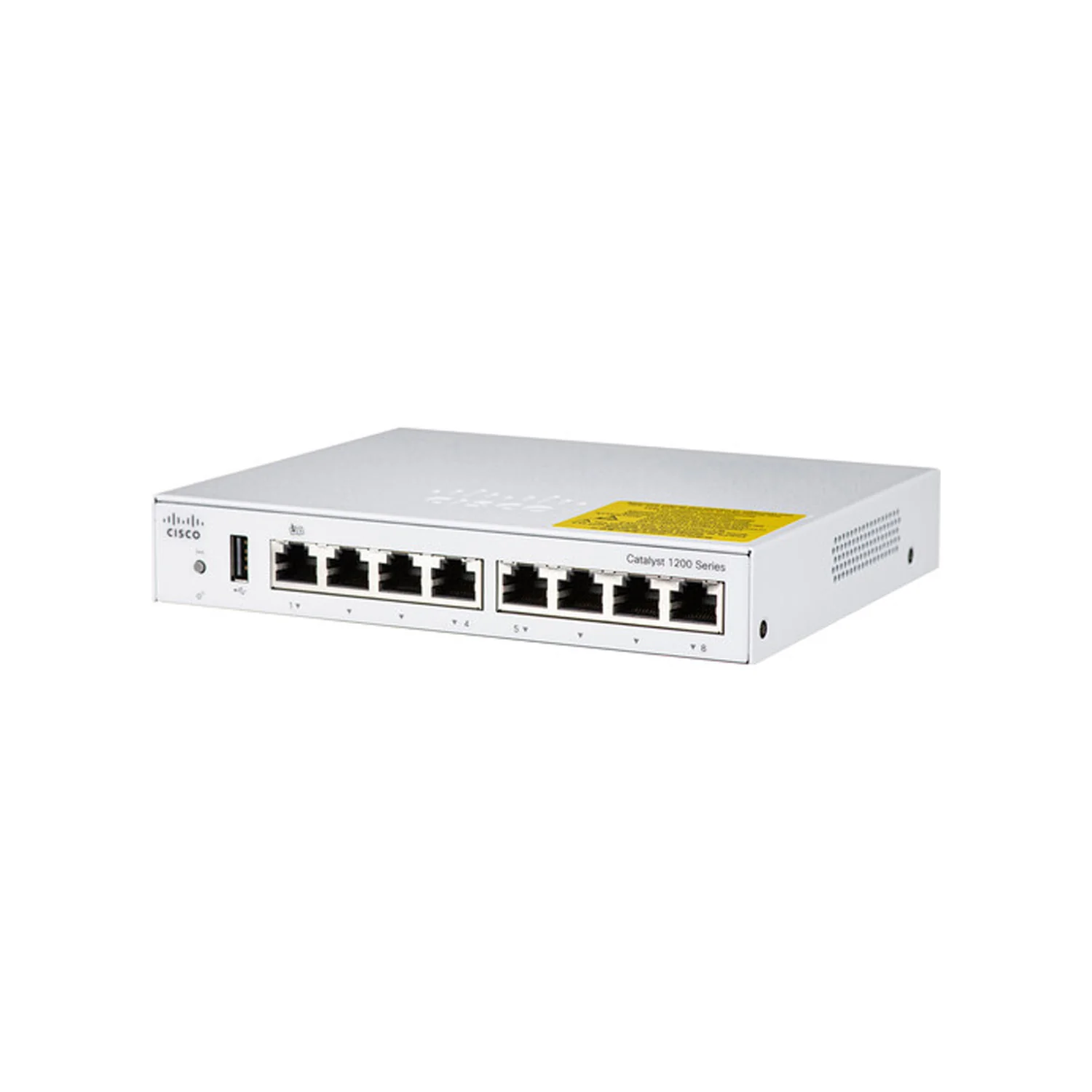

Cisco Catalyst C1200-8T-D Gigabit Desktop Switch
Overview
The Cisco Catalyst C1200-8T-D represents the entry-level model in Cisco’s Catalyst 1200 Series of smart-managed Gigabit Ethernet switches. Built for small and medium-sized businesses that demand reliable Layer 3 performance without PoE or uplink complexity, it provides essential enterprise features—including VLAN, QoS, and static routing—in a compact, silent, and cost-effective form factor.
Equipped with 8 × 1 GbE downlink ports, the C1200-8T-D delivers 20 Gbps switching capacity and 14.88 Mpps forwarding rate. It supports Layer 2 and Layer 3 static routing, VLAN segmentation, ACL, and QoS, offering professional-grade performance for desktops, workgroups, and small networks.
Managed via Cisco Business Dashboard, mobile app, or web interface, it’s an ideal choice for environments prioritizing simplicity, quiet operation, and long-term reliability.
The C1200-8T-D provides 8 Gigabit Ethernet ports in a fanless, compact 1U chassis, perfect for desktop or wall-mount installations. Designed for offices, retail shops, and small branches, it ensures non-blocking switching, silent operation, and simple centralized management, delivering Cisco’s renowned network stability and security at an affordable price.
Highlights
-
8 × 1 GbE RJ-45 downlink ports (non-PoE)
-
20 Gbps switching capacity / 14.88 Mpps forwarding rate
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless silent operation for office environments
-
Compact desktop/rack design, external power adapter
-
Managed via Cisco Business Dashboard, Mobile App, Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with all Catalyst 1200 Series models |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for initial configuration and management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-8T-D (this model) | 8 × 1 GbE | — | Fanless | External | Entry-level, non-PoE data switch |
| C1200-8T-E-2G | 8 × 1 GbE + 2 × 1 GbE RJ-45/SFP combo | — | Fanless | External | Adds combo uplinks for flexibility |
| C1200-8P-E-2G | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 67 W | Fanless | External | PoE+ for small device deployments |
| C1200-8FP-E-2G | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 120 W | Fanless | External | Higher PoE budget for multiple devices |
| C1200-16T-2G | 16 × 1 GbE + 2 × 1 GbE SFP | — | Fanless | Internal | 16-port data expansion model |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-8T-D |
| Product Type | Managed Layer 3 Gigabit Ethernet Switch |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ-45 (auto MDI/MDIX) |
| Uplink Ports | None (8-port all-downlink model) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limit |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | External Adapter (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 10.5 W (typical) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −25 °C to 70 °C (−13 °F to 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 2,200,000 hours |
| Form Factor | Desktop / 1U Rack-mount (optional kit) |
| Dimensions (W × D × H) | 185 × 269 × 43 mm (7.3 × 10.6 × 1.7 in) |
| Weight | 1.36 kg (3.00 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
