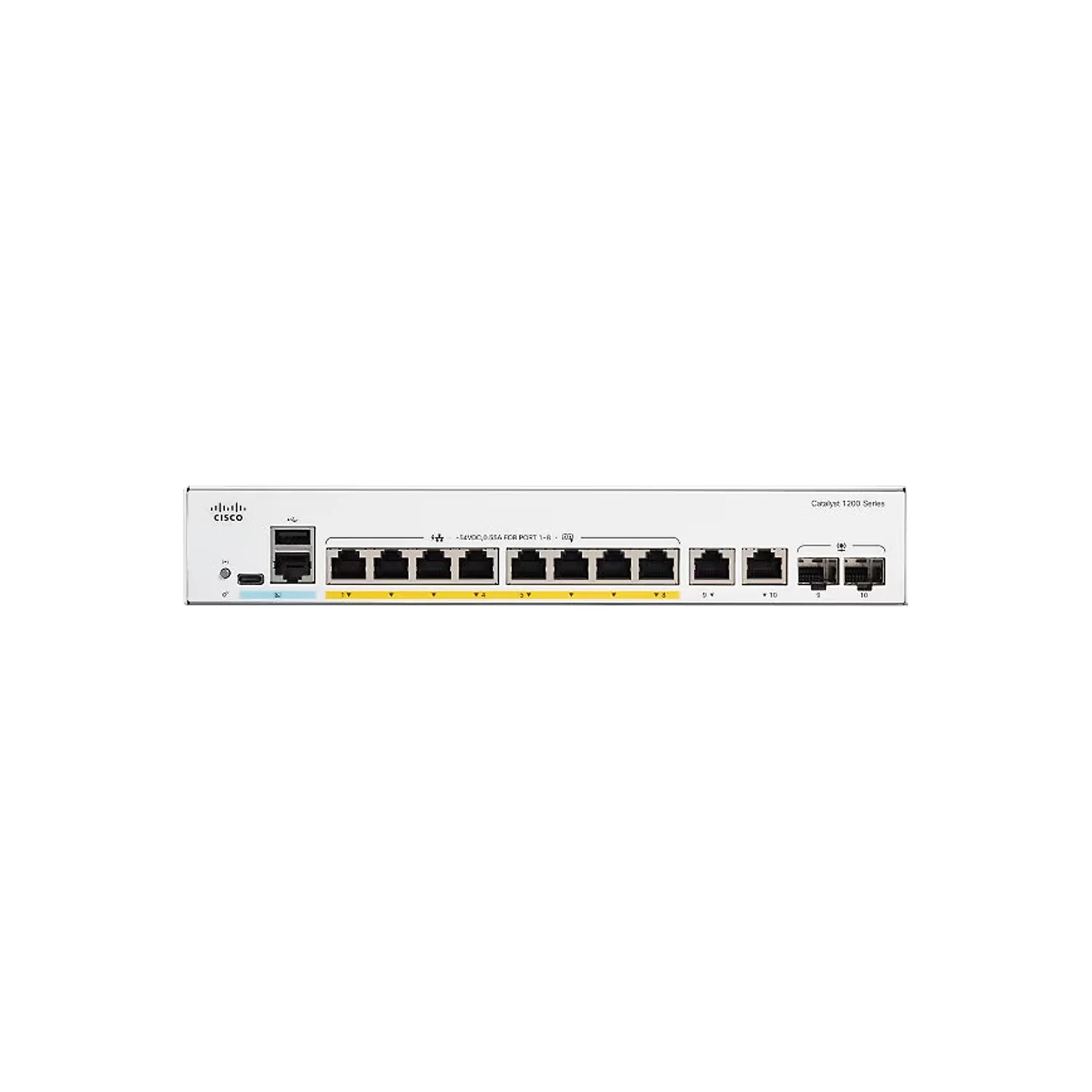

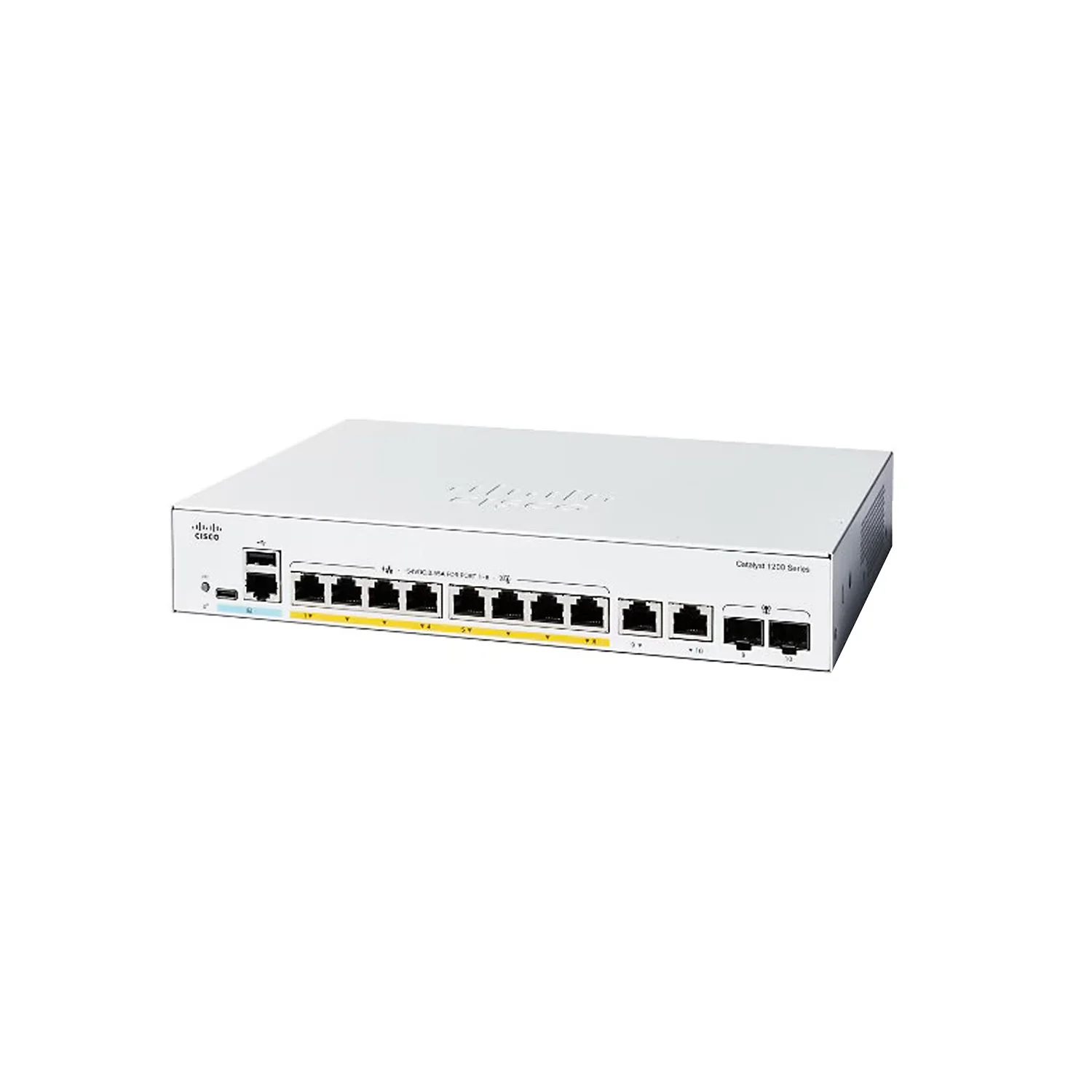

Cisco Catalyst C1200-8P-E-2G PoE Managed Switch
Overview
The Cisco Catalyst C1200-8P-E-2G belongs to Cisco’s Catalyst 1200 Series, a new generation of smart-managed Layer 3 Gigabit Ethernet switches purpose-built for small and medium-sized businesses.
It integrates PoE+ power delivery, enterprise-grade reliability, and intuitive management via Cisco Business Dashboard, mobile app, or on-device web UI—providing advanced security and control for office, retail, and branch networks.
Featuring 8 × 1 GbE PoE+ downlinks and 2 × 1 GbE RJ-45/SFP combo uplinks, the C1200-8P-E-2G offers a 20 Gbps switching capacity and 14.88 Mpps forwarding rate. It delivers full Layer 2/3 features - including VLAN, ACL, QoS, and static routing - while providing Power over Ethernet Plus (PoE+) support up to 67 W total budget, ideal for powering wireless APs, IP phones, and cameras.
The C1200-8P-E-2G combines gigabit performance and power in a compact, fanless, silent chassis. With its external power adapter, 67 W PoE budget, and easy management tools, it suits small-office, branch, and edge networks requiring unified data + power delivery with enterprise-class reliability.
Highlights
-
8 × 1 GbE PoE+ ports (67 W budget) + 2 × 1 GbE RJ-45/SFP combo uplinks
-
20 Gbps switching capacity / 14.88 Mpps forwarding rate
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Silent fanless design for desktop or rack use
-
Managed via Cisco Business Dashboard, Mobile App, Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1200 Series models |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for initial configuration and management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-8T-E-2G | 8 × 1 GbE + 2 × 1 GbE combo | — | Fanless | External | Data-only model (no PoE) |
| C1200-8P-E-2G (this model) | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 67 W | Fanless | External | PoE+ for APs, phones, cameras |
| C1200-8FP-2G | 8 × 1 GbE PoE+ + 2 × 1 GbE combo | 120 W | Fanless | External | Higher PoE budget |
| C1200-16P-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | 16-port PoE expansion |
| C1200-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | Mid-size PoE+ model |
| C1200-24T-4X | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10 GbE uplinks for aggregation |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-8P-E-2G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 8 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at) |
| Uplink Ports | 2 × 1 GbE RJ-45/SFP combo (either active per pair) |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 67 W |
| Per-Port Power Max | 30 W (PoE+) |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Static Routing | IPv4 and IPv6 (static) |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limit |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | External Adapter (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 12.7 W (no PoE load); max ≈ 80 W (full PoE) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −25 °C to 70 °C (−13 °F to 158 °F) |
| Operating Humidity | 10 – 90 % RH (non-condensing) |
| MTBF | ≈ 2,100,000 hours |
| Form Factor | Desktop / 1U Rack-mount (optional kit) |
| Dimensions (W × D × H) | 185 × 269 × 43 mm (7.3 × 10.6 × 1.7 in) |
| Weight | 1.46 kg (3.22 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
