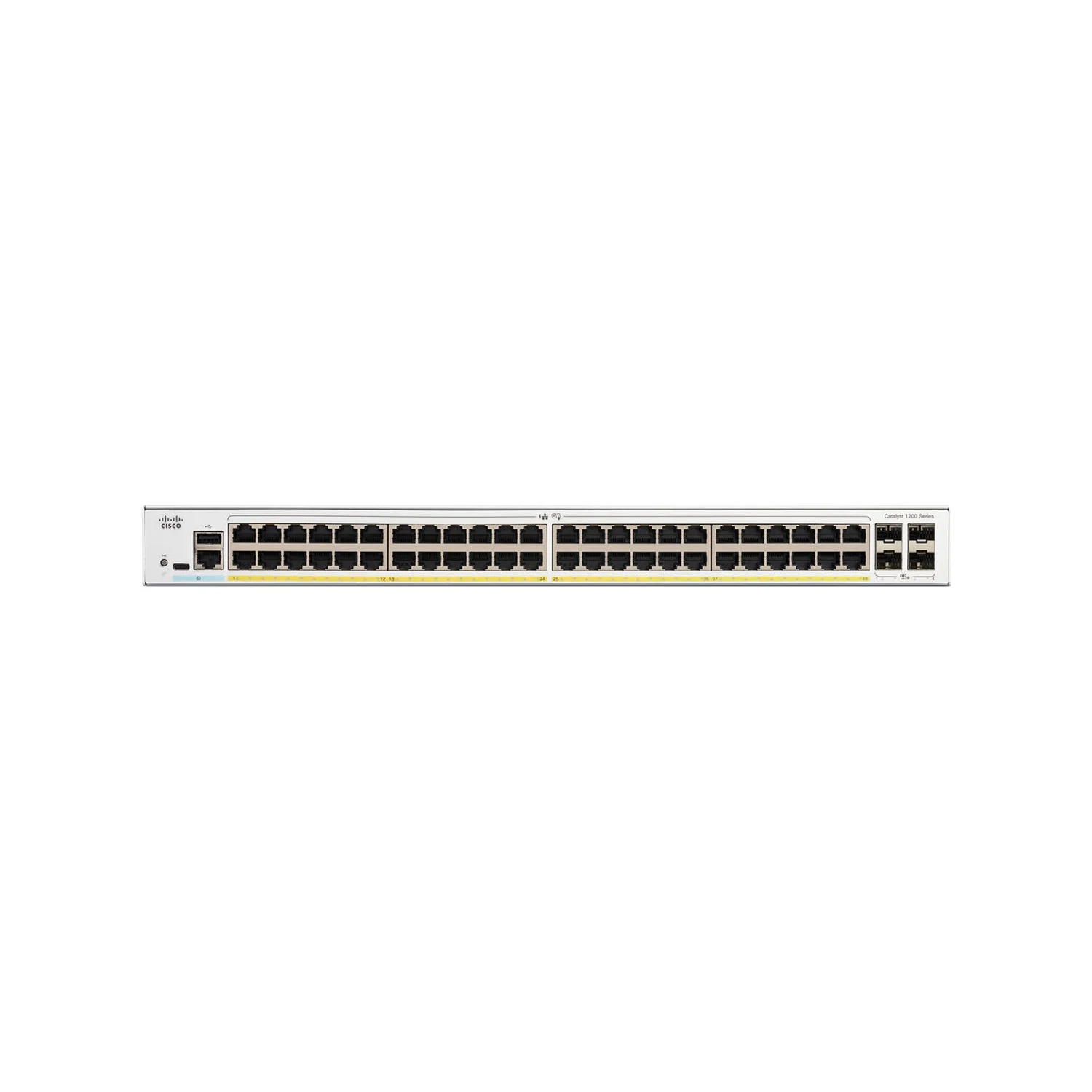

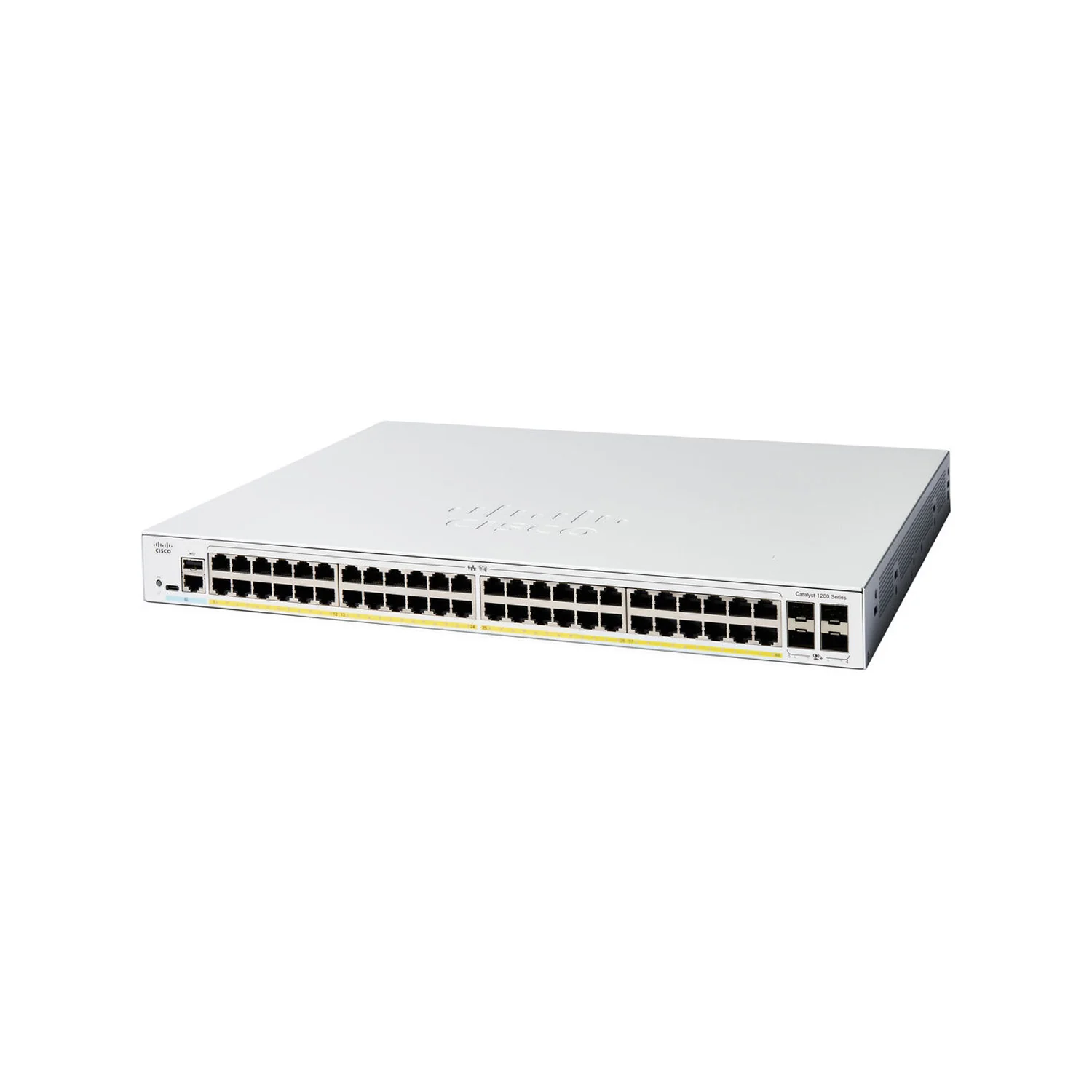

Cisco Catalyst C1200-48T-4X 10G Uplink Switch
Overview
The Cisco Catalyst C1200-48T-4X is the flagship non-PoE model in the Catalyst 1200 Series, delivering Layer 3 Gigabit access with 10 Gigabit SFP+ uplinks for businesses that demand scalable, high-bandwidth, and silent operation.
With 48 Gigabit Ethernet downlinks and 4 × 10 GbE SFP+ uplinks, it provides enterprise-grade switching, high-speed backbone connectivity, and centralized management through Cisco Business Dashboard, mobile app, or on-device web UI—perfect for modern SMB, education, and branch environments.
The C1200-48T-4X combines 48 × 1 GbE RJ-45 ports and 4 × 10 GbE SFP+ uplinks, achieving a 176 Gbps switching capacity and 130.95 Mpps forwarding rate.
It supports comprehensive Layer 2/3 features including VLAN, QoS, ACL, and IPv4/IPv6 static routing, enabling seamless aggregation between access and core layers. Optimized for 10 Gigabit uplink performance, it ensures network stability, reduced latency, and flexible scalability in enterprise-class access deployments.
The C1200-48T-4X provides 48 Gigabit downlinks and 4 high-speed 10G uplinks in a fanless, 1U rackmount design. Its internal power supply, low-noise operation, and energy-efficient architecture make it ideal for open-office or quiet-zone installations. Engineered for long-term reliability, it bridges the gap between Gigabit access and 10G aggregation with Cisco’s legendary build quality and management simplicity.
Highlights
-
48 × 1 GbE RJ-45 ports + 4 × 10 GbE SFP+ uplinks
-
176 Gbps switching capacity / 130.95 Mpps forwarding rate
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
10 Gigabit uplinks for aggregation and high-speed backbone
-
Fanless, silent operation for office and branch deployments
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for setup and management |
| SFP-10G-SR / SFP-10G-LR / GLC-T | SFP/SFP+ Modules | 1G and 10G optical/copper transceivers for uplinks |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-48T-4G | 48 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | 1G uplink model for standard access |
| C1200-48T-4X (this model) | 48 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10G uplink model for high-speed aggregation |
| C1200-48P-4G | 48 × 1 GbE PoE+ + 4 × 1 GbE SFP | 370 W | Fanless | Internal | PoE+ switch for device-powered networks |
| C1200-48P-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | PoE+ with 10G uplinks for enterprise access |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-48T-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet Switch with 10G uplinks |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ-45 (auto MDI/MDIX) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 16,000 entries |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 30 W (typical) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90 % RH (non-condensing) |
| MTBF | ≈ 1,700,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 440 × 270 × 44 mm (17.3 × 10.6 × 1.7 in) |
| Weight | 3.25 kg (7.17 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
