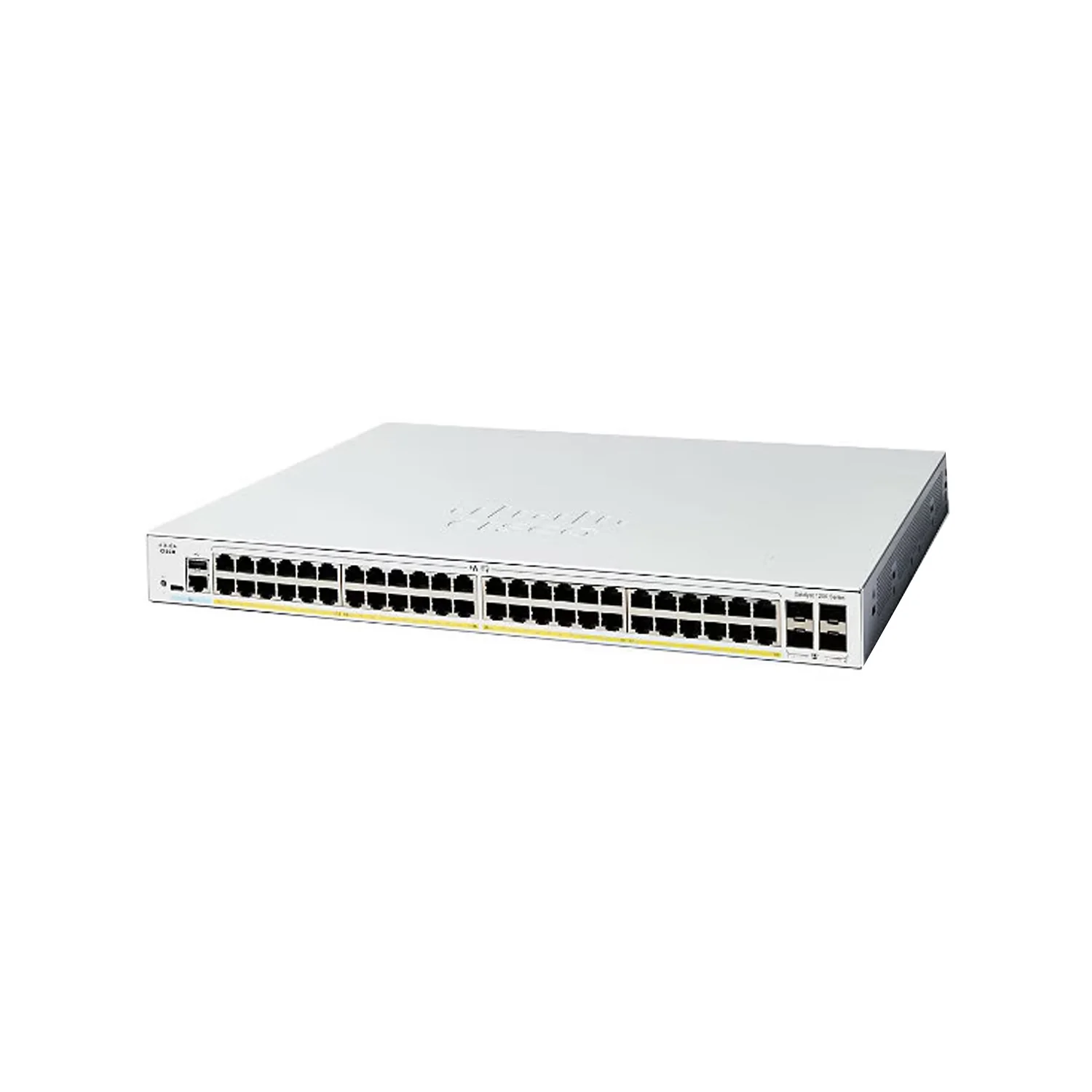

Cisco Catalyst C1200-48P-4X PoE 10G Switch
Overview
The Cisco Catalyst C1200-48P-4X is the top-tier high-density PoE+ Layer 3 Gigabit switch in the Catalyst 1200 Series, designed for SMBs, enterprises, and campus networks that require 10G uplink performance and integrated PoE+ power delivery.
Combining 48 Gigabit PoE+ downlinks, 4 × 10 GbE SFP+ uplinks, and a 370 W total PoE+ budget, it provides enterprise-grade scalability, Layer 3 intelligence, and silent fanless operation, making it ideal for powering wireless APs, IP surveillance, VoIP systems, and high-throughput access environments.
The C1200-48P-4X delivers 176 Gbps switching capacity and 130.95 Mpps forwarding rate.
It supports IEEE 802.3af/at PoE+, offering up to 30 W per port and a total 370 W PoE budget, enabling efficient power distribution for a large number of devices.
Featuring comprehensive Layer 2/3 capabilities - including VLAN, ACL, QoS, and IPv4/IPv6 static routing—it ensures optimal performance, segmentation, and traffic prioritization.
Managed via Cisco Business Dashboard, Mobile App, or on-device Web UI, it simplifies setup, monitoring, and lifecycle management for large networks.
The C1200-48P-4X is a high-performance 48-port PoE+ switch with 10G uplinks, ideal for organizations seeking maximum connectivity, power delivery, and throughput. Its fanless architecture and internal power supply offer quiet, energy-efficient operation, while its 1U rackmount design ensures seamless integration into network cabinets.
It’s the perfect solution for medium to large-scale deployments that require Layer 3 Gigabit access with 10G aggregation bandwidth and enterprise-class power delivery.
Highlights
-
48 × 1 GbE PoE+ ports (370 W total budget) + 4 × 10 GbE SFP+ uplinks
-
176 Gbps switching capacity / 130.95 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
10G SFP+ uplinks for high-speed aggregation or uplink to core
-
Fanless, silent operation, ideal for enterprise workspaces
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with all Catalyst 1200 Series models |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for configuration and management |
| SFP-10G-SR / SFP-10G-LR / GLC-T | SFP/SFP+ Modules | 1G and 10G copper/optical transceivers for uplink slots |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-48T-4G | 48 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | 1G uplink data-only model |
| C1200-48P-4G | 48 × 1 GbE PoE+ + 4 × 1 GbE SFP | 370 W | Fanless | Internal | Full PoE+ power, standard 1G uplinks |
| C1200-48T-4X | 48 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | Non-PoE model with 10G uplinks |
| C1200-48P-4X (this model) | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | Full PoE+ model with 10G uplinks for enterprise-grade networks |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-48P-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch with 10G uplinks |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 16,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 370 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 35 W (no PoE load), ≈ 450 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,600,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 440 × 270 × 44 mm (17.3 × 10.6 × 1.7 in) |
| Weight | 3.58 kg (7.89 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
