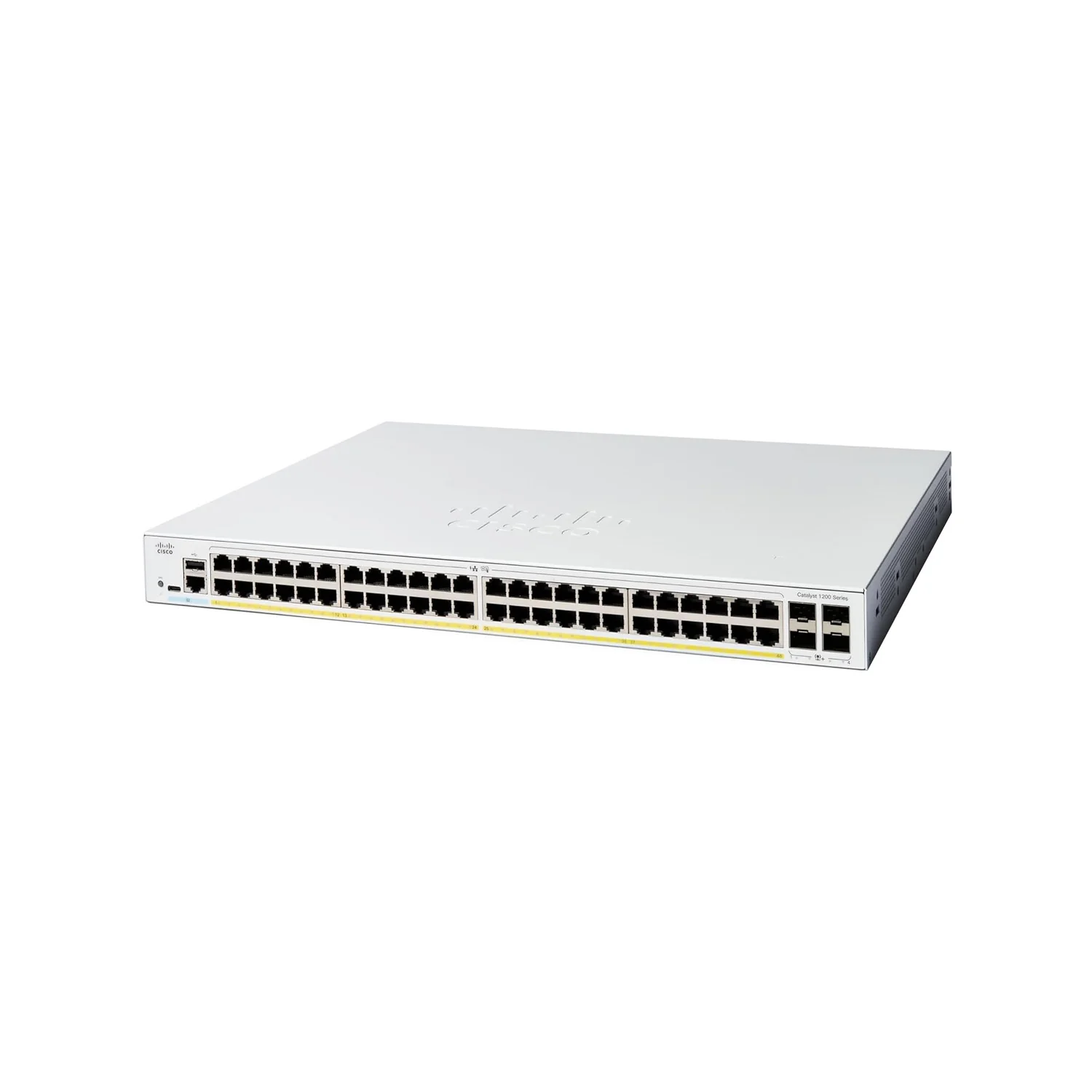

Cisco Catalyst C1200-48P-4G PoE Managed Switch
Overview
The Cisco Catalyst C1200-48P-4G is a high-density Layer 3 Gigabit PoE+ access switch designed for small and medium-sized businesses, branch offices, and distributed enterprises that require integrated data and power connectivity.
With 48 PoE+ ports and 4 Gigabit SFP uplinks, it delivers reliable network performance, 370 W total PoE+ power, and fanless silent operation, offering enterprise-class functionality, security, and manageability through Cisco Business Dashboard, mobile app, or on-device web interface.
Featuring 48 × 1 GbE PoE+ downlinks and 4 × 1 GbE SFP uplinks, the C1200-48P-4G delivers 104 Gbps switching capacity and 77.38 Mpps forwarding rate. It supports IEEE 802.3af/at PoE+, offering 30 W per port and a 370 W total PoE budget, powering access points, IP phones, and cameras efficiently.
With Layer 2/3 capabilities such as VLAN, ACL, QoS, and static routing (IPv4/IPv6), it provides advanced functionality while maintaining simple deployment and centralized management.
The C1200-48P-4G combines high-density PoE+ power, enterprise-level switching, and silent fanless performance in a 1U chassis. With integrated power supply and energy-efficient design, it is ideal for large office environments, classrooms, or retail spaces that require both data and power over Ethernet.
Built for stability and scalability, it ensures consistent performance for modern smart networks and IoT ecosystems.
Highlights
-
48 × 1 GbE PoE+ ports (370 W total budget) + 4 × 1 GbE SFP uplinks
-
104 Gbps switching capacity / 77.38 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent design for office and classroom environments
-
Managed via Cisco Business Dashboard, Mobile App, or Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for initial configuration and management |
| GLC-SX-MM / GLC-LH-SM | SFP Modules | 1G optical transceivers for uplink connections |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-48T-4G | 48 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | Non-PoE data model |
| C1200-48T-4X | 48 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10G uplink variant for aggregation |
| C1200-48P-4G (this model) | 48 × 1 GbE PoE+ + 4 × 1 GbE SFP | 370 W | Fanless | Internal | Full-power PoE+ model for access networks |
| C1200-48P-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | PoE+ with 10G uplinks for enterprise edge |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-48P-4G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 16,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 370 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 30 W (no PoE load), ≈ 420 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,650,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 440 × 270 × 44 mm (17.3 × 10.6 × 1.7 in) |
| Weight | 3.45 kg (7.61 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
