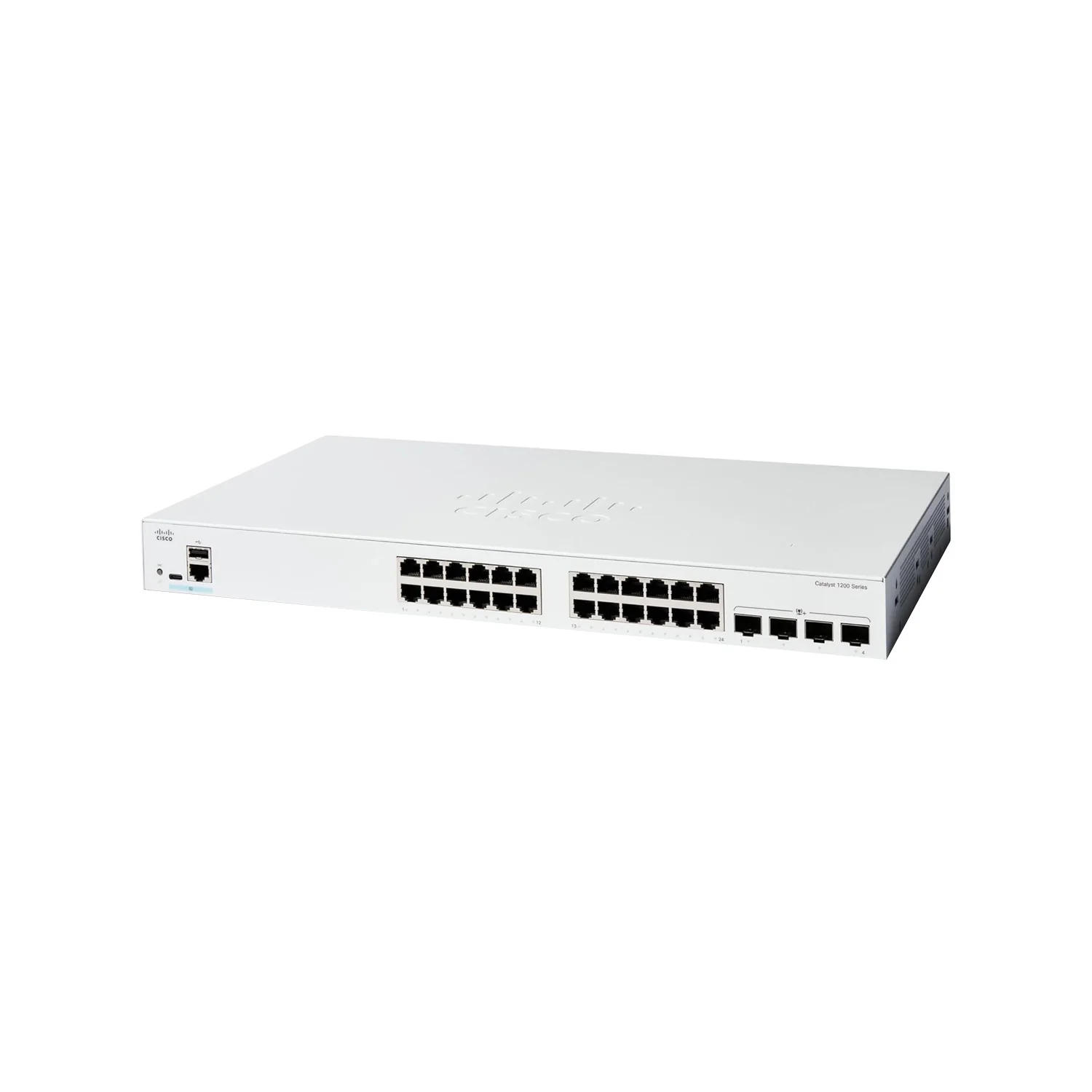

Cisco Catalyst C1200-24T-4X 10G Uplink Switch
Overview
The Cisco Catalyst C1200-24T-4X is the high-performance uplink variant of the Catalyst 1200 Series, designed for small and medium-sized businesses needing 10-Gigabit uplink connectivity and Layer 3 intelligent switching. With 24 Gigabit downlink ports and 4×10G SFP+ uplinks, it provides enterprise-class throughput, advanced management, and silent fanless operation, ideal for high-demand office, branch, or aggregation layer deployments.
The C1200-24T-4X combines 24 × 1 GbE RJ-45 downlinks with 4 × 10 GbE SFP+ uplinks, delivering a 128 Gbps switching capacity and 95.23 Mpps forwarding rate. Supporting Layer 2/3 features such as VLAN, QoS, ACL, and IPv4/IPv6 static routing, it bridges access and aggregation layers seamlessly. The switch ensures high uplink bandwidth for network backbones, server interconnects, or stacked architectures — all managed through Cisco Business Dashboard, mobile app, or on-device web UI.
Designed for scalability and performance, the C1200-24T-4X provides 10G-ready uplinks for bandwidth-intensive networks. With an internal AC power supply and fanless thermal design, it guarantees silent, reliable operation even under continuous workloads. It is ideal for growing SMBs, education, retail, and branch offices seeking 10G uplink capability without compromising simplicity or cost efficiency.
Highlights
-
24 × 1 GbE RJ-45 ports + 4 × 10 GbE SFP+ uplinks
-
128 Gbps switching capacity / 95.23 Mpps forwarding rate
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless design for silent operation and low power consumption
-
10G SFP+ uplinks enable high-speed aggregation and future expansion
-
Managed via Cisco Business Dashboard, Mobile App, Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets compatible with all Catalyst 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for setup, configuration, and management |
| GLC-T / SFP-10G-SR / SFP-10G-LR | SFP / SFP+ Modules | Compatible 1G and 10G optical/copper transceivers for uplink slots |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-24T-4G | 24 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | Standard 1G uplink access model |
| C1200-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | 24-port PoE+ access switch |
| C1200-24T-4X (this model) | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10G uplink model for aggregation or high-speed access |
| C1200-48T-4X | 48 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 48-port model with 10G uplinks for larger networks |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-24T-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet Switch with 10G uplinks |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 (auto MDI/MDIX) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 20 W (typical) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −25 °C to 70 °C (−13 °F to 158 °F) |
| Operating Humidity | 10 – 90 % RH (non-condensing) |
| MTBF | ≈ 1,900,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.15 kg (4.74 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
