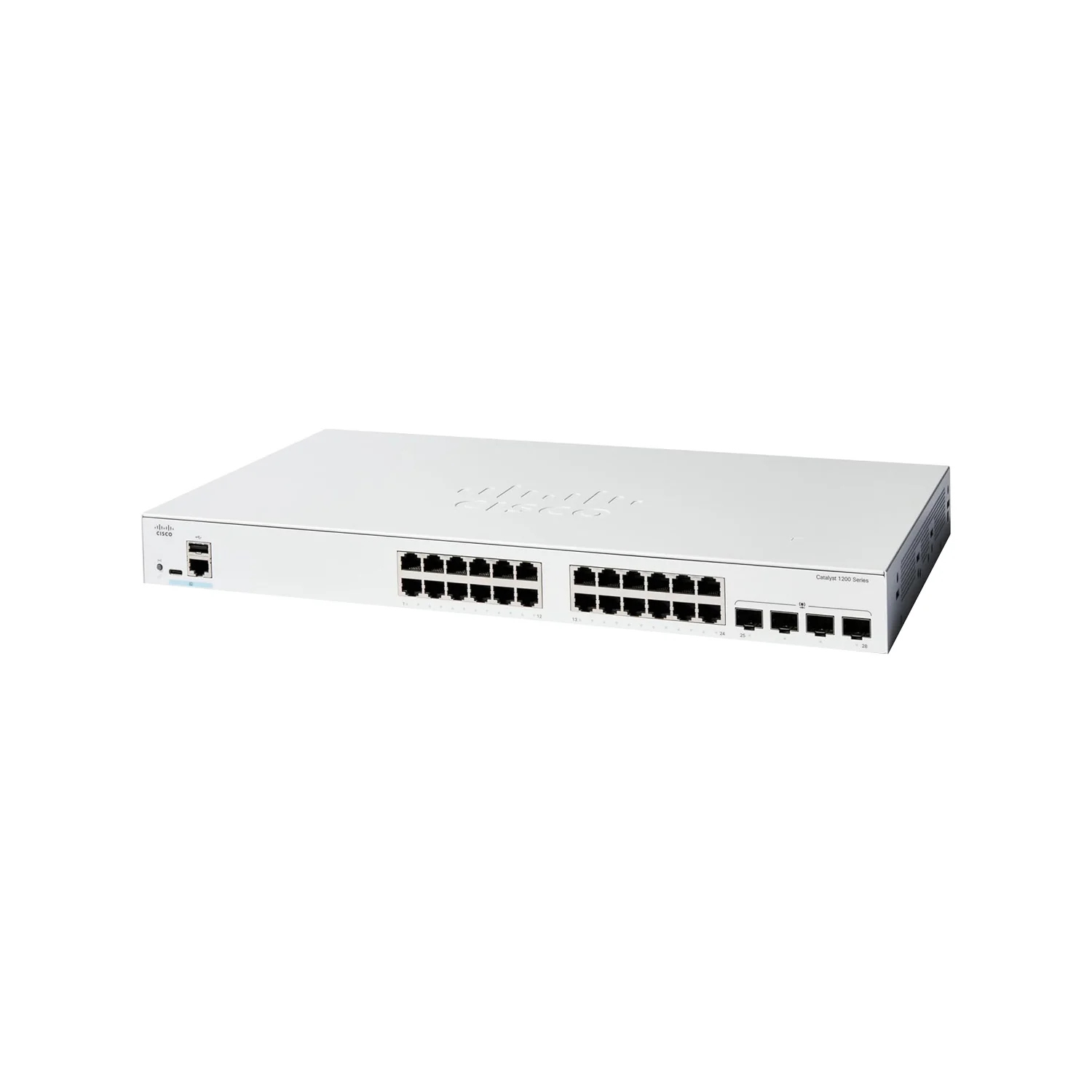

Cisco Catalyst C1200-24T-4G Managed Gigabit Switch
Overview
The Cisco Catalyst C1200-24T-4G extends the Catalyst 1200 Series for organizations that require higher port density and Layer 3-capable Gigabit performance with silent, energy-efficient operation. Built for small and medium-sized businesses, branch offices, and distributed enterprises, it offers 24 Gigabit downlinks and 4 Gigabit SFP uplinks with Cisco’s proven reliability, security, and simplified management via Cisco Business Dashboard, mobile app, or on-device Web UI.
Delivering 52 Gbps switching capacity and 38.69 Mpps forwarding rate, the C1200-24T-4G combines non-blocking performance with Layer 2/3 intelligence including VLAN, ACL, QoS, and IPv4/IPv6 static routing.
The switch features 24 × 1 GbE downlinks and 4 × 1 GbE SFP uplinks for flexible fiber or copper connectivity, ideal for access-layer aggregation or high-throughput desktop deployments.
The C1200-24T-4G provides enterprise-class switching for networks demanding more ports and throughput in a compact, fanless 1U chassis. With internal power and silent operation, it fits perfectly in open-office or rack environments where reliability and noise reduction are critical. It delivers secure, high-speed, and easy-to-manage connectivity across business and branch networks.
Highlights
-
24 × 1 GbE RJ-45 ports + 4 × 1 GbE SFP uplinks
-
52 Gbps switching capacity / 38.69 Mpps forwarding rate
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless, silent design for office or rack environments
-
Managed via Cisco Business Dashboard, Mobile App, Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U mounting brackets for Catalyst 1200 Series models |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for initial configuration and management |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-16T-2G | 16 × 1 GbE + 2 × 1 GbE SFP | — | Fanless | Internal | Compact 16-port data switch |
| C1200-16P-2G | 16 × 1 GbE PoE+ + 2 × 1 GbE SFP | 120 W | Fanless | Internal | PoE+ version for edge devices |
| C1200-24T-4G (this model) | 24 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | 24-port data model for SMB access layer |
| C1200-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | 24-port PoE+ model for larger deployments |
| C1200-24T-4X | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10 GbE uplinks for aggregation and core use |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-24T-4G |
| Product Type | Managed Layer 3 Gigabit Ethernet Switch |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 (auto MDI/MDIX) |
| Uplink Ports | 4 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 17 W (typical) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −25 °C to 70 °C (−13 °F to 158 °F) |
| Operating Humidity | 10 – 90 % RH (non-condensing) |
| MTBF | ≈ 1,920,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.05 kg (4.52 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
