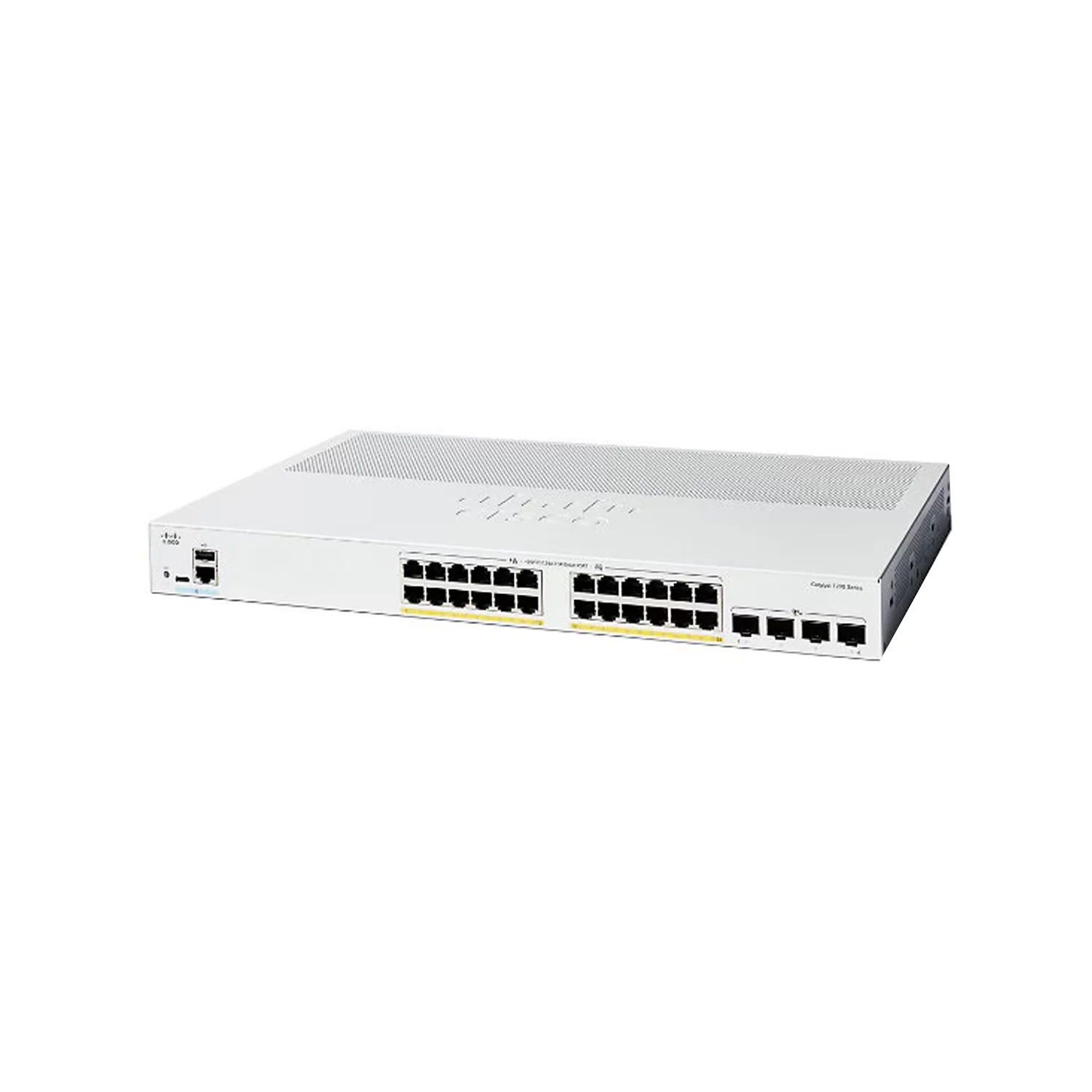

Cisco Catalyst C1200-24P-4X PoE 10G Switch
Overview
The Cisco Catalyst C1200-24P-4X is a next-generation Layer 3 Gigabit PoE+ access switch with 10G SFP+ uplinks, designed for SMBs, schools, retail, and branch networks that need high-performance data and power distribution. It delivers 24 Gigabit PoE+ ports, 4×10G SFP+ uplinks, and 195 W total PoE power, combining enterprise-grade functionality, scalability, and silent operation under the trusted Cisco Catalyst platform.
The C1200-24P-4X features 24 × 1 GbE PoE+ downlinks and 4 × 10 GbE SFP+ uplinks, supporting 128 Gbps switching capacity and 95.23 Mpps forwarding rate. It complies with IEEE 802.3af/at PoE+, offering up to 30 W per port and a 195 W total PoE budget, ideal for powering access points, cameras, and IP phones. The switch provides Layer 2/3 capabilities such as VLAN, QoS, ACL, and static routing (IPv4/IPv6), ensuring high-speed and intelligent network performance for advanced SMB deployments.
The C1200-24P-4X combines powerful performance and energy-efficient design in a fanless 1U chassis with internal power. With 10G uplinks, it enables high-bandwidth aggregation or uplink to core networks while simplifying cable infrastructure with built-in PoE+. It’s the perfect fit for medium-scale enterprises seeking future-ready Gigabit access with 10G backbone connectivity.
Highlights
-
24 × 1 GbE PoE+ ports (195 W total budget) + 4 × 10 GbE SFP+ uplinks
-
128 Gbps switching capacity / 95.23 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless design for silent, reliable operation
-
10G SFP+ uplinks for high-speed aggregation or uplink deployment
-
Managed via Cisco Business Dashboard, Mobile App, Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for setup and management |
| SFP-10G-SR / SFP-10G-LR / GLC-T | SFP/SFP+ Modules | Compatible 1G/10G copper and optical transceivers for uplinks |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-24T-4G | 24 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | Data-only 1G uplink model |
| C1200-24P-4G | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | Standard PoE+ model for SMB access |
| C1200-24T-4X | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10G uplink data-only model |
| C1200-24P-4X (this model) | 24 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 195 W | Fanless | Internal | PoE+ version with 10G uplinks for high-speed access |
| C1200-48P-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | Large-scale PoE+ switch for enterprise networks |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-24P-4X |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch with 10G uplinks |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at compliant) |
| Uplink Ports | 4 × 10 GbE SFP+ uplinks |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 195 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limiting |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 22 W (no PoE load), up to 230 W (max PoE load) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | −25 °C to 70 °C (−13 °F to 158 °F) |
| Operating Humidity | 10 – 90% RH (non-condensing) |
| MTBF | ≈ 1,850,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.25 kg (4.96 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
