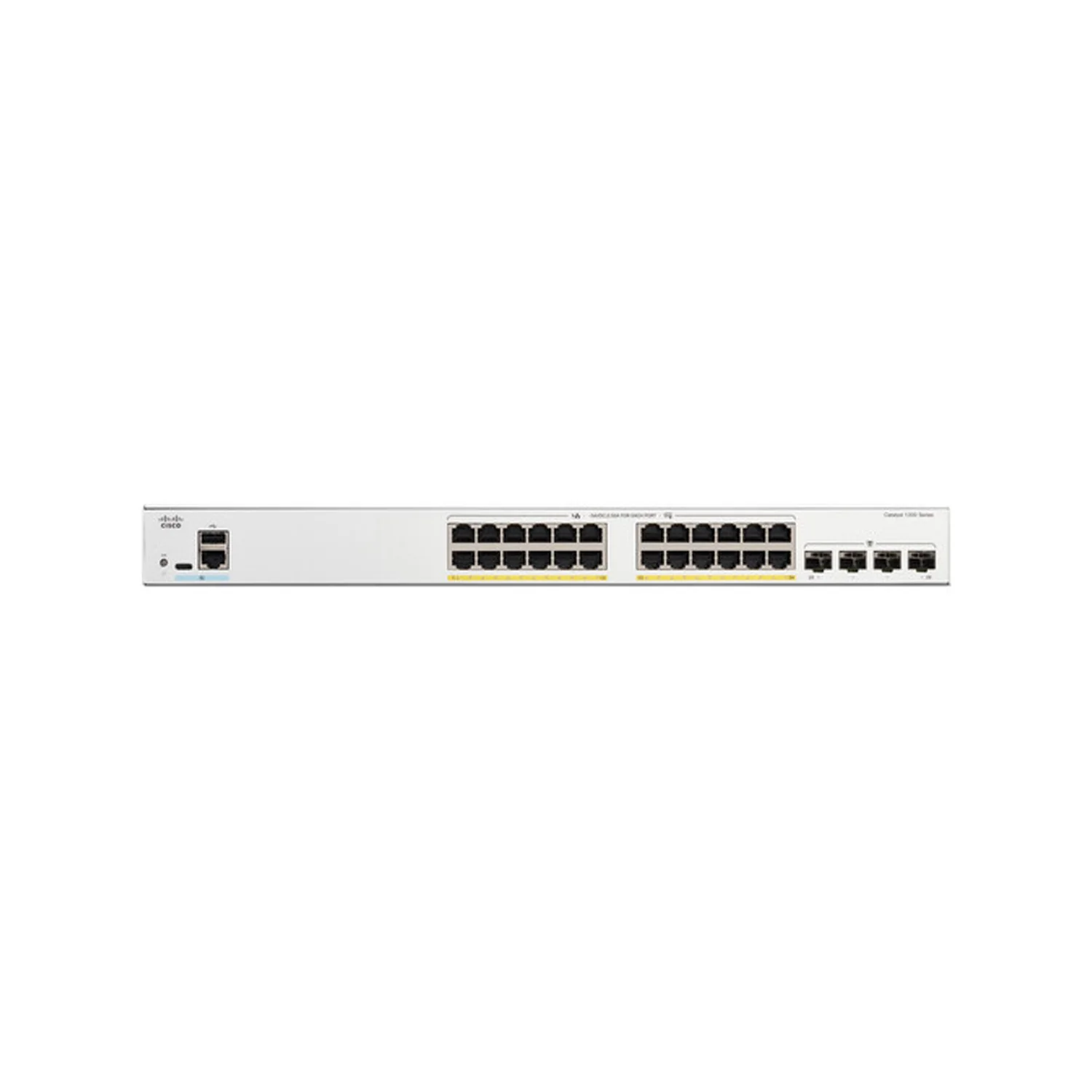

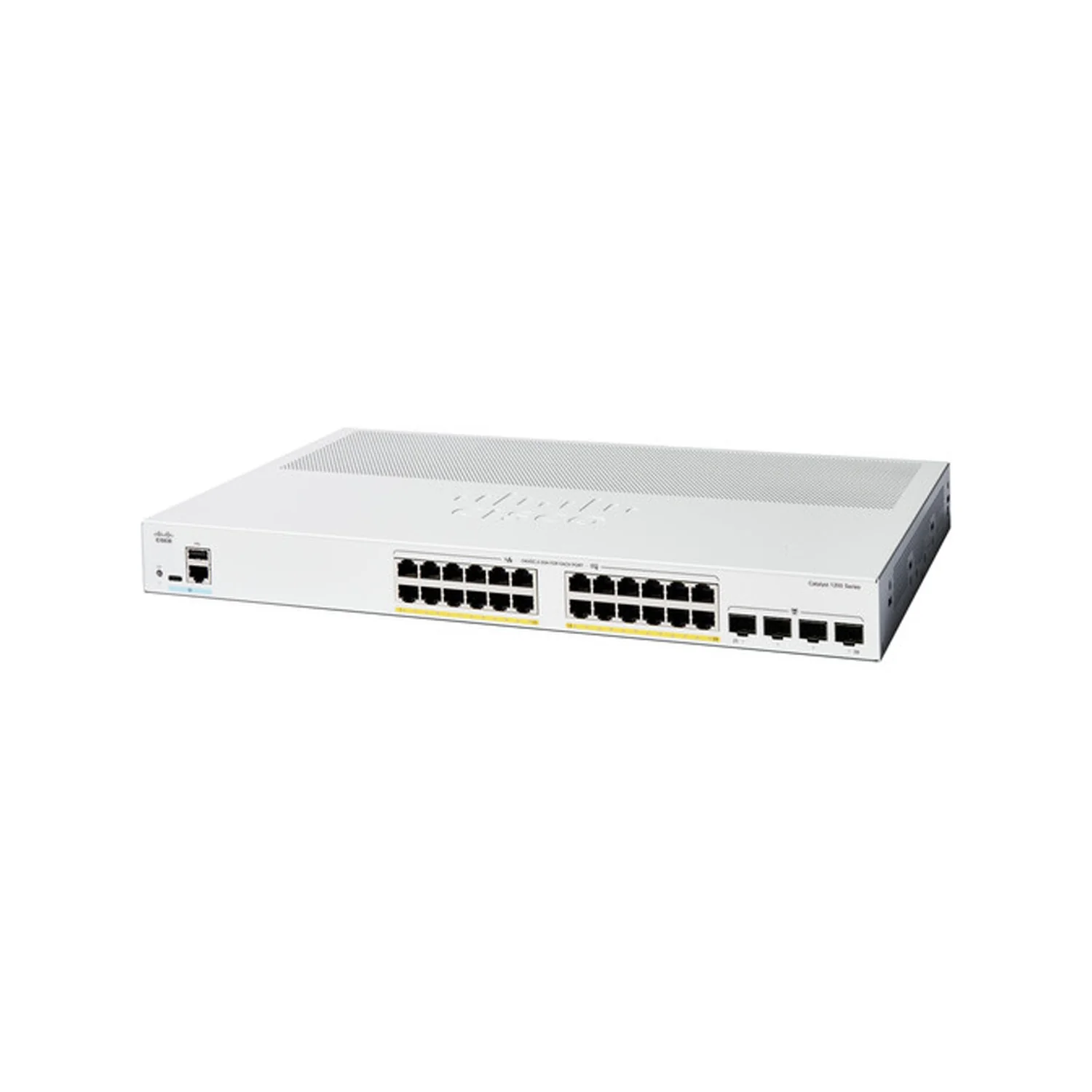

Cisco Catalyst C1200-24P-4G PoE Managed Switch
Overview
The Cisco Catalyst C1200-24P-4G is the PoE+ variant of the Catalyst 1200 Series 24-port model, providing data + power integration for small and medium-sized business networks. It delivers enterprise-class Layer 3 capabilities, 195 W total PoE+ power, and silent fanless operation, making it ideal for powering wireless APs, IP phones, and surveillance cameras while ensuring reliable Gigabit access and simplified management through Cisco Business Dashboard, mobile app, or on-device Web UI.
With 24 × 1 GbE PoE+ downlinks and 4 × 1 GbE SFP uplinks, the C1200-24P-4G provides 52 Gbps switching capacity and 38.69 Mpps forwarding rate. It supports IEEE 802.3af/at PoE+, supplying up to 30 W per port and a total of 195 W for connected devices. Supporting Layer 2/3 features (VLAN, QoS, ACL, Static Routing, IPv6), it offers the performance and intelligence required for modern SMB access networks with centralized management and intuitive configuration.
Compact and energy-efficient, the C1200-24P-4G provides 24 Gigabit PoE+ ports and 4 fiber uplinks in a 1U fanless form factor. It integrates data switching and power distribution, eliminating the need for separate power injectors or outlets. With Cisco’s reliable hardware and easy-to-use management tools, it’s perfect for small offices, retail, and branch environments demanding silent, high-performance PoE switching.
Highlights
-
24 × 1 GbE PoE+ ports (195 W budget) + 4 × 1 GbE SFP uplinks
-
52 Gbps switching capacity / 38.69 Mpps forwarding rate
-
IEEE 802.3af/at PoE+ (up to 30 W per port)
-
Layer 3 static routing, VLAN, ACL, QoS, IPv4/IPv6 support
-
Fanless silent design, ideal for office deployments
-
Managed via Cisco Business Dashboard, Mobile App, Web UI
Recommended Accessories
| Product Name | Category | Description |
|---|---|---|
| RCKMNT-1RU-1K= | Rack-Mount Kit | 19″ 1U brackets for Catalyst 1200 Series switches |
| CAB-CONSOLE-RJ45 | Console Cable | RJ-45 console cable for setup and management |
| GLC-SX-MM / GLC-LH-SM | SFP Transceivers | 1 GbE optical modules for uplink connectivity |
Compare with Similar Models
| Model | Ports & Uplinks | PoE Budget | Fan | Power Supply | Positioning Notes |
|---|---|---|---|---|---|
| C1200-24T-4G | 24 × 1 GbE + 4 × 1 GbE SFP | — | Fanless | Internal | Data-only model (no PoE) |
| C1200-24P-4G (this model) | 24 × 1 GbE PoE+ + 4 × 1 GbE SFP | 195 W | Fanless | Internal | Full PoE+ support for medium-sized networks |
| C1200-24T-4X | 24 × 1 GbE + 4 × 10 GbE SFP+ | — | Fanless | Internal | 10 GbE uplink model for aggregation |
| C1200-48P-4X | 48 × 1 GbE PoE+ + 4 × 10 GbE SFP+ | 370 W | Fanless | Internal | High-density PoE+ switch for large deployments |
Specification Summary
| Parameter | Specification Details |
|---|---|
| Model Name | Cisco Catalyst C1200-24P-4G |
| Product Type | Managed Layer 3 Gigabit Ethernet PoE+ Switch |
| Downlink Ports | 24 × 10/100/1000 Mbps RJ-45 PoE+ (IEEE 802.3af/at) |
| Uplink Ports | 4 × 1 GbE SFP fiber uplinks |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Packet Buffer | 1.5 MB (shared) |
| MAC Address Table | 8,000 entries |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Total PoE Budget | 195 W |
| Per-Port Power Max | 30 W |
| Jumbo Frames | Up to 9,000 bytes |
| QoS Queues | 8 hardware queues per port (WRR + Strict Priority) |
| VLAN Support | 255 active VLANs, 802.1Q tagging, Voice VLAN |
| Spanning Tree | 802.1D STP, 802.1w RSTP, 802.1s MSTP, PVST+ |
| Link Aggregation | IEEE 802.3ad LACP (up to 4 groups) |
| Multicast Control | IGMP Snooping v1/v2/v3 |
| Layer 3 Routing | IPv4 and IPv6 static routing |
| DHCP Relay | Supported |
| Access Control | ACL (L2–L4) Filtering |
| Authentication | IEEE 802.1X (RADIUS) |
| Security Features | Port Security, DHCP Snooping, BPDU Guard, DoS Prevention |
| Traffic Management | 802.1p CoS/DSCP trust and remark, Ingress/Egress rate limit |
| Management Interface | Web UI, Cisco Business Dashboard, Mobile App |
| Management Protocols | SNMP v1/v2c/v3, HTTP/HTTPS, TFTP, DHCP |
| Logging & Monitoring | Syslog, Event Logs |
| Cooling Design | Fanless (silent operation) |
| Power Supply | Internal AC (100–240 VAC, 50/60 Hz) |
| Power Consumption | ≈ 18 W (no PoE load), ≈ 220 W (max PoE load) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
| Storage Temperature | −25 °C – 70 °C (−13 °F – 158 °F) |
| Operating Humidity | 10 – 90 % RH (non-condensing) |
| MTBF | ≈ 1,880,000 hours |
| Form Factor | Desktop / 1U Rack-mount |
| Dimensions (W × D × H) | 268 × 269 × 43 mm (10.6 × 10.6 × 1.7 in) |
| Weight | 2.22 kg (4.89 lb) |
| Certifications | UL 62368, CSA 22.2, CE, FCC Class A |
| Warranty | Cisco Limited Lifetime Hardware Warranty |
