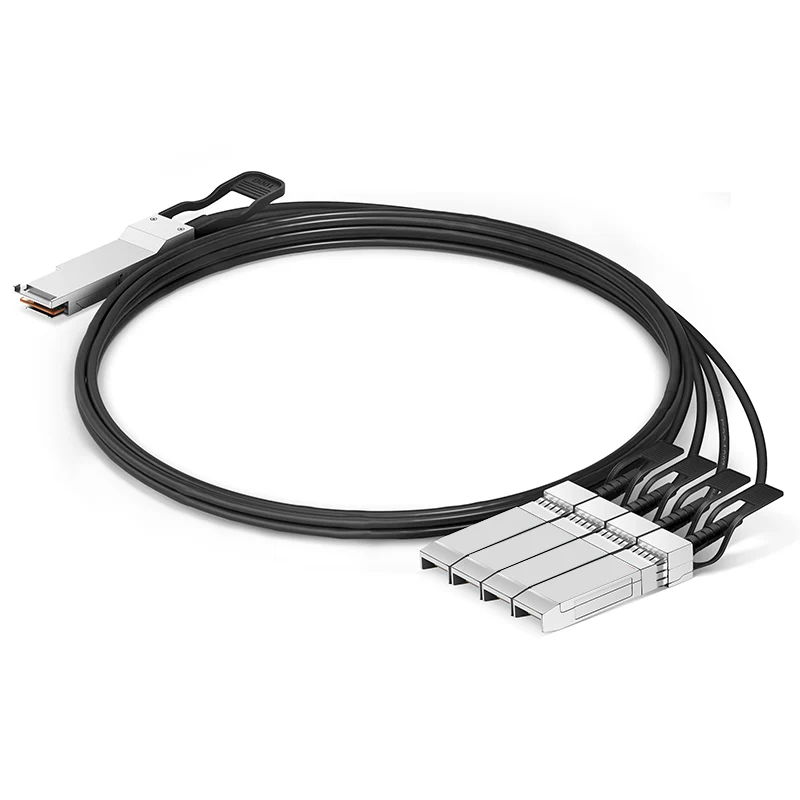

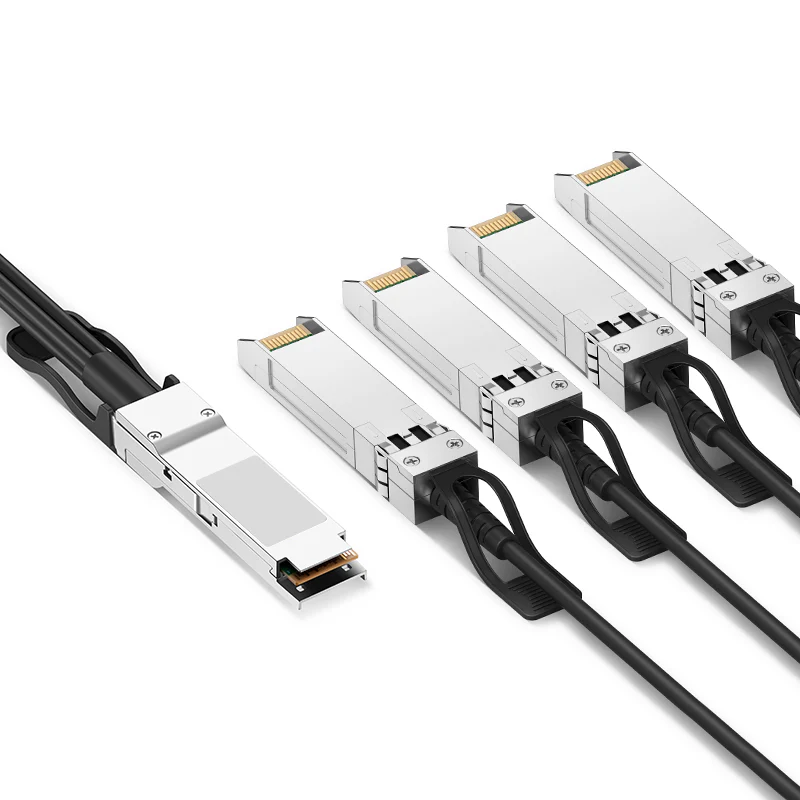

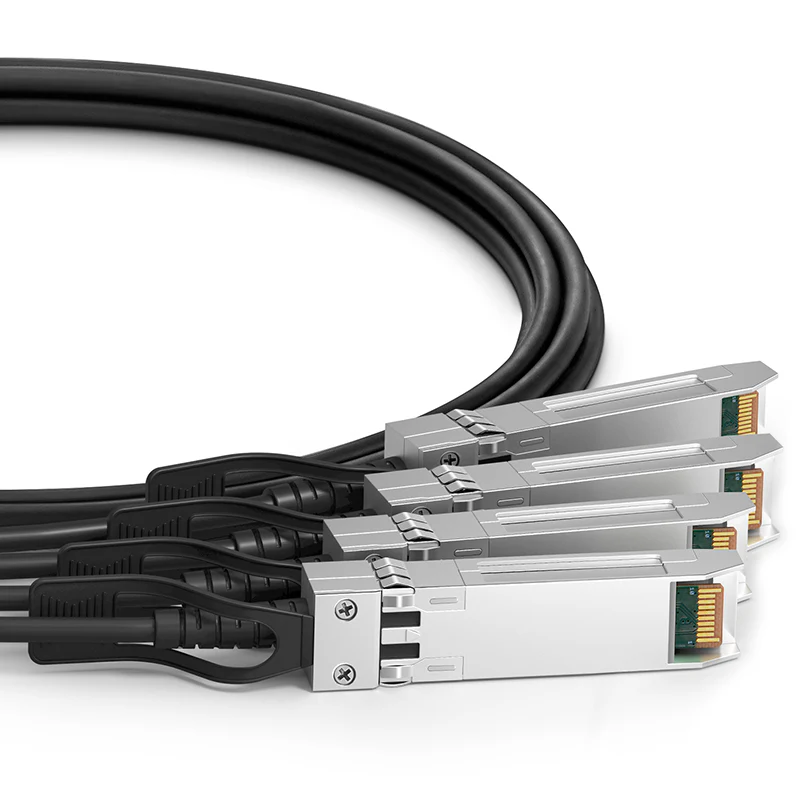

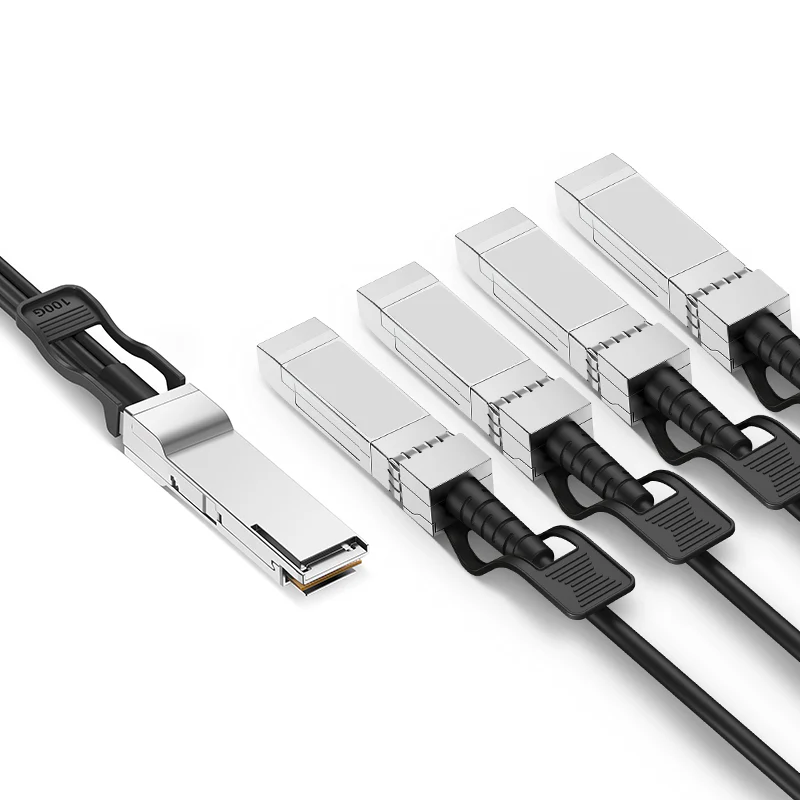

NSComm 200G PAM4 QSFP56 to 4x50G SFP56 Direct Attach PVC Copper Cable, up to 3m
200G PAM4 QSFP56 to 4×50G SFP56 Direct Attach Copper Cable (DAC), PVC, Passive, up to 3 m (10 ft)
Overview
The NSComm 200G PAM4 QSFP56 to 4×50G SFP56 Direct Attach Copper Cable (DAC) is a breakout copper solution for 200G-to-4×50G Ethernet connectivity in hyperscale data centers, HPC clusters, and cloud environments. It integrates one QSFP56 connector on one end and four SFP56 connectors on the other, enabling seamless 200G-to-50G breakout connections.
Constructed with twinax copper cable and a PVC jacket, this DAC offers ultra-low latency, reliable signal integrity, and significant cost savings compared to optical transceivers. The passive version supports lengths up to 3 m (10 ft) with negligible power draw. For extended needs, active copper variants reach up to 5 m (16 ft) while consuming ≤ 2 W.
Need to confirm compatibility with your exact switch or NIC? [Contact Us Now] and our support team will assist.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 200G PAM4 QSFP56 to 4×50G SFP56 Direct Attach Copper Cable (DAC) |
| Data Rate | 200 Gbps (4×50 Gbps breakout, PAM4) |
| Cable Type | Twinax Copper, PVC Jacket, Passive/Active |
| Max Cable Distance | Passive: up to 3 m (10 ft); Active: up to 5 m (16 ft) |
| Conductor AWG Options | 30 AWG (≤ 2 m), 26 AWG (≤ 3 m), 24 AWG (active ≤ 5 m) |
| Connector Type | 1× QSFP56 to 4× SFP56 |
| Power Consumption | Passive ≈ 0 W, Active ≤ 2 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP56 MSA (SFF-8665), SFP56 MSA (SFF-8432), IEEE 802.3cd, RoHS |
| Applications | 200G-to-50G breakout, server-to-switch links, NIC uplinks, aggregation |
Why Choose NSComm 200G QSFP56 to 4×50G DAC?
-
Efficient breakout: Converts one 200G port into four 50G links.
-
Cost savings: Lower-cost alternative to optics and AOCs.
-
Ultra-low latency: Direct copper path for minimal delay.
-
Energy efficient: Passive uses near-zero power; active ≤ 2 W.
-
Vendor compatibility: Validated with all leading networking brands.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft)
Extended (active) lengths:
5 m (16 ft)
