NSComm 100G QSFP28 to 4x25G SFP28 Direct Attach Copper Cable, PVC, up to 5m
100G QSFP28 to 4×25G SFP28 Direct Attach Copper Cable (DAC), Passive, up to 5 m (16 ft)
Overview
The NSComm 100G QSFP28 to 4×25G SFP28 Direct Attach Copper Cable (DAC) is a high-density breakout copper solution for short-distance 100G to 4×25G Ethernet connections.

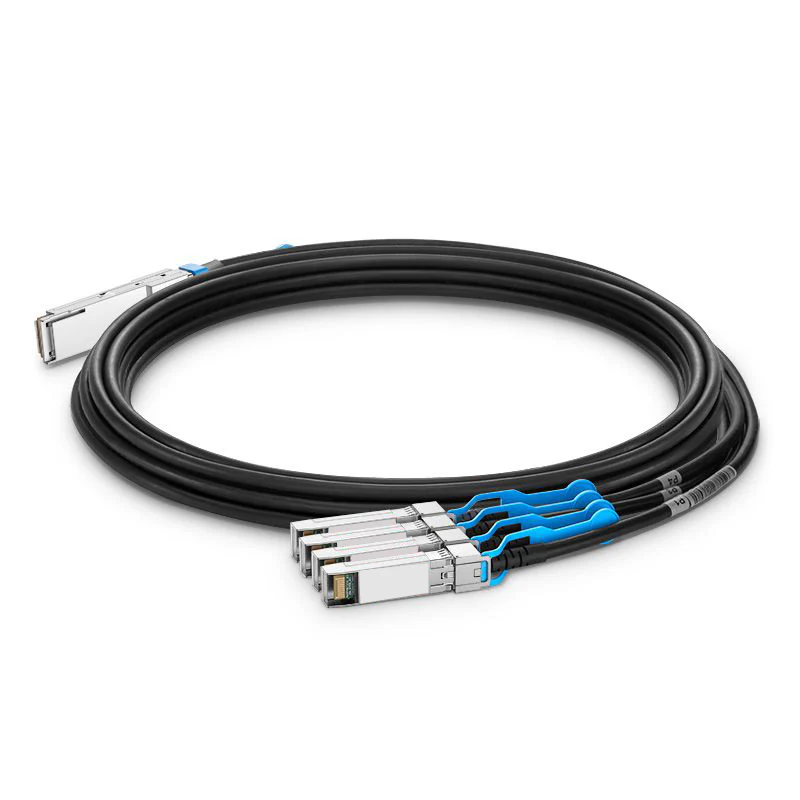

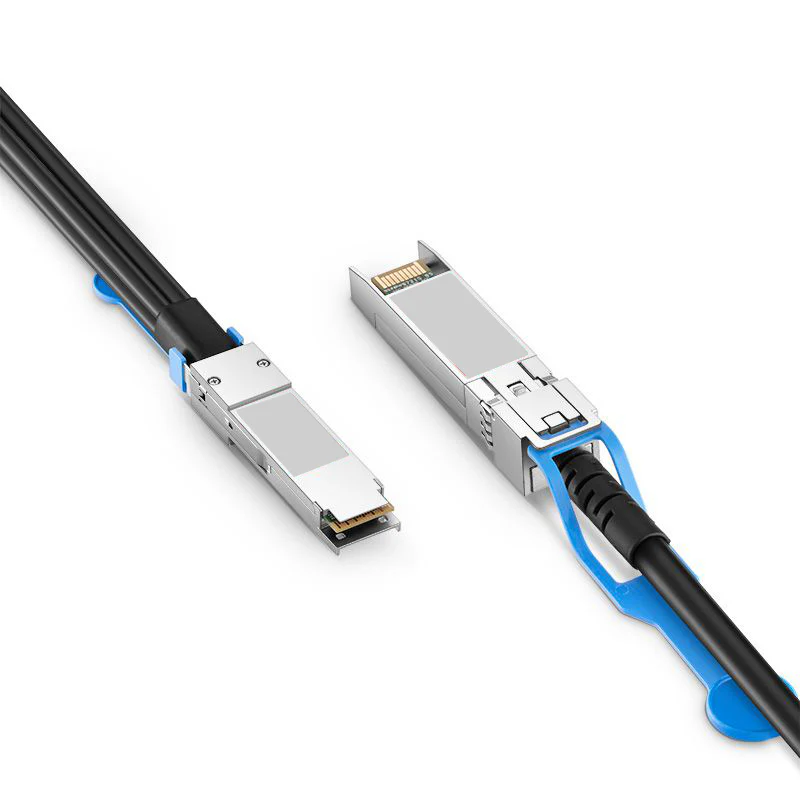

Featuring one QSFP28 connector on one end and four SFP28 connectors on the other, it enables 100G-to-25G port breakout for server uplinks, switch-to-switch connections, or aggregation nodes in top-of-rack (ToR) and middle-of-row (MoR) architectures.
Constructed with twinax copper cable, this DAC ensures ultra-low latency and eliminates the need for costly optical transceivers and fiber patch cords. The passive version supports up to 5 m (16 ft) with near-zero power consumption, while active DACs extend reach up to 7 m (23 ft) at < 1.5 W per end.
Compatible Brands
The NSComm 100G QSFP28 to 4×25G SFP28 DAC is compatible with equipment from Cisco, Huawei, Juniper, Arista, Dell, Extreme, and more.
Need assistance verifying compatibility with your device? [Contact Us Now] and our team will help.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 100G QSFP28 to 4×25G SFP28 Direct Attach Copper Cable (DAC) |
| Data Rate | 100 Gbps (4×25 Gbps breakout) |
| Cable Type | Twinax Copper, Passive/Active |
| Max Cable Distance | Passive: up to 5 m (16 ft); Active: up to 7 m (23 ft) |
| Conductor AWG Options | 30 AWG (≤ 2 m), 26 AWG (≤ 3–5 m), 24 AWG (≤ 7 m active) |
| Connector Type | 1× QSFP28 to 4× SFP28 |
| Power Consumption | Passive ≈ 0 W, Active ≤ 1.5 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP28 MSA (SFF-8665), SFP28 MSA (SFF-8402/8432), IEEE 802.3by/bj, RoHS |
| Applications | 100G-to-25G breakout, server uplinks, switch aggregation, NIC-to-switch |
Why Choose NSComm 100G Breakout DAC?
-
Breakout efficiency: Connects one 100G port to four 25G ports.
-
Ultra-low latency: Direct copper electrical path.
-
Energy efficient: Passive design consumes virtually no power.
-
Cost-optimized: Eliminates need for optical modules and fibers.
-
Interoperability: Tested across major switch and server vendors.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft)
Extended (active) lengths:
7 m (23 ft)
